7B–28 MANUAL TRANSMISSION

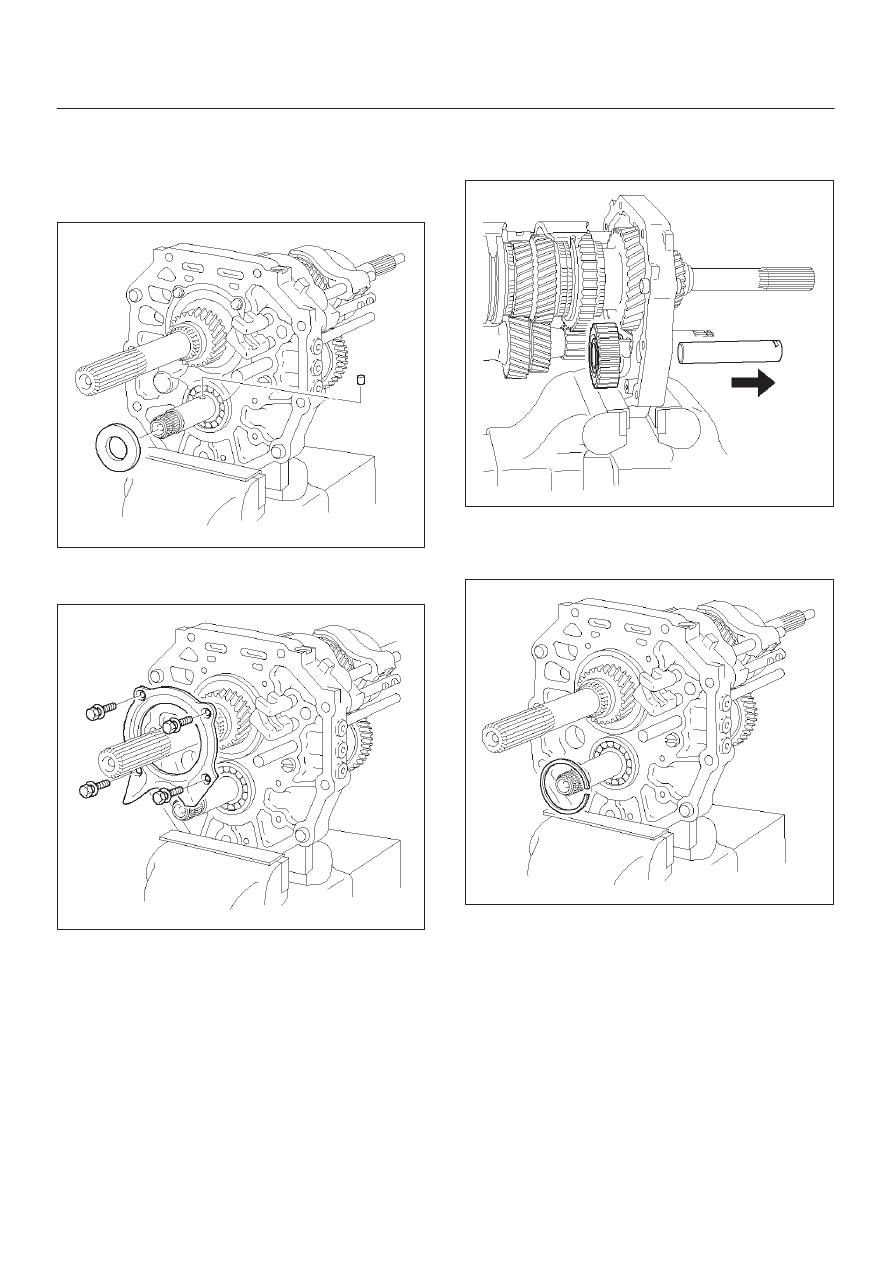

15. Remove the thrust washer.

1. Remove the thrust washer from counter gear

shaft.

2. Remove the thrust washer pin from counter gear

shaft.

226RW018

16. Remove the bearing plate.

1. Remove the 4 bolts and bearing retainer.

226RW016

17. Remove the reverse idle gear.

1. Pull out the shaft foward the rear and remove the

reverse idle gear.

226RW020

18. Remove the counter gear shaft.

1. Using snap ring plier, remove counter gear shaft

center bearing snap ring.

226RW015

MANUAL TRANSMISSION

7B–29

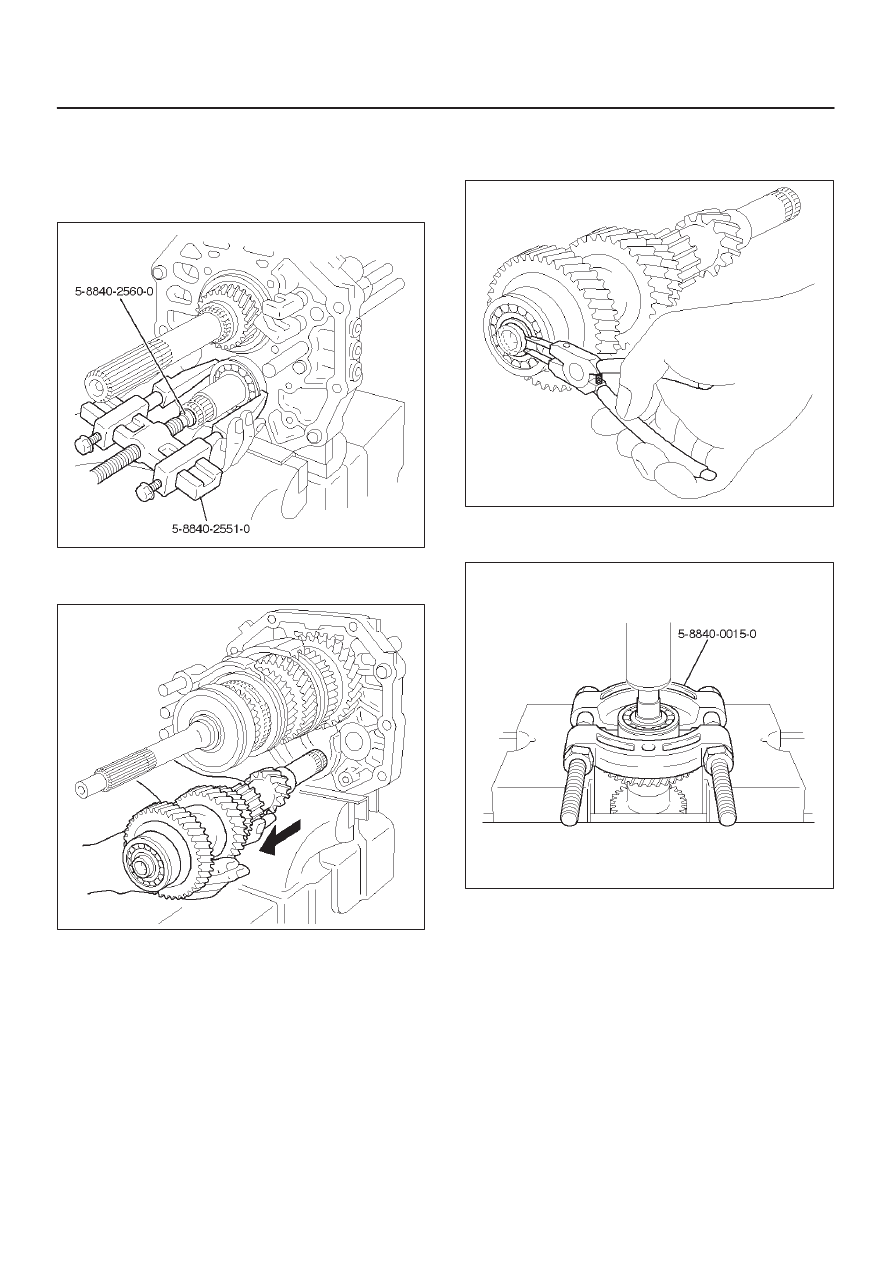

2. Using remover 5–8840–2551–0 (J–42795) and

attachment 5–8840–2560–0 (J–42988), remove
counter gear shaft center bearing.

NOTE: Be careful not to drop the counter gear, when
removing the bearing.

226RW199

3. Remove the counter gear from intermediate

plate.

226RW030

19. Disassemble the counter gear shaft assembly.

1. Using snap ring pliers, remove the counter gear

shaft front bearing snap ring.

226RW065

2. Using bearing separator 5–8840–0015–0

(J–22912–01) and a press, remove the bearing.

226RW200

7B–30 MANUAL TRANSMISSION

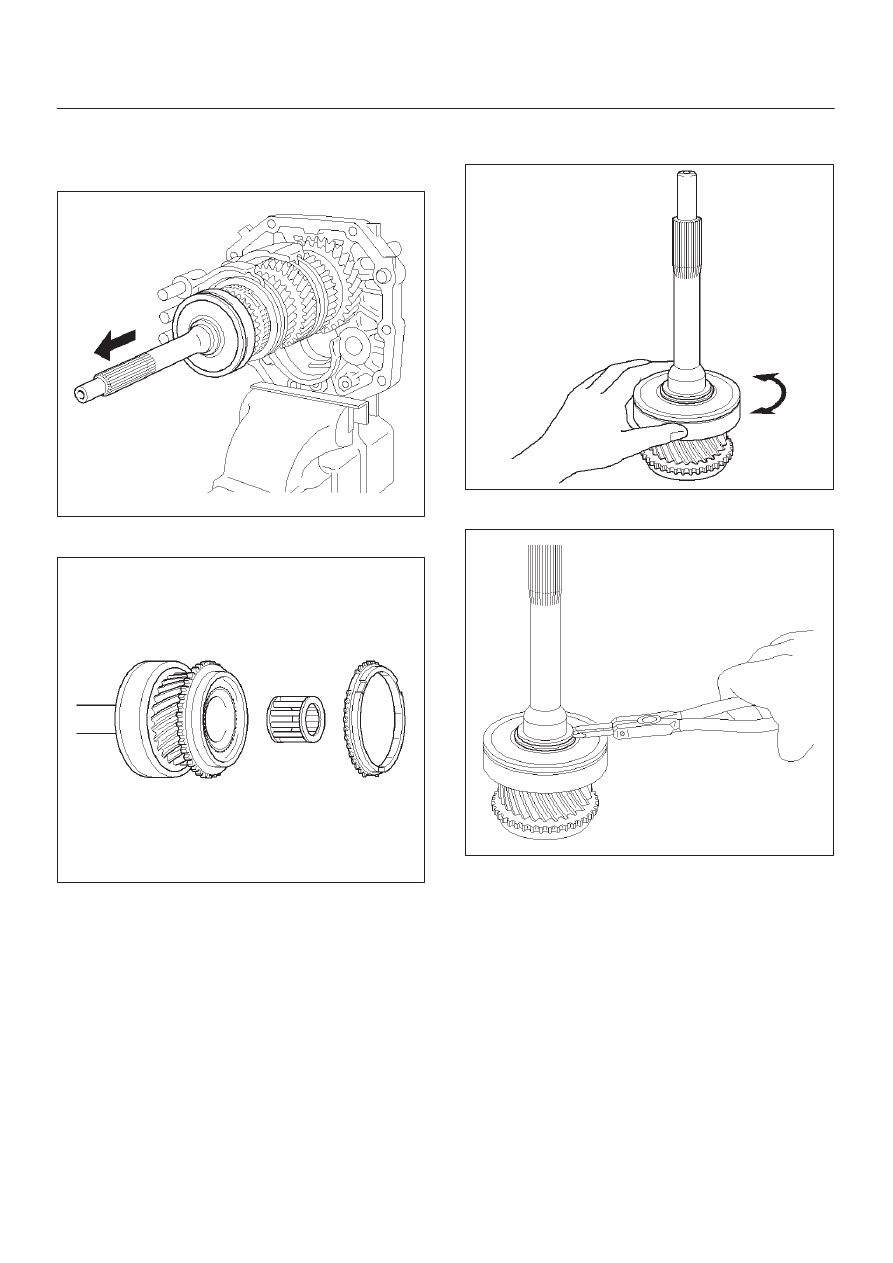

20. Remove the top gear shaft.

1. Remove the top gear shaft from mainshaft.

NOTE: Don’t fall needle roller bearing.

226RW029

2. Remove the 4th block ring and roller bearing.

226RW031

21. Disassemble the top gear shaft assembly.

1. Check for wear or damage.

226RW033

2. Remove the front bearing shaft snap ring.

226RW062

MANUAL TRANSMISSION

7B–31

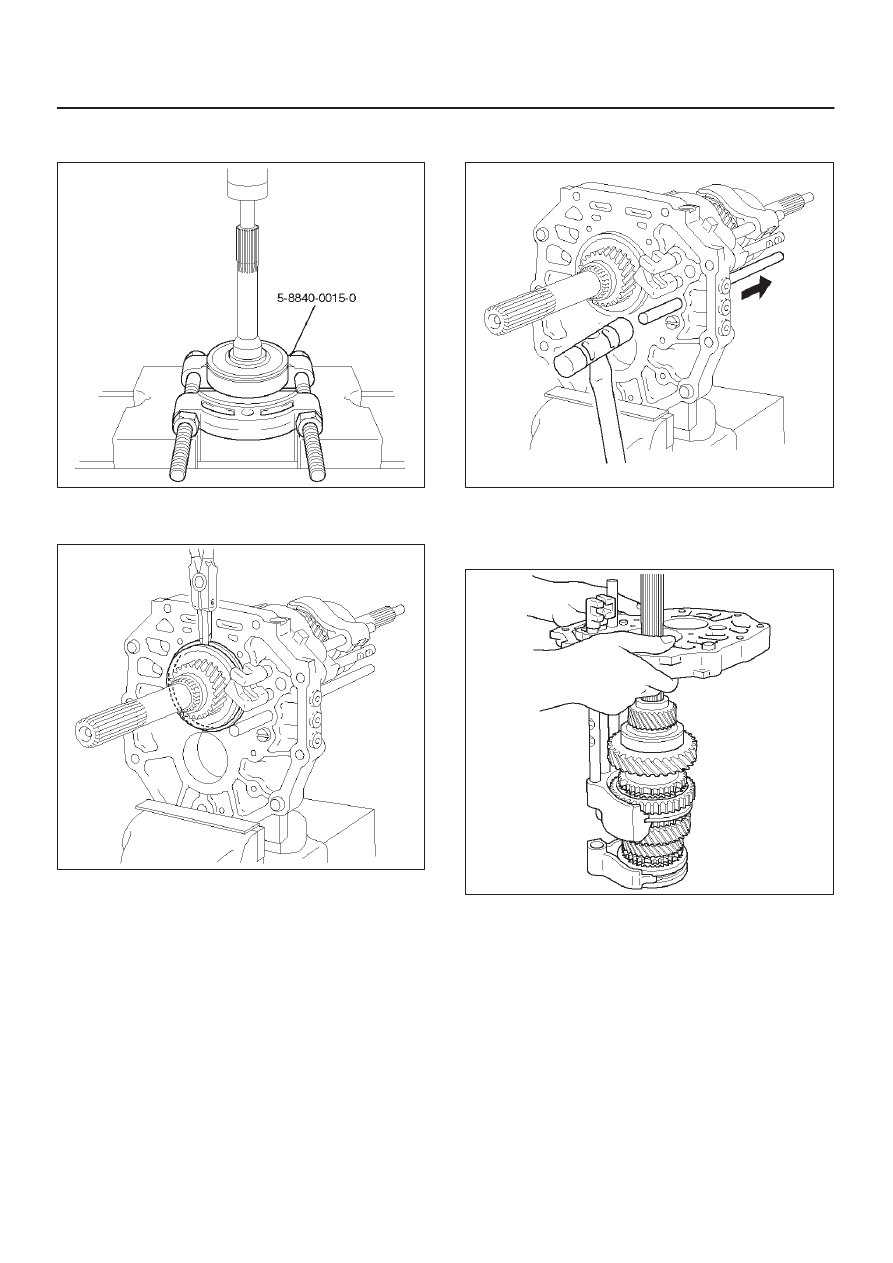

3. Using bearing separator 5–8840–0015–0

(J–22912–01) and a press, remove the bearing.

226RW202

22. Remove the mainshaft.

1. Remove mainshaft bearing snap ring.

226RW035

2. Using a plastic hammer, tap the 5th-reverse shift

rod at the reverse shift side.

226RW034

3. Remove the intermediate plate from a vise.

4. Remove the mainshaft, 1st-2nd shift arm and

3rd-4th shift arm.

226RW014
