6C–4

ENGINE FUEL

Fuel Filter

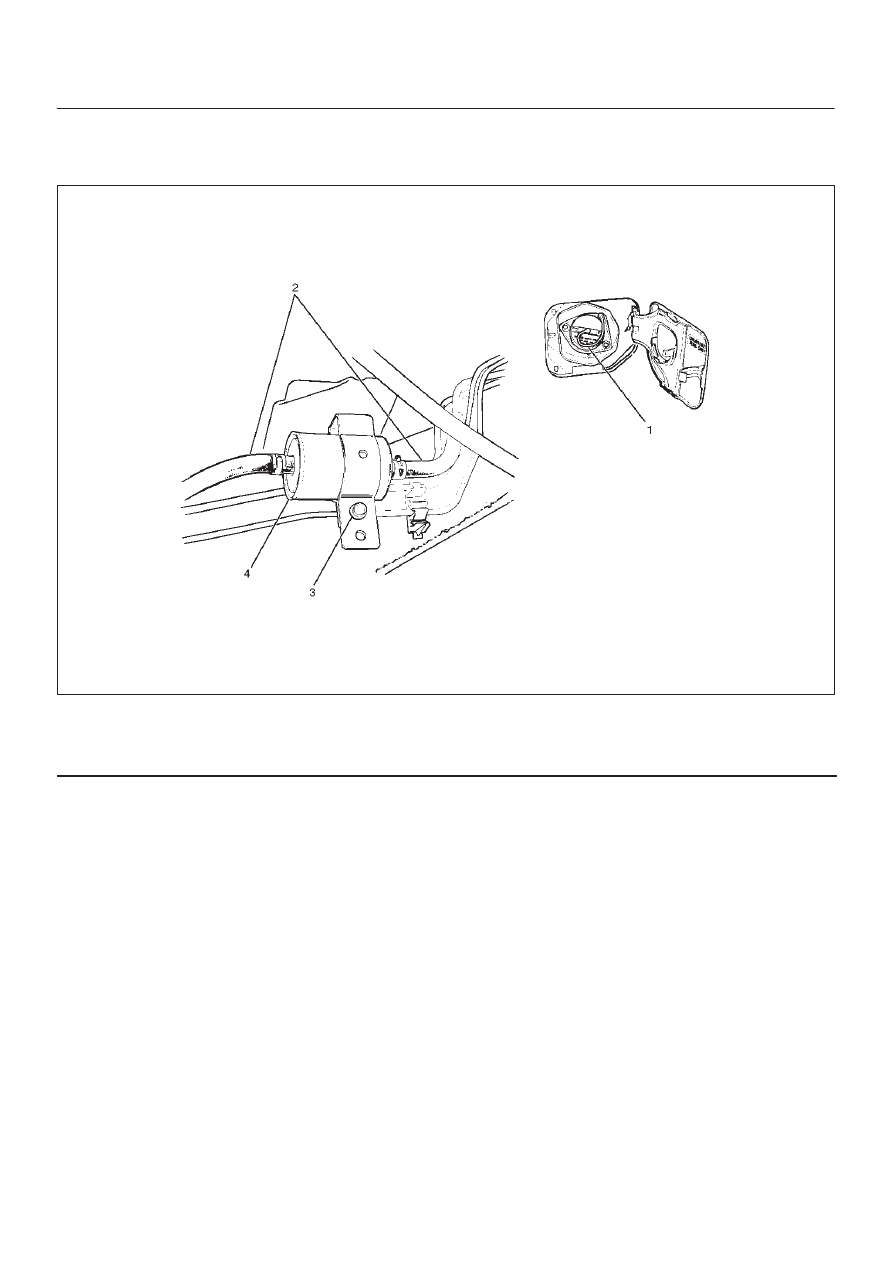

Fuel Filter and Associated Parts

041RW014

Legend

(1) Fuel Filler Cap
(2) Fuel Hose

(3) Fuel Filter Fixing Bolt
(4) Fuel Filter

Removal

CAUTION: When repair to the fuel system has been
completed, start engine and check the fuel system
for loose connection or leakage. For the fuel system
diagnosis, see Section “Driveability and Emission”.

1. Disconnect battery ground cable.
2. Remove Fuel filler cap(1).
3. Disconnect fuel hoses(2) from fuel filter on both

engine side and fuel tank side.

4. Fuel filter fixing bolt(3).

D

Remove the fuel filter fixing bolt(3) on fuel filter
holder.

5. Remove fuel filter(4).

Inspection

1. Replace the fuel filter if the fuel leaks from fuel filter

body or if the fuel filter body itself is damaged.

2. Replace the filter if it is clogged with dirt or sediment.
3. Check the drain of receive rubber and if it is clogged

with dust, clean it up with air.

6C–5

ENGINE FUEL

Installation

1. Install the fuel filter in the proper direction.
2. Install fuel filter holder fixing bolt.
3. Connect fuel hoses on engine side(1) and fuel tank

side(2).

041RW001

4. Install fuel filler cap
5. Connect the battery ground cable.

Inspection

After installation, start engine and check for fuel leakage.

In–Tank Fuel Filter

The filter is located on the lower end of fuel pickup tube in
the fuel tank. It prevents dirt from entering the fuel pipe
and also stops water unless the filter is completely
submerged in the water. It is a self cleaning type, not
requiring scheduled maintenance. Excess water and
sediment in the tank restricts fuel supply to the engine,
resulting in engine stoppage. In such a case, the tank
must be cleaned thoroughly.

Fuel Pump Flow Test

If reduction of fuel supply is suspected, perform the
following checks:

1. Make sure that there is fuel in the tank.
2. With the engine running, check the fuel feed pipe and

hose from fuel tank to injector for evidence of
leakage. Retighten, if pipe or hose connection is
loose. Also, check pipes and hoses for squashing or
clogging.

3. Insert the hose from fuel feed pipe into a clean

container, and check for fuel pump flow rate.

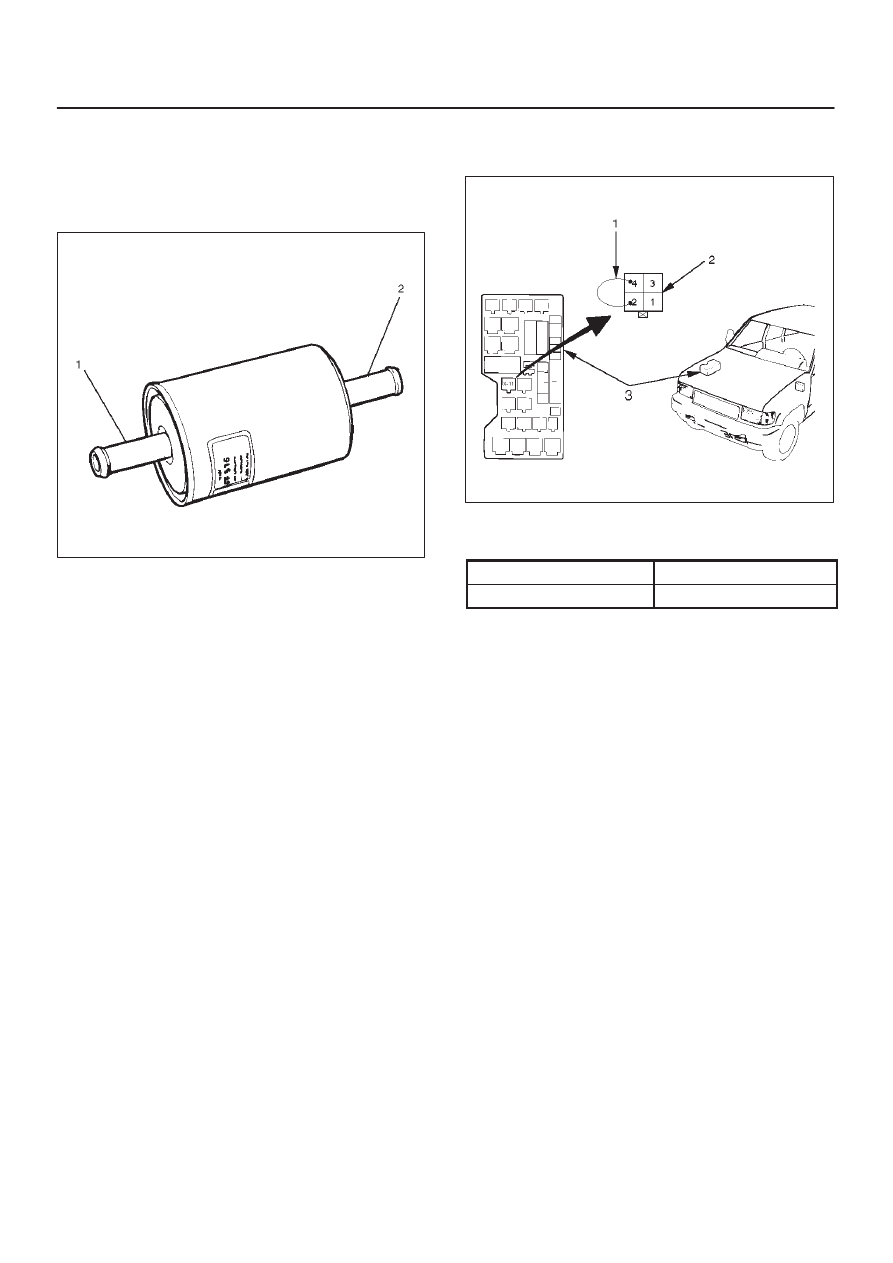

4. Connect the pump relay terminals with a jumper

wire(1) as shown and start the fuel pump to measure
delivery.

140RW002

CAUTION: Never generate sparks when connecting
a jumper wire.

Delivery

Delivery

15 seconds

0.38 liters minimum

If the measure value is out of standard, conduct the
pressure test.

Pressure test

For the pressure test to the fuel system, see Section 6E
“Fuel Control System”.

6C–6

ENGINE FUEL

Fuel Pump

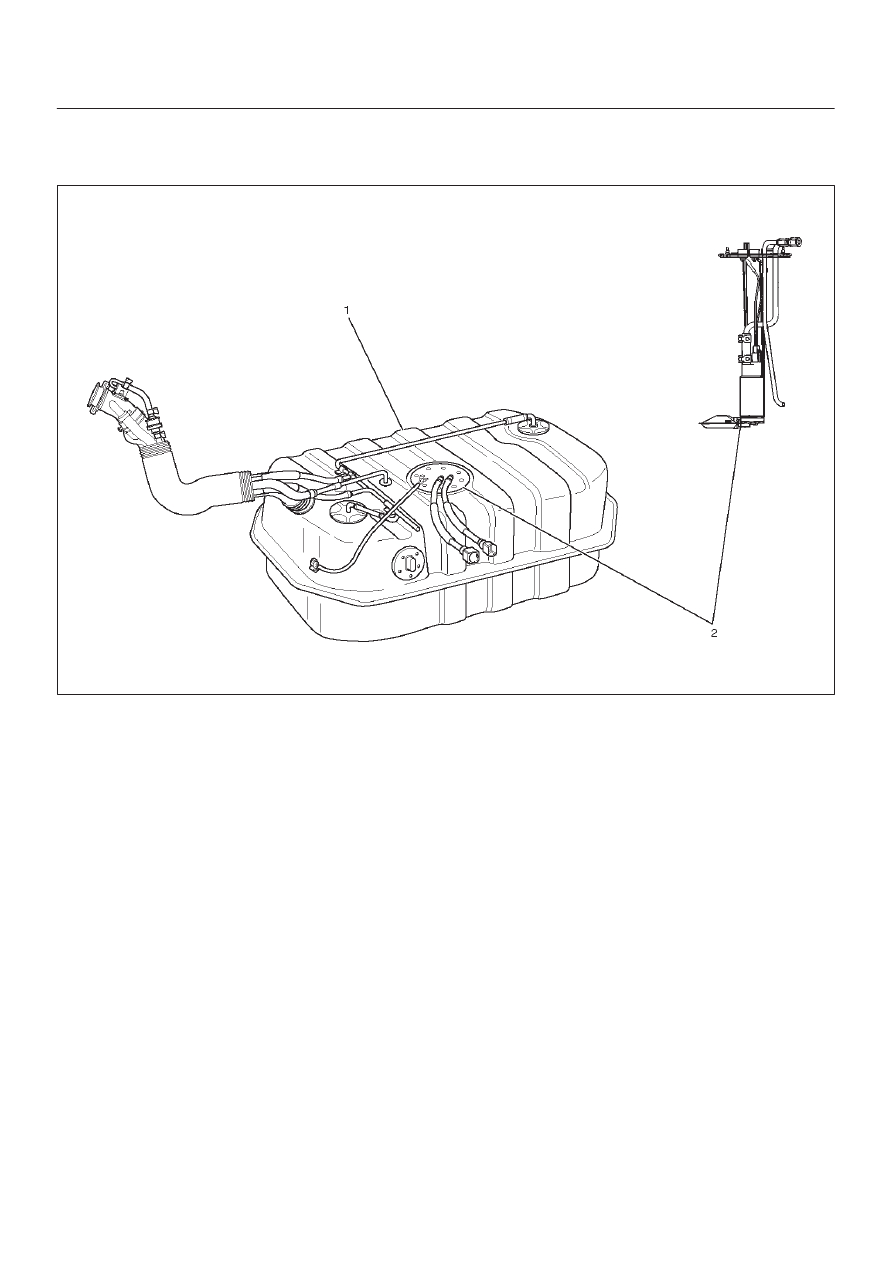

Fuel Pump and Associated Parts

035RW047

Removal

CAUTION: When repair to the fuel system has been
completed, start engine and check the fuel system
for loose connection or leakage. For the fuel system
diagnosis, see Section “Driveability and Emission”.

1. Disconnect battery ground cable.
2. Loosen fuel filler cap.
3. Drain fuel.

Tighten drain plug to the specified torque after
draining fuel.

Torque: 20 N·m (2.0 Kg·m/14 lb ft) — M8

4. Remove fuel tank assembly(1). Refer to “Fuel Tank

Removal” in this section.

5. Remove fuel pump (FP) assembly(2) fixing screws

and remove the FP assembly.

NOTE: After removing FP, cover fuel tank to prevent any
dust entering.

Installation

1. Install FP assembly(2).
2. Install fuel tank assembly(1). Refer to “Fuel Tank

Installation”.

3. Fill the tank with fuel and tighten fuel filler cap.
4. Connect battery ground cable.

6C–7

ENGINE FUEL

Fuel Pump Relay

General Description

In order to control the FP operation, the FP relay is
provided. When the starter switch is turned to “ON”
position, the FP relay operates the FP for 2 seconds.

When it is turned to “START” position, the Power Train
Control Module (PCM) receives the reference pulse from
the Ignition Control Module and it operates the relay,
again causing the FP to feed fuel.

Fuel Tank

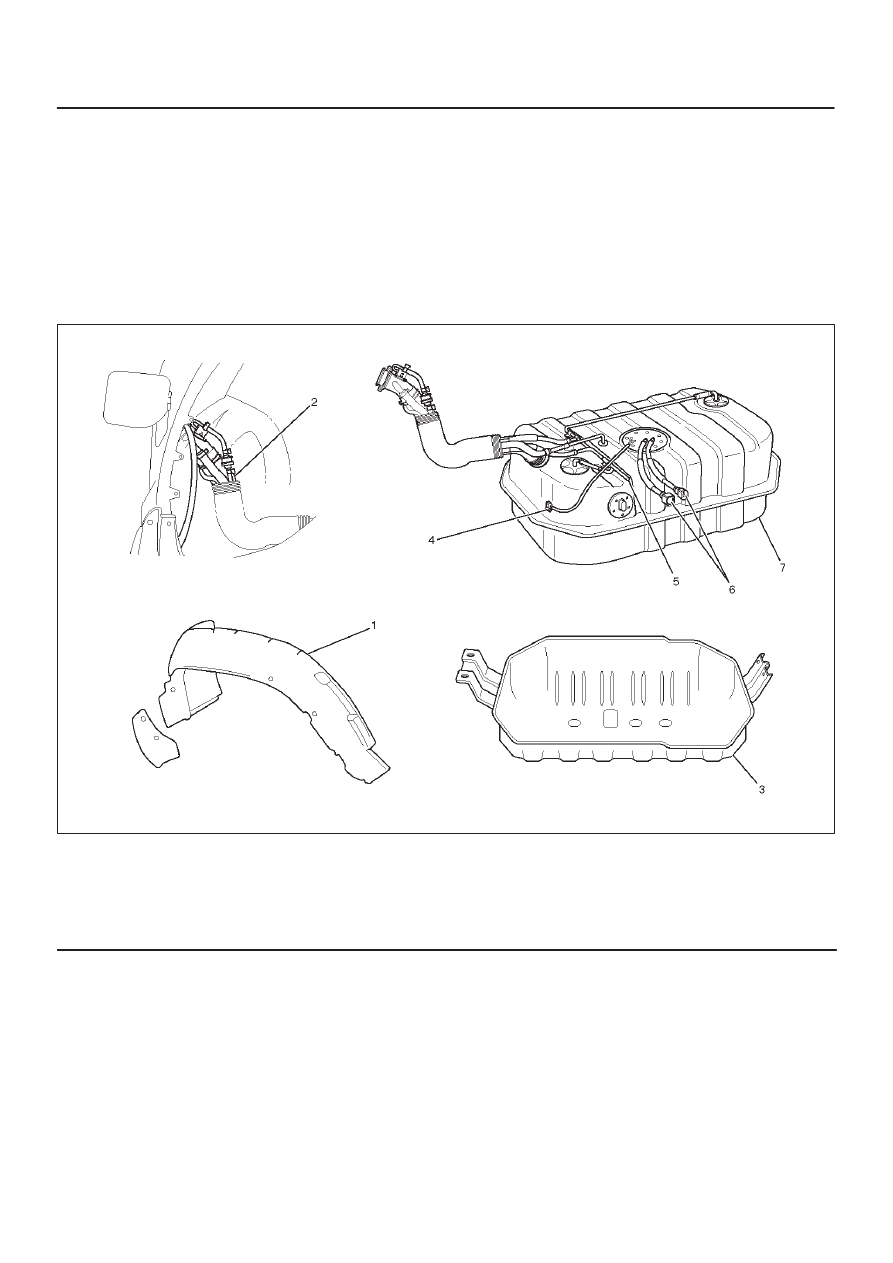

Fuel Tank and Associated Parts

035RW048

Legend

(1) Fender Liner
(2) Fuel Filler Hose and Air Breather Hose and

Evapo Hose

(3) Undercover

(4) Fuel Tank Wiring Connector
(5) Evapo Fuel Hose
(6) Fuel Feed Tube and Fuel Return

Tube/Quick–Connect Fittings

(7) Fuel Tank

Removal

CAUTION: When repair to the fuel system has been
completed, start engine and check the fuel system
for loose connection or leakage. For the fuel system
diagnosis, see Section “Driveability and Emission”.

1. Disconnect battery ground cable.
2. Loosen fuel filler cap.

3. Drain fuel.

Tighten drain plug to the specified torque after
draining fuel.

Torque: 20 N·m (2.0 Kg·m/14 lb ft) — M8

4. Remove fender liner (1) of wheel well on rear right

side.

5. Fuel filler hose, air breather hose and evapo hose (2).
6. Remove undercover fixing bolts on both sides and

remove under cover(3).
