Opel Frontera UBS. Manual - part 2580





AUTOMATIC TRANSMISSION (AW30-40LE)

7A–183

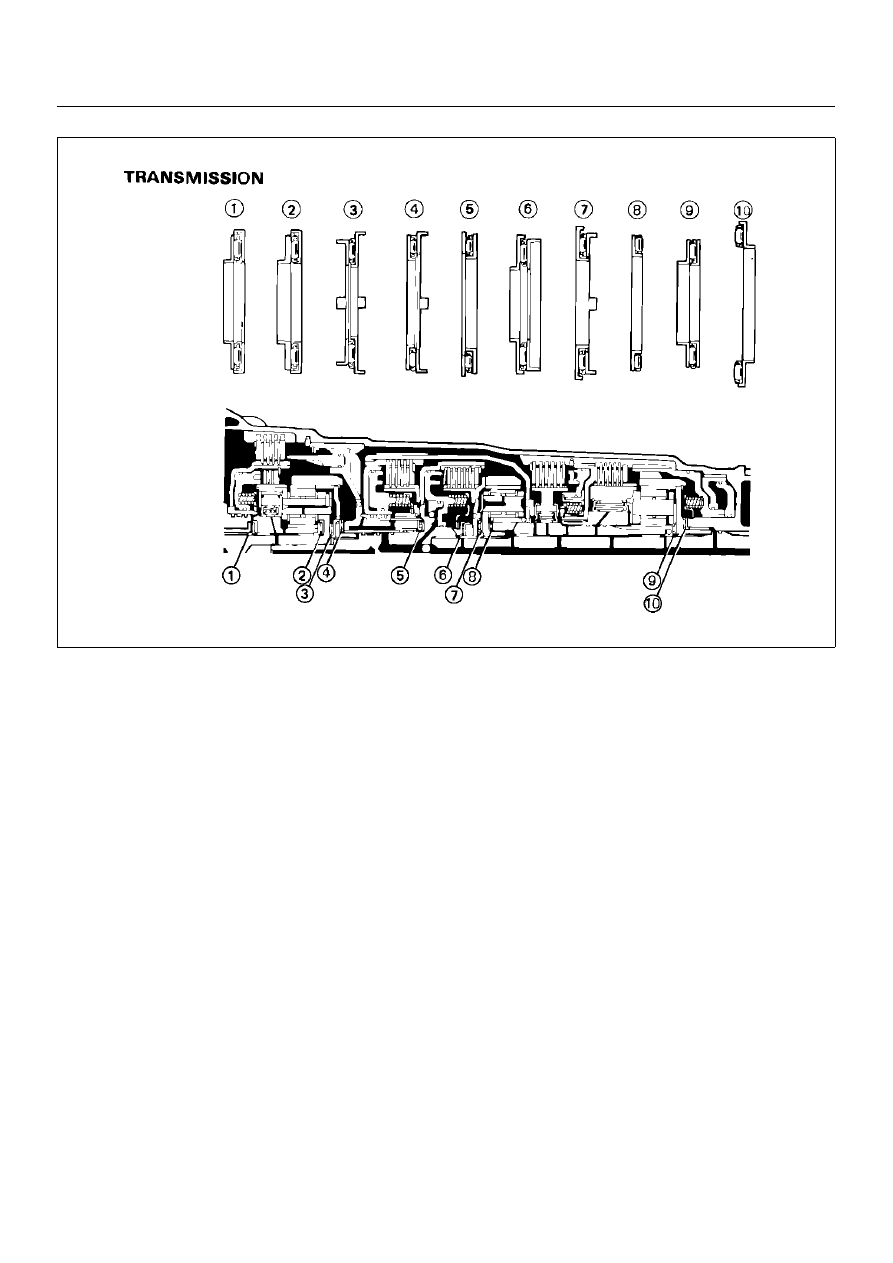

240RY00022

7A–184

AUTOMATIC TRANSMISSION (AW30-40LE)

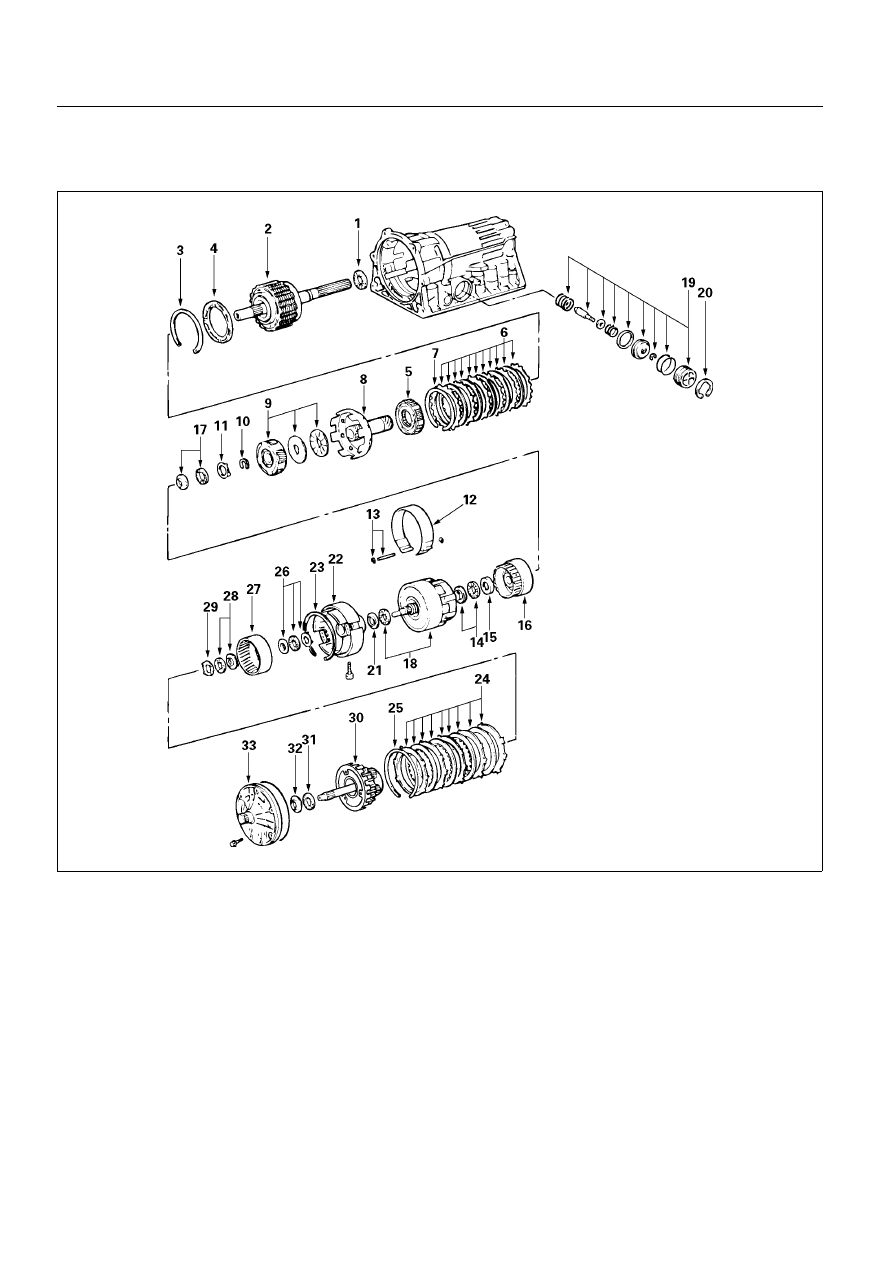

REASSEMBLY OF MAJOR COMPONENTS (1)

248L100002

Reassembly steps

 1. Bearing

 2. Rear planetary gear, second brake drum

and output shaft

 3. Snap ring

 4. Second brake piston sleeve

 5. One–way clutch

 6. Flange plate and disc

 7. Snap ring

 8. Drum

 9. Front planetary gear and bearing

 10. Snap ring

 11. Race

 12. Second coast brake band

 13. E–ring and pin

 14. Bearing and race

 15. Race

 16. Front planetary ring gear

 17. Bearing and race

 18. Direct clutch and forward clutch

 19. Second coast brake piston assembly

 20. Snap ring

 21. Race

AUTOMATIC TRANSMISSION (AW30-40LE)

7A–185

 22. OD support

 23. Snap ring

 24. Flange, plate and disc

 25. Snap ring

 26. Bearing and race

 27. OD planetary ring gear

 28. Bearing and race

 29. Race

 30. OD planetary gear and OD direct clutch

 31. Bearing

 32. Race

 33. Oil pump

7A–186

AUTOMATIC TRANSMISSION (AW30-40LE)

247RY00008

247RY00009

247RY00010

246RY00003

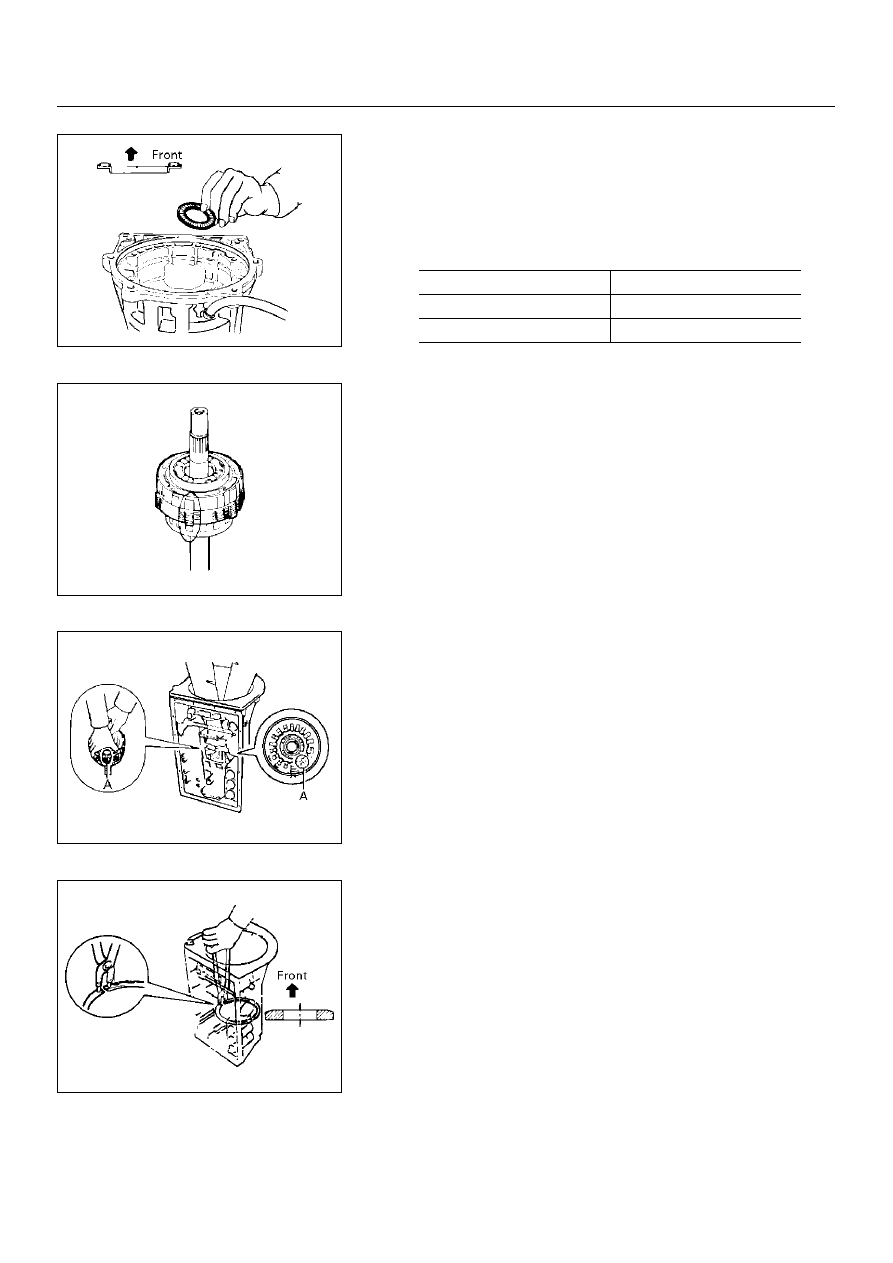

Important operations

1. Bearing

Coat the assembled bearing and race with petroleum jelly
and install it onto the case.

2. Rear planetary gear, second brake drum and output

shaft
Align the teeth of the second brake drum, flanges, discs
and plates as shown in the figure.

Align the splines of the transmission case and the
assembled rear planetary gear, second brake drum and
output shaft, indicated by A in the figure at left.

3. Snap ring

Using snap ring pliers, install the snap ring.

Assemble bearing and race (reference)

mm (in.)

Bearing and race

Diameter

Inside

39.2 (1.543)

Outside

57.7 (2.272)
