AUTOMATIC TRANSMISSION (AW30-40LE)

7A–179

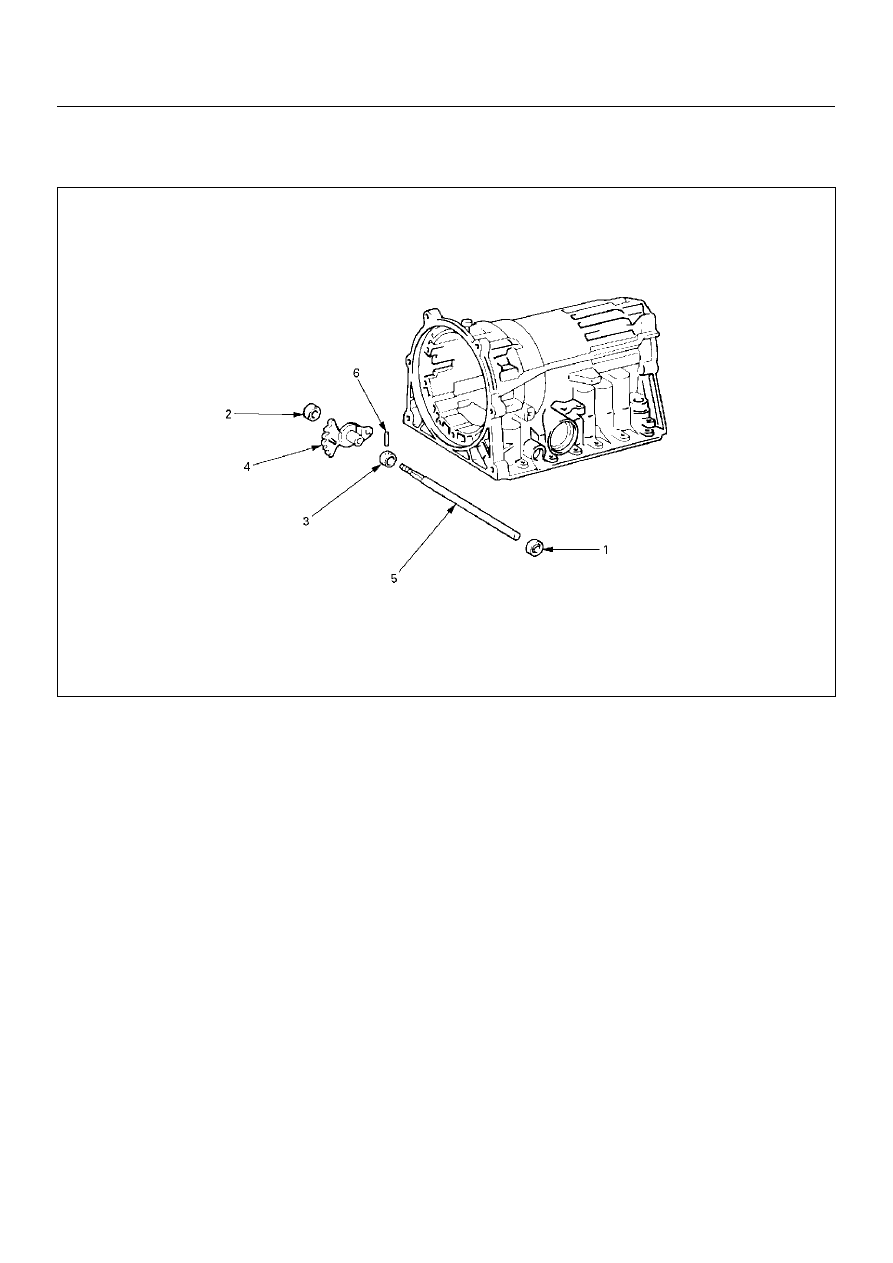

REASSEMBLY

249RX00001

Reassembly steps

▲

 1. Oil seal

▲

 2. Oil seal

▲

 3. Spacer

▲

 4. Manual valve lever

▲

 5. Manual valve lever shaft

▲

 6. Pin

7A–180

AUTOMATIC TRANSMISSION (AW30-40LE)

240RY00021

249RY00005

249RY00006

249RY00003

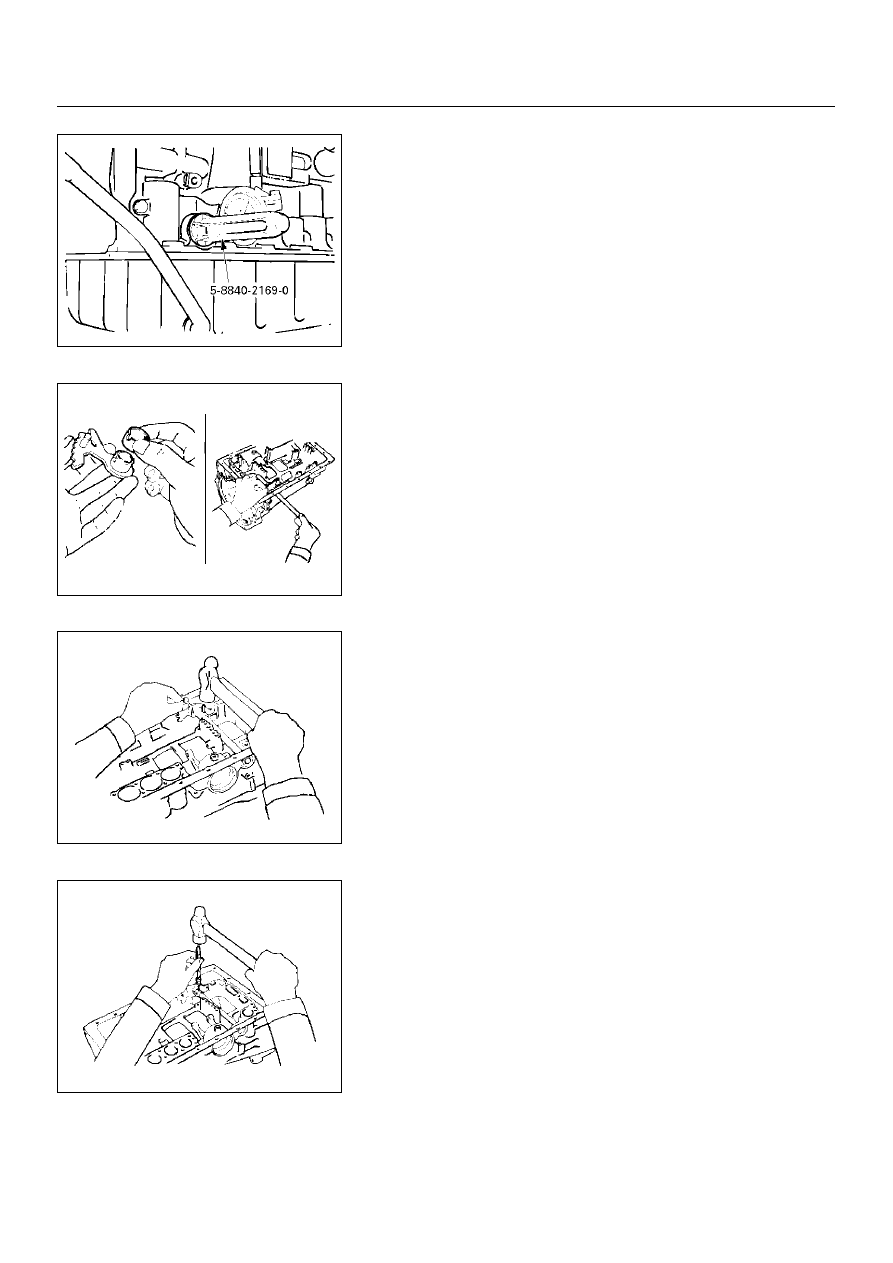

Important operations

1. Oil seal

2. Oil seal

Coat a new oil seal lip with multi purpose grease.
Using special tool, drive in the oil seal.
Oil seal installer : 5–8840–2169–0 (J–37232–2)

3. Spacer

4. Manual valve lever

Assemble a new spacer to the manual valve lever.

5. Manual valve lever shaft

Install the manual valve lever shaft to the transmission case
through the manual valve lever by the threads.

6. Pin

Drive in the pin with the slot at a right angle to the shaft.

Match the spacer hole to the lever staking hollow and stake
the spacer to the lever.
Make sure the manual valve lever shaft turns smoothly.

AUTOMATIC TRANSMISSION (AW30-40LE)

7A–181

241RY00018

TORQUE CONVERTER

INSPECTION AND REPAIR

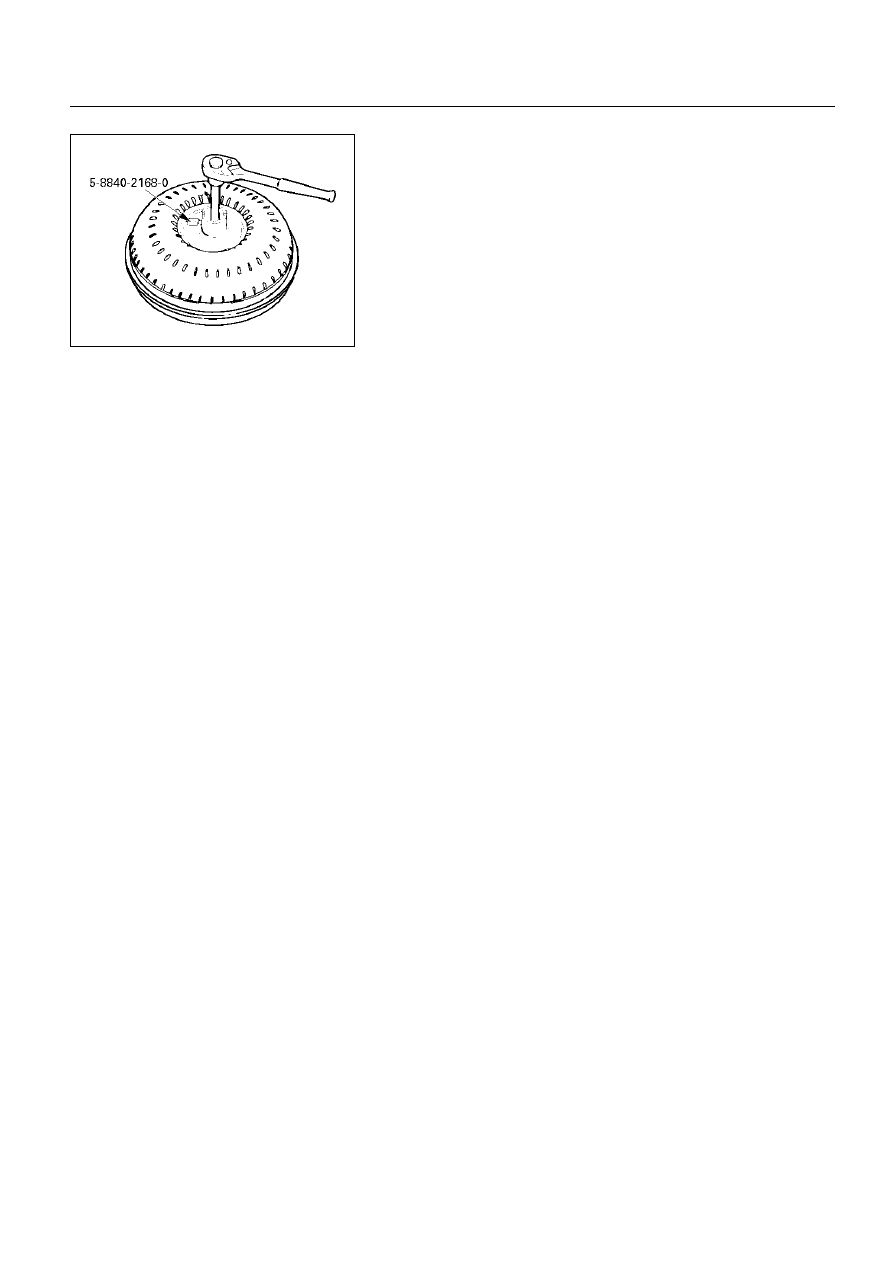

Insert special tool in end of torque converter

Insert a turning tool into the inner race of the one–way
clutch.
One–way clutch testing tool : 5–8840–2168–0 (J–35467)
Insert the stopper so that it fits in the notch of the converter
hub and outer race of the one–way clutch.

Test one–way clutch

The clutch should lock when turned counterclockwise, and
rotate freely and smoothly clockwise. Less than 25kg·cm
(22 Ib·in) of torque should be required to rotate the clutch
clockwise. If necessary, clean the converter and retest the
clutch. Replace the converter if the clutch still fails the test.

7A–182

AUTOMATIC TRANSMISSION (AW30-40LE)

REASSEMBLY OF MAJOR COMPONENTS

Disassembly, inspection and reassembly of each
component group have been indicated in the preceding
chapter. Before reassembly, make sure, again, that all
component groups are assembled correctly.
If something wrong is found in a certain component group
during assembly, inspect and repair this group immediately.

GENERAL ASSEMBLY NOTES:

1. The automatic transmission is composed of highly

precision–finished parts, necessitating careful inspection
before assembly because even a small nick could cause
fluid leakage or affect performance.

2. Before assembling new clutch discs and brake bands, soak

them in automatic transmission fluid for at least thirty
minutes.

3. Apply automatic transmission fluid on the sliding or rotating

surfaces of parts before assembly.

4. Use petroleum jelly to keep small parts in their places.

5. Do not use adhesive cements on gaskets and similar parts.

6. When assembling the transmission, be sure to use new

gaskets and O–rings.

7. Dry all parts with compressed air - never use shop rags.

8. Be sure to install the thrust bearings and races in the

correct direction and position.
