AUTOMATIC TRANSMISSION (AW30-40LE)

7A–111

241RY00013

Using special tool, install a new oil seal.
The oil seal end should be flush with the outer edge of the
pump body.
Oil seal installer: 5-8840-2256-0 (J-9617)
Coat the oil seal lip with multi purpose grease.

7A–112

AUTOMATIC TRANSMISSION (AW30-40LE)

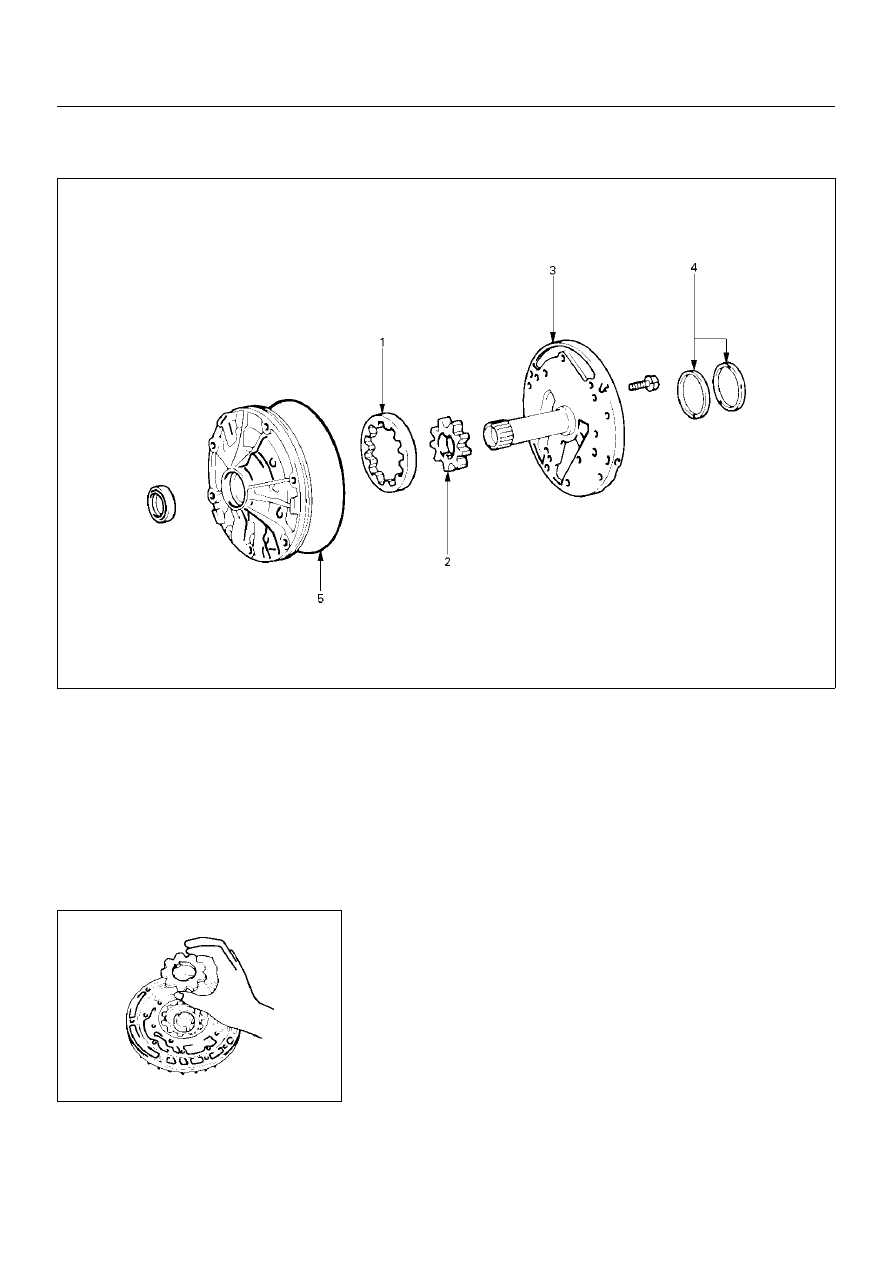

REASSEMBLY

241RY00019

241RY00014

Important operations

1. Oil pump driven gear

Place the oil pump body on the torque converter.
Coat the driven gear and drive gear with ATF.
Install the driven gear and drive gear.

Reassembly steps

 1. Oil pump driven gear

2. Oil pump drive gear

 3. Stator shaft

 4. Oil seal ring

 5. O-ring

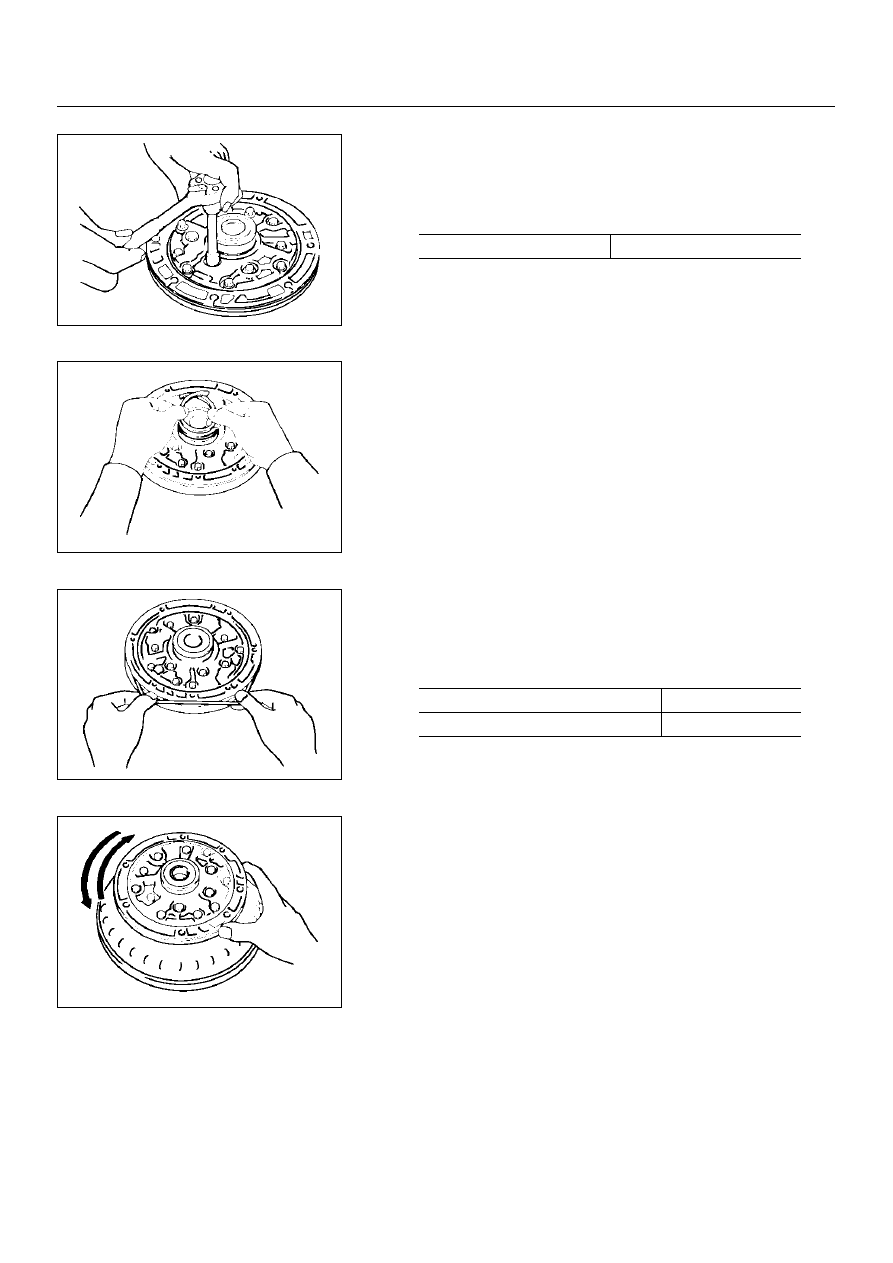

AUTOMATIC TRANSMISSION (AW30-40LE)

7A–113

241RY00006

241RY00015

241RY00016

241RY00017

3. Stator shaft

Align the stator shaft with the bolt holes.
Tighten the thirteen bolts.

4. Oil seal ring

Coat the oil seal rings with ATF.
Contract the oil seal rings as shown, and install them onto
the stator shaft.

NOTE:
Do not spread the ring ends too much.

5. O-ring

Coat a new O-ring with ATF and install it to the oil pump
body.

Check oil pump drive gear rotation

Make sure the drive gear rotates smoothly when installed to
the torque converter.

N·m (kg·m/Ib in)

Torque

11 (1.1/95)

O-ring size (Reference)

mm (in.)

Inside diameter

204.9 (8.067)

Thickness

3.5 (0.138)

7A–114

AUTOMATIC TRANSMISSION (AW30-40LE)

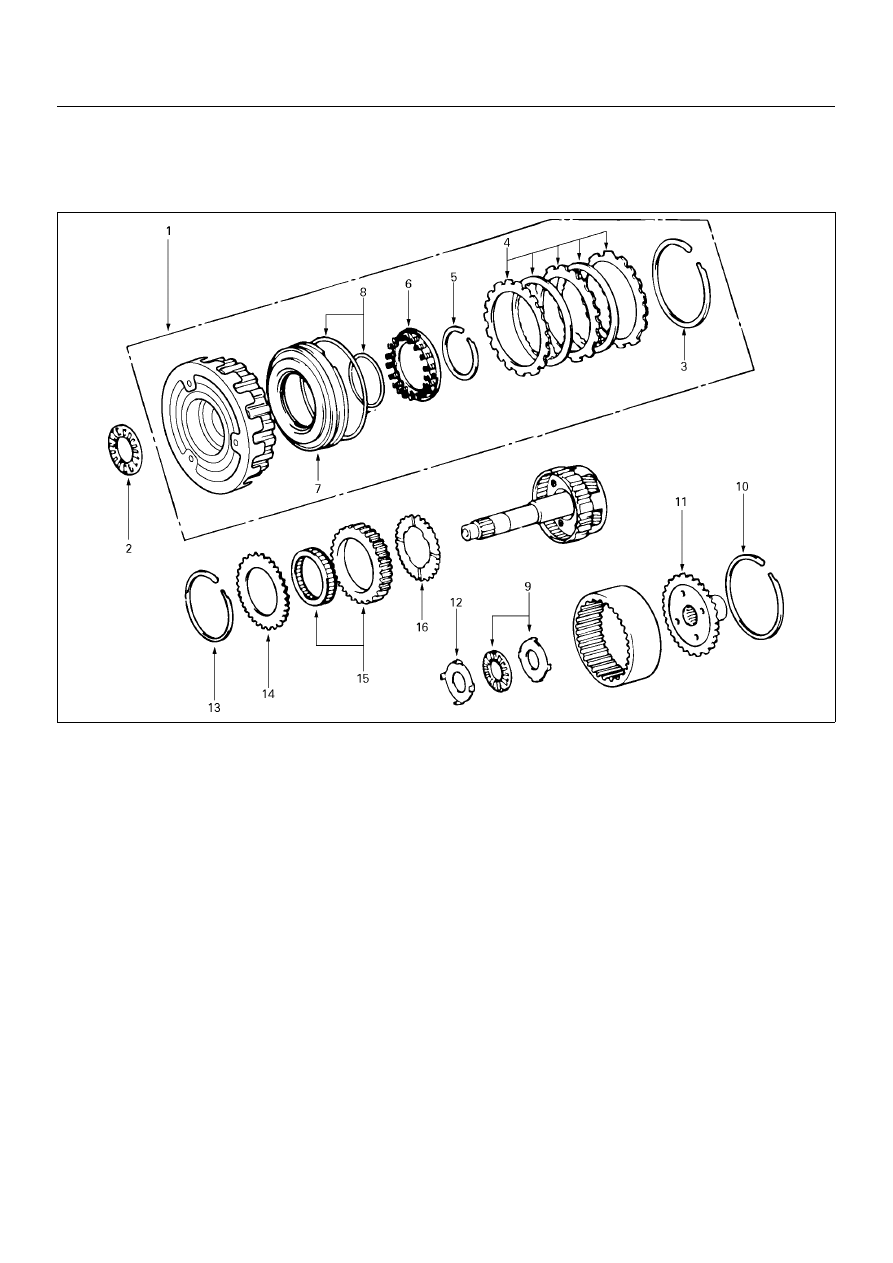

OD PLANETARY GEAR AND OD DIRECT CLUTCH ASSEMBLY (C-0)

DISASSEMBLY

252L100002

Disassembly steps

 1. OD direct clutch assembly

 2. Thrust bearing

 3. Snap ring

 4. Flange, disc and plate

 5. Snap ring

 6. Piston return spring

 7. OD direct clutch piston with O-ring

 8. O-ring

 9. Thrust bearing

 10. Snap ring

 11. Ring gear flange

12. Race

 13. Snap ring

 14. Retaining plate

 15. OD one-way clutch

 16. Thrust washer
