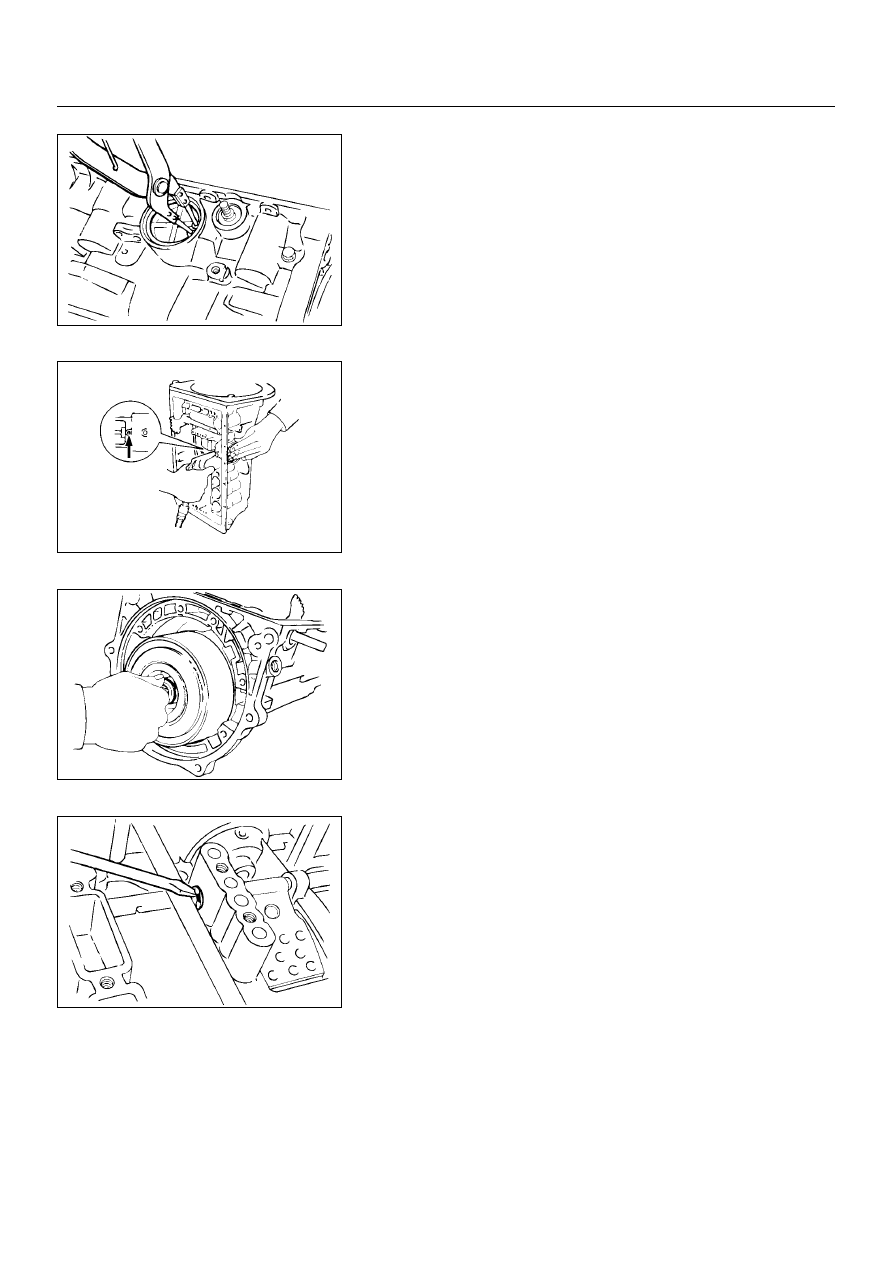

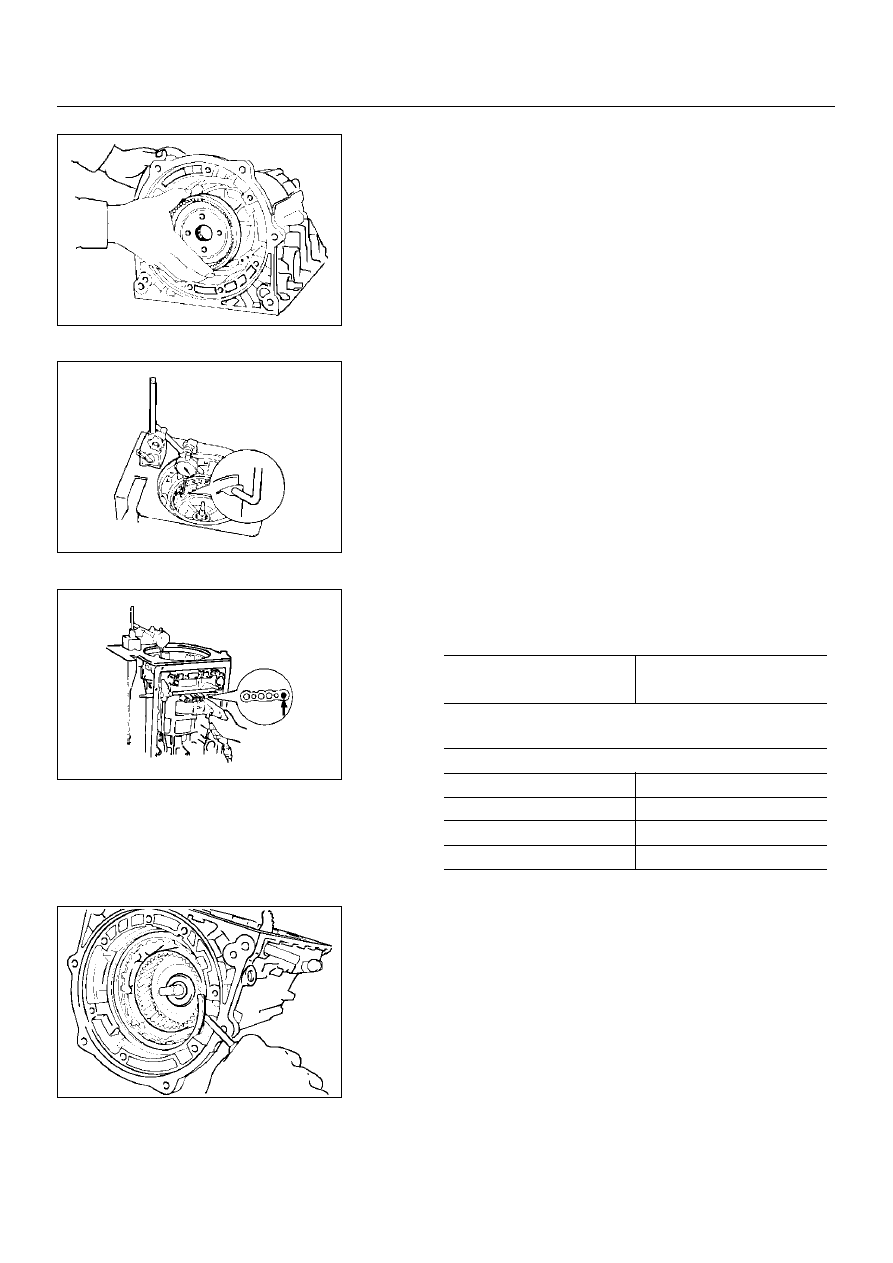

AUTOMATIC TRANSMISSION (AW30-40LE) 7A–99 252RY00002 252RY00003 244RY00001 246RY00001 5. OD planetary ring gear Remove the overdrive planetary ring gear from the Check piston stroke of overdrive brake Place a dial indicator onto the overdrive brake piston as Measure the stroke applying and releasing the compressed 2 , 57– 114 psi or 392– 785kPa) as shown in the figure. mm (in.) If the values are nonstandard, select another flange. 6. Snap ring Remove the snap ring. Piston stroke 1.40–1.70 (0.0551–0.0669) Available flange sizes mm (in.) 3.3 (0.130) 3.8 (0.150) 3.5 (0.138) 3.9 (0.154) 3.6 (0.142) 4.0 (0.158) 3.7 (0.146) |
