AUTOMATIC TRANSMISSION (AW30-40LE)

7A–79

244RY00005

101RY00004

249RW003

242RW013

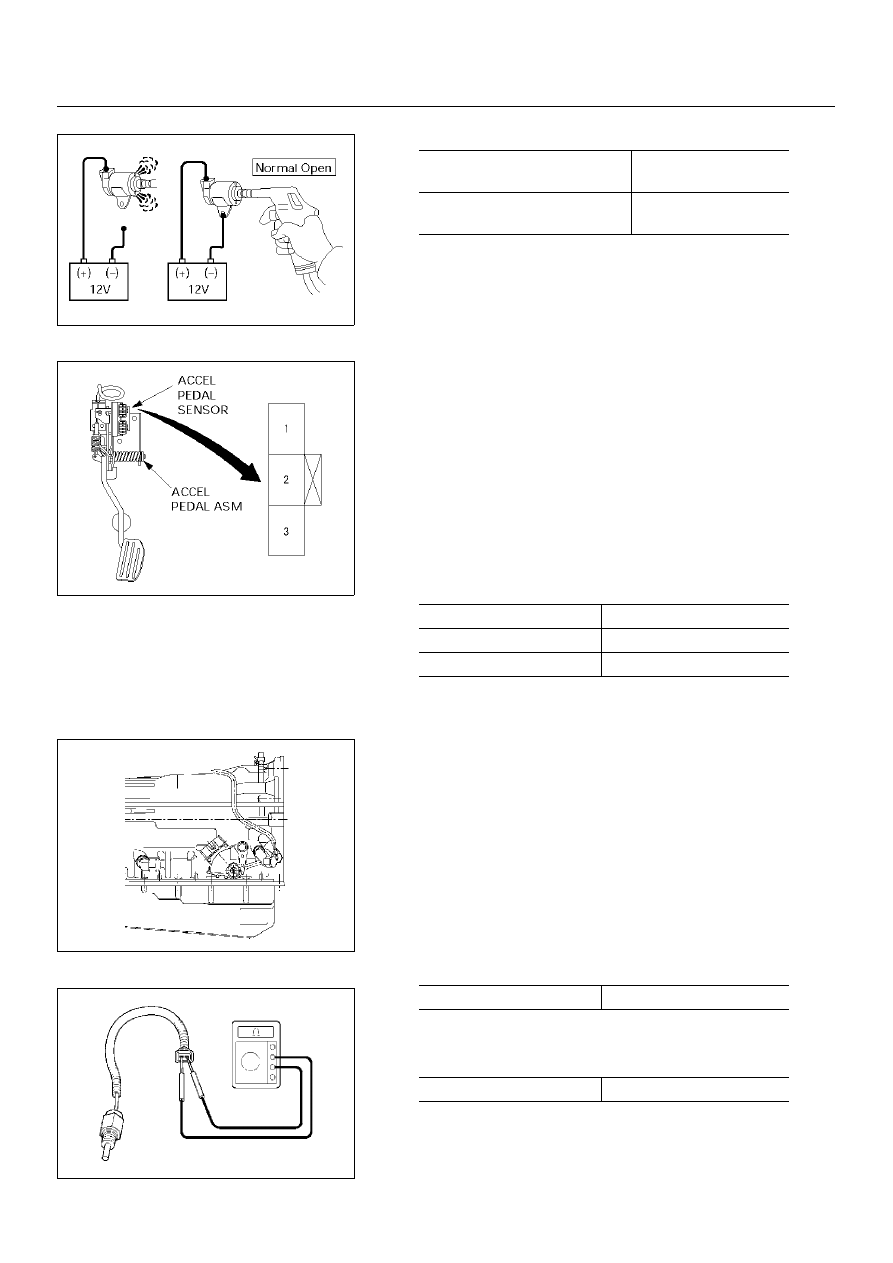

Look-up solenoid (Normal open type)

THROTTLE POSITION SENSOR
INSPECTION

1. Turn the starter switch to the "ON" position.

2. Measure the voltage between throttle position sensor

connector terminals 2 (output) and 3 (ground).

NOTE:

• Do not remove the sensor connector.

• Make sure that power source (4.75-5.25V) is measured

between terminals 1 and 3 before measurement at step
2).

ATF TEMPERATURE SENSOR
INSPECTION

1. Disconnect the front side ATF cooler pipe from the elbow

and remove the elbow.

2. Remove the ATF temperature sensor from the transmission

case.

3. Place the ATF temperature sensor in a container of ATF.

4. Measure the resistance between each terminals.

5. If either of the measured values exceeds the specified,

replace the ATF temperature sensor.

N

·

m (kg

·

m/ lb

·

ft)

When battery terminal is

disconnected

Air passes through

When battery terminal is

connected

No air leaks

Throttle position

Voltage (V)

Idle

0.25-0.45

WOT

3.74-4.56

Resistance

0.5 - 30 k

Ω

(0

°

C - 120

°

C)

Torque

15 (1.5/11)

7A–80

AUTOMATIC TRANSMISSION (AW30-40LE)

256RY00001

256RW012

256RW013

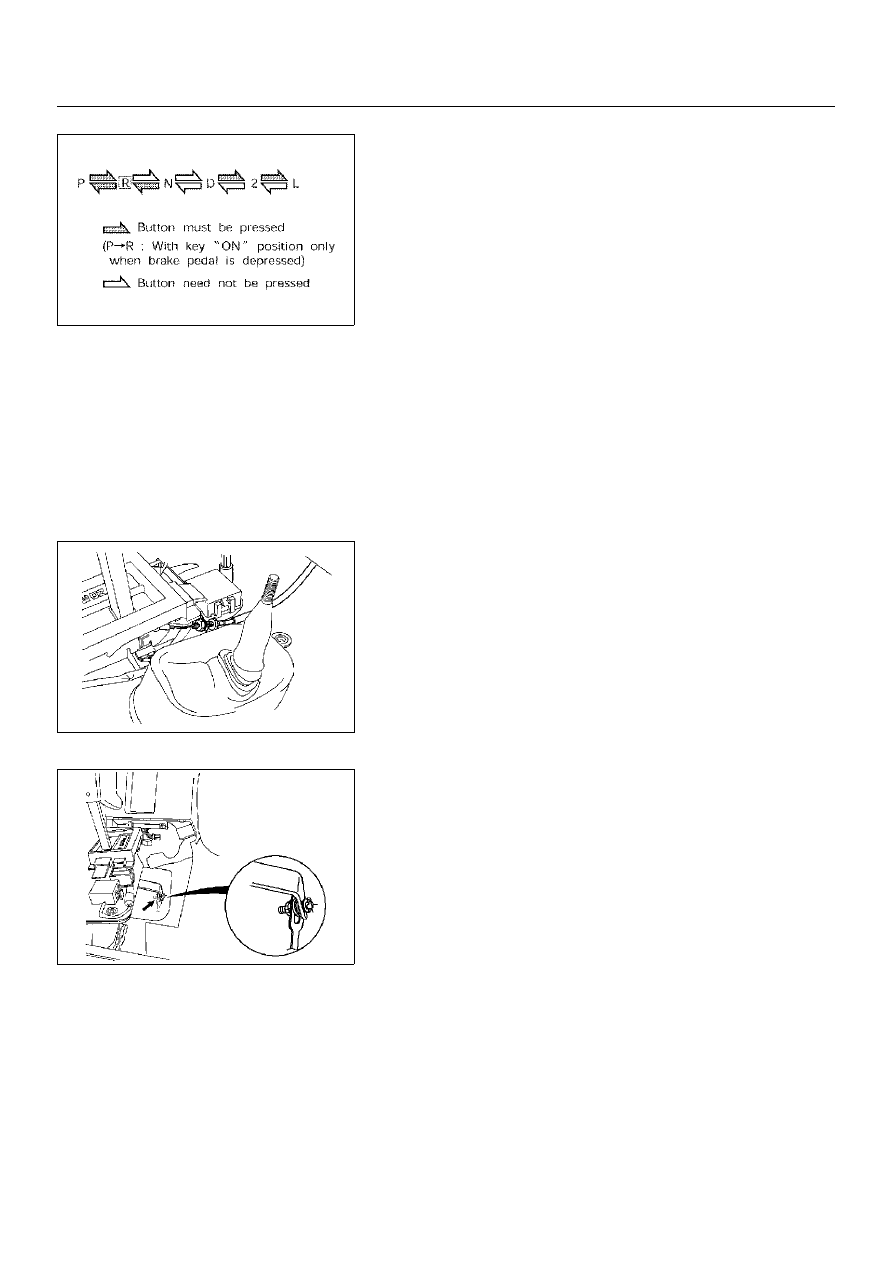

SELECTOR LEVER

INSPECTION

1. Make sure that when the selector lever is shifted from "P" to

"L", a "clicking" can be felt at each shift position. Make sure
that the gear corresponds to that of the position plate
indicator.

2. Check to see if the shifter lever can be shifted as shown.

REMOVAL

Preparation:

Diconnect negative (–) battery cable.

1. Transfer Control Lever Knob

2. Front Console

Disconnect wiring harness connectors.

3. Selector Lever Assembly

1) Disconnect shift lock cable from the selector lever

assembly side.

2) Disconnect wiring harness connectors.

3) Disconnect shift control rod from the selector lever

assembly side.

AUTOMATIC TRANSMISSION (AW30-40LE)

7A–81

256RW014

256RW015

INSTALLATION

To install, follow the removal steps in the reverse order, noting
the following points;

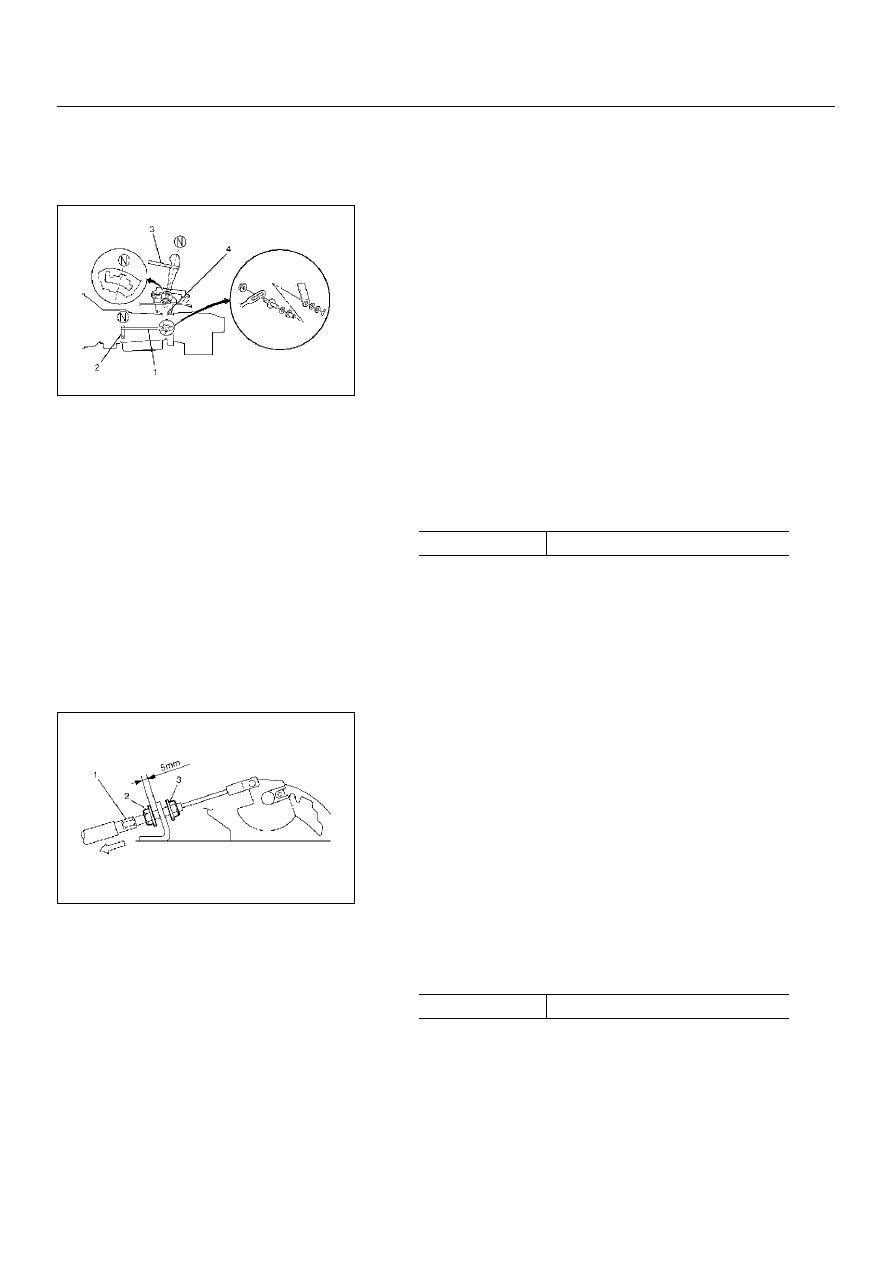

Adjustment of select lever and control rod

1) Place the vehicle on a level surface.

NOTE:
If the vehicle is not on a level surface, the shift select cable
set position will vary with the movement of the engine. To
prevent possible misadjustment of the cable, the vehicle
must be placed on a level surface.

2) Install the shift control rod (1) to the transfmission select

lever (2), and then place the lever in the "N" position.

3) Set select lever in the "N" position.

4) Push select lever forward and secure it (using a rubber

band (3), etc.) so that pin comes into contact with the wall
of detent plate.

5) Install the shift control rod (1) to the selector lever arm (4).

NOTE:
Do not apply to threaded portions.

6) After adjustment, operate select lever on a trial basis to

makes sure of its smooth operation and no abnormal
indication in each position.

Adjustment of shift lock cable

1) Set ignition key in "LOCK" position and selector lever in "P"

position.

2) Adjust cable screw cap on selector lever side to provide a

gap (slack for cable) of 1–2mm between rod on steering
lock side and stopper.
Adjust cap as follows:
a. Pull screw cap (1) in arrow direction to put off slack of

inner cable.

b. With cable kept as (a), adjust gap between nut (2) and

bracket to 5mm (0.2in).

c. Lock inner cable by turning nut (3) while holding nut (2) in

place.

NOTE:
Clean the rod threads and do not apply oil to the threaded
portions.

N·m(kg·m / lb·ft)

Nut torque

32 (3.3/24)

N·m(kg·cm / lb·in)

Lock nut torque

3.7 (38/33)

7A–82

AUTOMATIC TRANSMISSION (AW30-40LE)

3) Make sure of proper operation of shift lock through checks

as follows:
a. Selector lever shall not be moved out of "P" position with

ingition key in "Lock" position.

b. Selector lever can be moved out of "P" position with
ignition key in "ON" position only when brake pedal is
depressed.
c. Ignition key can be turned to "LOCK" position only when
selector lever is in "P" position (key can be pulled out).
If (a) and (c) fail, readjust cable. If (b) fails, readjust
connector wiring and brake pedal switch.
