Opel Frontera UBS. Manual - part 2537





AUTOMATIC TRANSMISSION (AW30-40LE)

7A–11

OPERATION OF CLUTCH, BRAKE AND ONE-WAY CLUTCH

 :Operating

:Free at coast down

:Operating at Lock-up

(1*): Down-shift only in the L range and 2nd



gear - no up-shift.

(2*): Down-shift only in the L range and 3rd gear - no up-shift.

SPEED CHANGE AND LOCK-UP PATTERN

If you select a speed range and a lock-up pattern as shown below by specifying respective positions of transmission
shift lever, transfer shift lever and pattern select switch, the transmission control computer controls speed change and
lock-up operations based on the specified pattern in accordance with the degree of throttle opening and vehicle speed.



¨

: The lock-up operation is available.

 ( ): Transmission is shifted at high speed to prevent overrun.

Shift lever

position

Gear position

C-0

C-1

C-2

B-0

B-1

B-2

B-3

F-0

F-1

F-2

S-1

S-2

S-3

P

Parking

R

Reverse

N

Neutral

D

1st

2nd

3rd

O/D

2

1st

2nd

3rd

L

1st

(1*) 2nd

(2*) 3rd

Pattern select sw.

position

Transmission shift position

D

2

L

Overdrive OFF switch

OFF

Overdrive OFF switch

 ON

NORMAL

POWER

1st

 ⇔

 2nd

⇔

 ⇔

1st

 2nd

⇔

 ⇐

1st

2nd

(3rd)

1st

(2nd)

(3rd)

WINTER

3rd fixed

7A–12

AUTOMATIC TRANSMISSION (AW30-40LE)

OVERDRIVE AND LOCK-UP OPERATING CONDITIONS

The overdrive and lock-up clutch operate if the following conditions are satisfied.



(1*):

If transmission oil temperature is more than 130

°

C, lock-up is inhibit.

Overdrive

Lock-up clutch

Transmission shift position

D range

 (1*)

O/D OFF switch

OFF (O/D OFF lamp OFF)

Stop lamp switch

OFF

Throttle opening

Except fully closed

Vehicle speed

About 49 km/h or more

3rd: About 50 km/h or more

O/D: About 65 km/h or more

AUTOMATIC TRANSMISSION (AW30-40LE)

7A–13

DIAGNOSIS

BASIC TROUBLESHOOTING

AW30-40LE transmission, called Electronic Controlled Transmission (ECT), differs from oil pressure control type
transmissions in that it is controlled by a microcomputer. Accordingly, its troubleshooting procedure differs also.

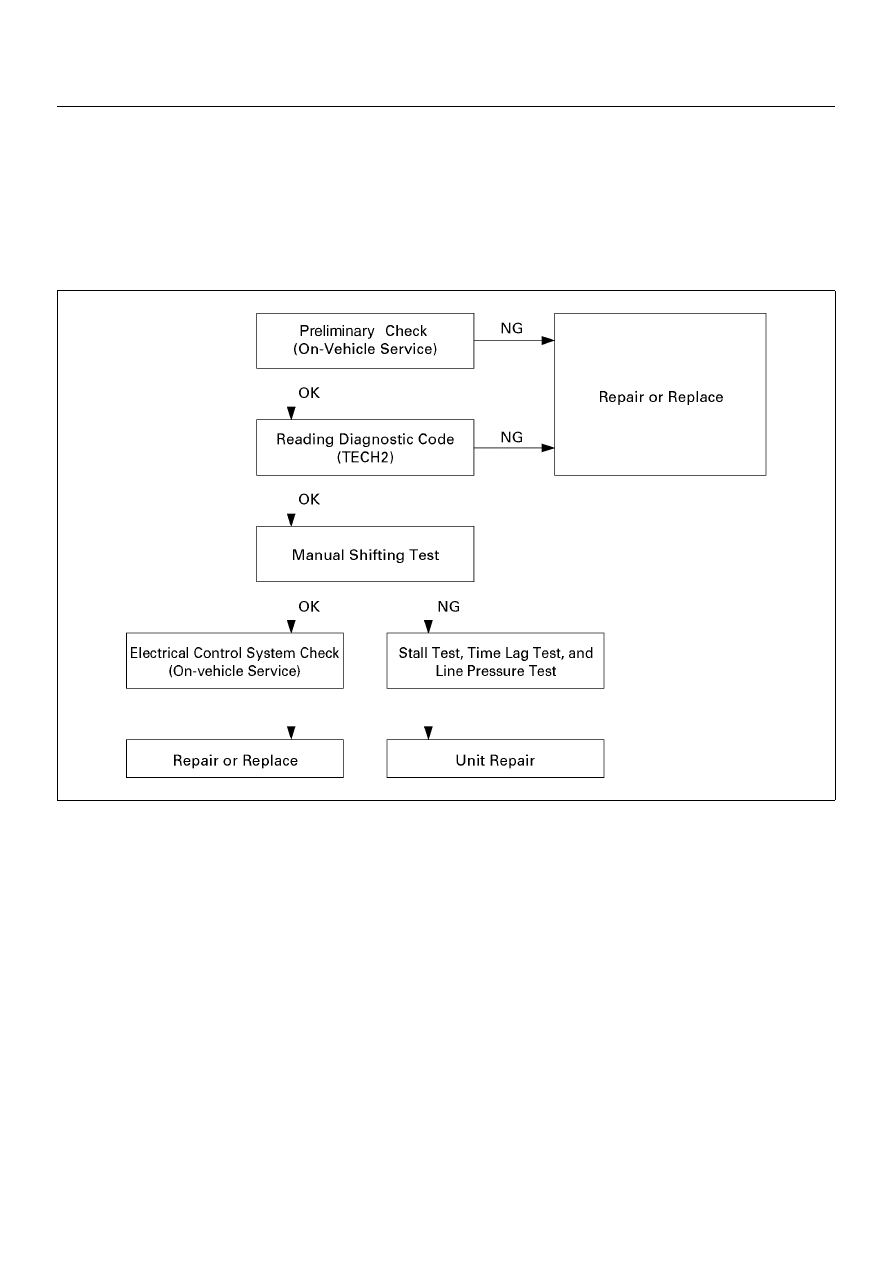

Before troubleshooting an ECT, first determine whether the problem is electrical or mechanical. To do this, just refer to
the basic troubleshooting flowchart provided below. If the cause is already known, using the basic troubleshooting
chart below along with the general troubleshooting chart on the following page should speed the procedure.

7A–14

AUTOMATIC TRANSMISSION (AW30-40LE)

821RY00012

F07LV002

740RY00013

740RY00014

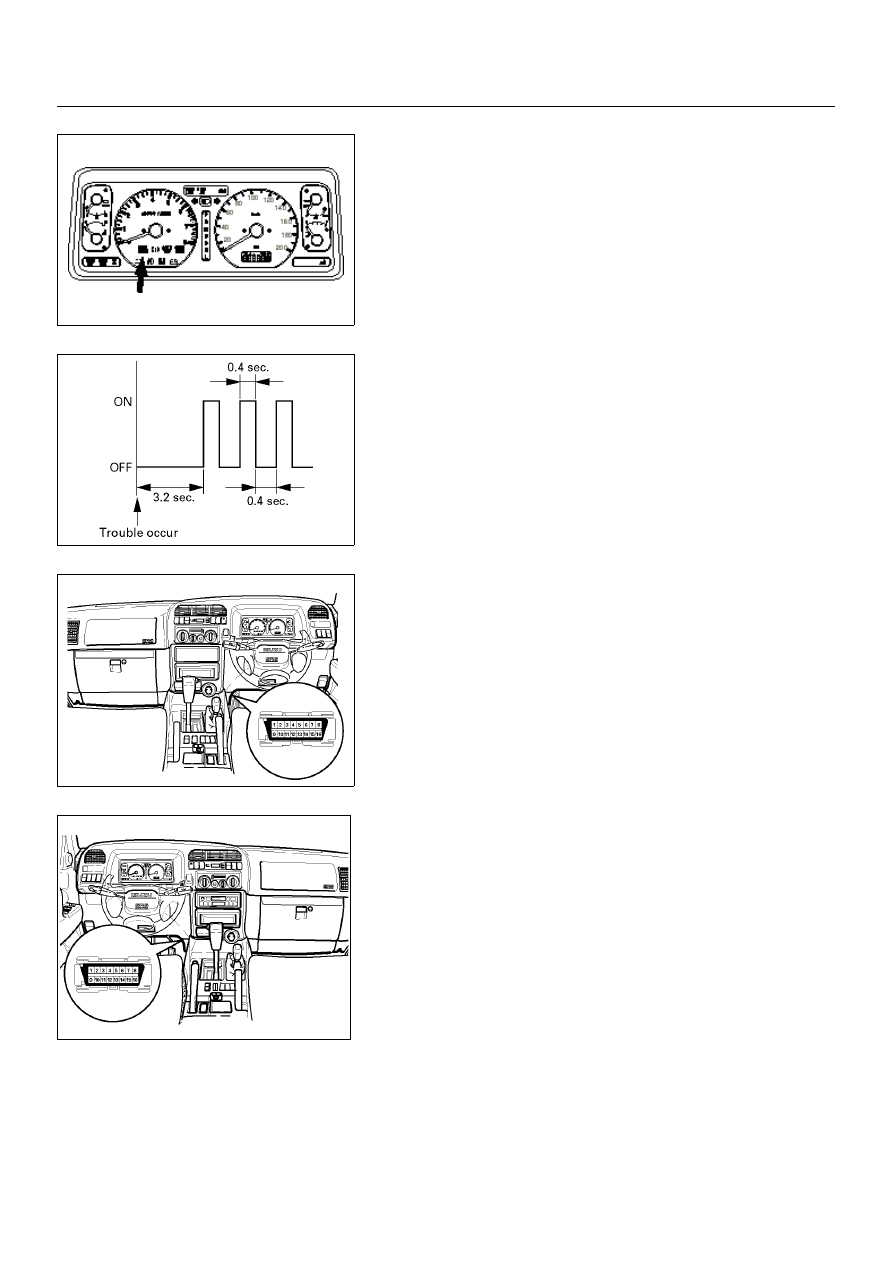

SELF-DIAGNOSIS

Warning to the driver

• When trouble has occurred to throttle position sensor, output

revolution sensor, input revolution sensor, neutral start
switch, engine revolution signal, speed meter signal, or
solenoids, "CHECK TRANS" lamp is blinked (1.25 Hz) even
during driving to warn the driver.

• The trouble is recorded by trouble code in TCM.

• When temporary trouble has been shooted, the "CHECK

TRANS" lamp stops blinking. This blinking can be stopped
by setting the ignition key off. But the trouble code remains
memorized in TCM.

Self-diagnosis code (Flashing code) display

• For quick search for faulty parts, 12 different items of trouble

code are indicated by "CHECK TRANS" lamp blinking.

• The storaged trouble codes can be identified by shorting the

terminals No. 11 and No. 4 or 5 (ground) of data link
connector with a lead wire.
