DTC P0502 –VSS No Signal

  (Cont'd)

Step

No

Yes

Value(s)

Action

11

Check for an open or short between the ECM and the
speedometer.

Was a problem found?

—

Verify repair

Go to

Step 12

12

Replace the ECM (Refer to the Data Programming in
Case of ECM change).

Is the action complete?

—

Verify repair

—

6E–155

4JX1–TC ENGINE DRIVEABILITY AND EMISSIONS

Diagnostic Trouble Code (DTC) P0510 (Flash DTC 75)

Idle SW Malfunction, Open Circuit

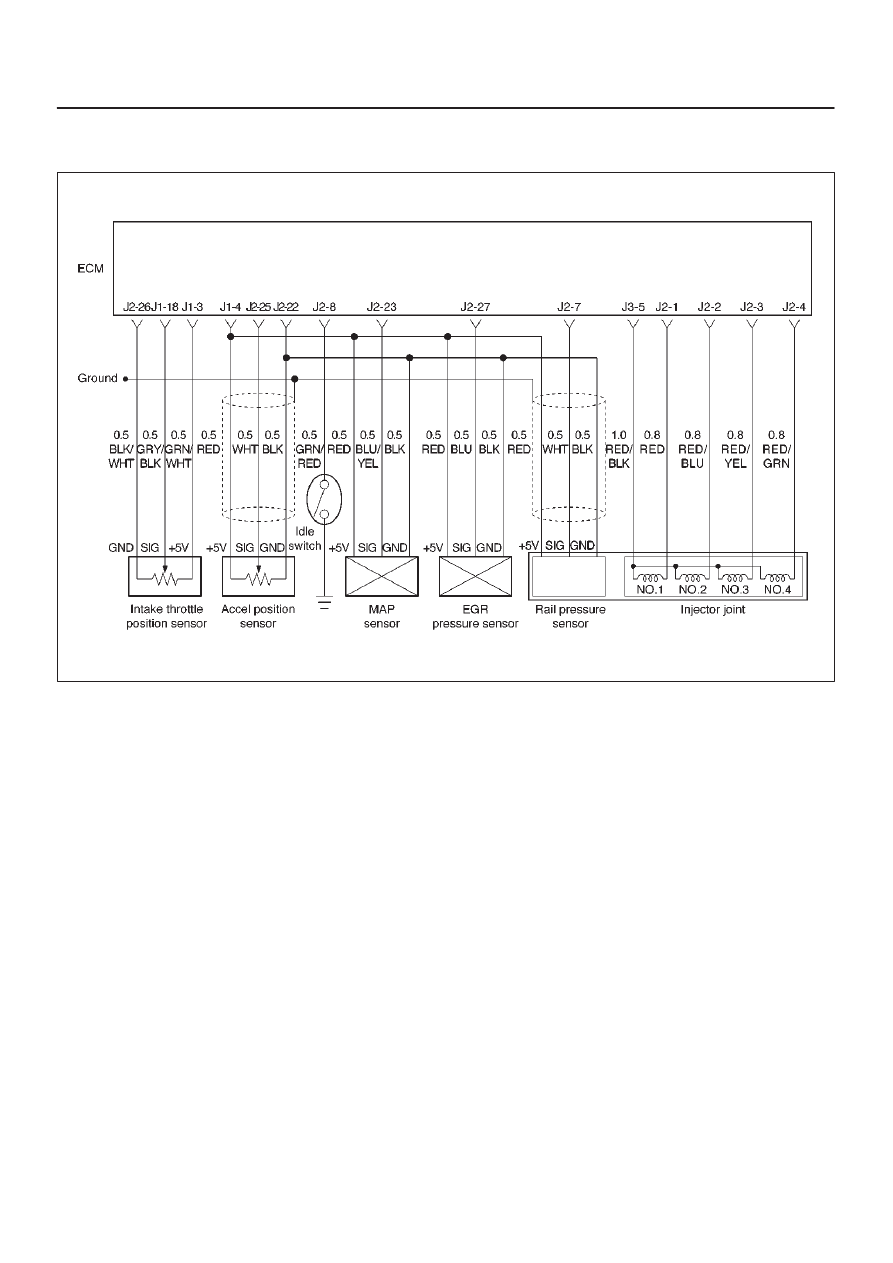

060RW134

Circuit Description

The idle switch signal is used by the Engine Control
Module ECM for fuel control.

Action Taken When the DTC Sets

D

The ECM will illuminate the malfunction indicator lamp
(MIL) the first time the fault is detected.

D

The ECM will store conditions which were present
when the DTC was set as Freeze Frame and in the
Failure Records data.

Conditions for Clearing the MIL/DTC

D

DTC P0510 can be cleared by using the Tech 2 “Clear
Info” function or by disconnecting the ECM battery
feed.

Diagnostic Aids

Check for the following conditions:

D

Poor connection at ECM – Inspect harness connectors
for backed-out terminals, improper mating, broken
locks, improperly formed or damaged terminals, and
poor terminal-to-wire connection.

D

Damaged harness – Inspect the wiring harness for
damage.  If the harness appears to be OK, observe the
Idle SW display on the Tech 2 while moving connectors
and wiring harnesses related to the Idle SW.

If DTC P0510 cannot be duplicated, the information
included in the Failure Records data can be useful in
determining vehicle mileage since the DTC was last set.

6E–156

4JX1–TC ENGINE DRIVEABILITY AND EMISSIONS

DTC P0510 – Idle SW Malfunction, Open Circuit



Step

Action

Value(s)

Yes

No

1

Was the “On-Board Diagnostic (OBD) System Check”
performed?

—

Go to

Step 2

Go to

OBD

System

Check

2

1. Ignition “ON,” engine “OFF.”
2. Review and record Tech 2 Failure Records data.
3. Operate the vehicle within Failure Records

conditions as noted.

4. Using a Tech 2, monitor the “DTC” info for DTC

P0510.

Does the Tech 2 indicate DTC P0510 failed?

—

Go to

Step 4

Refer to

Diagnostic

Aids

3

Check the Idle SW circuit for a poor connection and
repair the terminal if necessary.

Did the terminal require repair?

—

Verify repair

Go to

Step 4

4

1. Ignition “ON.”
2. Operate the accel pedal, and check the data list “ON

OFF” on the Tech 2.

Is the data list correct?

—

Verify repair

Go to

Step 5

5

Replace the Idle SW.

Is the action complete?

—

Verify repair

—

6E–157

4JX1–TC ENGINE DRIVEABILITY AND EMISSIONS

Diagnostic Trouble Code (DTC) P1510 (Flash DTC 75)

Idle SW Malfunction Short Circuit

060RW134

Circuit Description

The idle switch signal is used by the Engine Control
Module ECM for fuel control.

Action Taken When the DTC Sets

D

The ECM will illuminate the malfunction indicator lamp
(MIL) the first time the fault is detected.

D

The ECM will store conditions which were present
when the DTC was set as Freeze Frame and in the
Failure Records data.

Conditions for Clearing the MIL/DTC

D

DTC P1510 can be cleared by using the Tech 2 “Clear
Info” function or by disconnecting the ECM battery
feed.

Diagnostic Aids

Check for the following conditions:

D

Poor connection at ECM – Inspect harness connectors
for backed-out terminals, improper mating, broken
locks, improperly formed or damaged terminals, and
poor terminal-to-wire connection.

D

Damaged harness – Inspect the wiring harness for
damage.  If the harness appears to be OK, observe the
Idle SW display on the Tech 2 while moving connectors
and wiring harnesses related to the Idle SW.

If DTC P0122 cannot be duplicated, the information
included in the Failure Records data can be useful in
determining vehicle mileage since the DTC was last set.
