6A – 2 ENGINE MECHANICAL

GENERAL DESCRIPTION

Cylinder Head Gasket

The cylinder head gasket is laminated steel sheets.
Three grades of the gasket according to the measured
piston head projection from the cylinder block are
provided to give the engine a minimum compression
ratio fluctuation.

Tightening Method for

Special Bolt

The cylinder head fixing bolts, flywheel bolts and
connecting rod cap fixing bolts are tightened by the
angular Tightening Method.

Piston

Auto-thermatic pistons having steel struts with a 0.4
mm offset from the piston pin center line, are applied to
reduce thermal expansion and resulting engine noise
when the engine is cold.

Bearings

The crankshaft bearings and connecting rod bearings
are of aluminum having a high bearing surface.
These bearings are especially sensitive to foreign
material such as metal scraps. So, it is very important
that the oil ports and other related surfaces are kept
clean and free of foreign material.
Crankshaft bearings are selected for optimum bearing
and journal clearance which reduces vebration and
noise.

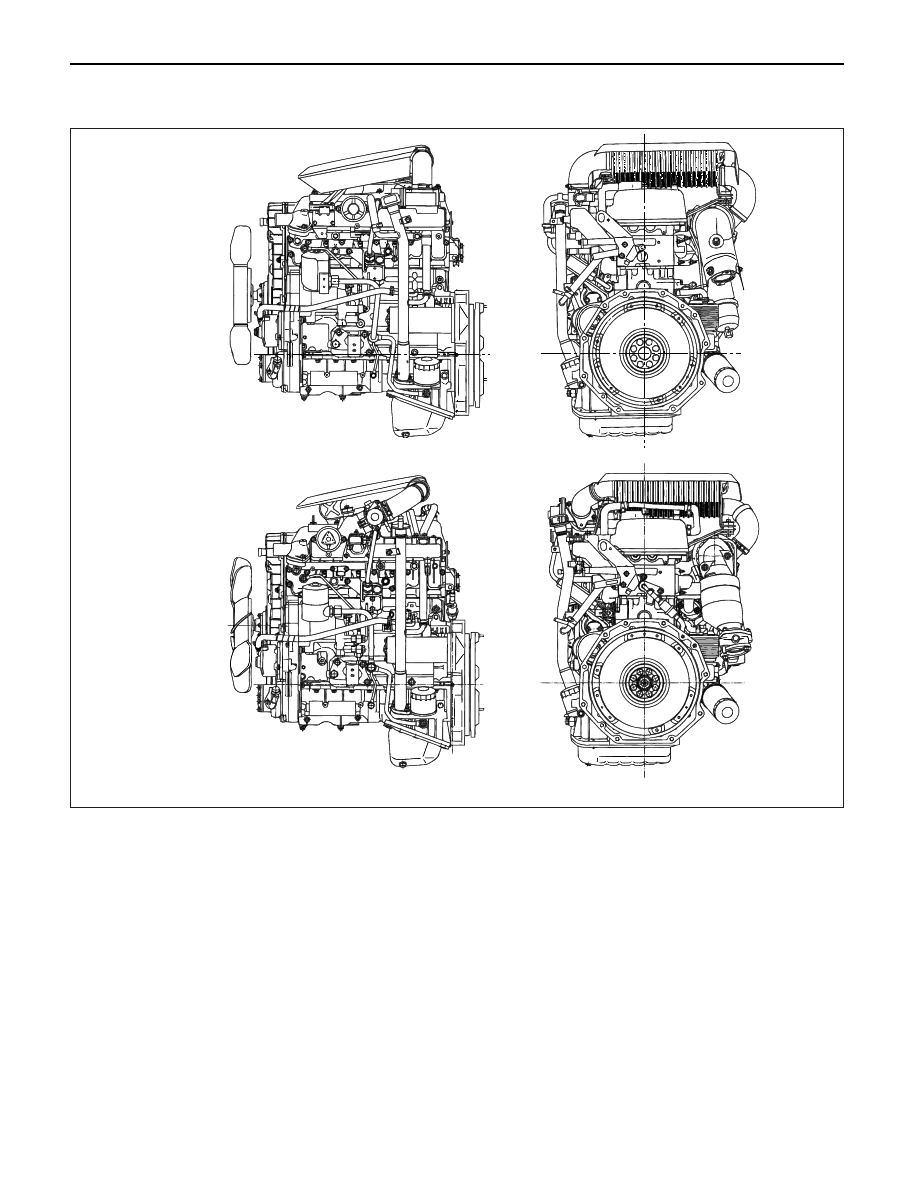

For General Export

For Europe

F06R200004

ENGINE MECHANICAL 6A – 3

SERVICE INFORMATION

MAIN DATA AND SPECIFICATION

Engine type

Diesel, four cycle water cooled inline

Camshaft type

DOHC

Number of cylinders

4

Bore x stroke

(mm)

95.4 x 104.9

Total piston displacement

(cc)

2999

Compression ratio

(to 1)

19.0

For Europe : 18.5

Engine weight (dry)

N (kg/lb)

2492 (254/560) (A/T)

For Europe : 2422 (247/545) (A/T)

2649 (270/593) (M/T)

For Europe : 2697 (275/606) (M/T)

Engine idling speed (Reference)

RPM

720

Compression pressure

kpa (kg/cm

2

/psi)-rpm

3040 (31/441)-200

Firing order

1–3–4–2

VALVE SYSTEM

Intake valves

open at:

B.T.D.C. 3°

close at:

A.B.D.C. 58°

Exhaust valves

open at:

B.B.D.C. 57°

close at:

A.T.D.C. 5°

Valve clearance (at cold)

mm (in)

intake:

0.15 (0.006)

exhaust:

0.25 (0.01)

Oil filter

Full flow and bypass combined type

Oil capacity (Original factory fill or rebuilt engine)

9.0 liters (7.9 US quarts)

Oil capacity (Service change)

with filter change

6.0 liters (6.3 US quarts)

without filter change

5.0 liters (5.3 US quarts)

Oil cooler

Water cooled type

Inter cooler

Air cooled type

Turbocharger method

Control method

Wastegate control

Lubrication

Pressurized control

Cooling method

Coolant cooled

Crankshaft

As tufftriding (Nitrizing treatment) is applied to increase
crankshaft strength, crankpins and journals should not
be reground.

Piston Cooling

An oiling jet device for piston cooling is provided in the
lubricating oil circuit from the cylinder block oil gallery
via a check valve.
Take care not to damage any oiling jet when removing
and installing piston and connecting assembly.

Fuel Injection System

The injection system is oil rail type.

Quick On Start 4 System

QOS4 preheating system which features a quick-on
glow plug with thermometer control of the glowing time
and the afterglow time function, is applied.

6A – 4 ENGINE MECHANICAL

Engine Cooling

Starting System

Cooling system

Coolant forced circulation

Radiator

(2 tube in row) Tube type corrugated

Heat radiation capacity

J/h (kcal/h)

318 x 10

6

(76000)

Heat radiation area

m

2

(ft

2

)

15.63 (1.454)

Front area

m

2

(ft

2

)

0.309 (2.029)

Dry weight

N (kg/lb)

83 (8.5/18.7)

Radiator cap

Valve opening pressure

kPa (kg/cm

2

/ psi)

93.3 – 122.7 (0.95 – 1.25/13.5 – 17.8)

Coolant capacity

lit (Imp.qt./US qt.)

M/T 2.5 (2.2/2.6)

A/T 2.4 (2.1/2.5)

Coolant pump

Centrifugal impeller type

Pulley ratio

(to 1)

1.2

Coolant total capacity

lit (Imp.qt./US qt.)

9.3 (8.2/9.8)

For Europe: 9.8 (8.6/10.4)

Model

HITACHI S14-0

Rating

Voltage

V

12

Output

kW

2.8

Time

sec

30

Number of teeth of pinion

9

Rotating direction (as viewed from pinion)

Clockwise

Weight (approx.)

N(kg/lb)

49 (5.0/11)

No-load characteristics

Voltage/current

V/A

11/160 or less

Speed

rpm

4000 or more

Load characteristics

Voltage/current

V/A

8.76/300

Torque

N·m(kg·m/lb·ft)

7.4 (0.75/5.4) or more

Speed

rpm

1700 or more

Locking characteristics

Voltage/current

V/A

2.5/1100 or less

Torque

N·m(kg·m/lb·ft)

18.6 (1.9/14) or more

ENGINE MECHANICAL 6A – 5

Charging System

Model (HITACHI)

LR190-750B

LR1100 – 731

Rated voltage

V

12

Rated output

A

90

100

Rotation direction

Clockwise

(As viewed from pulled)

Pulley effective diameter

mm (in)

69 (2.72)

Weight

N (kg/lb)

52 (5.3/11.7)
