6H–2

ENGINE SPEED CONTROL SYSTEM (6VE1 3.5L)

Accelerator Pedal

Accelerator Pedal and Associated
Parts

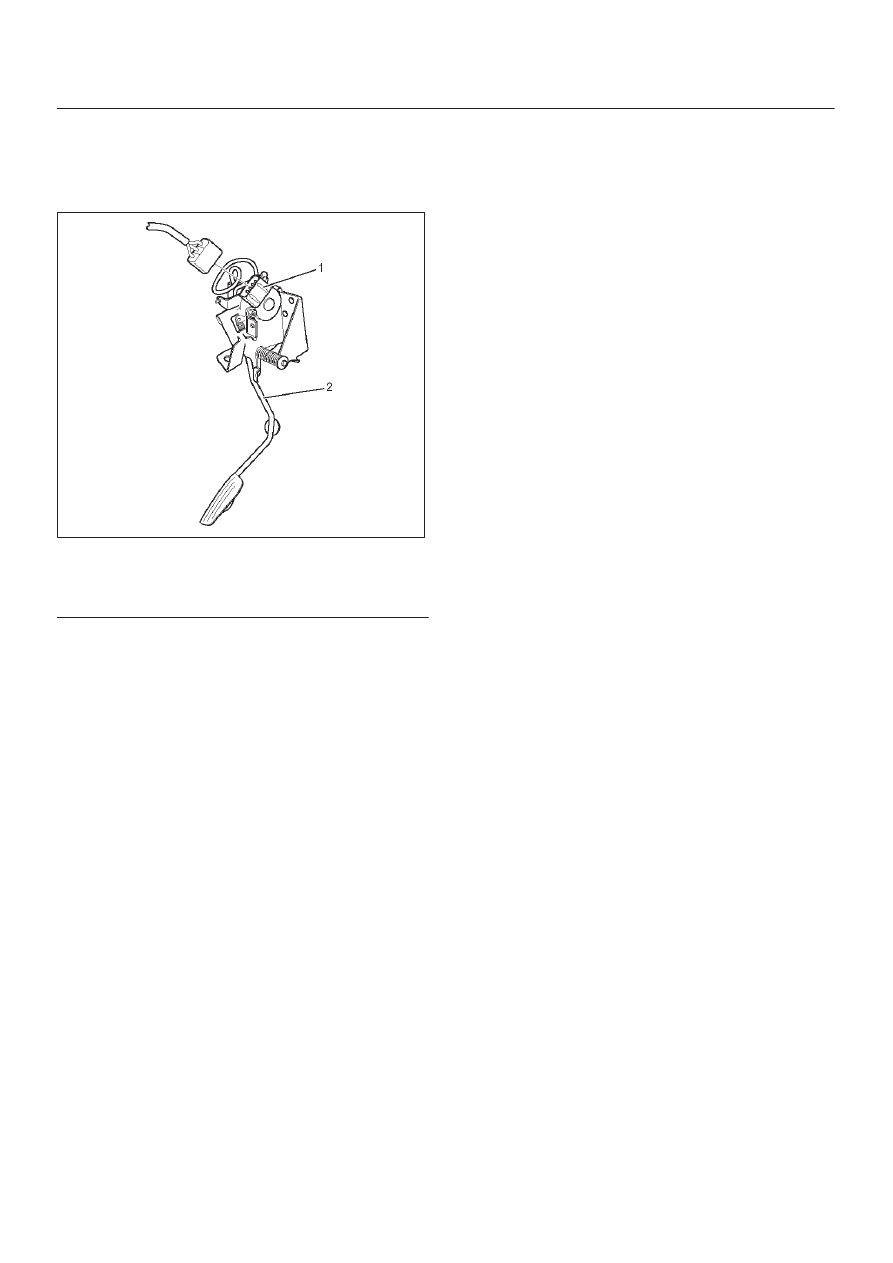

101RY00006

Legend

(1) Accelerator Position Sensor
(2) Accelerator Pedal Assembly

Removal

1. Disconnect battery ground cable.
2. Disconnect Accelerator position (AP) sensor (1)

connector from Accelerator pedal assembly.

3. Remove Accelerator pedal assembly (2).

Installation

1. Install Accelerator pedal assembly (2).
2. Connect AP sensor (1) harness connector.
3. Connect battery ground cable.

INDUCTION

6J–1

ENGINE

INDUCTION

CONTENTS

Service Precaution

6J–1

. . . . . . . . . . . . . . . . . . . . . .

Air Cleaner Element

6J–2

. . . . . . . . . . . . . . . . . . . . .

Removal

6J–2

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Inspection

6J–2

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

6J–2

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Service Precaution

WARNING: THIS VEHICLE HAS A SUPPLEMENTAL
RESTRAINT SYSTEM (SRS).  REFER TO THE SRS
COMPONENT AND WIRING LOCATION VIEW IN
ORDER TO DETERMINE WHETHER YOU ARE
PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE SRS WIRING. WHEN YOU
ARE PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE SRS WIRING, REFER TO
THE SRS SERVICE INFORMATION. FAILURE TO
FOLLOW WARNINGS COULD RESULT IN POSSIBLE
AIR BAG DEPLOYMENT, PERSONAL INJURY, OR
OTHERWISE UNNEEDED SRS SYSTEM REPAIRS.

CAUTION: Always use the correct fastener in the
proper location. When you replace a fastener, use
ONLY the exact part number for that application.
ISUZU will call out those fasteners that require a
replacement after removal. ISUZU will also call out
the fasteners that require thread lockers or thread
sealant. UNLESS OTHERWISE SPECIFIED, do not
use supplemental coatings (Paints, greases, or other
corrosion inhibitors) on threaded fasteners or
fastener joint interfaces. Generally, such coatings
adversely affect the fastener torque and the joint
clamping force, and may damage the fastener. When
you install fasteners, use the correct tightening
sequence and specifications. Following these
instructions can help you avoid damage to parts and
systems.

SECTION

6J–2

INDUCTION

Air Cleaner Element

Removal

1. Remove positive ventilation hose from connector(1).
2. Remove intake air temperature sensor(2).
3. Remove air flow sensor(3).
4. Remove air cleaner duct cover(4).
5. Remove air cleaner element(5).

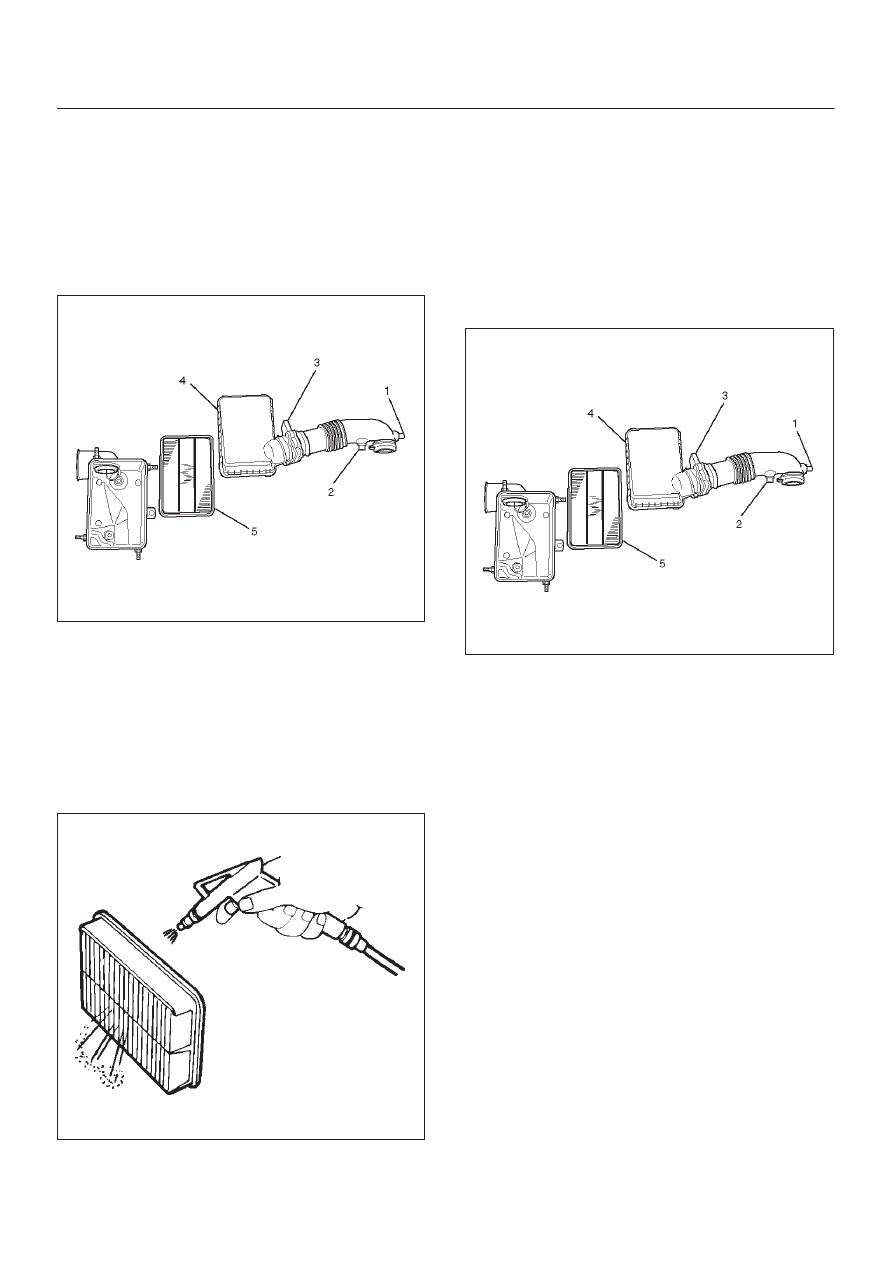

130RW003

Inspection

Check the air cleaner element for damage or dust
clogging. Replace if it is damaged, or clean if it is clogged.

Cleaning Method

Tap the air cleaner element gently so as not to damage
the paper element, or clean the element by blowing with
compressed air of about 490 kPa (71 psi) from the clean
side if it is extremely dirty.

130RW002

Installation

1. Install air cleaner element(5).
2. Attach the air cleaner duct cover (4) to the body

completely, then clamp it with the clip.

3. Install mass air flow sensor(3).
4. Install air temperature sensor(2).
5. Connect positive crankcase ventilation hose to

connector(1).

130RW003
