ENGINE COOLING

Drive Belt and Cooling Fan

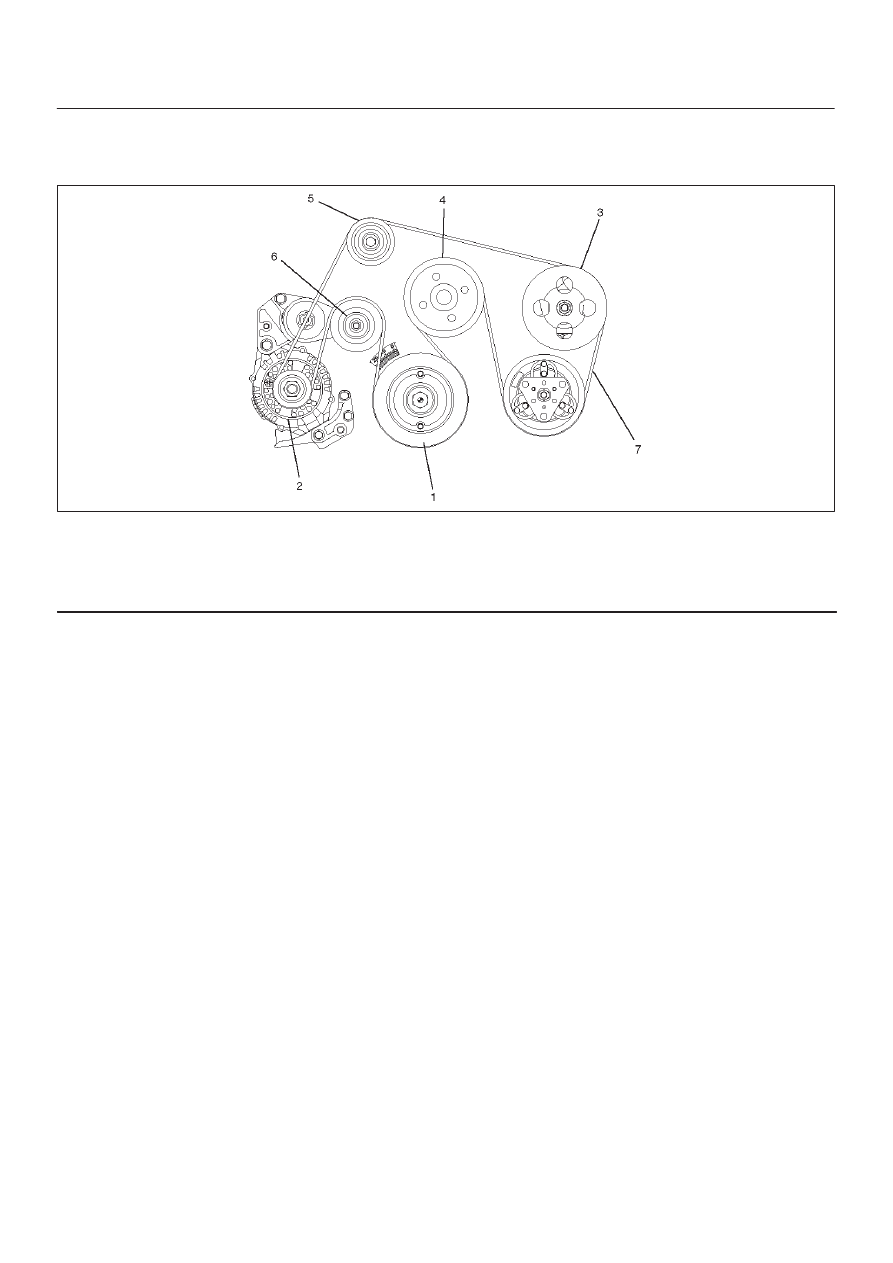

Drive Belt and Associated Parts

015RW005

Legend

(1) Crankshaft Pulley
(2) Generator
(3) Power Steering Pump

(4) Water Pump and Cooling Fan Pulley
(5) Idle Pulley
(6) Tension Pulley
(7) Drive Belt

The drive belt adjustment is not required as automatic
drive belt tensioner is equipped.

Inspection

Check drive belt for wear or damage, and replace with a
new one as necessary.

Installation

Install cooling fan assembly and tighten bolts/nuts to the
specified torque.

Torque : 22 N·m (2.2 kg·m/16 lb ft) for fan pulley
and fan bracket.

Torque : 10 N·m (1.0 kg·m/87 lb in) for fan and
clutch assembly.

NOTE: Incorrect installation of a fan may cause the air for
cooling to flow in the opposite direction, this resulting in
the poor performance of the air-conditioner and a rise
temperature in engine cooling water.

ENGINE COOLING 6B–13

Main Data and Specifications

General Specifications

M/T

A/T

Cooling system

Engine coolant forced circulation

Radiator

(1 tube in row) Tube type corrugated (2 tube in row)

Heat radiation capacity

68,000 kcal/h

77,000 kcal/h

Heat radiation area

9.445m

@

 (0.878ft

@

)

11.21m

@

 (1.04ft

@

)

Radiator front area

0.302m

@

 (0.028ft

@

)

Radiator dry weight

3.8kg (8.8lb)

4.0kg (9.9lb)

Radiator cap valve opening pressure

93.3

∼

 122.7kpa (0.95

∼

 1.25 kg/cm

2

, 13.5

∼

 17.8psi)

Radiator coolant capacity

2.5lit (2.6U.S q.t.)

2.4lit (2.5U.S q.t.)

Engine coolant pump

Centrifugal impeller type

Delivery

300 lit (79 U.S. gal)/min or more

Pump speed

5000

±

 50 rpm

Thermostat

Wax pellet type with air hole

Valve opening temperature

74.5

∼

 78.5

°

C (166.1

∼

 173.3

°

F)

Engine coolant total capacity

10.4lit (11.0U.S qt)

10.5lit (11.1U.S qt)

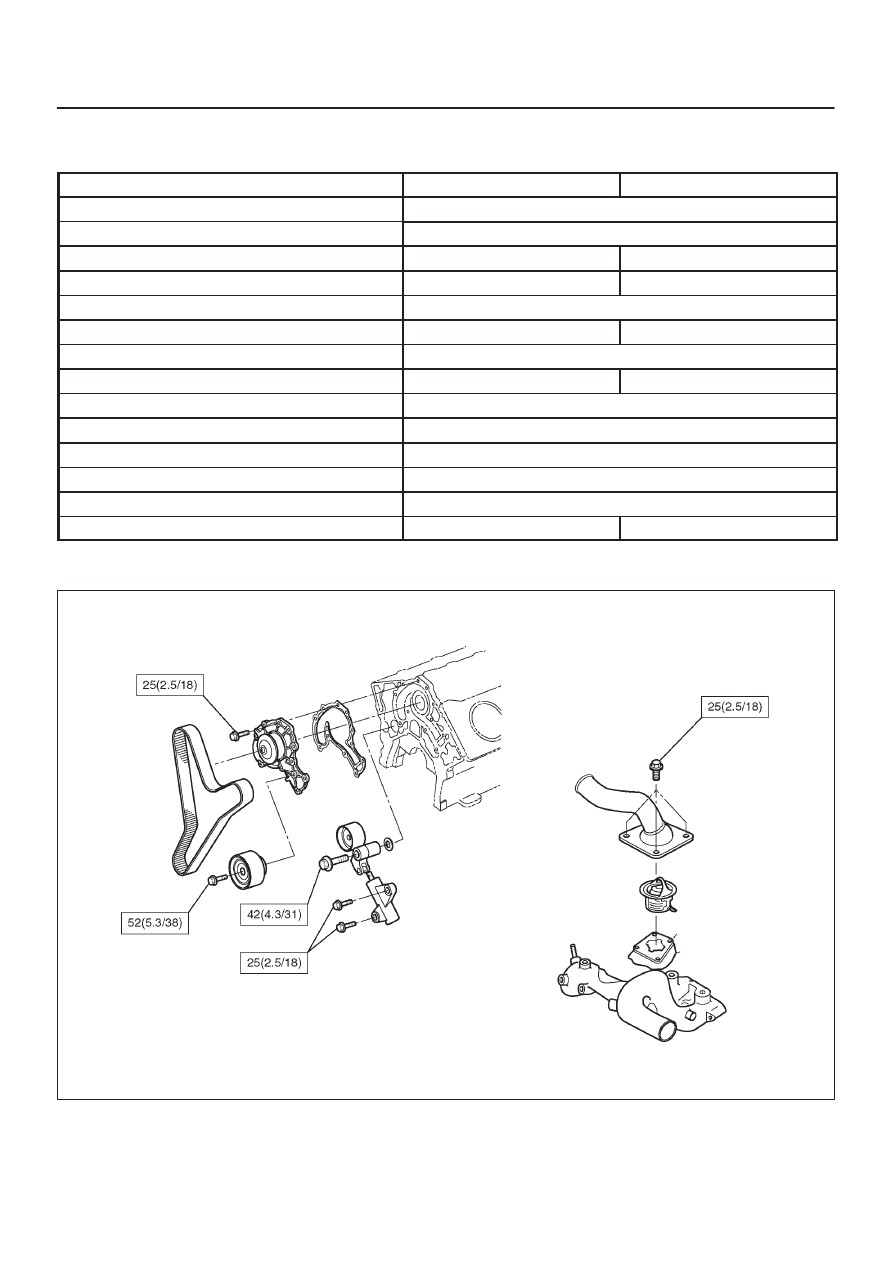

Torque Specifications

E06R200020

6B–14

ENGINE COOLING

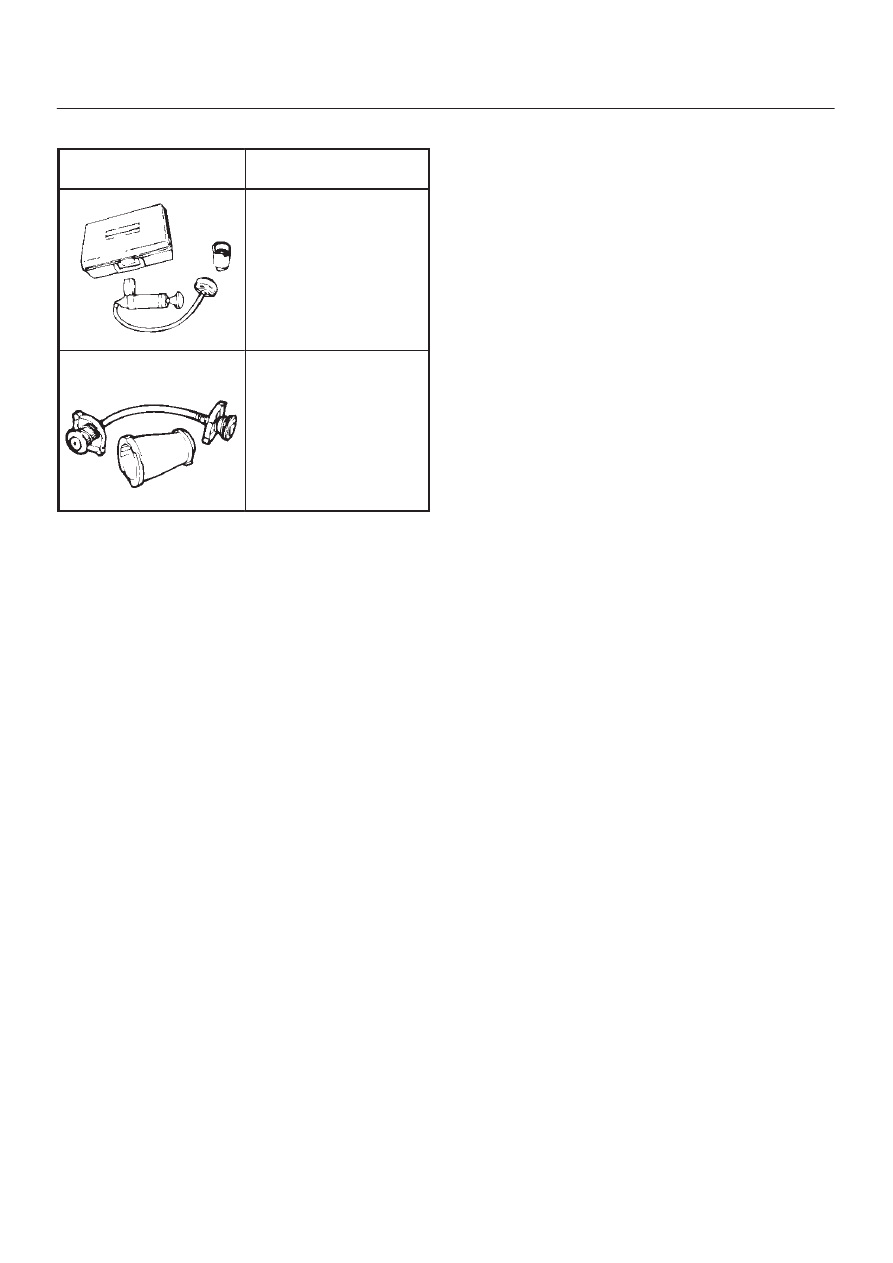

Special Tool

ILLUSTRATION

TOOL NO.

TOOL NAME

5-8840-0277-0

(J–24460–01)

Tester; radiator cap

5-8840-2603-0

(J–33984–A)

Adapter; radiator cap

6C–1

ENGINE FUEL

ENGINE

ENGINE FUEL

CONTENTS

Service Precaution

6C–1

. . . . . . . . . . . . . . . . . . . . . .

General Description

6C–2

. . . . . . . . . . . . . . . . . . . . .

Fuel Metering

6C–3

. . . . . . . . . . . . . . . . . . . . . . . . . . .

Fuel Filter

6C–4

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Fuel Filter and Associated Parts

6C–4

. . . . . . . . .

Removal

6C–4

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Inspection

6C–4

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

6C–5

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Inspection

6C–5

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

In–Tank Fuel Filter

6C–5

. . . . . . . . . . . . . . . . . . . . .

Fuel Pump Flow Test

6C–5

. . . . . . . . . . . . . . . . . . .

Fuel Pump

6C–6

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Fuel Pump and Associated Parts

6C–6

. . . . . . . .

Removal

6C–6

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

6C–6

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Fuel Pump Relay

6C–7

. . . . . . . . . . . . . . . . . . . . . . . .

General Description

6C–7

. . . . . . . . . . . . . . . . . . . . .

Fuel Tank

6C–7

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Fuel Tank and Associated Parts

6C–7

. . . . . . . . .

Removal

6C–7

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

6C–8

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Fuel Tube / Quick – Connect Fittings

6C–8

. . . . . . .

Precautions

6C–8

. . . . . . . . . . . . . . . . . . . . . . . . . . .

Cautions During Work

6C–8

. . . . . . . . . . . . . . . . . .

Removal

6C–8

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Reuse of Quick–Connector

6C–10

. . . . . . . . . . . . . . .

Assembling Advice

6C–10

. . . . . . . . . . . . . . . . . . . . . .

Fuel Gauge Unit

6C–11

. . . . . . . . . . . . . . . . . . . . . . . .

Fuel Gauge Unit and Associated Parts

6C–11

. . .

Removal

6C–11

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

6C–11

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Fuel Filler Cap

6C–12

. . . . . . . . . . . . . . . . . . . . . . . . . .

General Description

6C–12

. . . . . . . . . . . . . . . . . . . . .

Inspection

6C–12

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Main Data and Specifications

6C–13

. . . . . . . . . . . . .

Service Precaution

WARNING: THIS VEHICLE HAS A SUPPLEMENTAL
RESTRAINT SYSTEM (SRS).  REFER TO THE SRS
COMPONENT AND WIRING LOCATION VIEW IN
ORDER TO DETERMINE WHETHER YOU ARE
PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE SRS WIRING. WHEN YOU
ARE PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE SRS WIRING, REFER TO
THE SRS SERVICE INFORMATION. FAILURE TO
FOLLOW WARNINGS COULD RESULT IN POSSIBLE
AIR BAG DEPLOYMENT, PERSONAL INJURY, OR
OTHERWISE UNNEEDED SRS SYSTEM REPAIRS.

CAUTION: Always use the correct fastener in the
proper location. When you replace a fastener, use
ONLY the exact part number for that application.
ISUZU will call out those fasteners that require a
replacement after removal. ISUZU will also call out
the fasteners that require thread lockers or thread
sealant. UNLESS OTHERWISE SPECIFIED, do not
use supplemental coatings (Paints, greases, or other
corrosion inhibitors) on threaded fasteners or
fastener joint interfaces. Generally, such coatings
adversely affect the fastener torque and the joint
clamping force, and may damage the fastener. When
you install fasteners, use the correct tightening
sequence and specifications. Following these
instructions can help you avoid damage to parts and
systems.
