6A–86

ENGINE MECHANICAL (6VE1 3.5L)

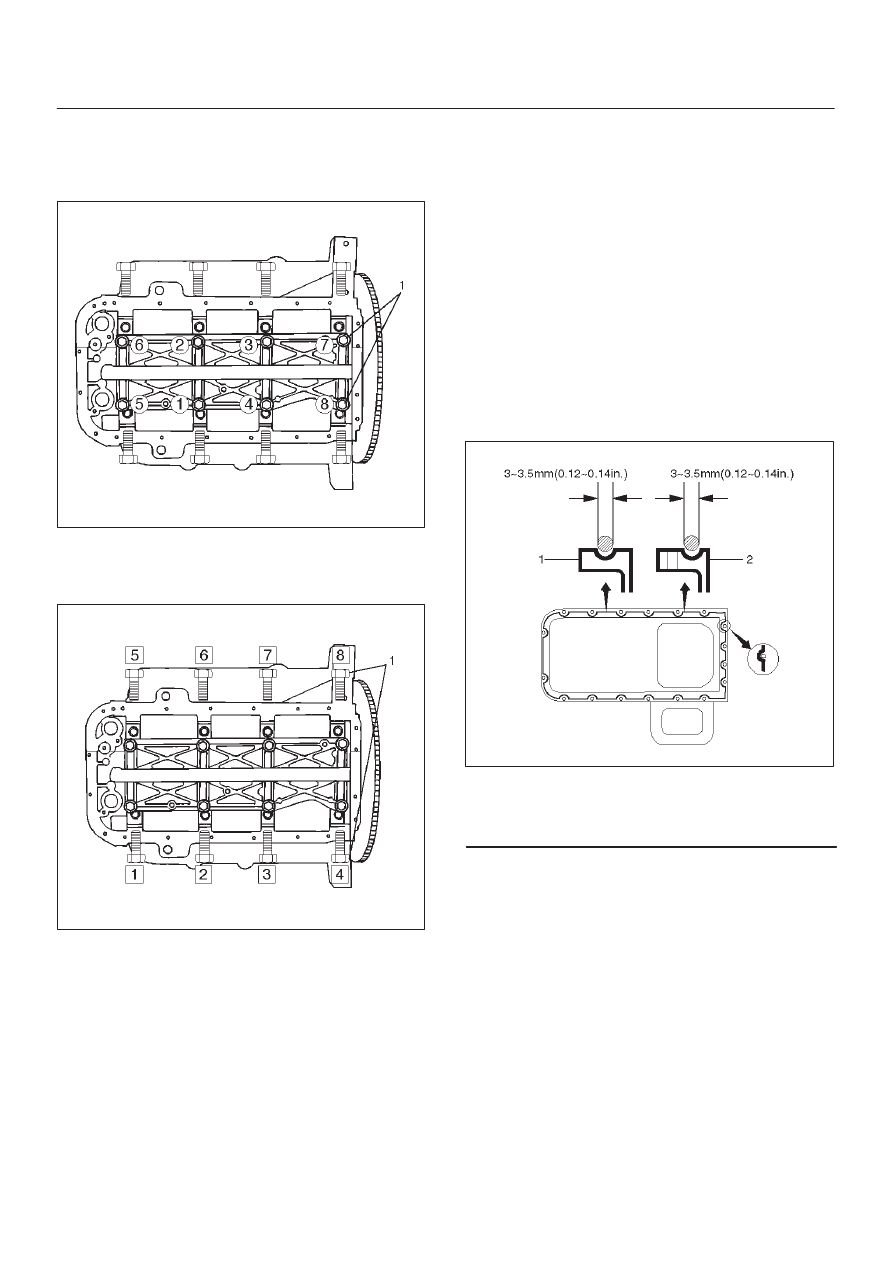

6. Install oil gallery and tighten the bolts in 2 steps in the

order shown.

1st step : 29 N·m (3.0 kg·m/22 lb ft)
2nd step : 55

°

 65

°

012RS007

7. Install cylinder block side bolts (1) and tighten

crankcase bolts in sequence shown in the illustration.

Torque : 39 N·m (3.0 kg·m/29 lb ft)

012RW005

8. Install oil pump assembly. Refer to “Oil Pump” in this

manual.

9. Install oil strainer and O-ring.

10. Install oil pipe and O-ring.

11. Install crankcase with oil pan.

1. Completely remove all residual sealant, lubricant

and moisture from the sealing surfaces. The
surfaces must be perfectly dry.

2. Apply a correct width bead of sealant (TB– 1207C

or its equivalent) to the contact surfaces of the
crankcase. There must be no gaps in the bead.

3. The oil pan must be installed within 5 minutes

after sealant application to prevent premature
hardening of sealant.

4. Tighten the bolts and nuts to the specified torque.

Torque : 10 N·m (1.0 kg·m/87 lb in)

013RW010

Legend

(1) Portion Between Both Holes
(2) Bolt Hole Portions

12. Install cylinder head gasket.
13. Install cylinder head assembly. Refer to “Cylinder

Head” in this manual.

6A–87

ENGINE MECHANICAL (6VE1 3.5L)

Main Data and Specification

General Specification

Item

Specifications

Item

6VE1

Engine type, number of cylinders and arrangement

Water cooled, four cycle V6

Form of combustion chamber

Pent-roof type

Valve mechanism

4-Cams, 4-Valves, DOHC Gear & Belt Drive

Cylinder liner type

Casted in cylinder drive

Total piston displacement

3494 cc

Cylinder bore x stroke

93.4mm x 85mm

(3.677 in x 3.346 in)

Compression ratio

9.1

Compression pressure at 300rpm

1.37 MPa (14.0 Kg/cm

2

)

Engine idling speed (rpm)

Non adjustable (750)

Valve clearance

Intake: 0.28 mm (0.11 in)

Exhaust: 0.30mm (0.12in)

Oil capacity

5.3 liters (5.6 US gt.)

Ignition timing

Non adjustable (20

°

 BTDC at idle rpm)

Spark plug

PK16PR11, RC10PYP4, K16PR-P11

Plug gap

1.0 mm–1.1 mm(0.0394 in – 0.0433 in)

6A–88

ENGINE MECHANICAL (6VE1 3.5L)

Torque Specifications

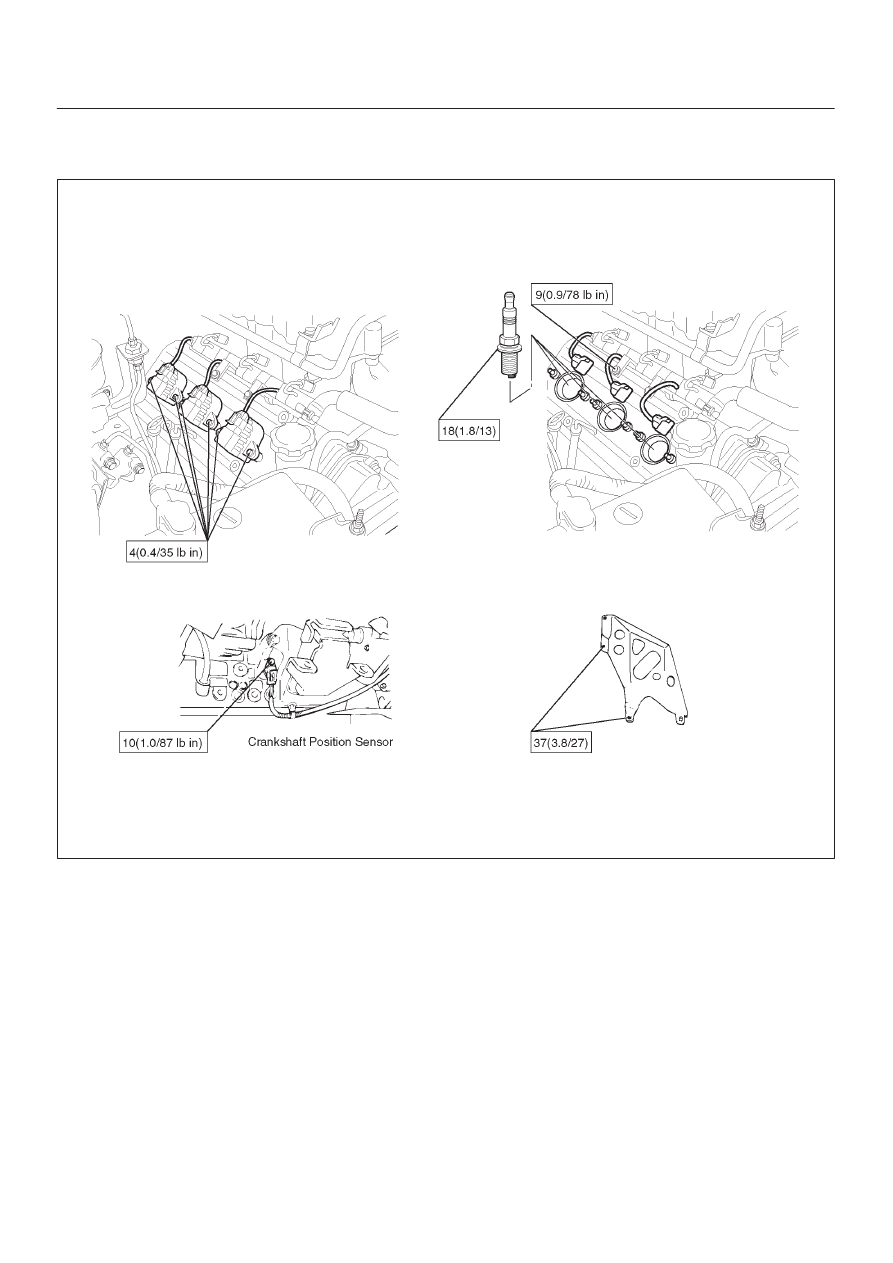

Ignition coil, Spark plug, Crankshaft position sensor and Under cover
                                                                                                                                                          N·m (kg·m/lb ft)

E06R200018

6A–89

ENGINE MECHANICAL (6VE1 3.5L)

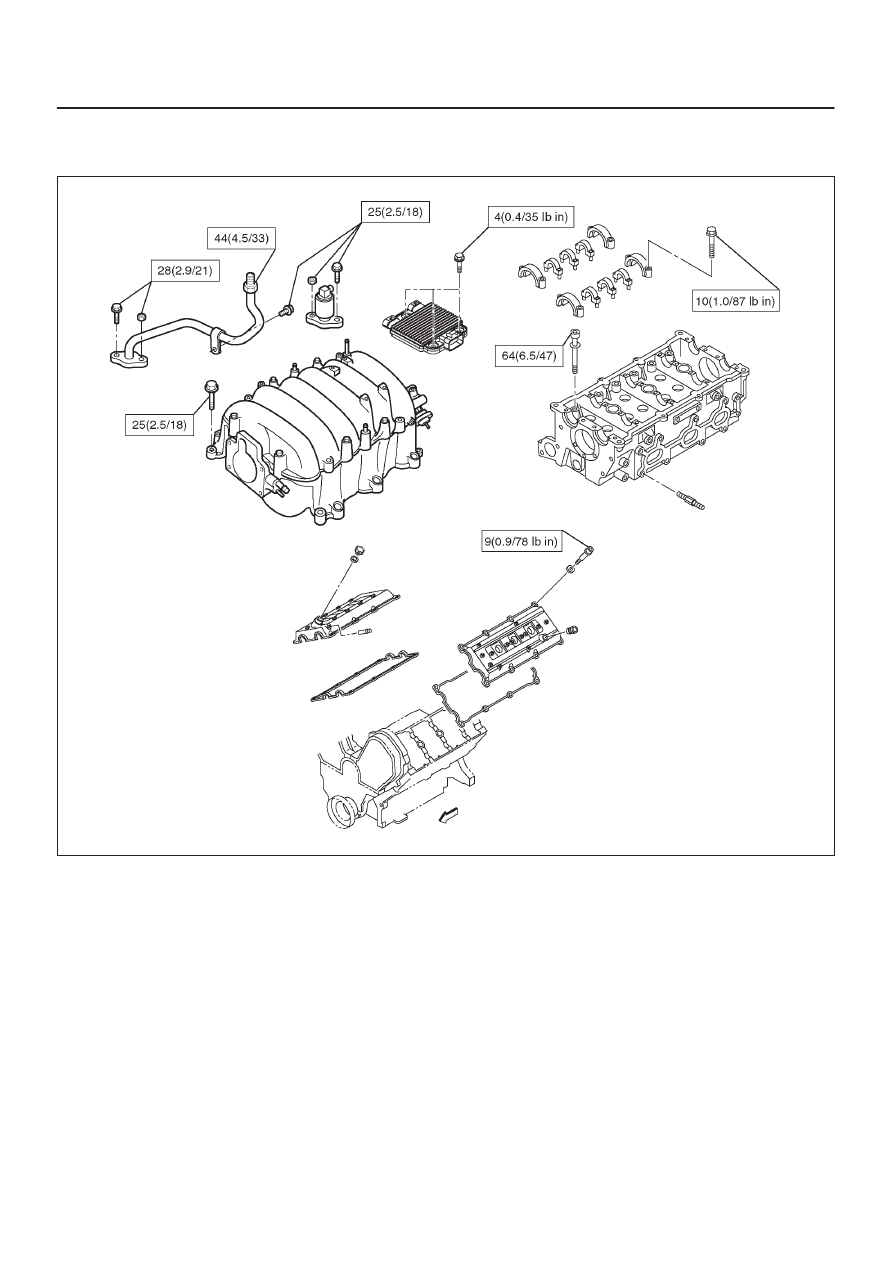

Cylinder head cover, Cylinder head, Camshaft bearing cap, Common chamber, EGR valve and EGR pipe, Ion
sensing module
                                                                                                                                                          N·m (kg·m/lb ft)

E06R200019
