5A–20

BRAKE CONTROL SYSTEM

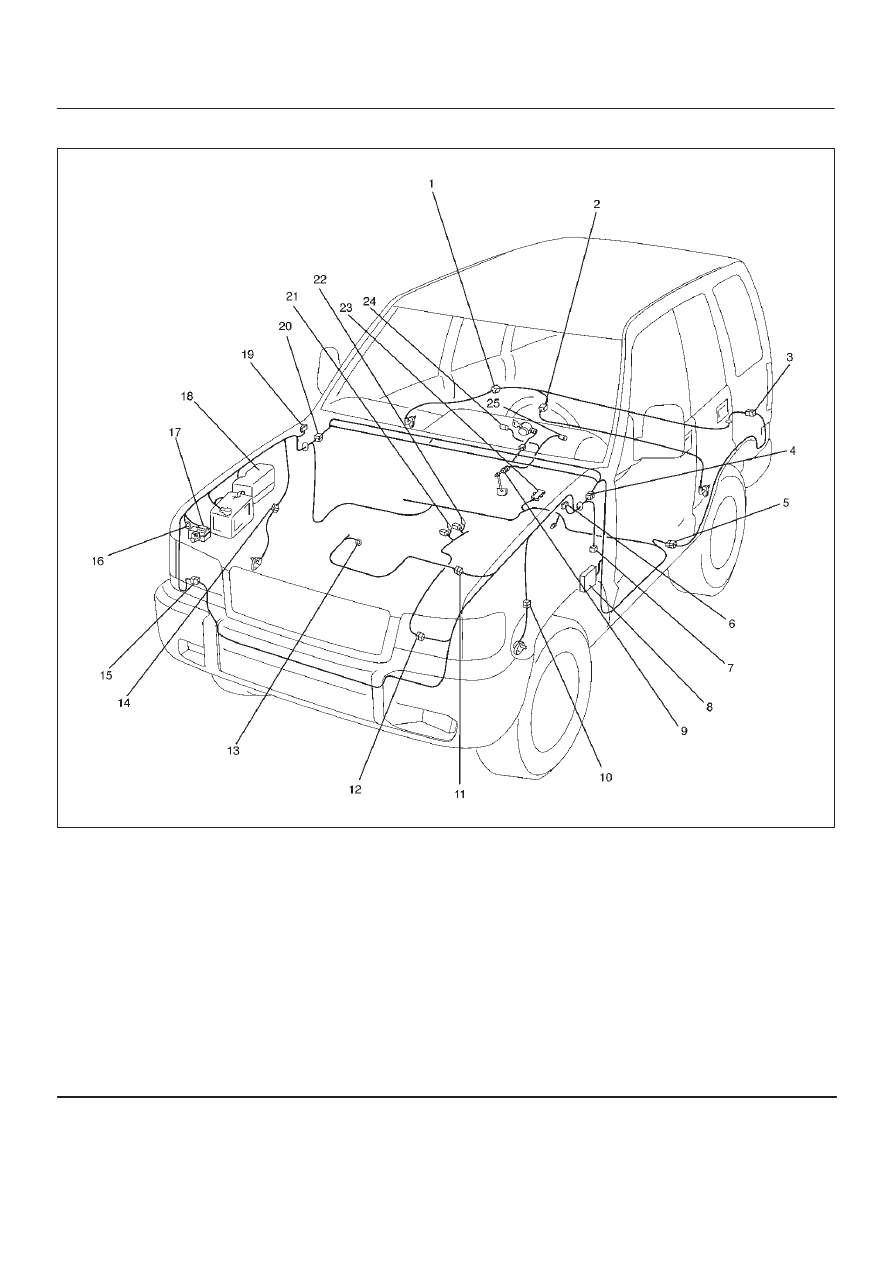

Part Location (LHD model)

D08RW808

Legend

(1) F–2
(2) F–3
(3) H–33
(4) H–7, H–8, H–25
(5) H–46
(6) C–16
(7) C–63
(8) Fuse Box
(9) B–13 or B–14

(10) C–13

(11) H–5

(12) H–10, H–11

(13) E–30
(14) C–41
(15) H–42
(16) C–85
(17) C–4 (EHCU)
(18) Relay & Fuse Box
(19) C–39
(20) H–12, H–13, H–15, H–16
(21) E–47, E–48, M–1
(22) E–42, E–43, M–8
(23) B–25
(24) I–10
(25) I–9

5A–21

BRAKE CONTROL SYSTEM

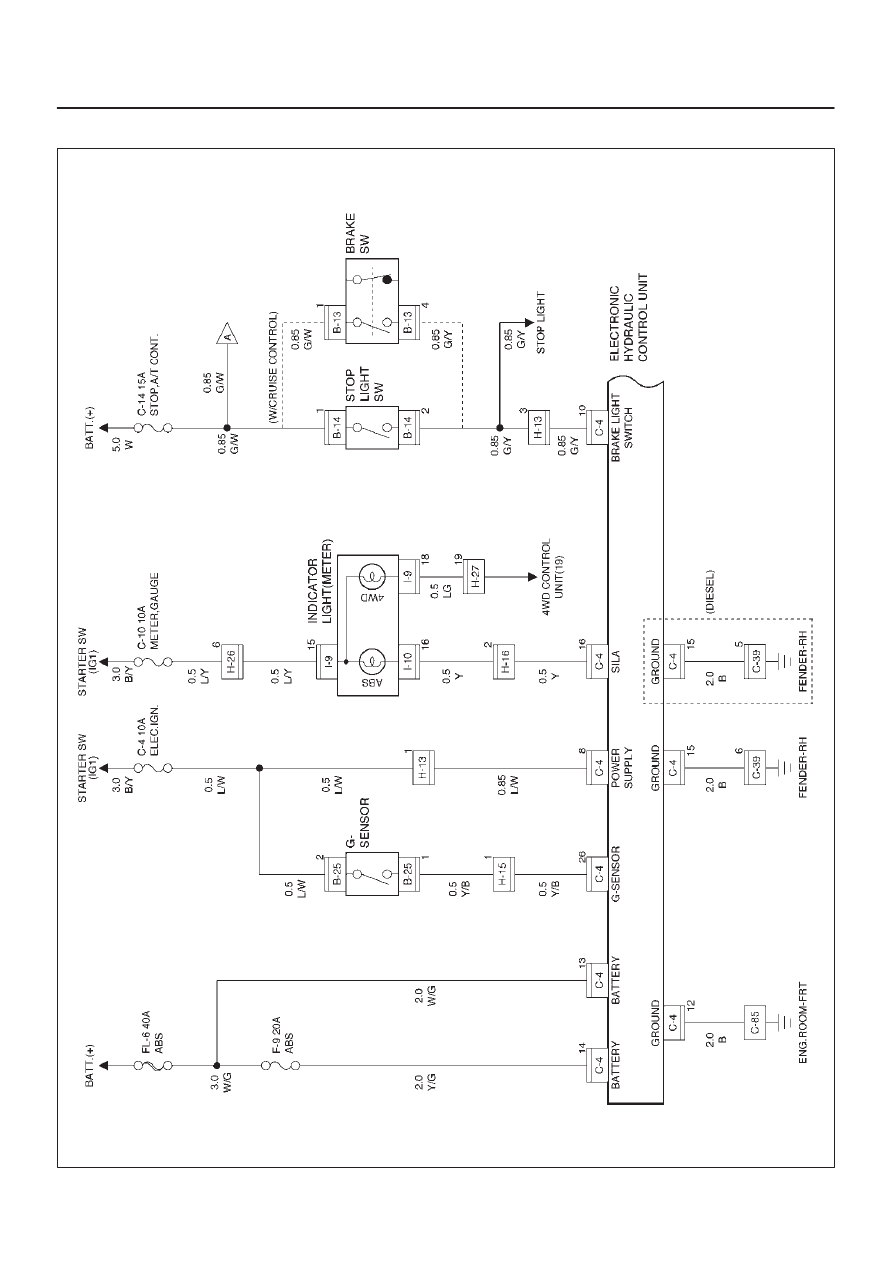

Circuit Diagram (RHD model / 6VD1 and 4JG2)

D08RW601

5A–22

BRAKE CONTROL SYSTEM

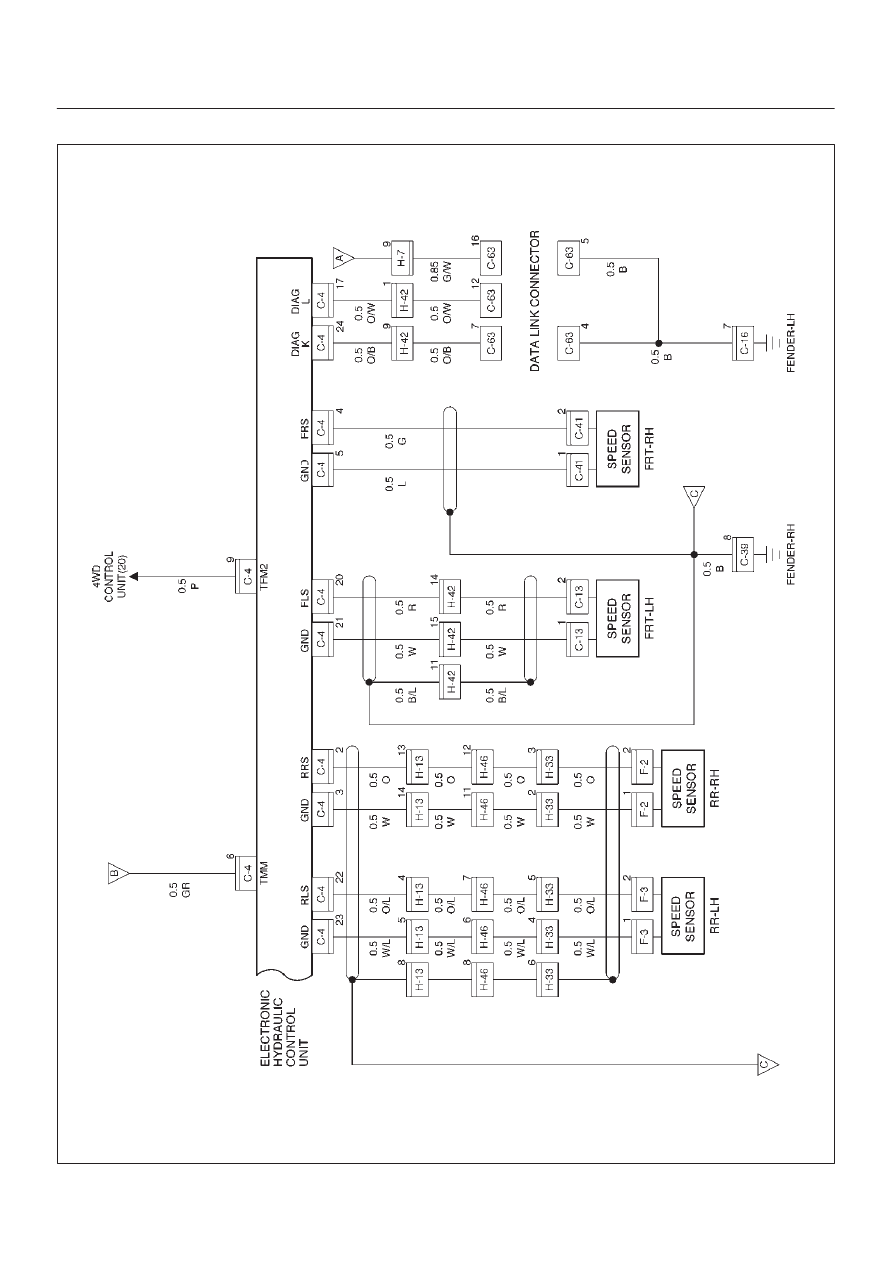

Circuit Diagram (RHD model / 4JG2)

D08RW788

5A–23

BRAKE CONTROL SYSTEM

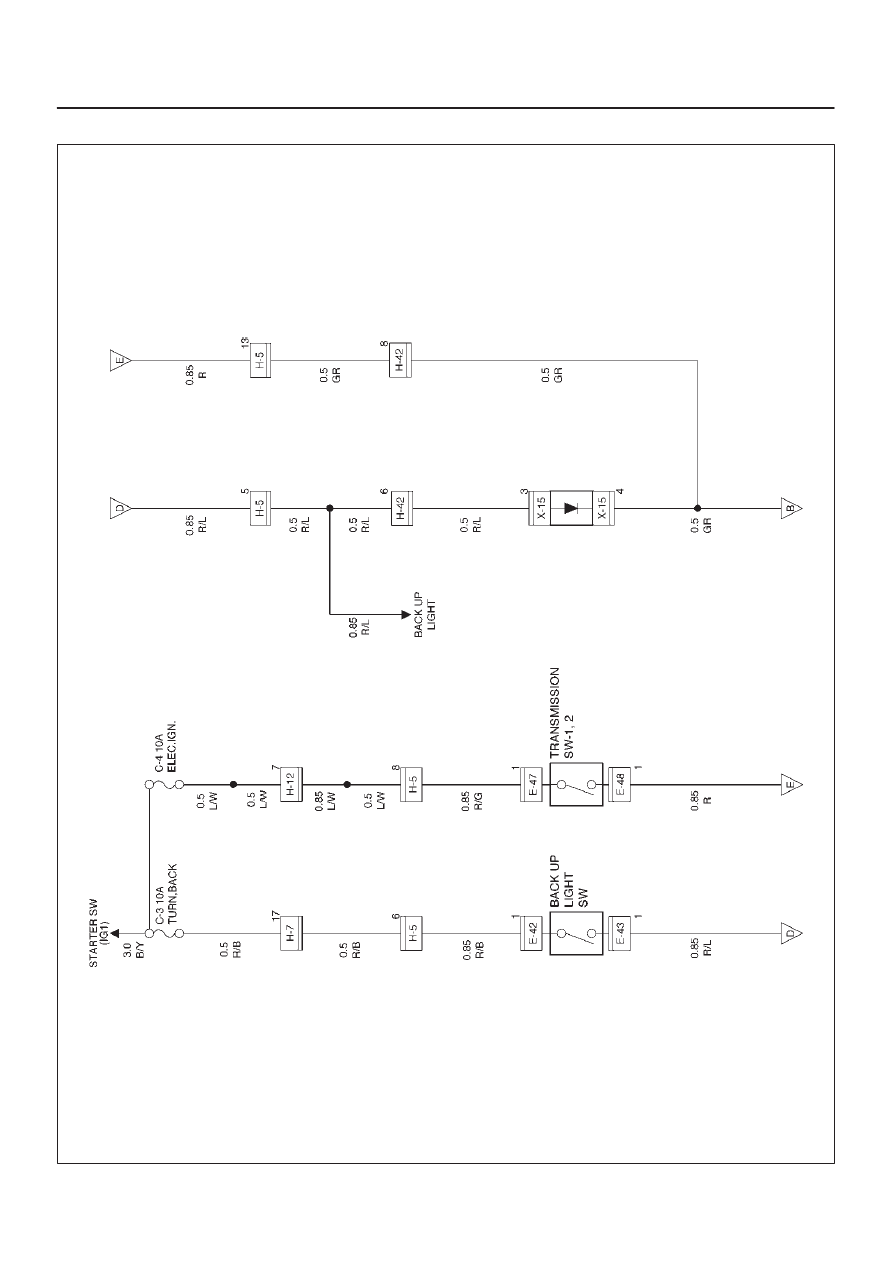

Circuit Diagram (RHD model / 4JG2)

D08RW787
