DRIVE LINE CONTROL SYSTEM (TOD)

No.

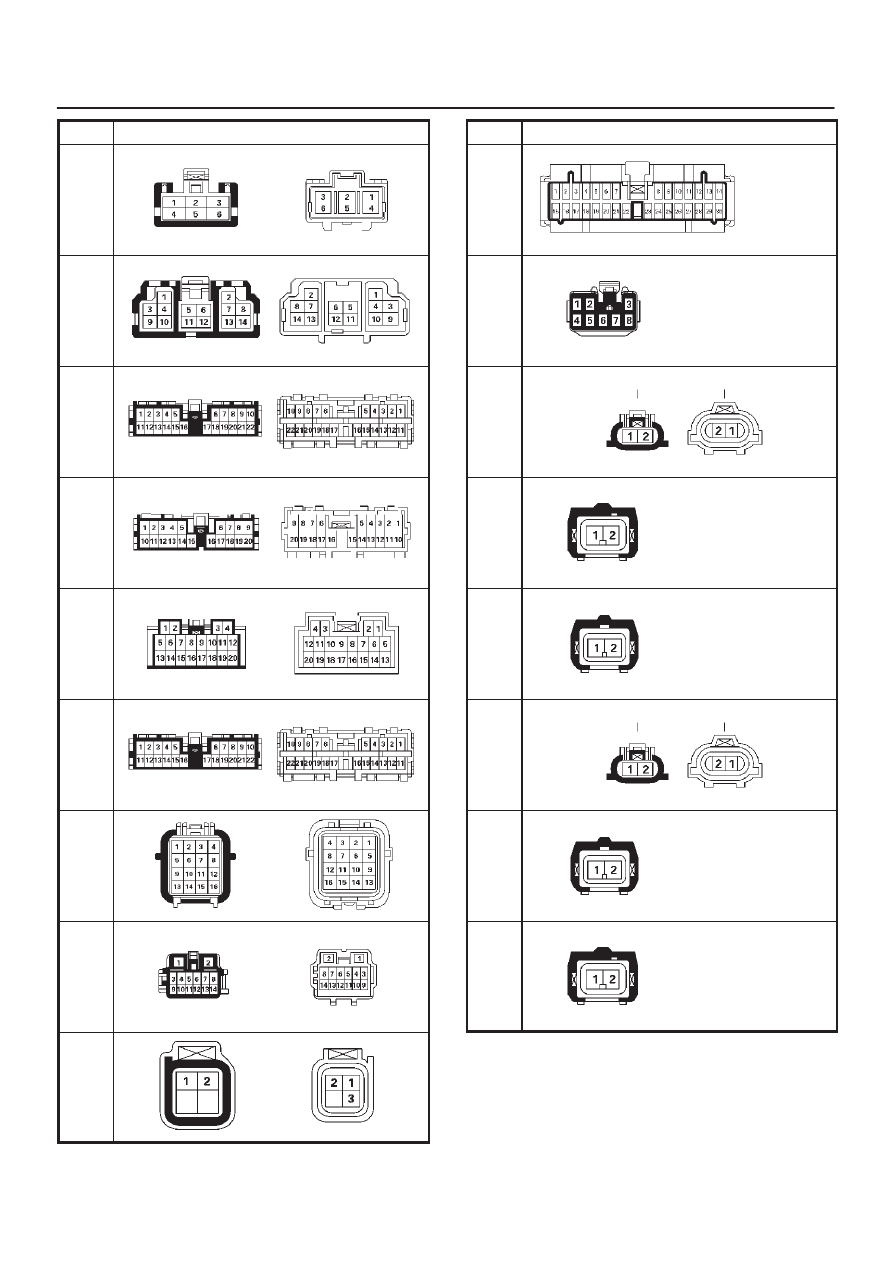

Connector face

H-13

H-15

H-25

H-26

H-27

H-32

H-42

H-49

H-60

No.

Connector face

I-9

I-12

M-22

M-23

M-24

P-17

(4JX1)

P-18

(4JX1)

P-19

(4JX1)

DRIVE LINE CONTROL SYSTEM (TOD)

4B2–36

Checking Failed Pin

Connector Pin Assignment

D

ECU pin assignment

D04RW032

4B2–37

DRIVE LINE CONTROL SYSTEM (TOD)

No.

NAME

CONTENTS

1

VIG

Power supply (IG)

2

N.C

Not used

3

4WD OUT

4WD signal output

4

SOL (+)

Electromagnetic solenoid

5

ADC (+)

Axle disconnect output

6

LIGHTING SW

Lighting SW input

7

BRAKE

Brake SW input

8

4H SW

4H SW input

9

4L SW

4L SW input

10

AXEL SW

AXEL SW input

11

ABS IN

Operation signal input

12

TOD SW

TOD SW input

13

DIAG

Self-diagnosis input

14

D-G MAP

D-G MAP recognition input (Only V6 engine)

15

Ref.

Vehicle speed sensor supply

16

N.C

Not used

17

N.C

Not used

18

COM (–)

Vehicle speed sensor GND

19

S-GND

Sensor GND

20

P-GND

Power GND

21

TPS

Throttle position sensor

22

TECH 2

TECH 2 output

23

Rer. Sig

Rear vehicle speed sensor input

24

Frt. Sig

Front vehicle speed sensor input

25

IND.a

4WD display signal a

26

IND.b

4WD display signal b

27

IND.c

4WD display signal c

28

IND.AUTO

AUTO display output

29

IND Rr

Rear display output

30

CHECK

TOD warning lamp

DRIVE LINE CONTROL SYSTEM (TOD)

4B2–38

Reference

D

Transfer connector pin assignment (connector on the
transfer case)
for inspection of transfer pins.

810RW310

No.

NAME

CONTENTS

1

Ref. (Rer. )

Rear speed sensor reference output

2

Ref. (Frt. )

Front speed sensor reference output

3

SW GND

SW GND

4

4H SW (+)

4H SW plus terminal

5

Rer. (+)

Rear speed sensor plus

6

Frt. (+)

Front speed sensor plus

7

POWER GND

Power GND

8

SOL (+)

Electromagnetic solenoid

9

COM (–) (Rer. )

Rear speed sensor GND

10

COM (–) (Frt. )

Front speed sensor GND

11

NC

Not used

12

4L SW (+)

4L SW plus terminal
