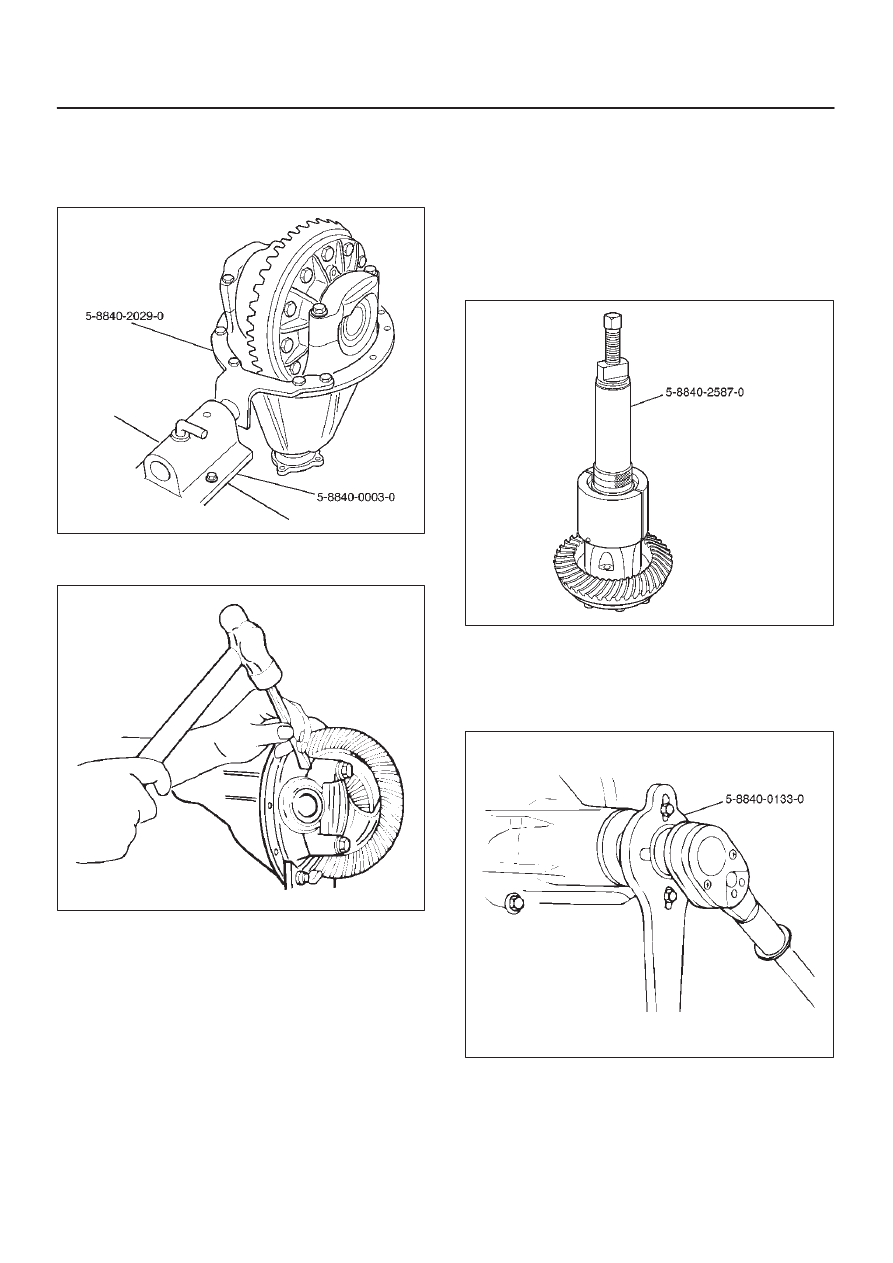

DIFFERENTIAL (REAR 244mm) 4A2B–15 Disassembly 1. Using holding fixture 5–8840–2029–0 and holding fixture base 5–8840–0003–0, fix the differential 425RW058 2. Apply a setting mark to the side bearing cap and the differential carrier then remove bearing cap. 425RS009 3. Remove differential cage assembly. the right and left hand side bearing assemblies 5. Remove side bearing by using remover 5–8840–2587–0 and adapter 5–8840–2576–0. 415RW041 6. Note the thickness and position of the shims then remove adjust shim. 7. Remove the flange nut and washer by using pinion flange holder 5–8840–0133–0 after raising up its 415RW040 |
