DIFFERENTIAL (REAR 244mm) 4A2B–11

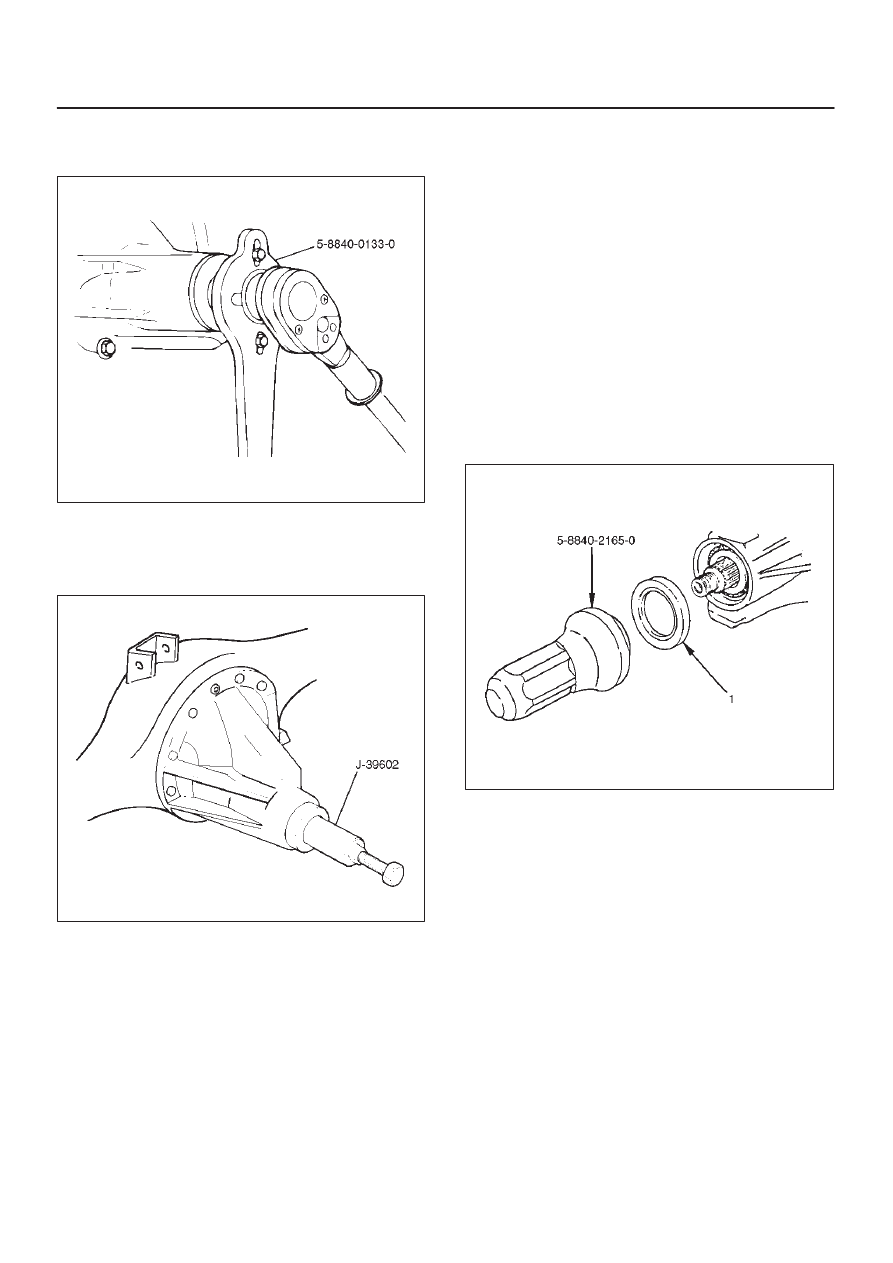

3. Remove flange nut and washer by using pinion flange

holder 5–8840–0133–0 after raising up its staked
parts completely.

415RW040

4. Remove flange.
5. Remove oil seal.
6. Remove outer bearing by using remover

5–8840–2323–0.

425RY00003

7. Remove collapsible spacer.

Inspection and Repair

Make necessary correction or parts replacement if wear,
damage, corrosion or any other abnormal conditions are
found through inspection.
Check the following parts:

1. Seal surface of the pinion.
2. Cage bore for burns.

Installation

1. Install collapsible spacer, discard the used collapsible

spacer and install a new one.

2. Install outer bearing.

NOTE: Do not drive in, but just temporarily set in the outer
bearing by hand, which should be indirectly pressed in
finally by tightening the flange nut.

3. By using the seal installer 5–8840–2165–0, install a

new oil seal (1) that has grease on seal lip.

425RW050

4. Install flange.
5. Install flange nut and washer. Refer to Differential

Assembly in this section for flange nut reassembly.

NOTE: Discard the used nut and install a new one.

4A2B–12

DIFFERENTIAL (REAR 244mm)

Differential Assembly

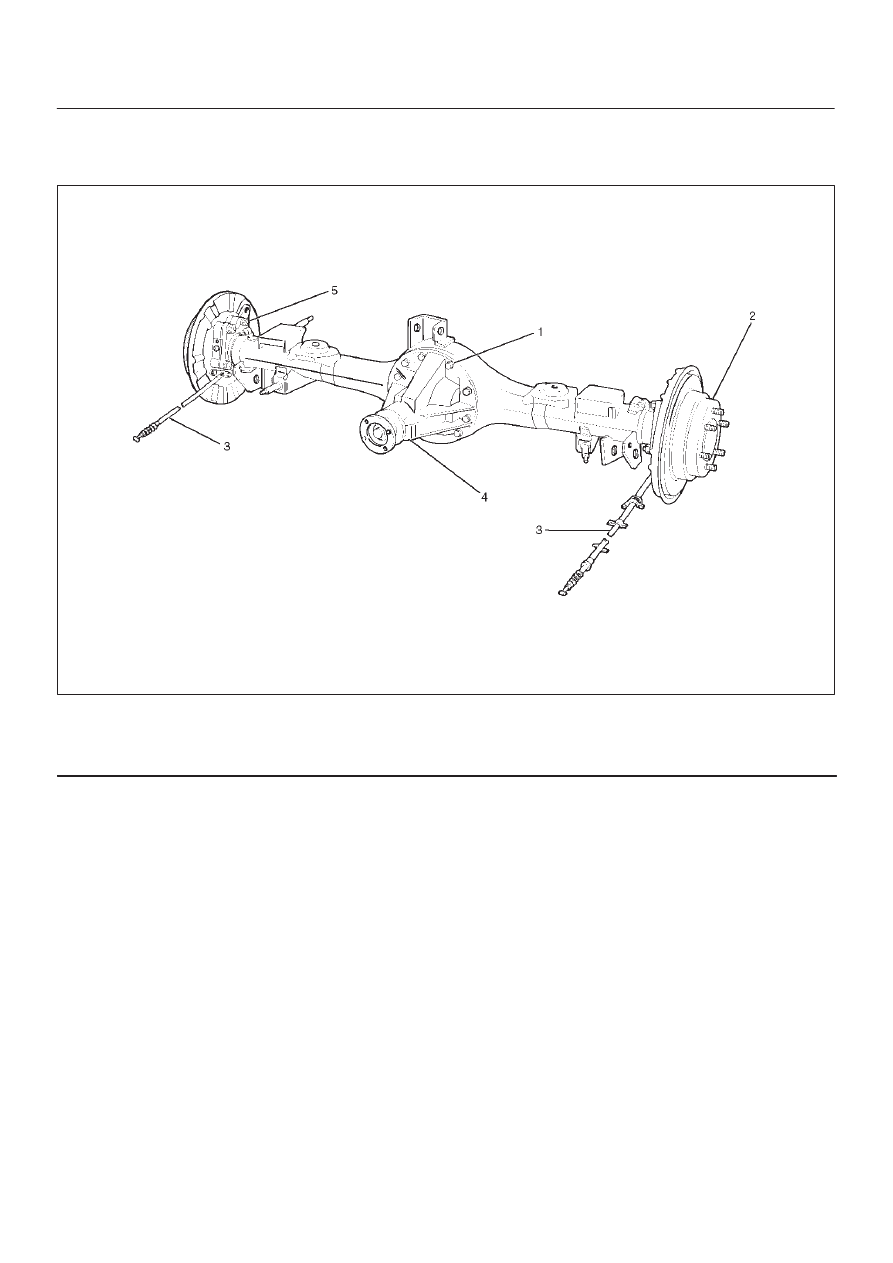

Differential Assembly and Associated Parts

425RY00016

Legend

(1) Bolt and Nut
(2) Axle Shaft Assembly

(3) Parking Brake Cable
(4) Differential Assembly
(5) Nut

Removal

1. Jack up and support the frame with stands.
2. Remove the wheel and tire.  Refer to Wheel in

Steering section.

3. Drain the differential oil.
4. Remove the propeller shaft.  Refer to Rear Propeller

Shaft in this section.

5. Remove the ABS speed sensor.  Refer to  Anti–lock

Brake System  in Brakes section.

6. Remove the parking brake cable fastening clip and

disconnect the equalizer section.  Refer to Parking
Brakes in Brake section.

7. Remove the bearing holder fixing nuts.
8. Remove axle shaft assembly, be sure not to damage

the oil seal by axle shaft.

9. Remove differential carrier mounting bolts and nuts.

10. Remove differential assembly.

DIFFERENTIAL (REAR 244mm) 4A2B–13

Installation

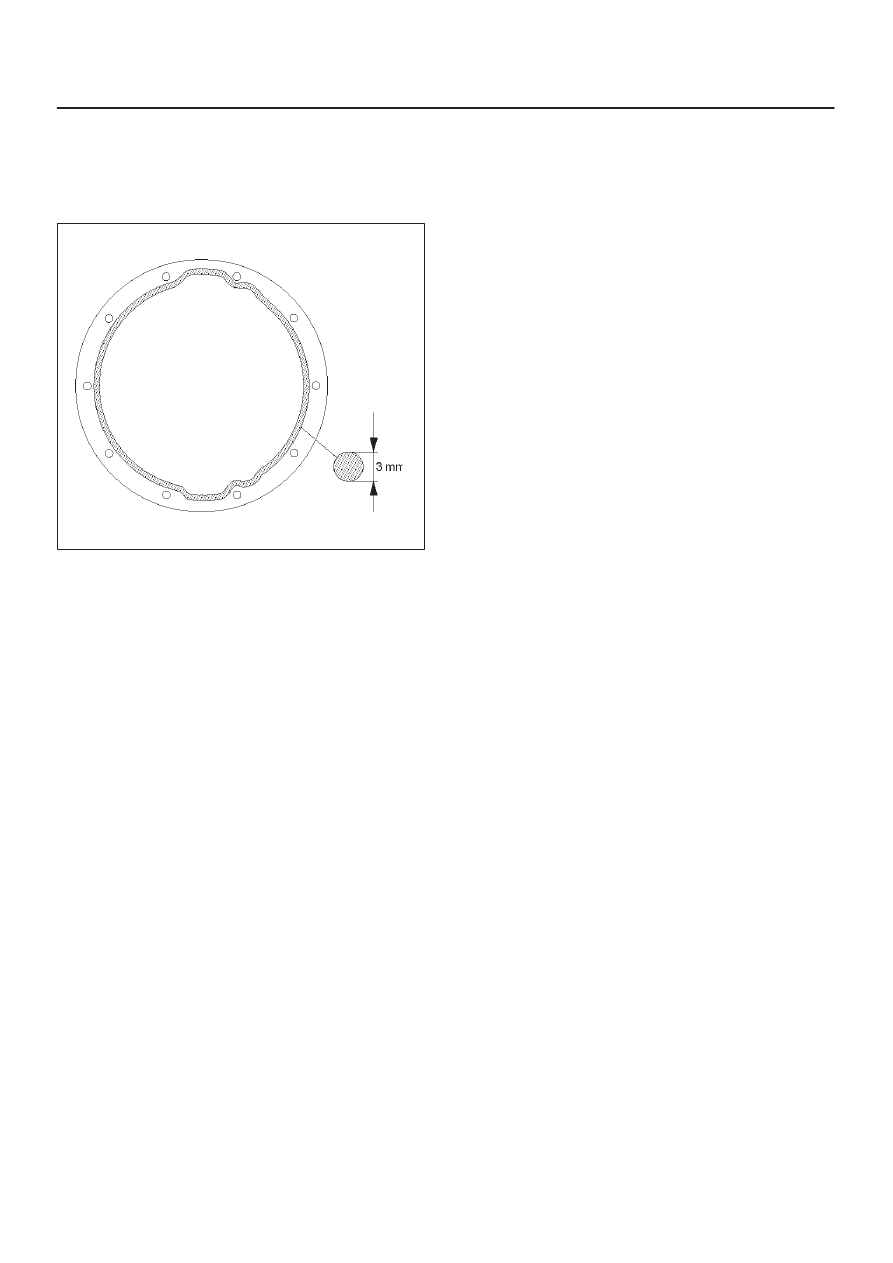

1. Clean the contact surfaces of the axle and differential

carrier.  As shown in the drawing, apply Three Bond
TB1215 or equivalent then install differential
assembly.

425RS006

2. Install bolt and nut. Tighten the differential carrier

mounting bolts and nuts to the specified torque.

Torque:Nuts 44N·m (4.5kg·m/33 lb ft)

Bolts 64N·m (6.5kg·m/47 lb ft)

3. Install axle shaft assembly.  Be sure not to damage

the oil seal by axle shaft.

4. Install nut, refer to Axle Shaft in this section.
5. Install parking brake cable, refer to Parking Brakes in

Brake section.

NOTE: After completing the assembling work, fill the
prescribed gear oil to the filler hole.

Lubricant capacity: 3.0 liter (2.6 Imp qt/3.2
US qt)

6. Tighten the oil filler plug to the specified torque.

Torque: 78N·m (8.0kg·m/58 lb ft)

4A2B–14

DIFFERENTIAL (REAR 244mm)

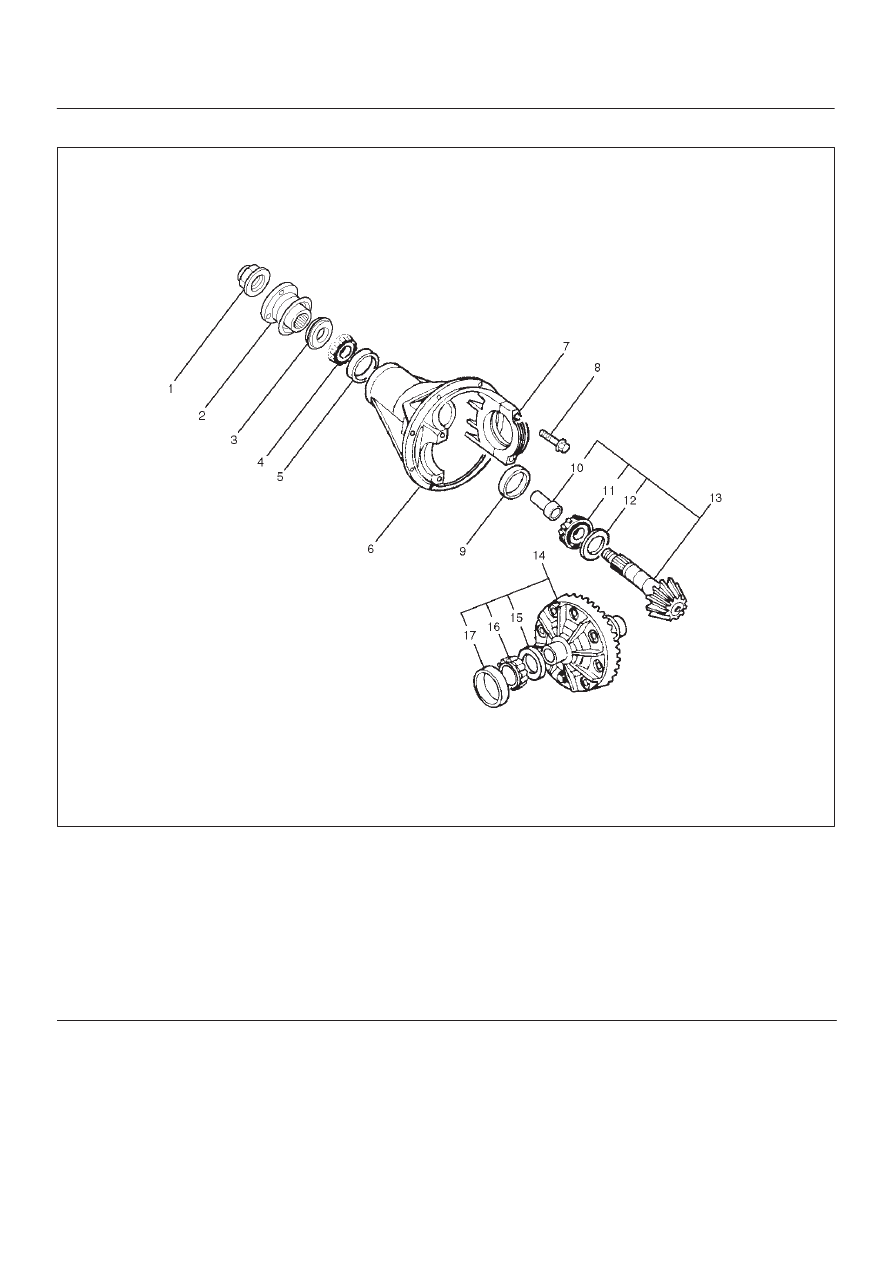

Disassembled View

415RY00002

Legend

(1) Flange Nut and Washer
(2) Flange
(3) Oil Seal
(4) Outer Bearing
(5) Outer Bearing Outer Race
(6) Diff Carrier
(7) Bearing Cap
(8) Bolt

(9) Inner Bearing Outer Race

(10) Collapsible Spacer

(11) Inner Bearing

(12) Adjust Shim (Pinion Position)
(13) Drive Pinion Shaft
(14) Adjust Shim (Diff Cage Assembly)
(15) Diff Preload/Backlash
(16) Side Bearing
(17) Side Bearing Outer Race
