FRONT SUSPENSION  3C – 7

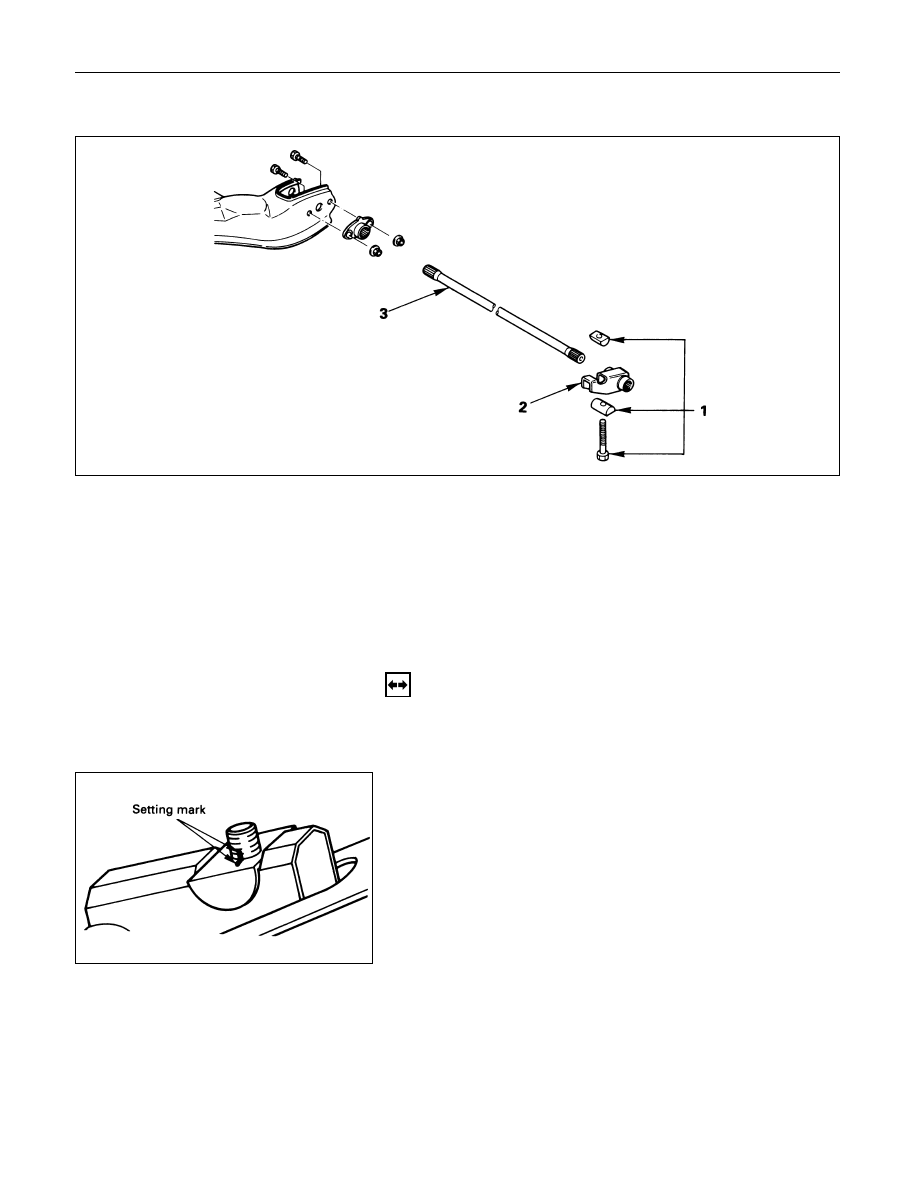

TORSION BAR

Removal Steps

1.

Adjust bolt, end piece and seat

2.

Height control arm

3.

Torsion bar

Installation Steps

3.

Torsion bar

2.

Height control arm

1.

Adjust bolt, end piece and seat

REMOVAL

Preparation:

Raise the vehicle and support the frame with suitable
safety stands.

1. Adjust Bolt, End Piece and Seat

Apply the setting marks to the adjust bolt and end
piece.

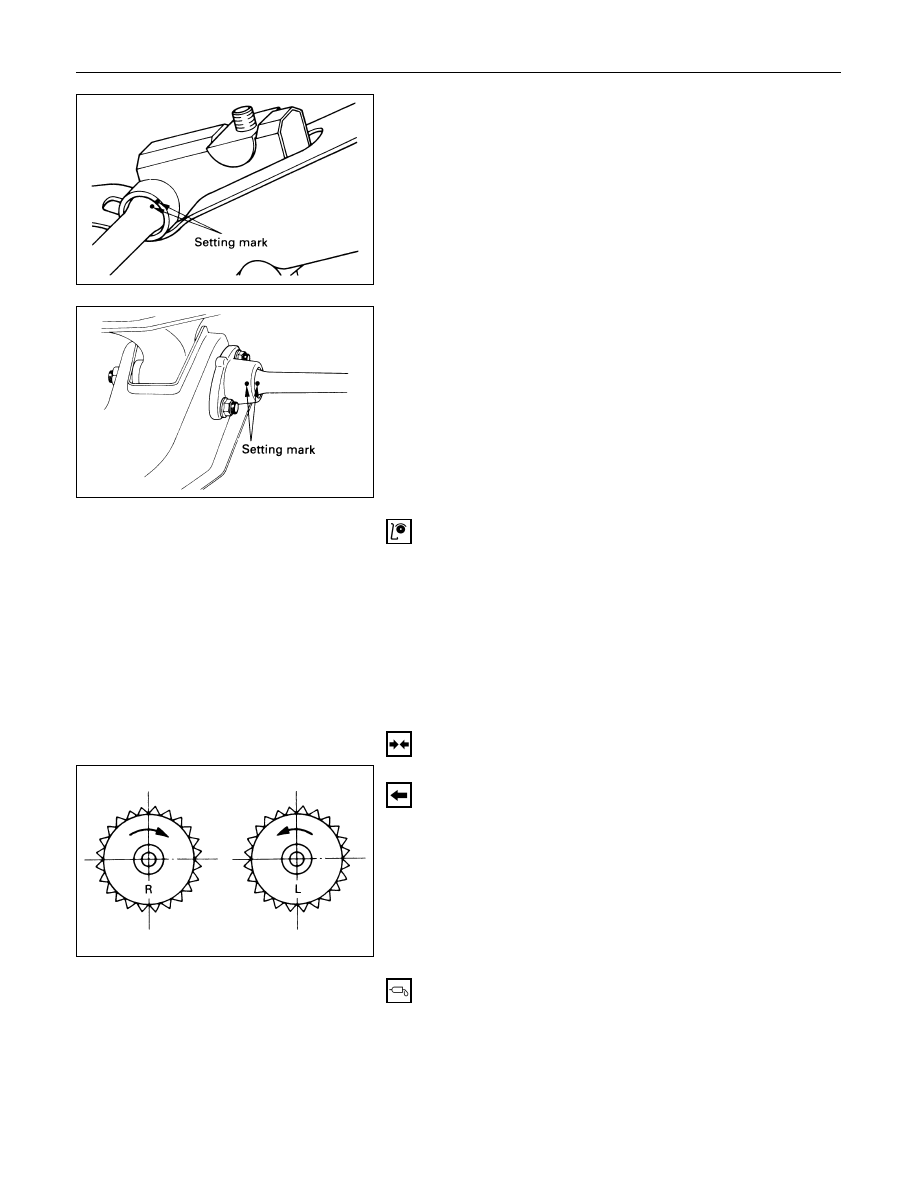

3C – 8 FRONT SUSPENSION

2. Height Control Arm

Apply the setting marks to the height control arm and
torsion bar.

3. Torsion Bar

Apply the setting marks to the torsion bar and lower
control arm.

INSPECTION AND REPAIR

Make necessary correction or parts replacement if wear,
damage, corrosion or any other abnormal condition are
found through inspection.
Check the following parts:

•

Torsion bar

•

Height control arm

•

Adjust bolt

•

Rubber seat

INSTALLATION

3. Torsion Bar

Make sure the bars are on their correct respective
sides.

Apply grease to the serrated portions.

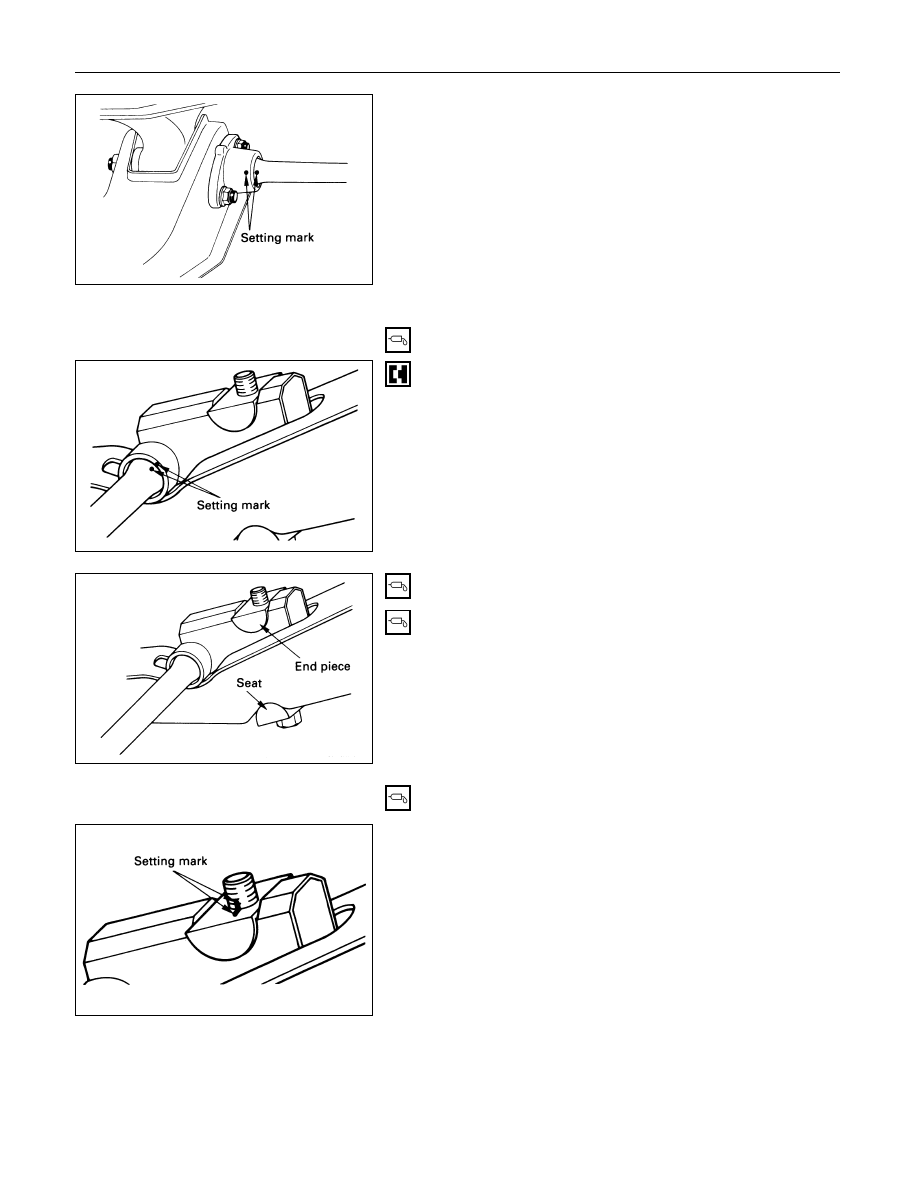

FRONT SUSPENSION  3C – 9

Align the setting marks.

2. Height Control Arm

Apply grease to the portion that fits into the bracket.

Align the setting marks.

Apply grease to the bolt portion of the end piece.

Apply grease to the portion of the seat that fits into
the bracket.

Apply grease to the serrated portions.

1. Adjust Bolt and Seat

Turn ther adjust bolt to the setting mark applied
during disassembly.

NOTE:
Adjust the trim height. Refer to “Front End Alignment” in
section 3A.

3C – 10 FRONT SUSPENSION

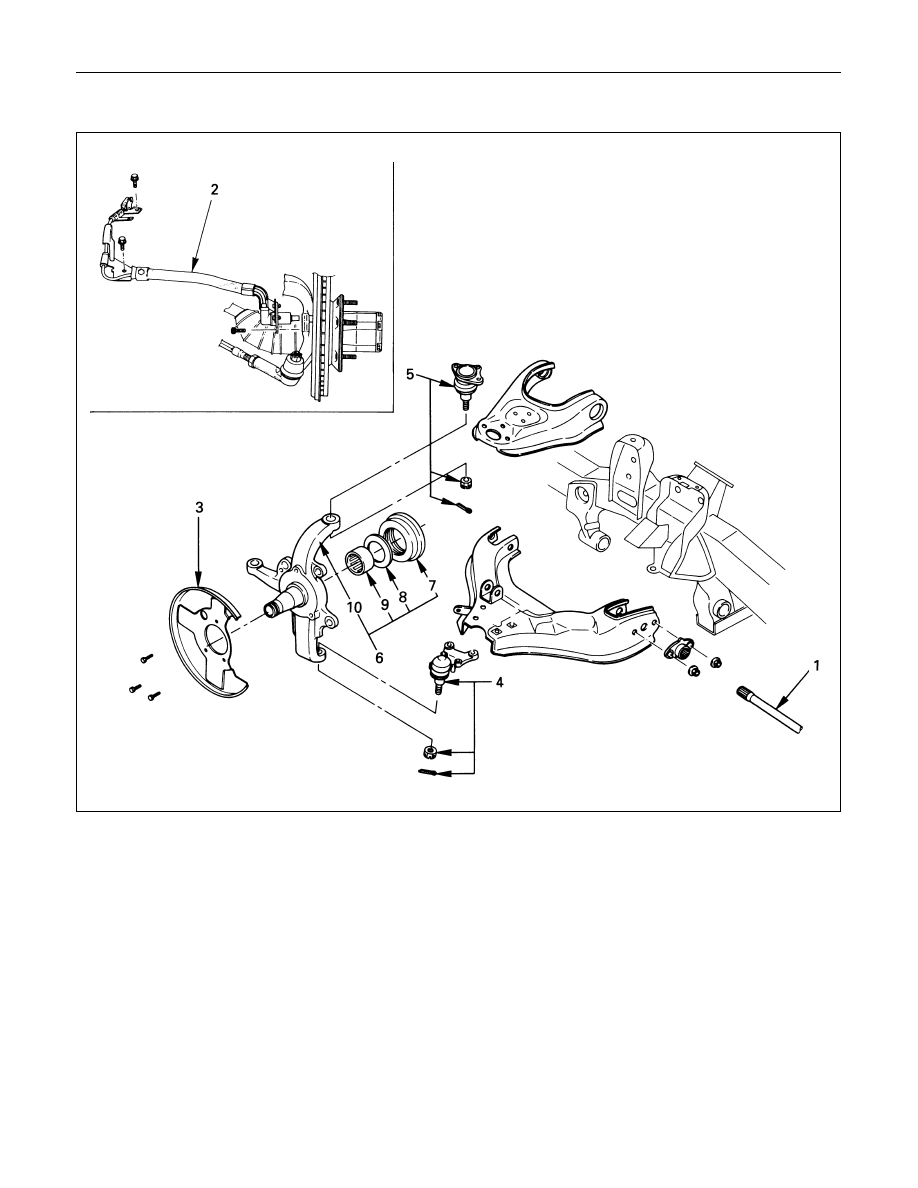

KNUCKLE

Removal Steps

1.

Torsion bar

2.

Wheel speed sensor
(if equipped with ABS)

3.

Back plate

4.

Lower ball joint

5.

Upper ball joint

6.

Knuckle assembly

7.

Oil seal

8.

Thrust washer

9.

Needle bearing

10.

Knuckle

Installation Steps

10.

Knuckle

9.

Needle bearing

8.

Thrust washer

7.

Oil seal

6.

Knuckle assembly

5.

Upper ball joint

4.

Lower ball joint

3.

Back plate

2.

Wheel speed sensor
(if equipped with ABS)

1.

Torsion bar
