HEATING AND VENTILATION  1A – 29

REMOVAL

Preparation:

Disconnect the battery ground cable

1. Front console assembly

2. Lower cluster assembly

3. Glove box

4. Instrument panel passenger lower cover

Refer to Section 10 “BODY” for INSTRUMENT PANEL
ASSEMBLY removal procedure.

5. Resistor connector

6. Duct (Heater only)

7. Resistor

INSTALLATION

To install, follow the removal steps in the reverse order.

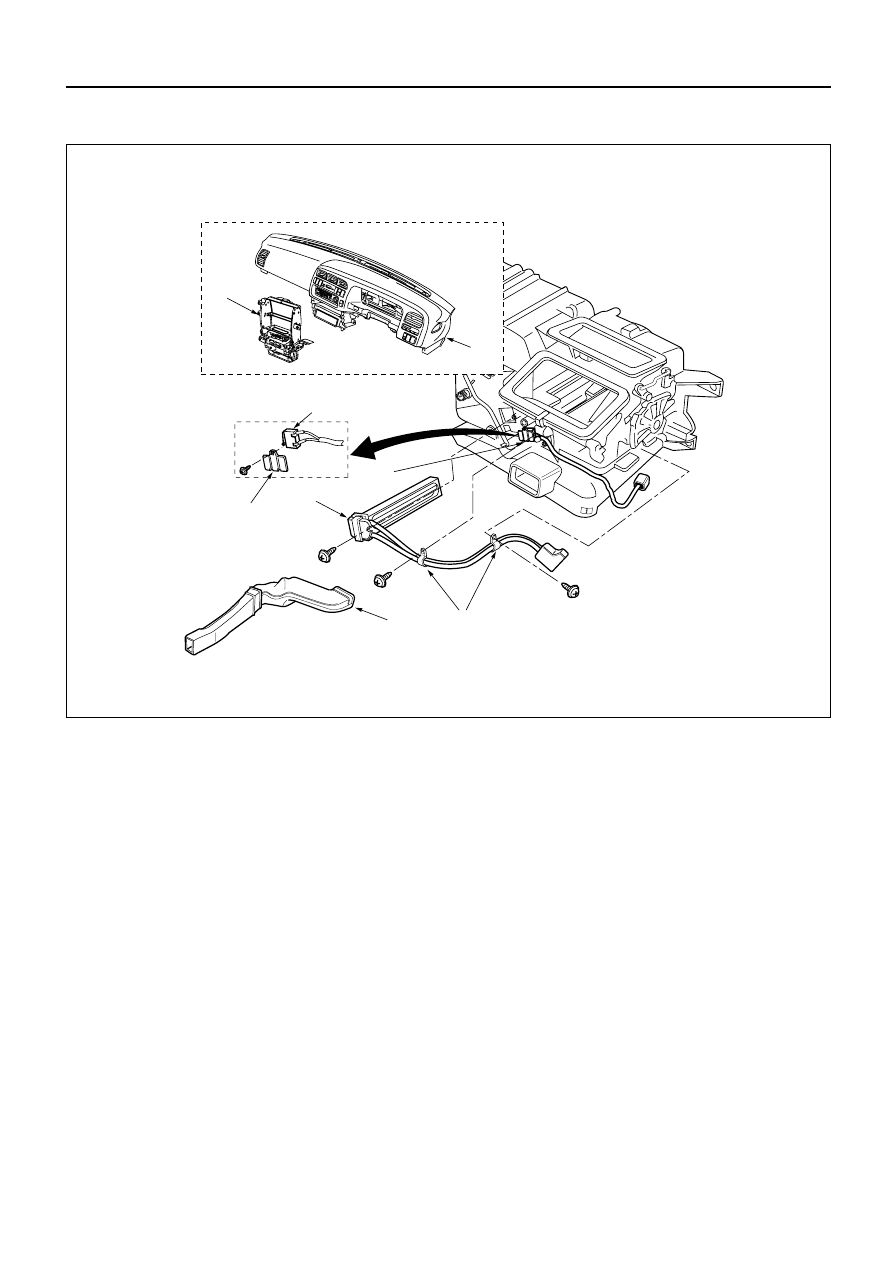

1A – 30 HEATING AND VENTILATION

4

4a

3

Full hot switch

Cover

Clamp

2

20



   25



    30

AUT

O

A/C

OF

F

AUTO

LO

HI

1

 

Removal Steps

1. Instrument panel assembly
2. Instrument panel center bracket
3. Rear heater duct
4. Ceramic heater assembly
4a. Full hot switch

CERAMIC HEATER AND/OR FULL HOT SWITCH

Installation Steps

To install, follow the removal steps in
the reverse order.

This illustration is based on RHD

HEATING AND VENTILATION  1A – 31

REMOVAL

Preparation:

Disconnect the battery ground cable

1. Instrument panel assembly

Refer to Section 10 “BODY” for “INSTRUMENT
PANEL ASSEMBLY” removal procedure.

2. Instrument panel center bracket

Refer to Section 10 “CROSS BEAM ASSEMBLY”
removal procedure.

3. Rear heater duct

4. Ceramic heater

1) Disconnect the connector and remove the heater

fixing screw and heater harness fixing clamps.

2) Pull the ceramic heater out from heater unit.

4a. Full hot switch

Disconnect the switch connector and remove the
switch fixing screw and switch harness fixing clamp.

INSTALLATION

To install, follow the removal steps in the reverse order,
noting the following points.

1. The installation should be made with care so that

there is continuity between the switch side connector
terminals when the knob is set to the “Full Hot”
position.

2. Be sure to handle the EGR and the ABS control unit

with care to avoid the disengagement of connectors.
