HEATING AND VENTILATION  1A – 21

INSTALLATION

To install, follow the removal steps in the reverse order,
noting the following point:

1. Connect each duct and nozzle securely leaving no

clearance between them and making no improper
matching.

REMOVAL

Preparation:

Disconnect the battery ground cable

1. Instrument panel assembly

•

Refer to Section 10 “BODY” for INSTRUMENT
PANEL ASSEMBLY removal procedure.

2. Center ventilation upper duct

3. Side ventilation duct

4. Center ventilation lower duct

5. Driver lap duct

6. Center console

7. Rear heater duct

•

Refer to Section 10 “BODY” for CONSOLES
removal procedure.

8. Cross beam assembly

•

Refer to Section 10 “BODY” for CROSS BEAM
ASSEMBLY removal procedure.

9. Side defroster nozzle

10. Center defroster nozzle

1A – 22 HEATING AND VENTILATION

Removal Steps

1. Front console assembly
2. Lower cluster assembly
3. Instrument panel driver lower

cover assembly

4. Meter cluster assembly
5. Center vent
6. Side vent

Installation Steps

To install, follow the removal steps in the
reverse order.

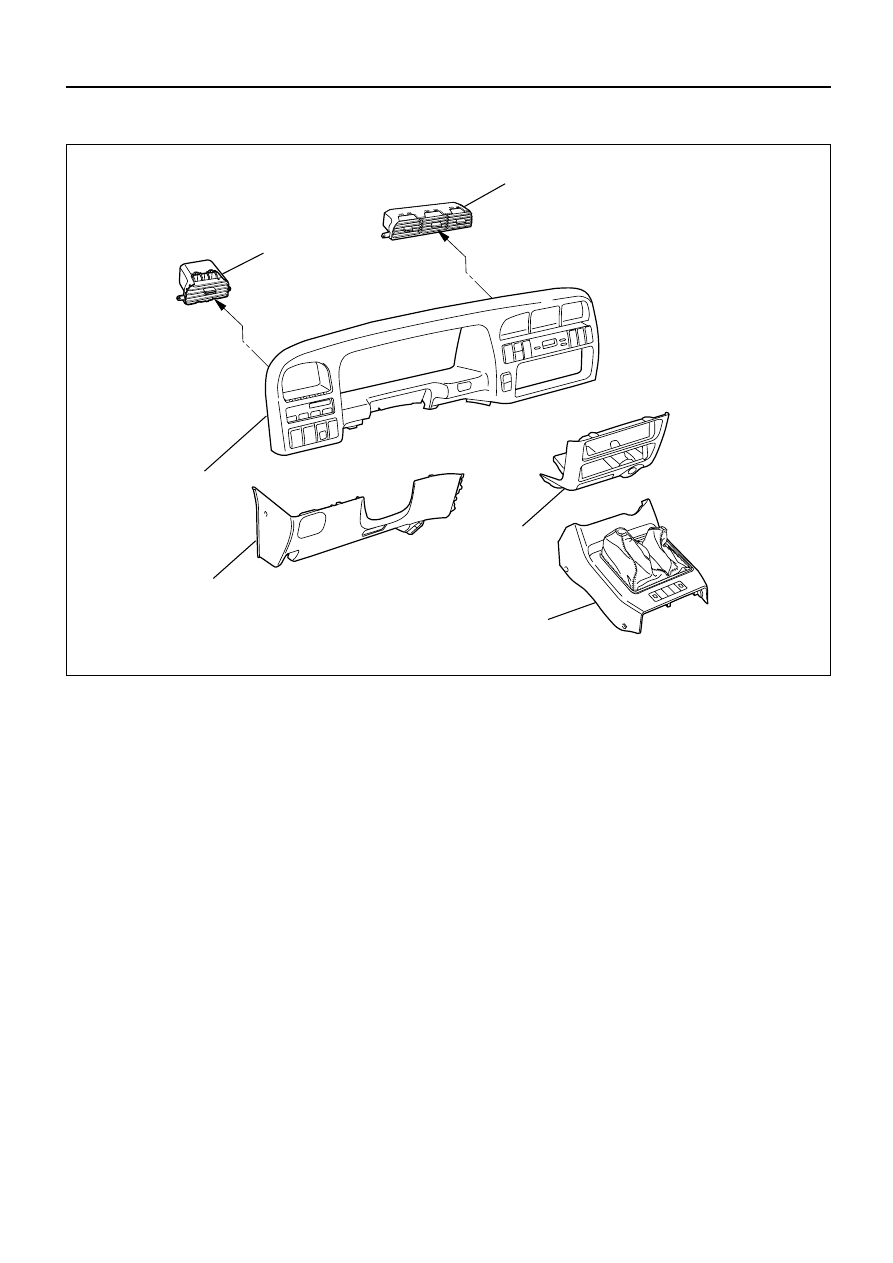

CENTER AND/OR SIDE VENT

6

5

3

1

2

4

This illustration is based on LHD

740RW168

HEATING AND VENTILATION  1A – 23

INSTALLATION

To install, follow the removal steps in the reverse order.

REMOVAL

1. Front console assembly

2. Lower cluster assembly

3. Instrument panel driver lower cover assembly

4. Meter cluster assembly

•

Refer to Section 10 “BODY” for INSTRUMENT
PANEL ASSEMBLY removal procedure.

5. Center vent

•

Remove screws and the center vent from center
cluster while prying up the center vent catch
portions.

6. Side vent

•

Remove screws and the side vent from center
cluster while prying up the side vent catch
portions.

1A – 24 HEATING AND VENTILATION

Removal Steps

1. Center console assembly
2. Lower cluster assembly
3. Glove box
4. Instrument panel passenger lower

cover assembly

5. Instrument panel driver lower cover

assembly

6. Meter cluster assembly
7. Attaching screws
8. Fan switch and air conditioning switch

connector

9. Control lever assembly

10. Control cable

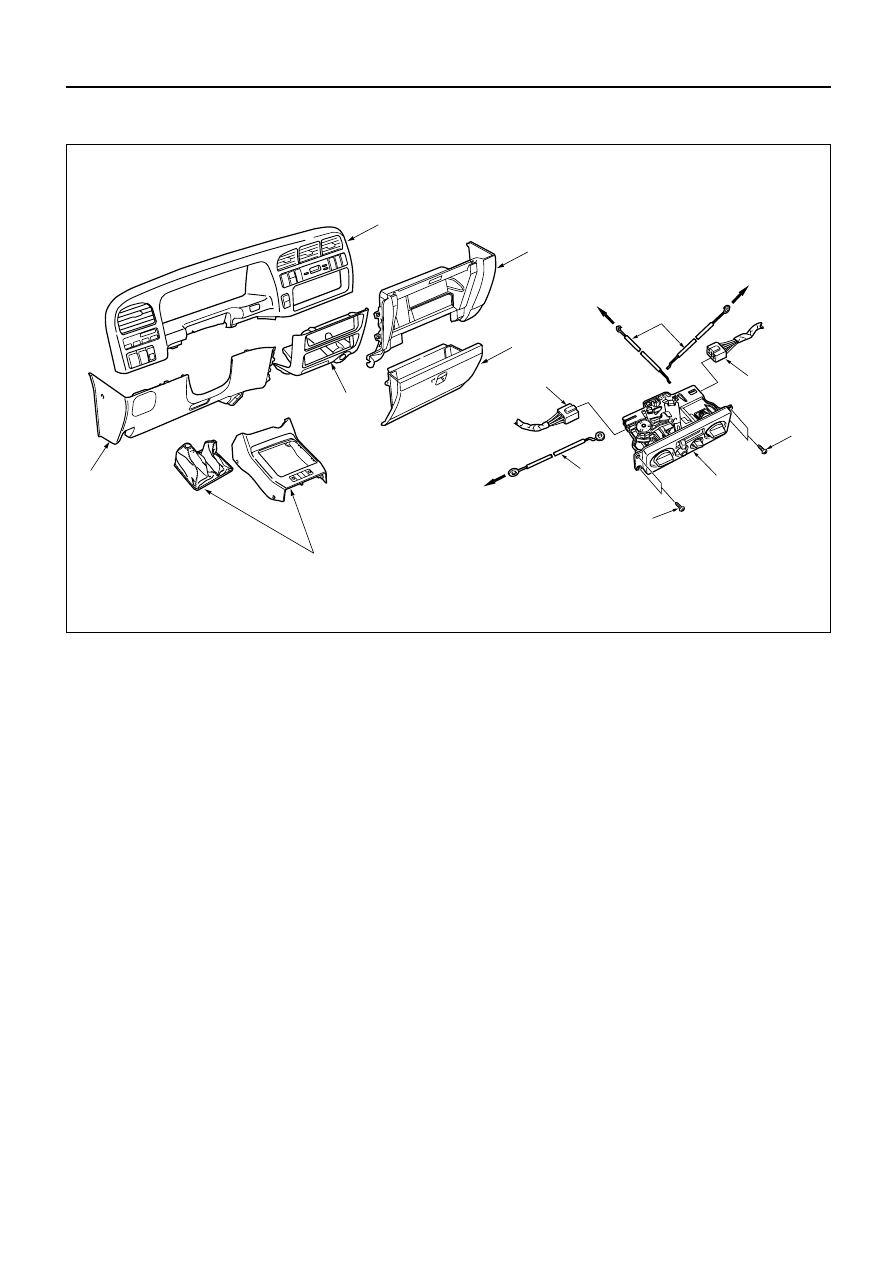

CONTROL LEVER ASSEMBLY AND/OR CONTROL CABLES

6

1

5

2

10

7

7

8

8

9

10

To Mode control link

To Temp control link

To Blower assembly

4

3

Installation Steps

To install, follow the removal steps in
the reverse order.

This illustration is based on LHD
