Opel Frontera UBS. Manual - part 1846





HEATING AND VENTILATION  1A – 17

REMOVAL

Preparation:

Disconnect the battery ground cable

1. Blower Assembly

Refer to “BLOWER ASSEMBLY” removal procedure
in this section.

2. Lower Case

3. Upper Case

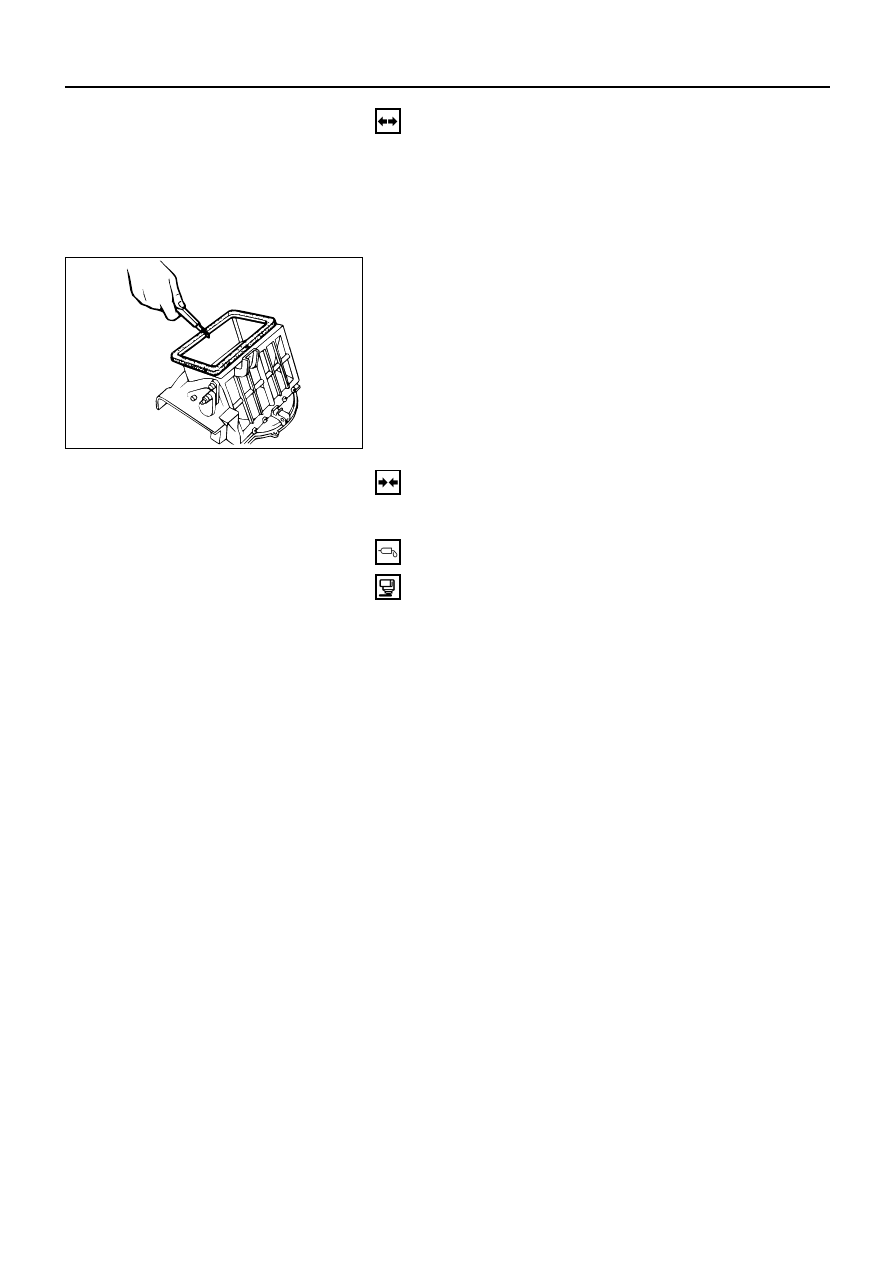

Separate upper case and slit the lining parting face
with a knife.

INSTALLATION

To install, follow the removal steps in the reverse order,
noting the following points:

1. Apply grease to the door lever and to the abrasive

surface of the upper case.

2. Apply an adhesive to parting face of lining when

assembling upper case.

3

4

2

1

5

6

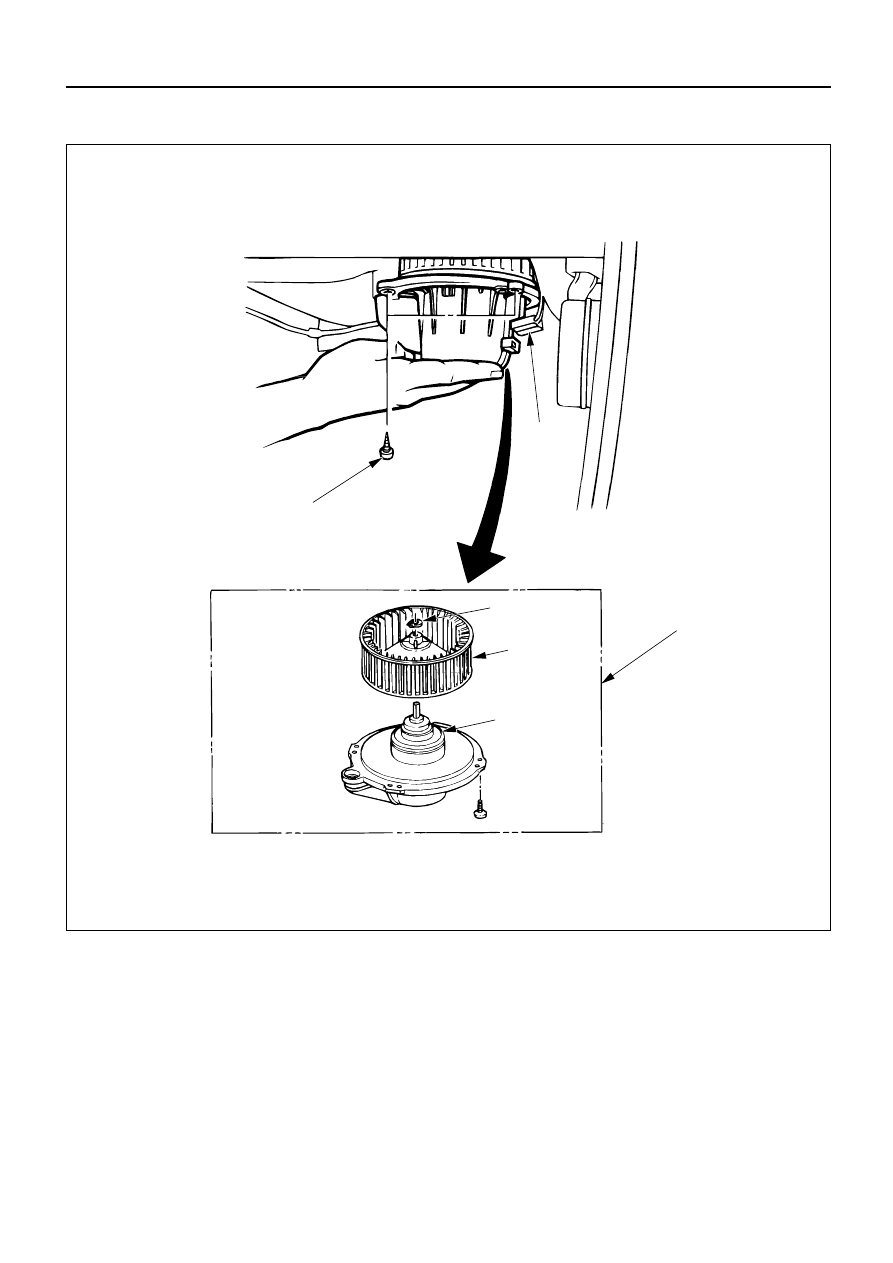

1A – 18 HEATING AND VENTILATION

Removal Steps

1. Blower motor connector
2. Attaching screw
3. Blower motor assembly
4. Clip
5. Fan
6. Blower motor

Installation Steps

To install, follow the removal steps in the
reverse order.

BLOWER MOTOR

This illustration is based on LHD

HEATING AND VENTILATION  1A – 19

REMOVAL

Preparation:

Disconnect the battery ground cable

1. Blower Motor Connector

2. Attaching Screw

3. Blower Motor Assembly

4. Clip

5. Fan

6. Blower Motor

INSTALLATION

To install, follow the removal steps in the reverse order.

1A – 20 HEATING AND VENTILATION

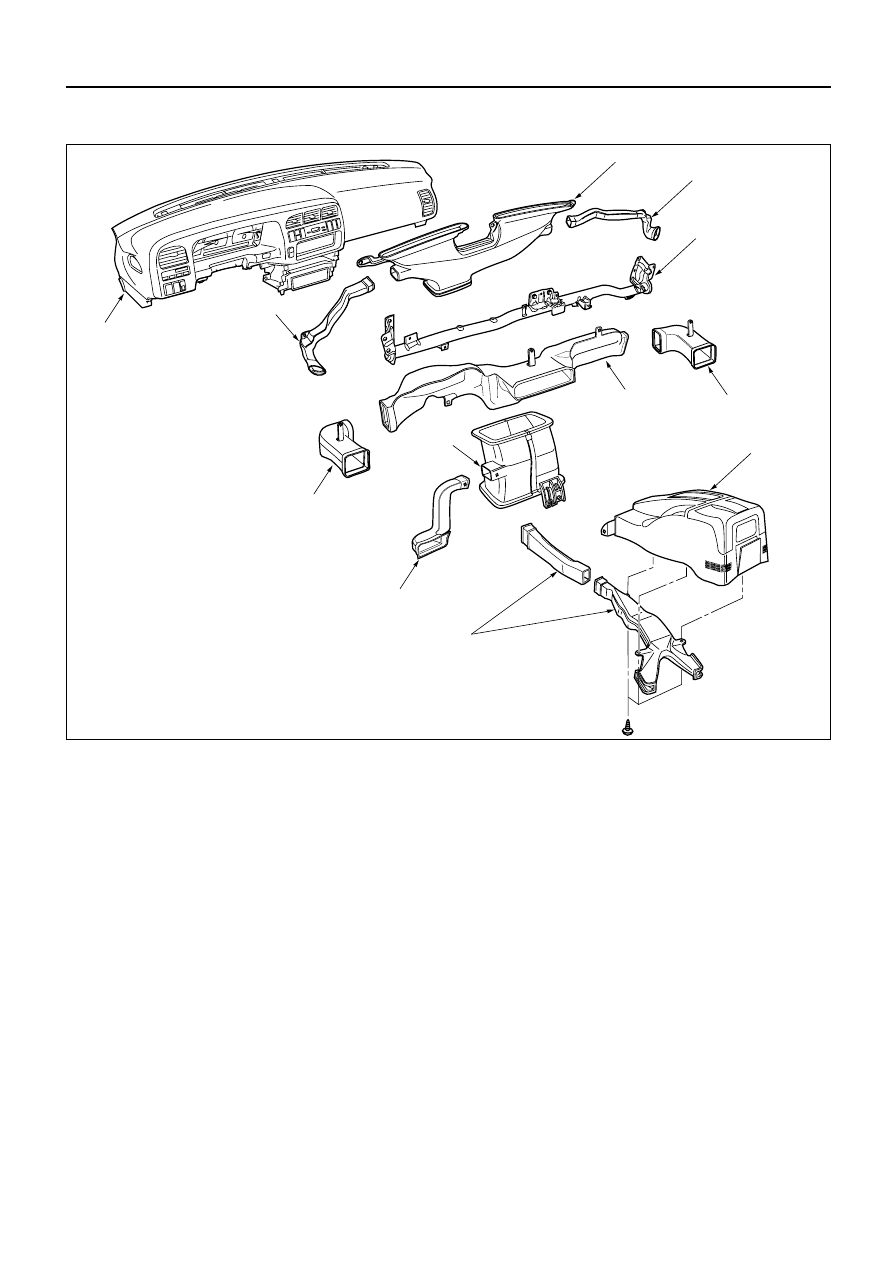

REAR HEATER DUCT, DEFROSTER NOZZLE AND VENTILATION DUCT

Removal Steps

1. Instrument panel assembly
2. Center ventilation upper duct
3. Side ventilation duct
4. Center ventilation lower duct
5. Driver lap duct
6. Center console
7. Rear heater duct
8. Cross beam assembly
9. Side defroster nozzle

10. Center defroster nozzle

Installation Steps

To install, follow the removal steps in the
reverse order.

7

9

9

10

8

6

3

5

1

3

4

2

This illustration is based on LHD
