8F–91

BODY STRUCTURE

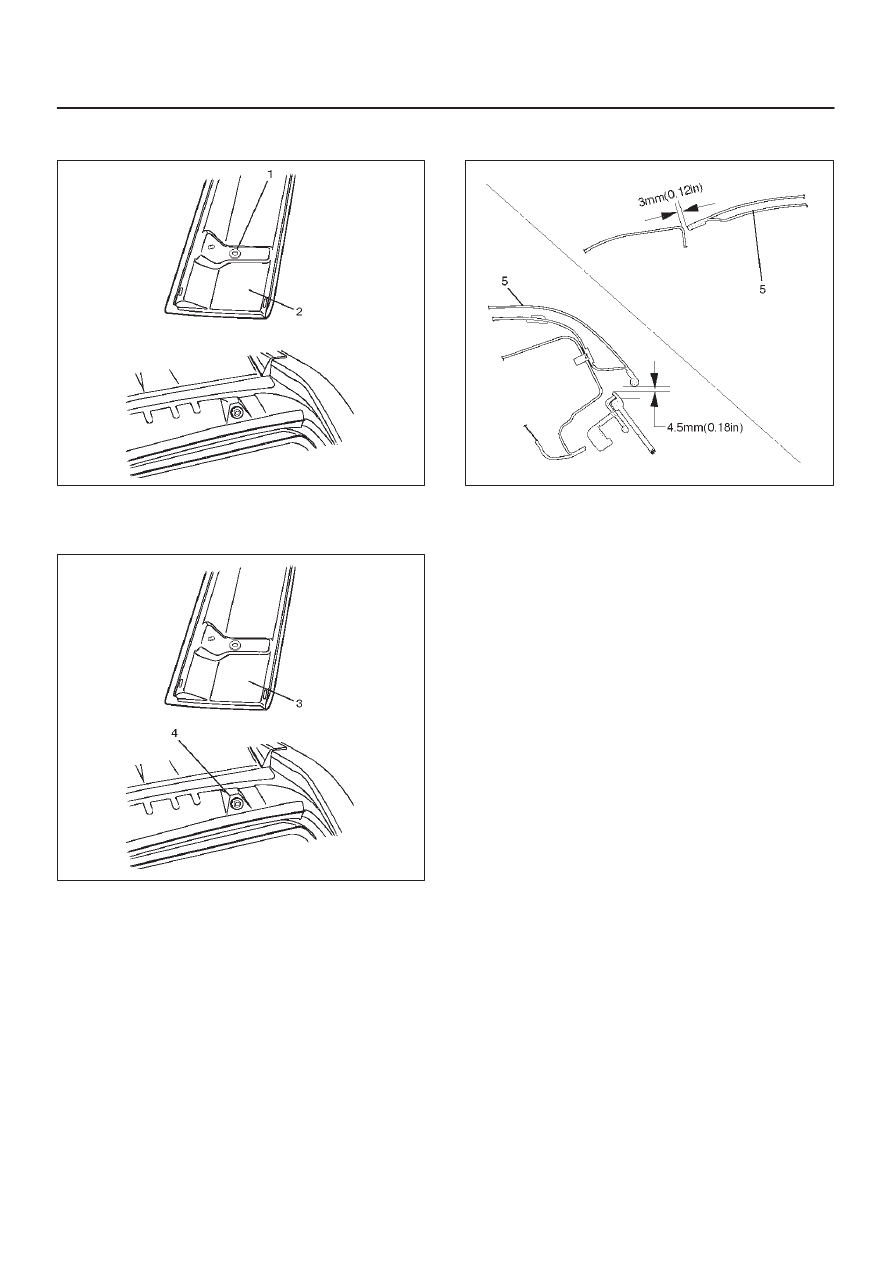

1. Install the grommet (1) to the air deflector (2) drain

hole.

667RW002

2. Use a new nylon washer (4). Peel off the adhesive

tape of the washer to install the nylon washer to the air
deflector (3).

667RW004

3. Install the air deflector (5) to the roof by referring to the

specified values shown in the illustration.

667RW003

4. Tighten the deflector fixing to the specified torque.

Bolt Torque : 6 N

•

m (0.6kg·m/52  lb in)

Nut Torque : 8 N

•

m (0.8kg·m/69  lb in)

8F–92

BODY STRUCTURE

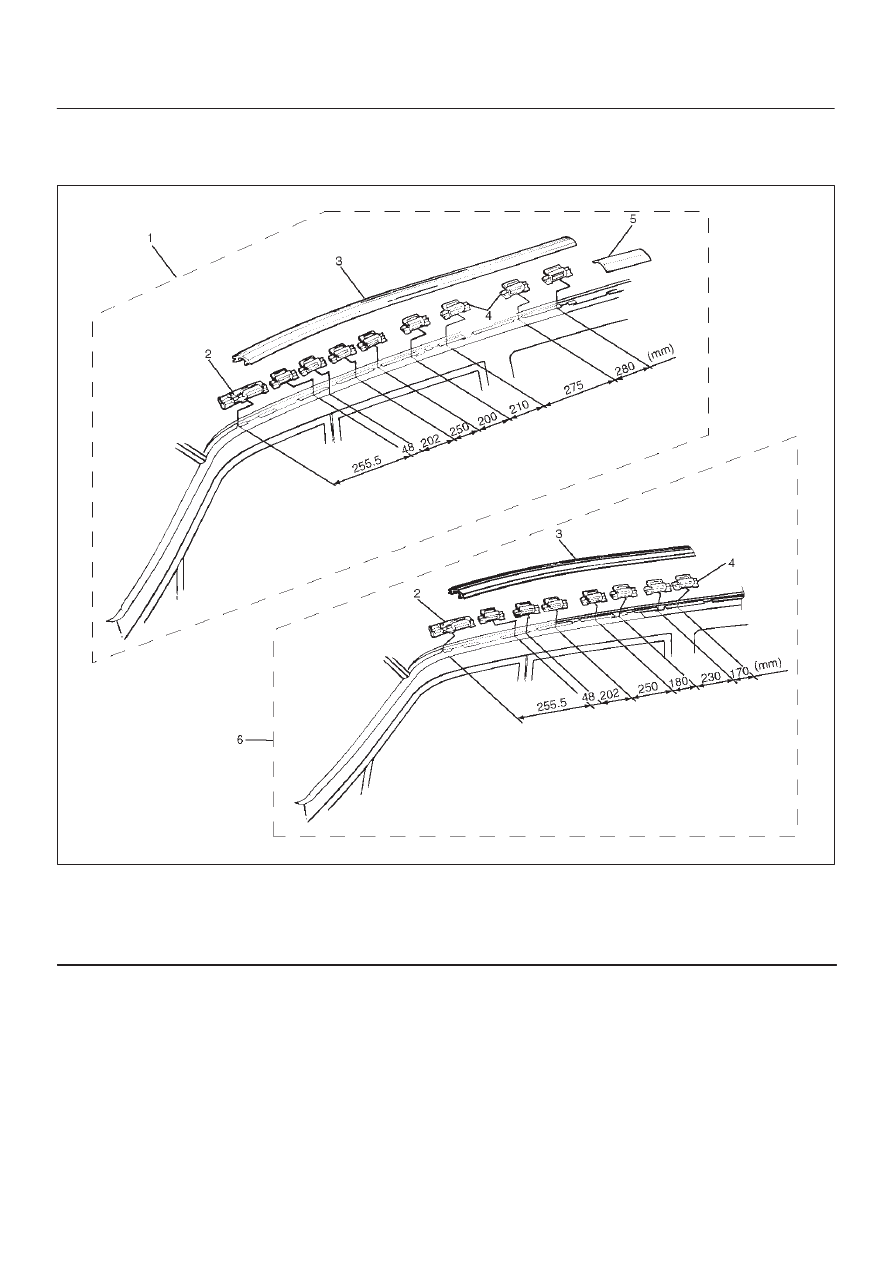

Roof Moulding

Parts Location

645RW009

Legend

(1) L·W·B
(2) Windshield Side Moulding Upper Clip
(3) Roof Moulding

(4) Roof Moulding Clip
(5) Roof End Moulding
(6) S·W·B

Removal

1. Disconnect the battery ground cable.
2. Remove roof moulding.

3. Remove roof end moulding.

D

Remove the sealing adhesive and the adhesive
tape of the roof end moulding from the panel using a
knife or scraper while you peel them off.

4. Remove roof moulding clips.

8F–93

BODY STRUCTURE

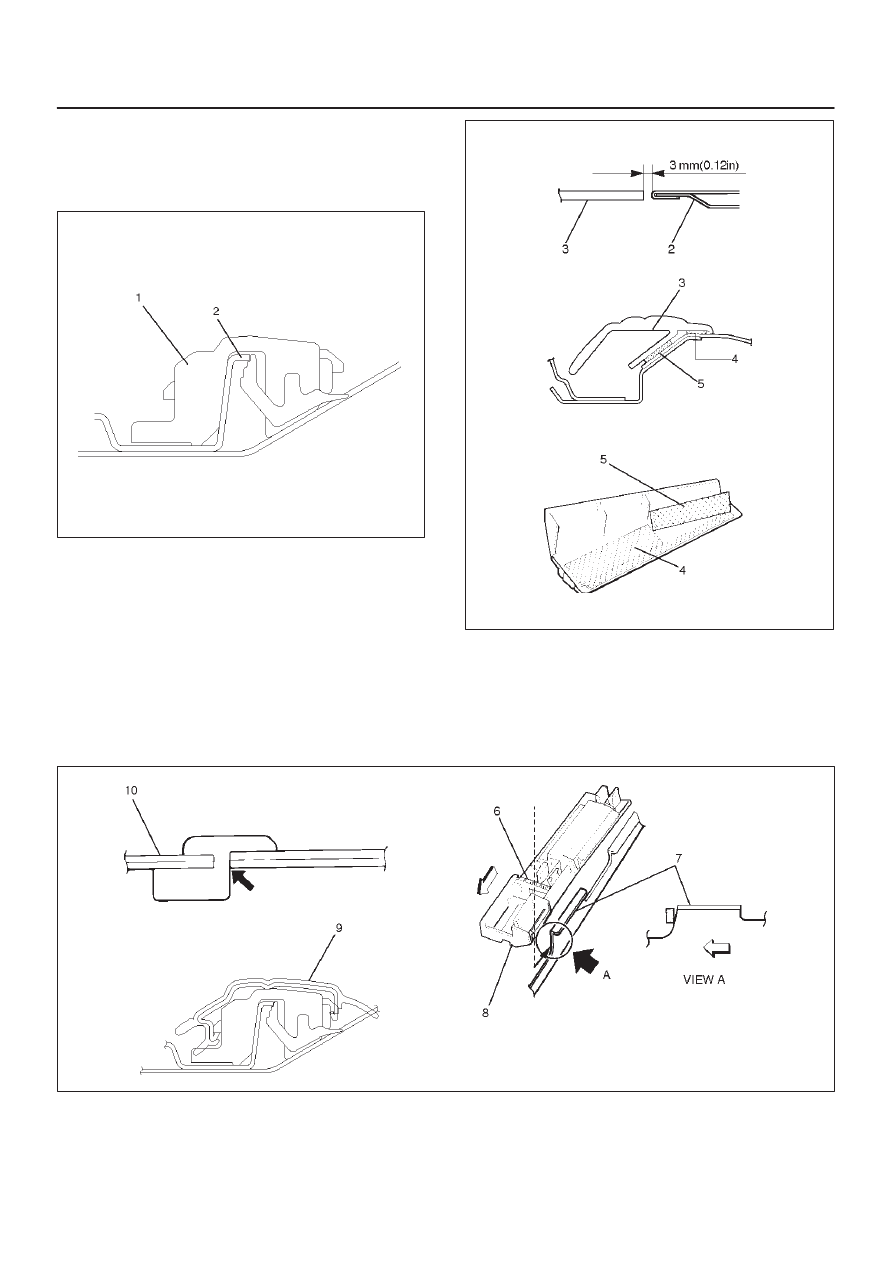

Installation

1. Install the moulding roof clips (1).

D

Install the clips on roof panel flange (2) to refer the
illustration.

645RW003

2. Install the roof end moulding (3).

D

Clean the body panel where the roof end moulding
is installed.

D

Install the roof end moulding and the rear air
deflector (2) so that the installation clearance
between them is within the specified values.
Securely fix it with the adhesive tape (4) and sealing
adhesive (5).

645RW001

3. Install the roof moulding (9).

D

Assemble the windshield side moulding upper clip
(8) to the roof panel with the clip positioning rib (6)
(oblique lines portion) attached to the roof panel
flange (7). Assemble the roof moulding (9) while
you attach the front edge portion of the roof molding
to the windshield side moulding (10).

645RX001

8F–94

BODY STRUCTURE

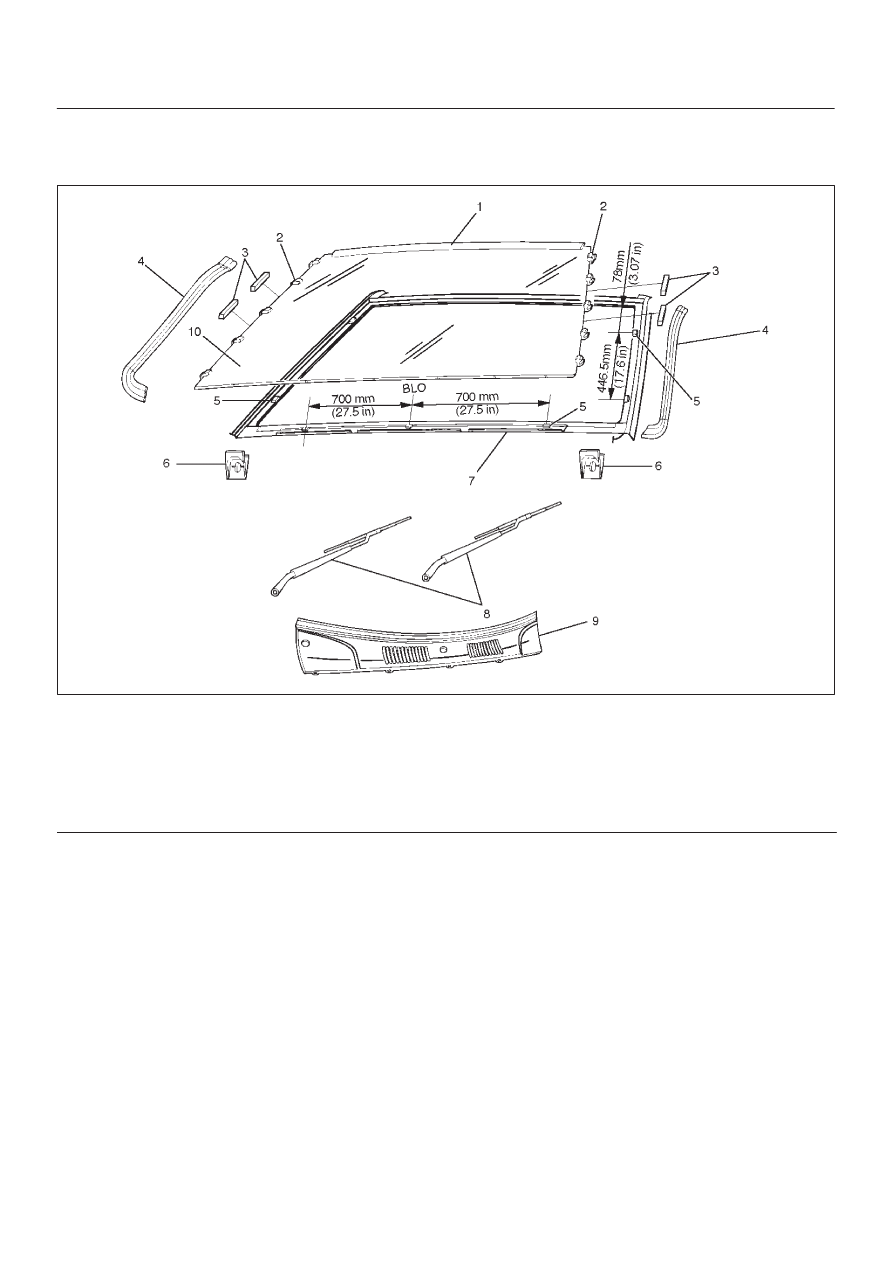

Windshield

Parts Location

607RW006

Legend

(1) Windshield Upper Moulding
(2) Moulding Clip
(3) Windshield Side Seal
(4) Windshield Side Moulding
(5) Spacer

(6) Windshield Support
(7) Cowl Upper Rail Flange
(8) Windshield Wiper
(9) Front Cowl Cover

(10) Windshield

Removal

1. Disconnect the battery ground cable.
2. Remove windshield wiper.

D

Refer to Windshield Wiper Arm/Blade in
Wiper/Washer System section.

3. Remove front cowl cover.

D

Refer to Cowl Cover in this section.

4. Remove windshield side moulding.

D

Pull the moulding out from the windshield side
moulding clip.

5. Remove windshield support.
6. Remove windshield side seal.
7. Remove windshield (2).

D

Use a knife or pick to make a hole in part of the
adhesive caulking material.
