8D–410

WIRING SYSTEM

Step

Action

Yes

No

The control unit makes lock/unlock response once with interval of
one second.

Is the response complete?

The control unit makes lock/unlock response three times with
interval of one second.

Is the response complete?

12

13

Finished

Finished

—

—

Step

Action

Yes

No

1. Open the driver’s side door.
2. Turn the starter switch off.

Is the action complete?

Turn the starter switch to ACC position and then off three times
within five seconds after step 1.

Is the action complete within five seconds?

Close the door and then open it two times within ten seconds after
step 2.

Is the action complete within ten seconds?

1. Turn the starter switch to ACC position and then off.
2. Close the door and then open it.

NOTE: This step must be performed within ten seconds after step
3.

Is the action complete?

The control unit makes lock/unlock response twice as many the
number of registered ID code with interval of two seconds. (In case
of no registered code, the response is made ten times.)

Is the response complete?

1

2

3

4

5

Go to Step 2

Go to Step 3

Go to Step 4

Go to Step 5

Finished

—

Finished

Finished

Finished

—

ID Code Check

This procedure checks how many kinds of ID code are
registered.

Step

Action

Yes

No

Open the driver’s side door.

Is the action complete?

Lock the door and then unlock it three times within ten seconds
after step 1.

Is the action complete within five seconds?

Close the door and then open it two times within ten seconds after
step 2.

Is the action complete within ten seconds?

1

2

3

Go to Step 2

Go to Step 3

Go to Step 4

—

Finished

Finished

Anti–theft horn, as an answer back function for the
transmitter operation, changes from available into
unavailing or from unavailing into available by this
procedure.

Answer Back (Anti–theft Horn Operation) Change Mode

WIRING SYSTEM

8D–411

Step

Action

Yes

No

1. Lock the door and unlock it three times.
2. Close the door and then open it.

NOTE: This step must be performed within ten seconds after step
3.

Is the action complete?

Answer back mode changes.

Is this step complete?

The control unit makes lock/unlock response once with interval of
one second.

Is the response complete?

The control unit makes lock/unlock response three times with
interval of one second.

Is the response complete?

4

5

6

7

Go to Step 5

Go to Step 6

Finished

Finished

Finished

Go to Step 7

—

—

Anti–theft & Keyless Entry Control
Unit/Transmitter Replacement

Anti–theft & Keyless Entry Control Unit
Replacement

1. Remove and install the control unit.

●

Refer to Anti–theft & Keyless Entry Control Unit
Removal and Installation in this section.

2. Register ID code.

●

Refer to ID Code Registration in this section.

3. Check that the keyless entry system works normally.

Transmitter Replacement

1. Prepare a new transmitter.
2. Register ID code.

●

Refer to ID Code Registration in this section.

3. Check that the keyless entry system works normally.

Transmitter Battery Replacement

1. Remove a screw to remove the cover.
2. Remove the batteries.
3. Set the new batteries into the transmitter.
4. Install the cover to the transmitter.
5. Check that the keyless entry system works normally.

8D–412

WIRING SYSTEM

Programing With Tech 2 (SOUTH AFRICA)

General Description

When the anti-theft and keyless entry control unit and / or
the transmitters (remote keys) are replaced, the security
codes and / or transmitter ID codes must be programed
by using the Tech 2. The following pages show the
procedures to program in regard to the anti-theft and
keyless entry system. Please refer to Tech 2 scan tool
user`s guide in detail.

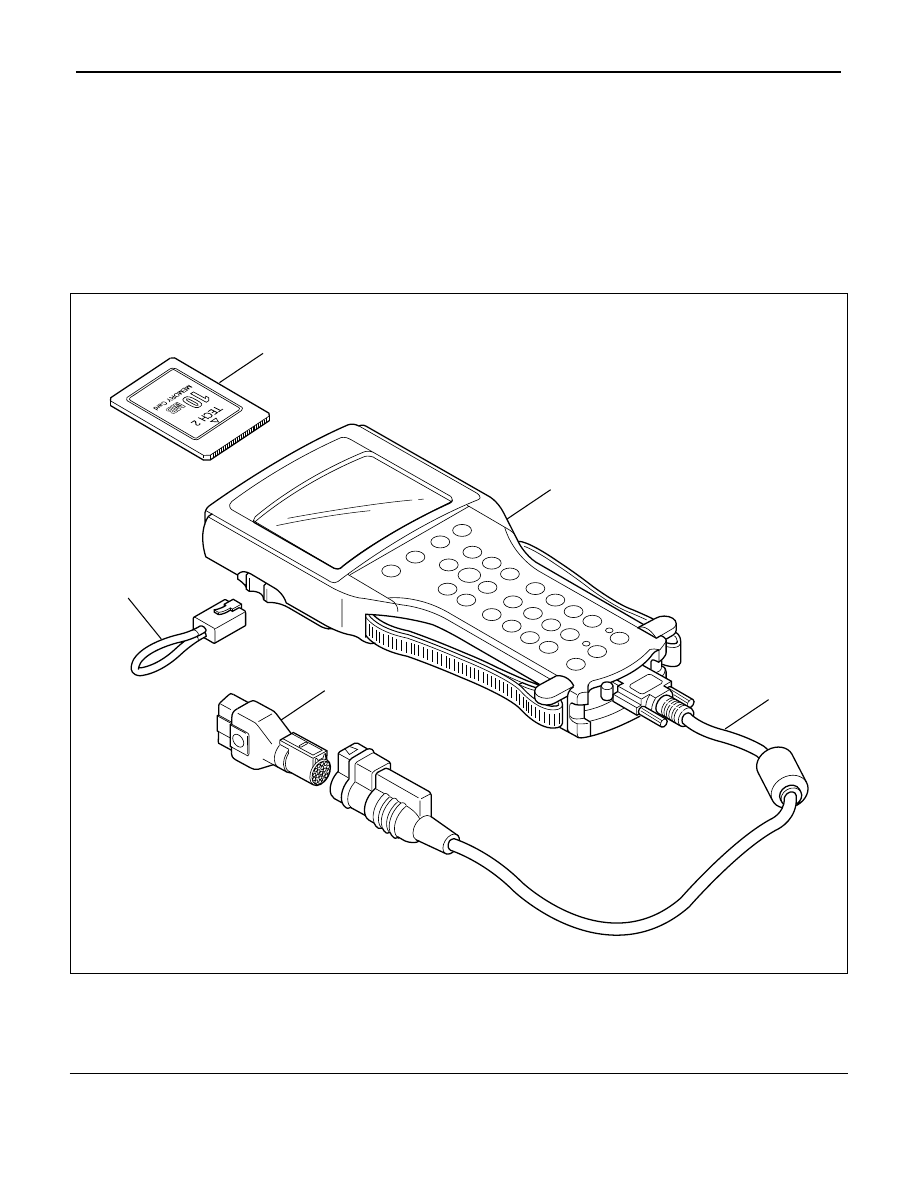

1

5

4

3

2

901RW180

Legend

(1) PCMCIA Card
(2) RS 232 Loop Back Connector

(3) SAE 16/19 Adaptor
(4) DLC Cable
(5) Tech 2

WIRING SYSTEM

8D–413

Programing Anti-Theft Warning

When the anti-theft and keyless entry control unit is
replaced, the security code must be programed after
installation.

1. Insert the Isuzu system PCMCIA card into the Tech 2.
2. Connect the SAE 16/19 adaptor to the data link

connector (DLC) cable.

3. Connect the DLC cable to the Tech 2.
4. Confirm that the starter switch is off.
5. Connect the Tech 2 SAE 16/19 adaptor to the vehicle

DLC.

6. Verify the Tech 2 power up display.

7. Press the enter key.
8. Select " F0 : Diagnostics " and press the enter key.
9. Select the model year and press the enter key.

10. Select the vehicle type and press the enter key.
11. Select " F2 : Body " and press the enter key.
12. Select " Anti Theft Warning " and press the enter key.
13. Turn the starter switch on and press the confirm key

(soft key).

14. Confirm " Partnumber " , " Country Code " and "

Production Date " and press the confirm key (soft key).

15. Select " F4 : Programing " and press the enter key.
16. Select " F2 : Program Anti Theft Warning " and press

the enter key.

17. Press the confirm key (soft key).
18. Press the confirm key (soft key).
19. Enter the security code and press the enter key.
20. Press the okey key (soft key).
21. Enter the security code and press the enter key.
22. Press the okey key (soft key).
23. Press the soft key to select " Remote Key ".
24. Select country code and press the enter key.
25. Press the confirm key (soft key).

Programing Remote Key

When the anti-theft and keyless entry control unit is
replaced and / or the new transmitter (remote key) is
supplied, the ID code of the transmitter must be
programed by the following procedure.

1. Perform the step 1. to 15. of " Programing Anti Theft

Warning ".

2. Select " F1 : Program Remote Key " and press the

enter key.

3. Press the confirm key (soft key).
4. Press the lock button of the transmitter until the

display changes.

5. Press the confirm key (soft key).
6. Press the Yes or No key (soft key).

Erasing Remote Keys

All the ID code stored in the control unit can be erased by
the following procedure.

1. Perform the step 1. to 15. of " Programing Anti Theft

Warning ".

2. Select " F0 : Erase Remote Keys " and press the enter

key.

3. Press the confirm key (soft key).
4. Press the confirm key (soft key).
5. Press the confirm key (soft key).

060RW009

Press (ENTER) To Continue
