LIGHTING SYSTEM

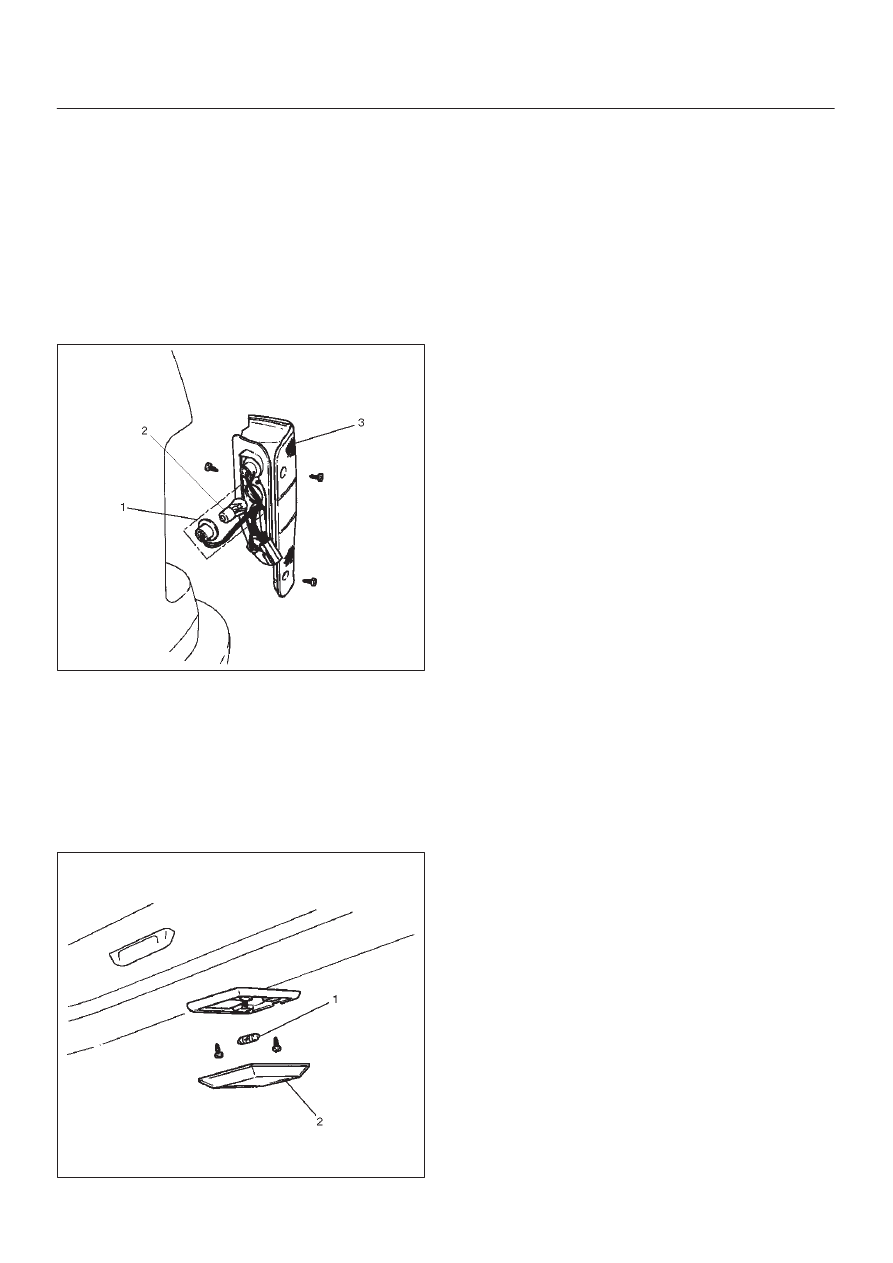

Backup Light Bulb

Removal

1. Disconnect the battery ground cable.
2. Remove three screws and release the lock at two

positions.

3. Remove the rear combination light(3).
4. Remove the backup light socket/bulb(1) by turning it

counterclockwise.

5. Remove the bulb(2) by turning it counterclockwise

while pushing it at the same time.

803RS001

Installation

To install, follow the removal steps in the reverse order.

Dome Light Bulb

Removal

1. Disconnect the battery ground cable.
2. Remove the lens(2) by releasing the locks at three

locations.

3. Remove the bulb(1).

805RS005

Installation

To install, follow the removal steps in the reverse order.

LIGHTING SYSTEM

8A–13

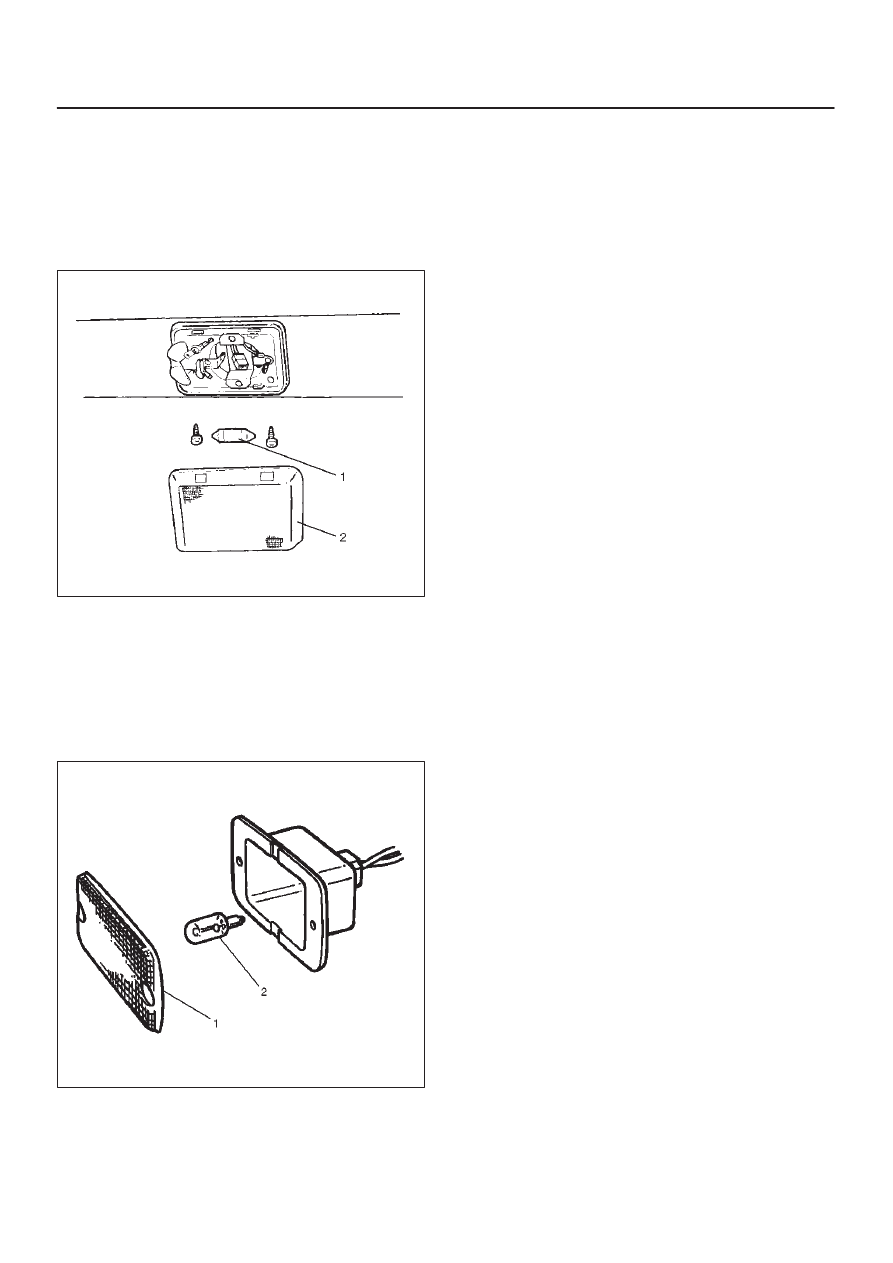

Luggage Room Light Bulb

Removal

1. Disconnect the battery ground cable.
2. Remove the lens(2) by releasing the locks at four

locations.

3. Remove the bulb(1).

803RS007

Installation

To install, follow the removal steps in the reverse order.

Courtesy Light Bulb

Removal

1. Disconnect the battery ground cable.
2. Remove two screws to remove the lens(1).
3. Pull out the bulb(2) from the socket.

805RS006

Installation

To install, follow the removal steps in the reverse order.

8A–14

LIGHTING SYSTEM

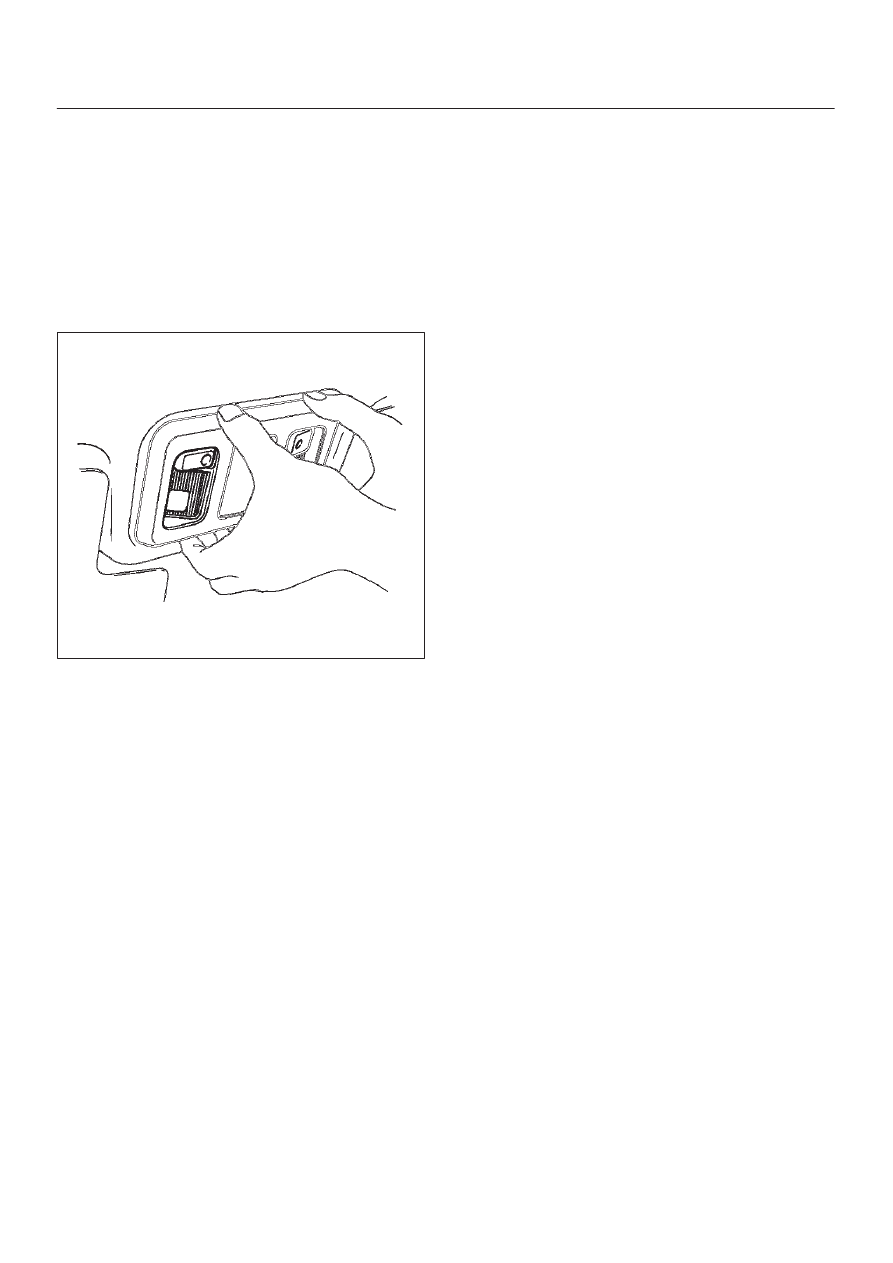

Map Light Switch/Bulb

Removal

1. Disconnect the battery ground cable.
2. Pull the map light body downward to release the lock.
3. Disconnect the connectors of the map light and the

sun roof switch.

4. Remove the map light switch.
5. Turn the socket counterclockwise to remove it.
6. Pull out the bulb from the socket.

805RS008

Installation

To install, follow the removal steps in the reverse order.

LIGHTING SYSTEM

8A–15

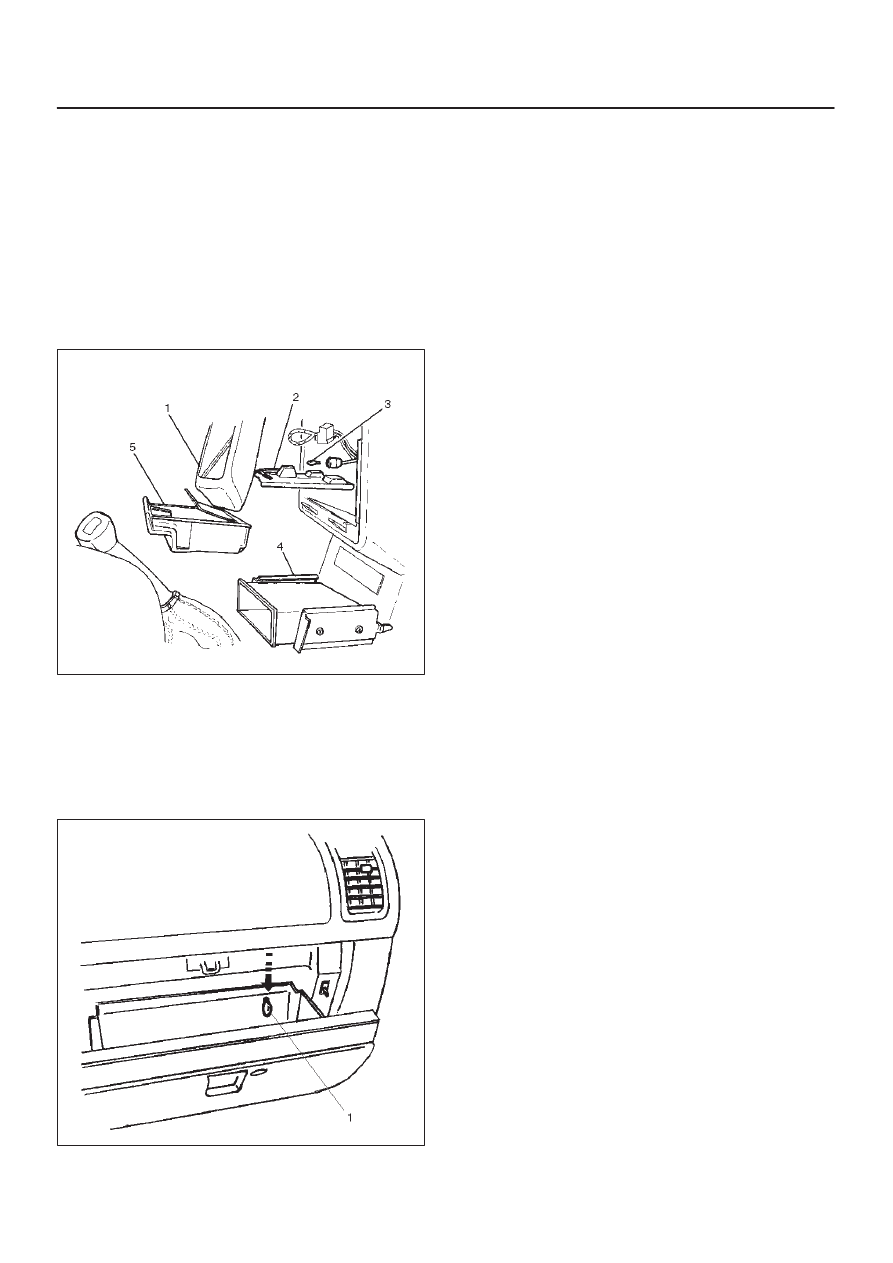

Ashtray Illumination Bulb

Removal

1. Disconnect the battery ground cable.
2. Removal eight screws to remove the instrument

cluster panel(1).

3. Remove the ashtray(5).
4. Remove four screws to remove the audio box(4).
5. Remove two screws to remove the ashtray guide(2).
6. Turn the socket counterclockwise to remove it then

pull out the bulb(3).

742RS001

Installation

To install, follow the removal steps in the reverse order.

Glove Box Illumination Bulb

Removal

1. Disconnect the battery ground cable.
2. Open the glove box lid, and then pull out the bulb(1).

805RS004

Installation

To install, follow the removal steps in the reverse order.
