8A–4

LIGHTING SYSTEM

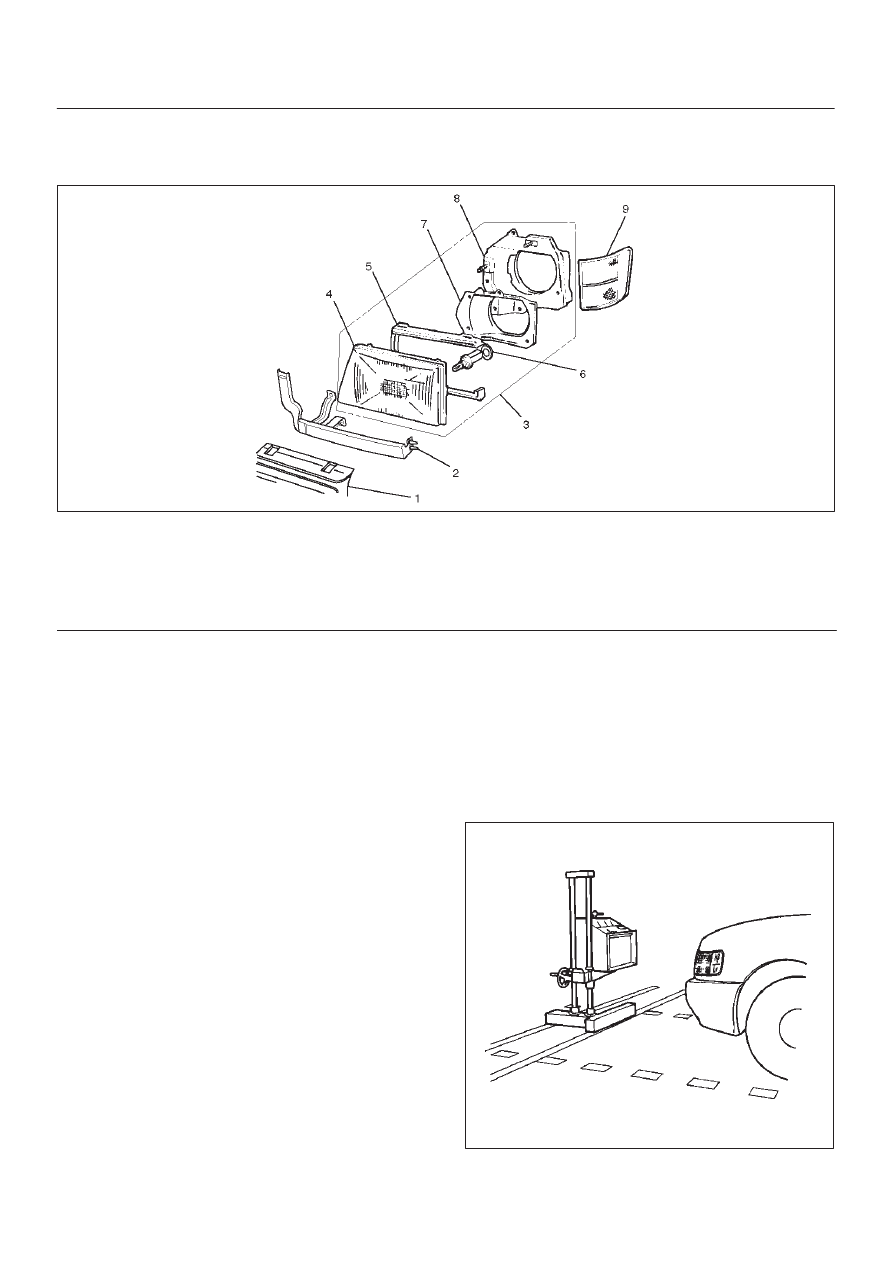

Headlight

Headlight and Associated Parts

801RW003

Legend

(1) Radiator Grille
(2) Front End Lower Panel
(3) Headlight Assembly
(4) Headlight

(5) Headlight Rim
(6) Headlight Bulb
(7) Rear Cover
(8) Bracket
(9) Front Combination Light

Removal

1.  Disconnect the battery ground cable.
2. Remove the screw and pull out the two projecting

portions on the fender to remove the front
combination light.

3. Remove five clips and two screws to remove the

radiator grille.

4. Remove two screws to remove the front end lower

panel(2).

5. Remove two bolts and two nuts to remove the

headlight assembly (with bracket).

6. Remove the headlight bulb.
7. Remove two screws, two nuts and the spring for the

headlight aim adjustment to remove the bracket.

8. Remove four screws to remove the rear cover.
9. Remove the headlight rim.

10. Remove the headlight.

Installation

To install, follow the removal steps in the reverse order.

CAUTION: After installing the headlight, be sure to
adjust the headlight aim.

Headlight Adjustment

Preparation

 Place the unloaded vehicle on a level surface and check
to see if the inflation pressure of the tires is correct, the
lenses are clean, and the battery is sufficiently charged.
Adjust the aim with the headlight tester, if necessary.
When adjusting, follow the procedure of the tester
manufacturer’s.

801RS009

LIGHTING SYSTEM

8A–5

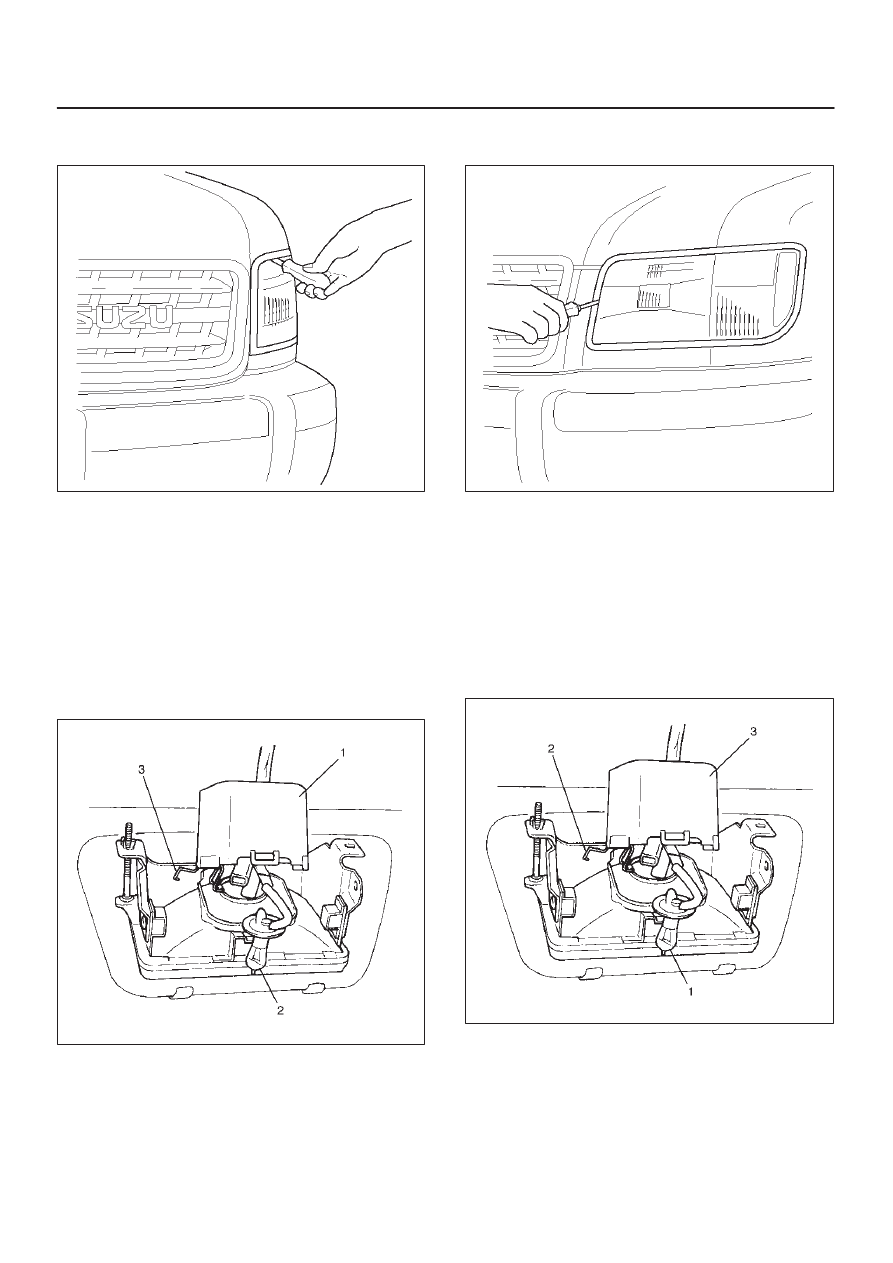

Vertical adjustment

Use a screwdriver for vertical adjustment.

801RW004

Horizontal adjustment

Use a screwdriver for horizontal adjustment.

801RW005

Fog Light Bulb

Removal

1. Disconnect the battery ground cable.
2. Open the rear cover(1) of the case.
3. Remove the dust cover.
4. Disconnect the bulb connector.
5. Remove the clip(3).
6. Remove the fog light bulb(2).

801RW012

Installation

1. Install the fog light bulb(1).
2. Install the clip(2).
3. Connect the bulb connector.
4. Install the dust cover.
5. Close the rear cover(3) of the case.

801RW017

6. Connect the battery ground cable.

8A–6

LIGHTING SYSTEM

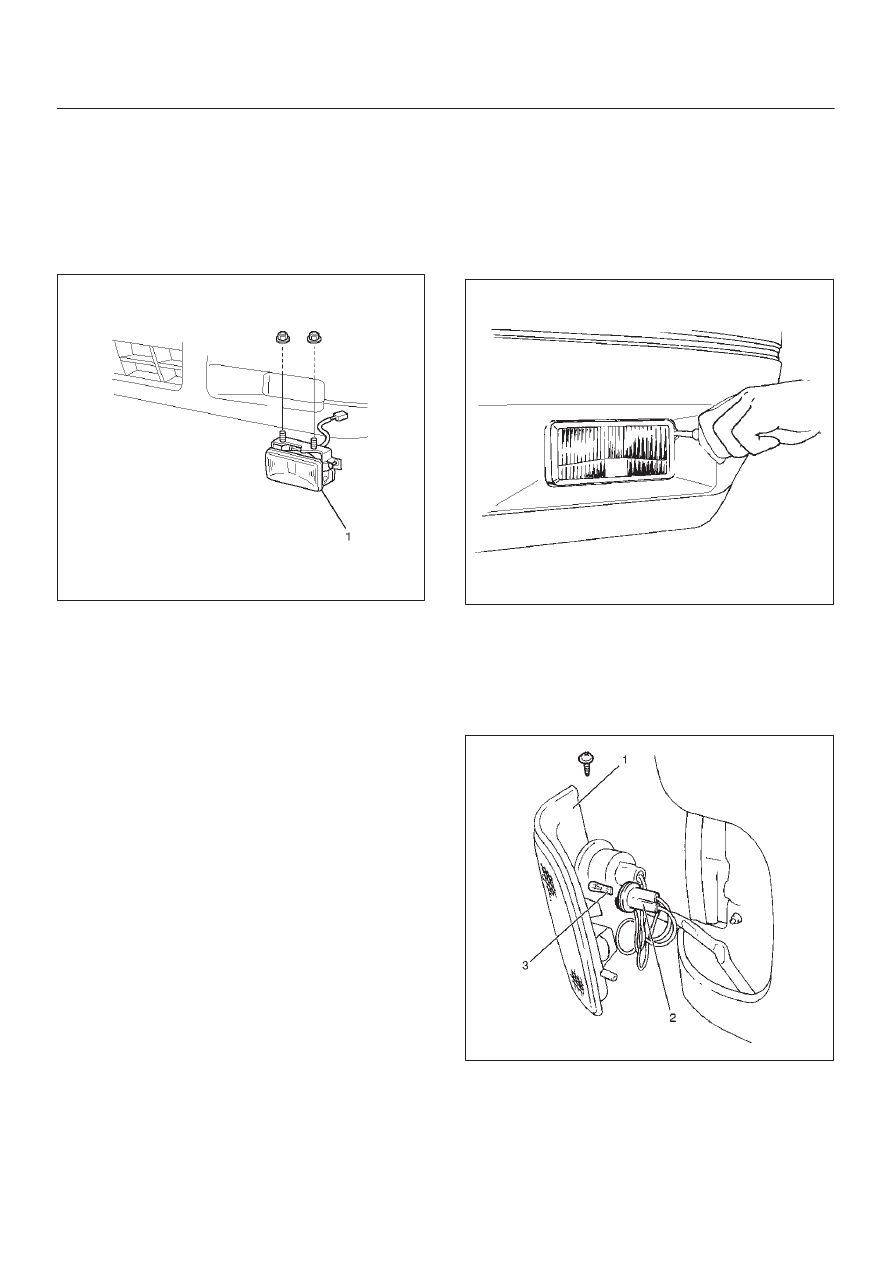

Fog Light Assembly

Removal

1. Disconnect the battery ground cable.
2. Remove two nuts from the bracket.
3. Disconnect the connector.
4. Remove the fog light assembly (1).

825RW104

Installation

To install, follow the removal steps in the reverse order.

CAUTION: After installing the fog light, be sure to
adjust the fog light aim.

Fog Light Adjustment

Turn the adjusting screw with a screwdriver to adjust the
aim of the fog light vertically.

801RW007

Clarence Light Bulb

Removal

1.  Disconnect the battery ground cable.
2.  Remove the screw at the upper portion of the light

bracket and then remove the bracket from the fender.

3.  Remove the front combination light assembly(1).
4. Remove the front side marker light socket(2) by

turning it counterclockwise.

5. Pull out the bulb(3) from the socket.

801RW015

Installation

To install, follow the removal steps in the reverse order.

LIGHTING SYSTEM

8A–7

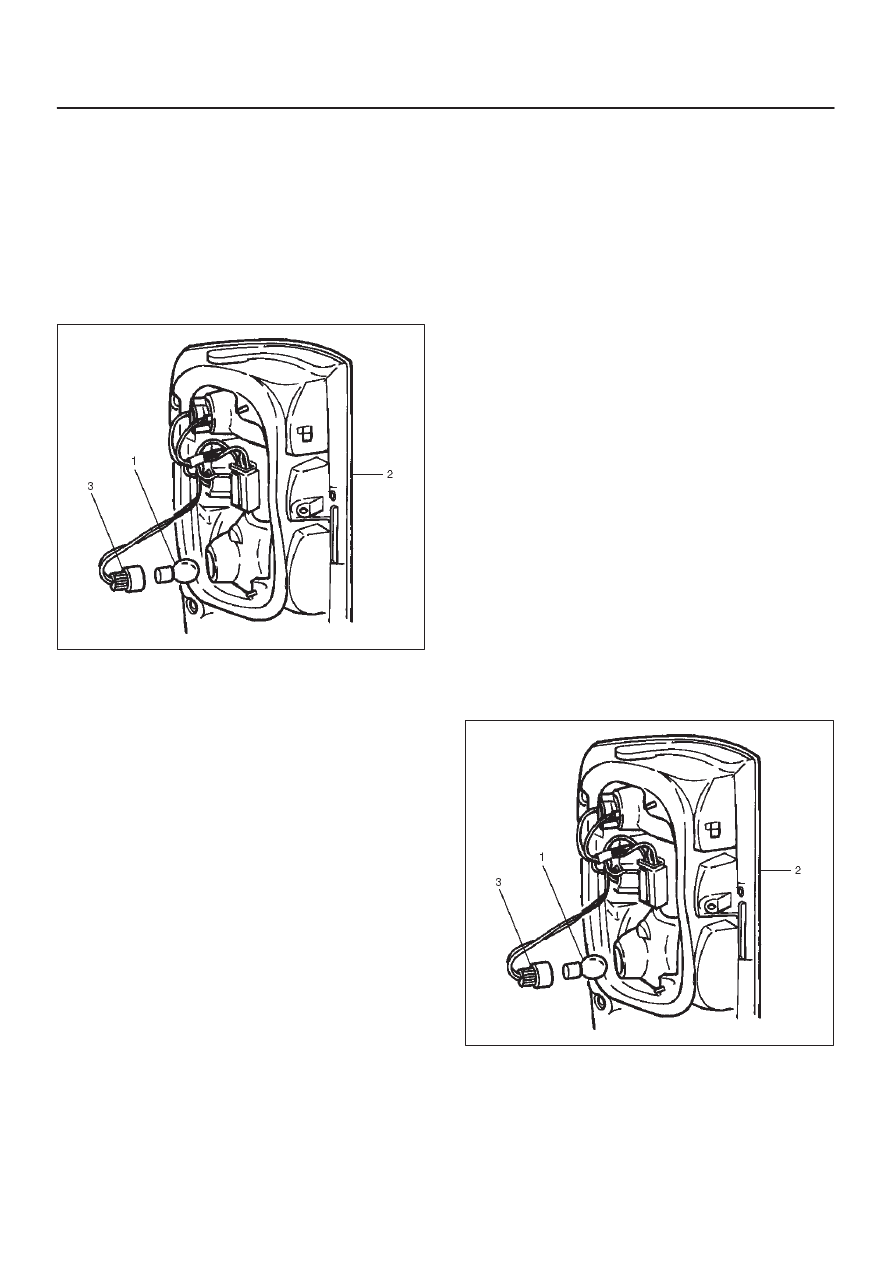

Rear Fog Light Bulb (RHD)

Removal

1. Disconnect the battery ground cable.
2. Remove three screws and release locks at two

locations to remove the rear combination light
assembly(2).

3. Remove the socket(3) by turning it counterclockwise.
4. Turn the bulb(1) counterclockwise while pushing it to

remove it from the socket.

803RS005

Installation

To install, follow the removal steps in the reverse order.

Taillight Bulb (Body)

Removal

1. Disconnect the battery ground cable.
2. Remove three screws and release locks at two

locations to remove the rear combination light
assembly(2).

3. Remove the socket(3) by turning it counterclockwise.
4. Turn the bulb(1) counterclockwise while pushing it to

remove it from the socket.

803RS005

Installation

To install, follow the removal steps in the reverse order.
