7A–10

AUTOMATIC TRANSMISSION (AW30-40LE)

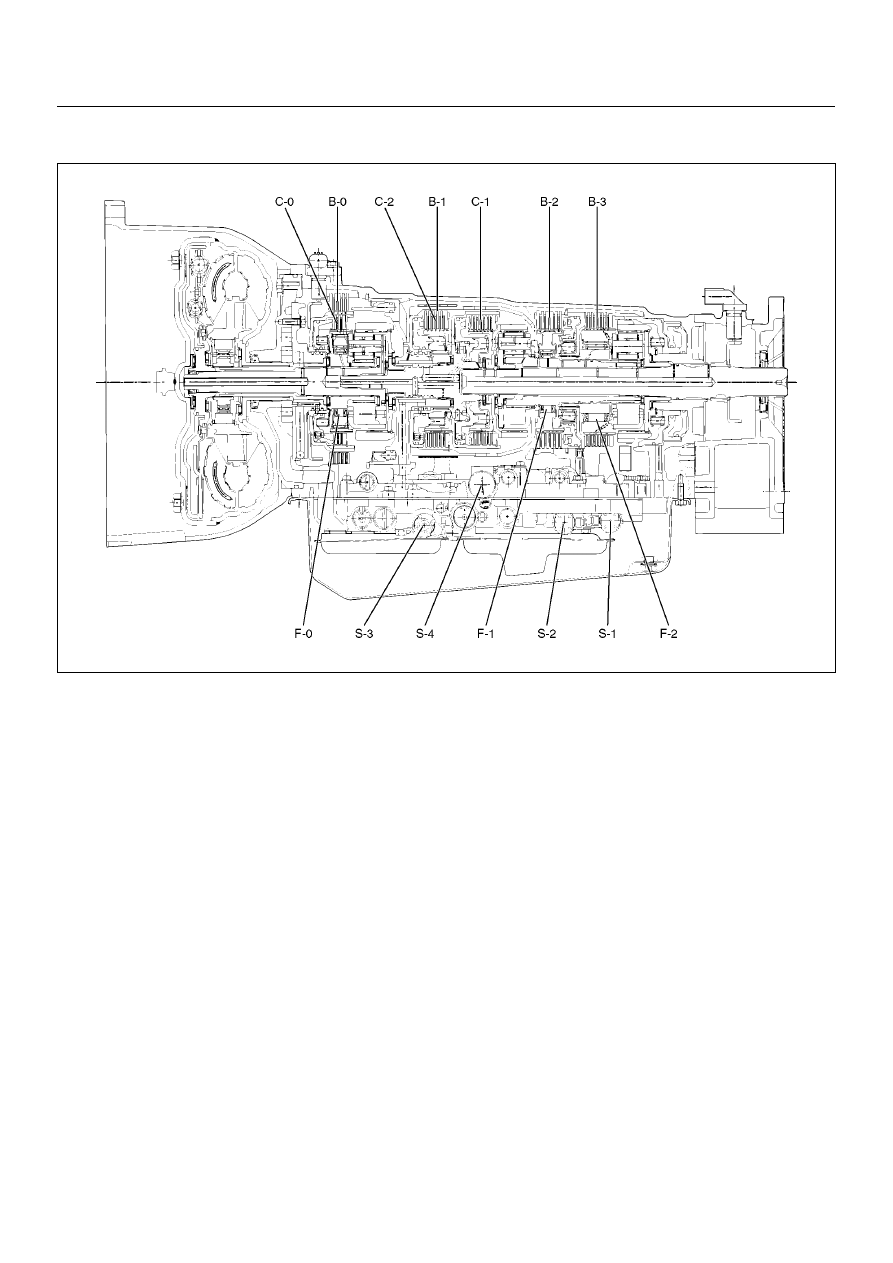

LOCATION OF CLUTCH, BRAKE, ONE-WAY CLUTCH AND SOLENOID

C07RY00006

EndOFCallout

Legend

C-0: Overdrive direct clutch
C-1: Forward clutch
C-2: Direct clutch

B-0: Overdrive brake
B-1: Second coast brake
B-2: Second brake
B-3: First and reverse brake

F-0: Overdrive one-way clutch
F-1: One-way clutch (No.1)
F-2: One-way clutch (No.2)

S-1: Shift solenoid S1
S-2: Shift solenoid S2
S-3: Lock-up solenoid SL
S-4: Pressure control solenoid STH

AUTOMATIC TRANSMISSION (AW30-40LE)

7A–11

OPERATION OF CLUTCH, BRAKE AND ONE-WAY CLUTCH

❍

 :Operating

:Free at coast down

:Operating at Lock-up

(1*): Down-shift only in the L range and 2nd



gear - no up-shift.

(2*): Down-shift only in the L range and 3rd gear - no up-shift.

SPEED CHANGE AND LOCK-UP PATTERN

If you select a speed range and a lock-up pattern as shown below by specifying respective positions of transmission
shift lever, transfer shift lever and pattern select switch, the transmission control computer controls speed change and
lock-up operations based on the specified pattern in accordance with the degree of throttle opening and vehicle speed.



¨

: The lock-up operation is available.

 ( ): Transmission is shifted at high speed to prevent overrun.

Shift lever

position

Gear position

C-0

C-1

C-2

B-0

B-1

B-2

B-3

F-0

F-1

F-2

S-1

S-2

S-3

P

Parking

❍

❍

R

Reverse

❍

❍

❍

❍

❍

N

Neutral

❍

❍

D

1st

❍

❍

❍

❍

2nd

❍

❍

❍

❍

❍

❍

3rd

❍

❍

❍

❍

❍

❍

O/D

❍

❍

❍

❍

2

1st

❍

❍

❍

❍

2nd

❍

❍

❍

❍

❍

❍

❍

❍

3rd

❍

❍

❍

❍

❍

❍

L

1st

❍

❍

❍

❍

❍

❍

(1*) 2nd

❍

❍

❍

❍

❍

❍

❍

❍

(2*) 3rd

❍

❍

❍

❍

❍

❍

Pattern select sw.

position

Transmission shift position

D

2

L

Overdrive OFF switch

OFF

Overdrive OFF switch

 ON

NORMAL

POWER

1st

 ⇔

 2nd

⇔

 ⇔

1st

⇔

 2nd

⇔

 ⇐

1st

⇔

2nd

⇔

(3rd)

1st

⇐

(2nd)

⇐

(3rd)

WINTER

3rd fixed

─

─

7A–12

AUTOMATIC TRANSMISSION (AW30-40LE)

OVERDRIVE AND LOCK-UP OPERATING CONDITIONS

The overdrive and lock-up clutch operate if the following conditions are satisfied.



(1*):

If transmission oil temperature is more than 130

°

C, lock-up is inhibit.

Overdrive

Lock-up clutch

Transmission shift position

D range

⇐

 (1*)

O/D OFF switch

OFF (O/D OFF lamp OFF)

—

Stop lamp switch

—

OFF

Throttle opening

—

Except fully closed

Vehicle speed

About 49 km/h or more

3rd: About 50 km/h or more

O/D: About 65 km/h or more

AUTOMATIC TRANSMISSION (AW30-40LE)

7A–13

DIAGNOSIS

BASIC TROUBLESHOOTING

AW30-40LE transmission, called Electronic Controlled Transmission (ECT), differs from oil pressure control type
transmissions in that it is controlled by a microcomputer. Accordingly, its troubleshooting procedure differs also.

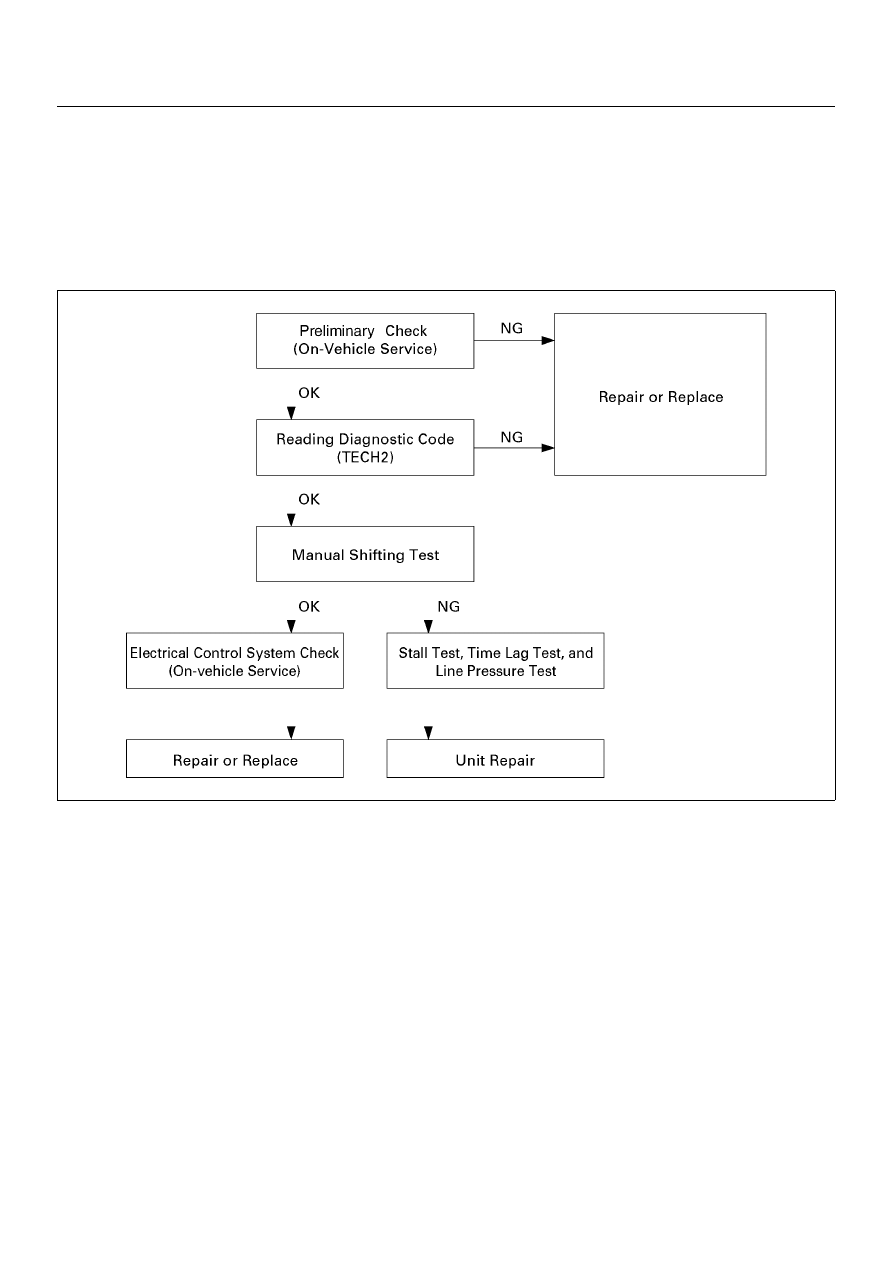

Before troubleshooting an ECT, first determine whether the problem is electrical or mechanical. To do this, just refer to
the basic troubleshooting flowchart provided below. If the cause is already known, using the basic troubleshooting
chart below along with the general troubleshooting chart on the following page should speed the procedure.
