7A–70

AUTOMATIC TRANSMISSION (4L30–E)

Second Clutch

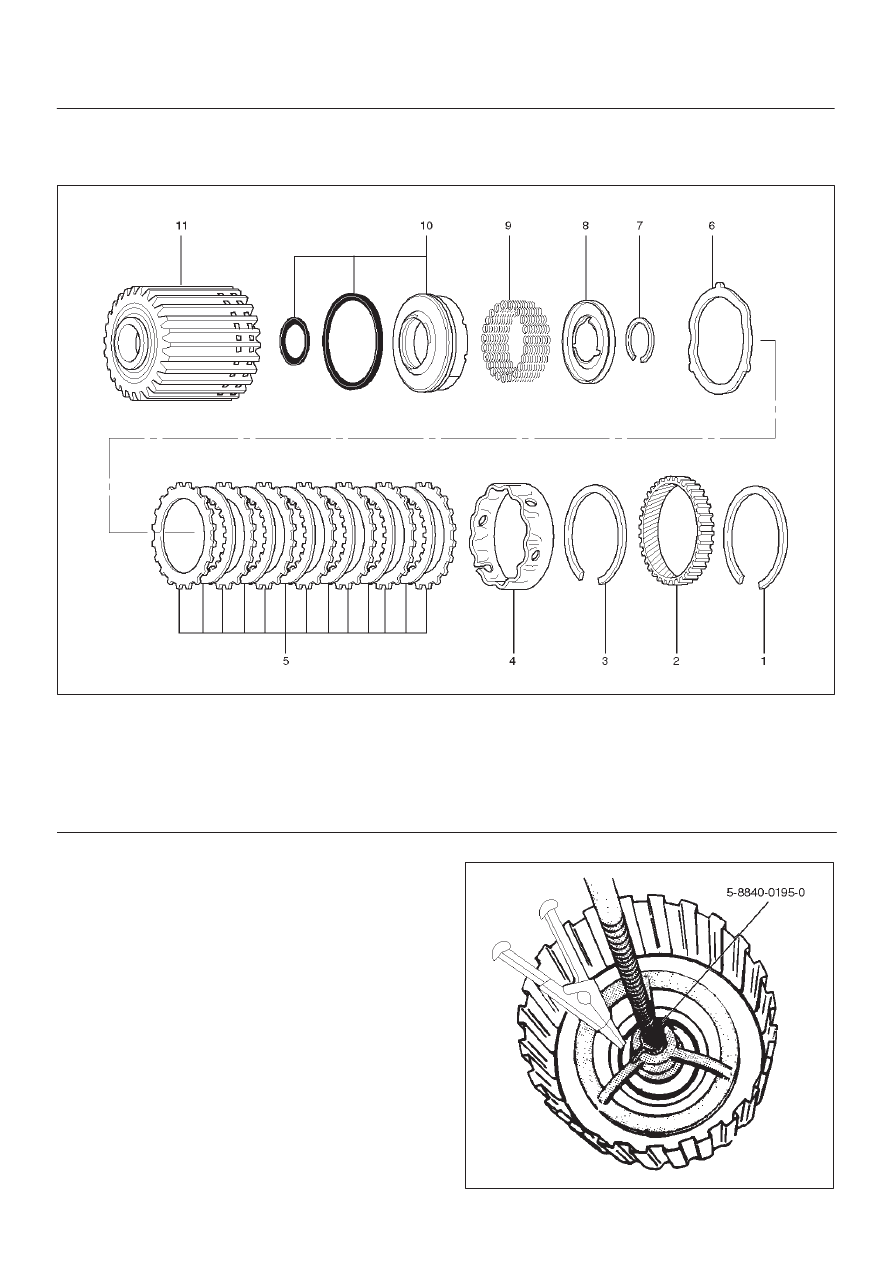

Disassembled View

247RW001

Legend

(1) Retaining Ring
(2) Ring Gear
(3) Retaining Ring
(4) Spacer
(5) Clutch Plates

(6) Waved Washer
(7) Retaining Ring
(8) Spring Seat
(9) Springs

(10) Piston Assembly

(11) Second Clutch Drum

Disassembly

1. Remove retaining ring (1) from second clutch drum

(11).

2. Remove ring gear (2), retaining ring (3), and spacer

(4).

3. Remove clutch plates (5) and waved washer (6).
4. Remove retaining ring (7) using 5–8840–0195–0

(J–23327) compressor to compress the spring seat
(8).

5. Remove spring seat (8), springs (9) and piston

assembly (10) from second clutch drum (11).

247RW005

7A–71

AUTOMATIC TRANSMISSION (4L30–E)

Inspection And Repair

Visual Check:

If any damage, deformation or wear is found,  replace the
damaged part.

Operation Check:

Shake the piston and listen for check ball movement.
Movement indicates proper check ball operation.
Replace the piston if the check ball is missing or falls out.

Reassembly

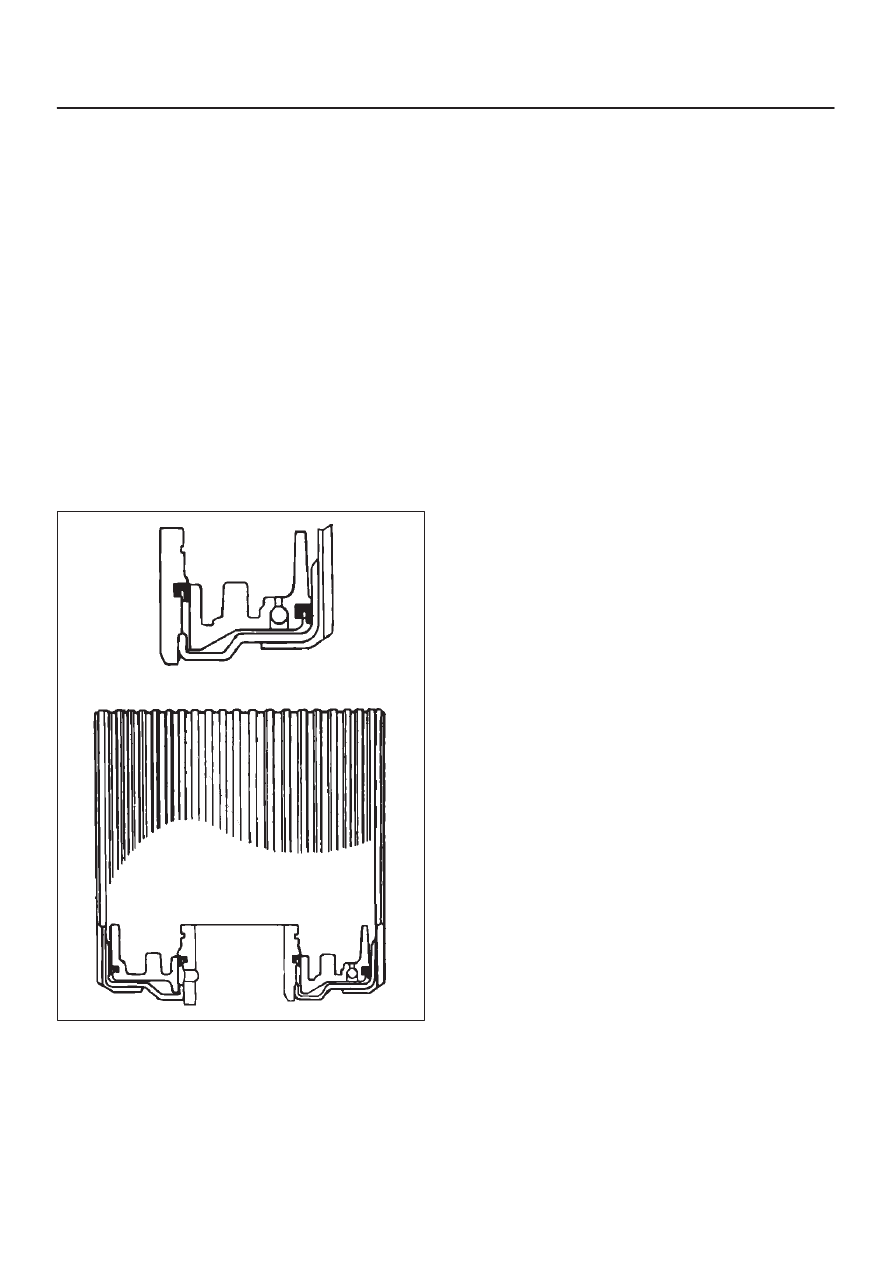

1. Install piston assembly (10) into the second clutch

drum (11).

D

Lubricate the lip seal with  transmission fluid.  Use
the 5–8840–2261–0 (J–23080–A) second clutch
piston installer to protect the outer piston lip seal.

NOTE: Lip of the seal should point toward front of
transmission.

D

Remove the installer.

247RS007

2. Install twenty–two piston springs (9) and spring seat

(8) on the second clutch piston (10).  Place retaining
ring (7) onto spring seat.

D

Use the 5–8840–0195–0 (J–23327) compressor to
compress the piston springs.

NOTE: Do not let spring seat catch in ring groove.

D

Remove the compressor.

3. Install waved plate (6) and clutch plates (5).  Start with

a steel plate and alternate with lined plates.

D

Align second clutch inner tangs.

4. Install spacer (4), with the fluted end toward clutch

plates.

5. Install retaining ring (3), ring gear (2) and retaining

ring (1).

7A–72

AUTOMATIC TRANSMISSION (4L30–E)

3–4 Accumulator Piston

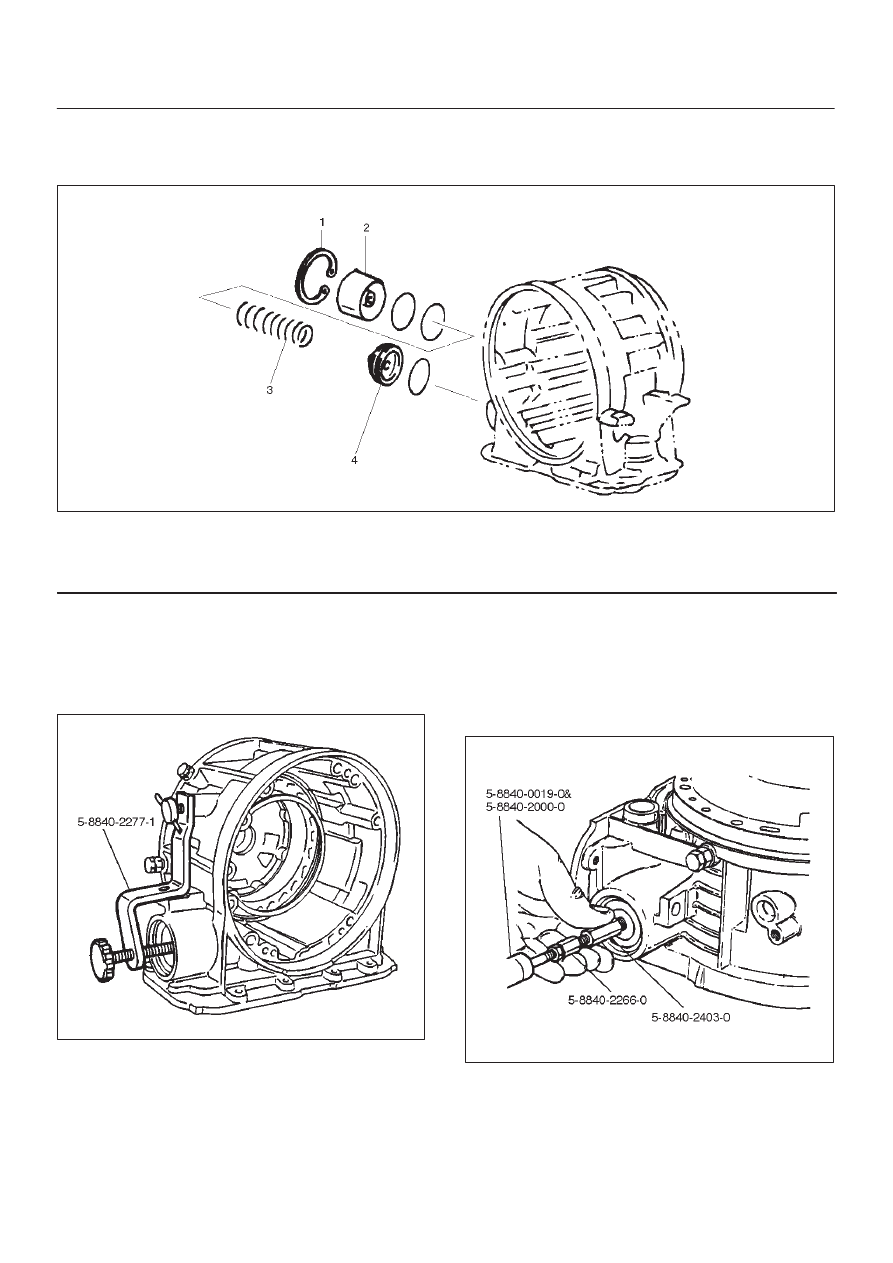

Disassembled View

244RS005

Legend

(1) Snap Ring
(2) Cover

(3) Spring
(4) Piston Assembly

Disassembly

1. Install the 5–8840–2277–1 (J–38559–A) cover

compressor on adapter case.

D

Compress piston cover then remove snap ring.

242RW009

2. Install the 5–8840–2403–0 (J–41096) cover remover

and 5–8840–2266–0 (J–38584) adapter to center
hole of cover.

D

Use the 5–8840–0019–0 and 5–8840–2000–0
(J–23907) slide hammer to remove cover.

3. Remove spring and piston assembly.

242RW010

7A–73

AUTOMATIC TRANSMISSION (4L30–E)

Inspection And Repair

Visual Check:

If any damage, deformation or wear is found, replace the
damaged part.

Reassembly

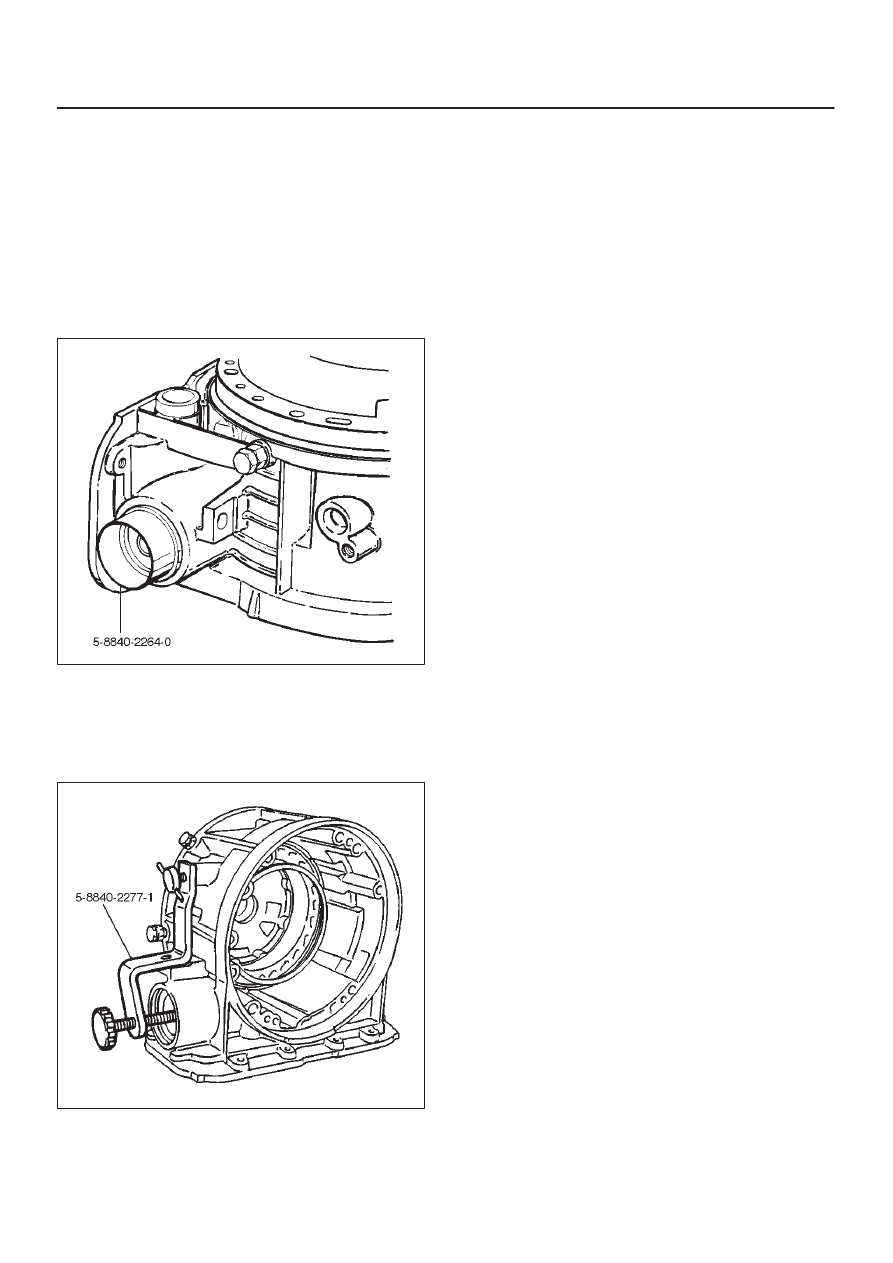

1. Place the 5–8840–2264–0 (J–38553) piston fitter into

adaptor case and push the piston into position, using
suitable diameter tube.

D

Remove the piston fitter.

244RW005

2. Install spring and cover.
3. Install snap ring, using the 5–8840–2277–1

(J–38559–A) compressor tool.

D

Install snap ring in groove.

D

Remove the compressor tool.

244RW006
