7A–66

AUTOMATIC TRANSMISSION (4L30–E)

7. Remove retaining washer (3), bearing (4), thrust

washer (5), and clutch plates (6 and 7) form the third
clutch drum assembly (8).

Inspection And Repair

Visual Check:

If any damage, deformation or wear is found, replace the
damaged part.

Reassembly

1. Place third clutch drum and intermediate shaft

assembly upright, using the overdrive internal gear as
a support.

2. Install third clutch spring cushion plate (7), bevel face

down.

3. Install third clutch plates (6) into third clutch drum

assembly (8).  Start with the steel clutch plate and
alternate with lined plates.

4. Install thrust washer (5), bearing (4), and retaining

washer (3).

5. Fully engage the hub splines of the input sun gear and

sprag unit assembly (2) into the third clutch inner
tangs.

D

Simultaneously rotate the outer sprag race to
engage into the third clutch drum assembly (8).

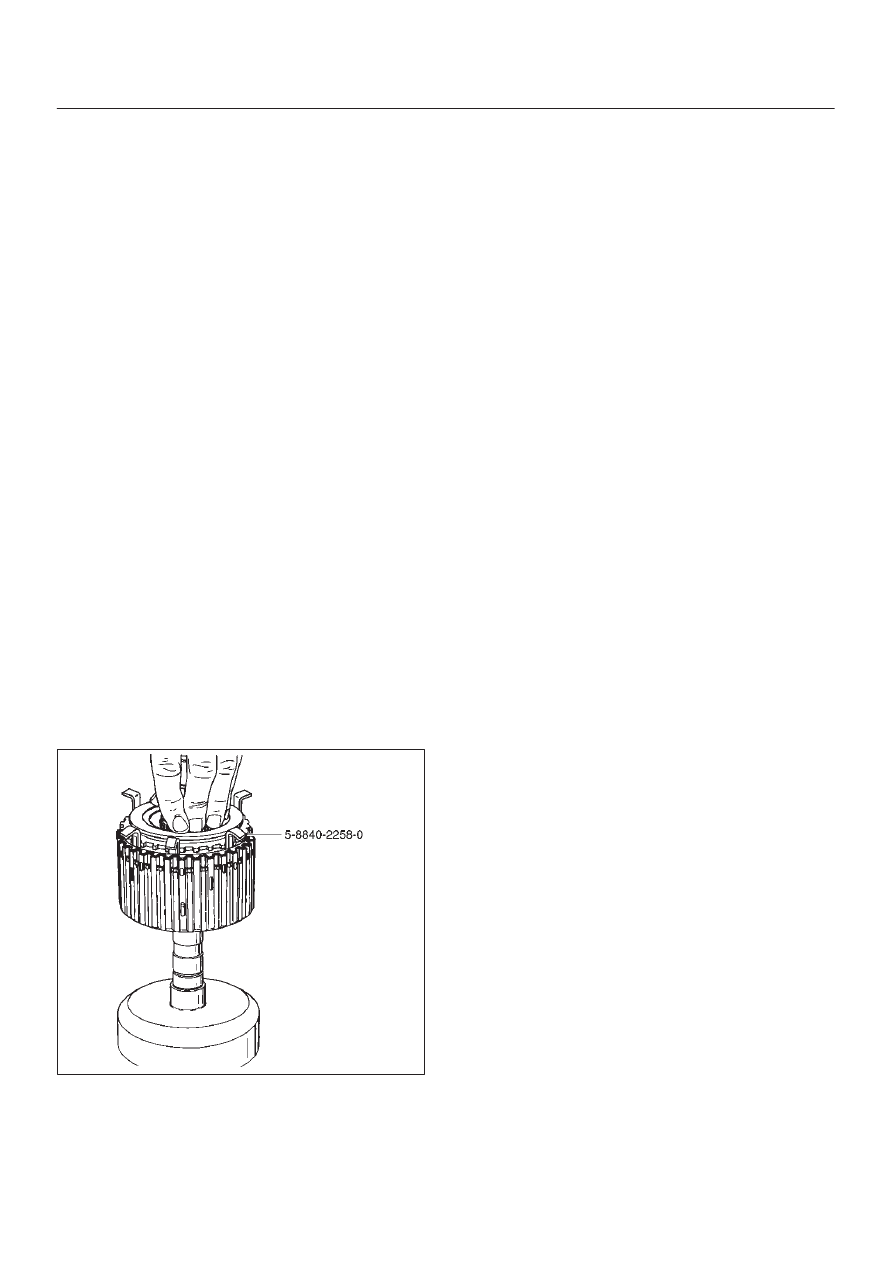

6. Place 5-8840-2258-0 (J-38450-A) blades between

the retaining ring and the third clutch drum
approximately (five) notches apart, and one blade at
each end of the retaining ring (1). Push down on sprag
assembly until the assembly is seated into the third
clutch drum assembly (8).

7. Remove the tool blades and engage retaining ring

into groove of third clutch drum.

248RW007

7A–67

AUTOMATIC TRANSMISSION (4L30–E)

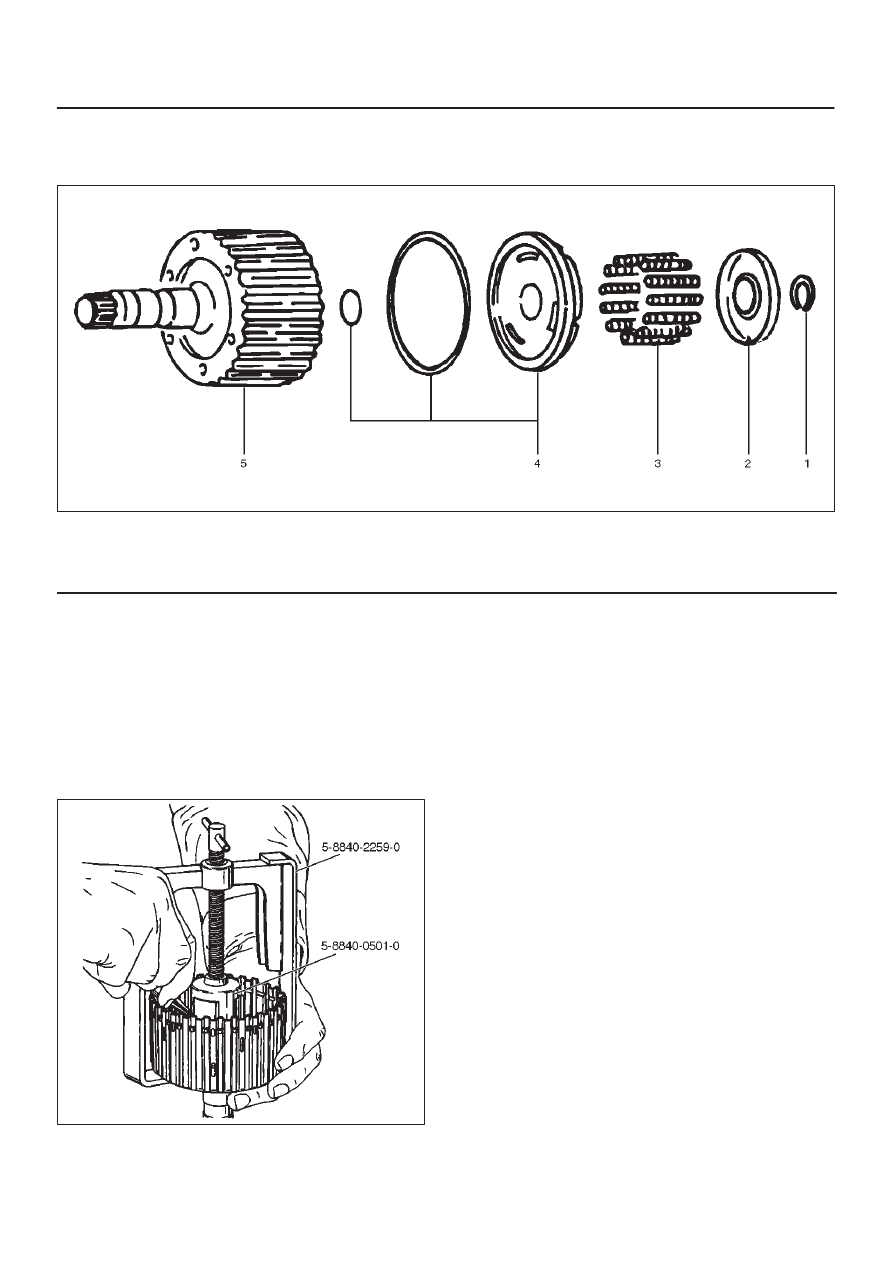

Third Clutch

Disassembled View

248RS006

Legend

(1) Retaining Ring
(2) Spring Seat

(3) Springs
(4) Piston Assembly
(5) Third Clutch Drum

Disassemble

1. Compress spring seat using the 5–8840–0501–0

(J–23075) spring compressor and 5–8840–2259–0
(J–23075–12) adapter tool.

NOTE: Do not over–stress the springs and seat. This will
cause damage to the spring seat.

D

Remove the tool.

D

Remove retaining ring (1).

248RW004

2. Release the spring seat (2).

NOTE: Do not let the spring seat catch in the ring groove.

D

Remove spring seat (2) and springs (3).

3. Remove piston assembly (4) from third clutch drum

(5).

Inspection And Repair

Visual check:

If any damage, deformation or wear is found, replace the
damaged part.

Operation check:

Shake the piston and listen for check ball movement
indicates proper check ball operation.  Replace the piston
if the check ball is missing or falls out.

Reassembly

1. The lip of the piston seal must point toward the front of

the transmission.  Lubricate the seal lip with
transmission fluid.

D

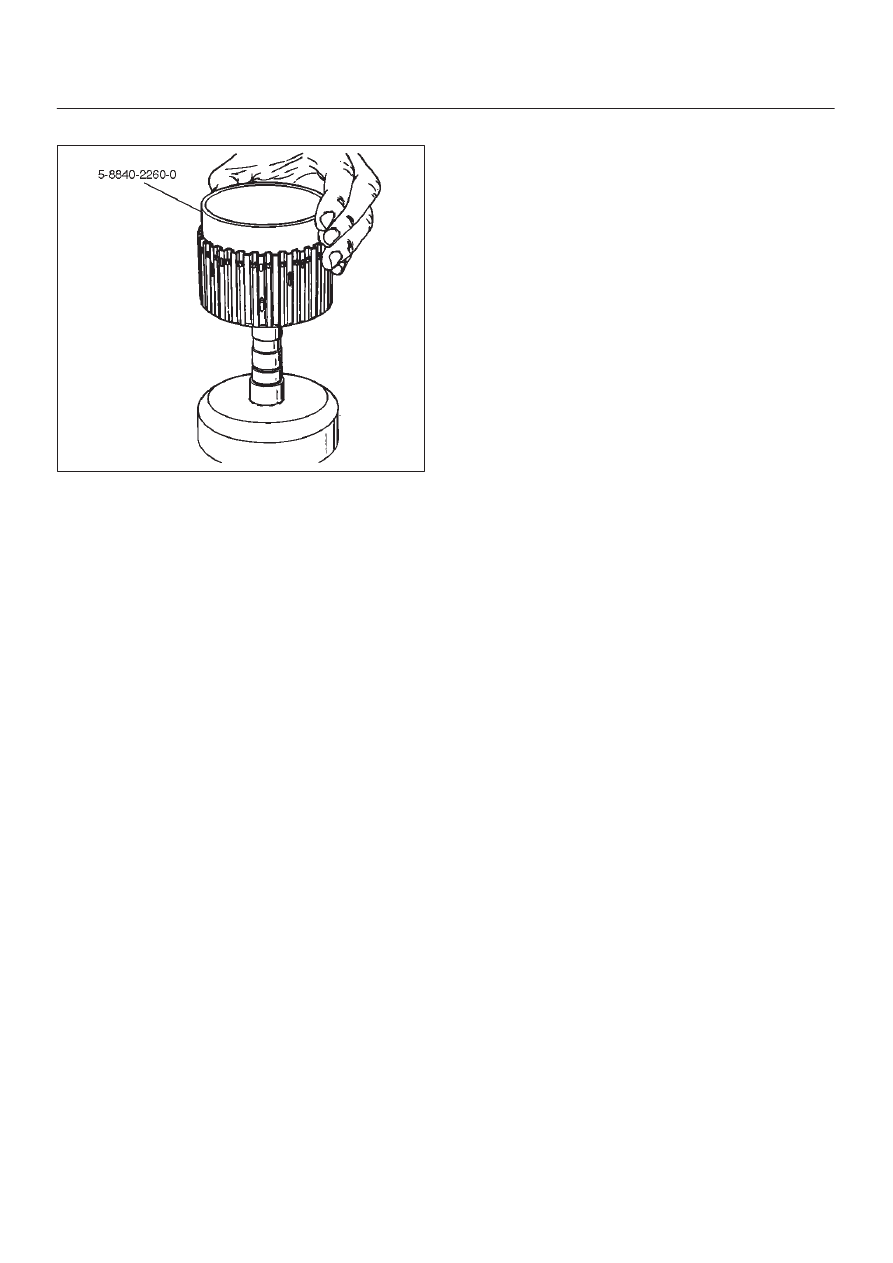

Install piston assembly (4) into the third clutch drum
(5).  Use the 5–8840–2260–0 (J–23084) third clutch
piston installer to protect the outer seal during
installation.

7A–68

AUTOMATIC TRANSMISSION (4L30–E)

D

Remove the seal installer.

248RW005

2. Install twelve springs (3) and spring seat (2).
3. Place retaining ring (1) onto spring seat.

D

Compress the piston springs, using the
5–8840–0501–0 (J–23075) piston spring
compressor and 5–8840–2259–0 (J–23075–12)
adapter.

CAUTION: Do not over stress the springs and seat.
Do not let the spring seat catch in the ring groove.
This may cause damage to the spring seat.

D

Install spring seat retaining ring (1).

D

Remove the piston spring compressor and adapter.

7A–69

AUTOMATIC TRANSMISSION (4L30–E)

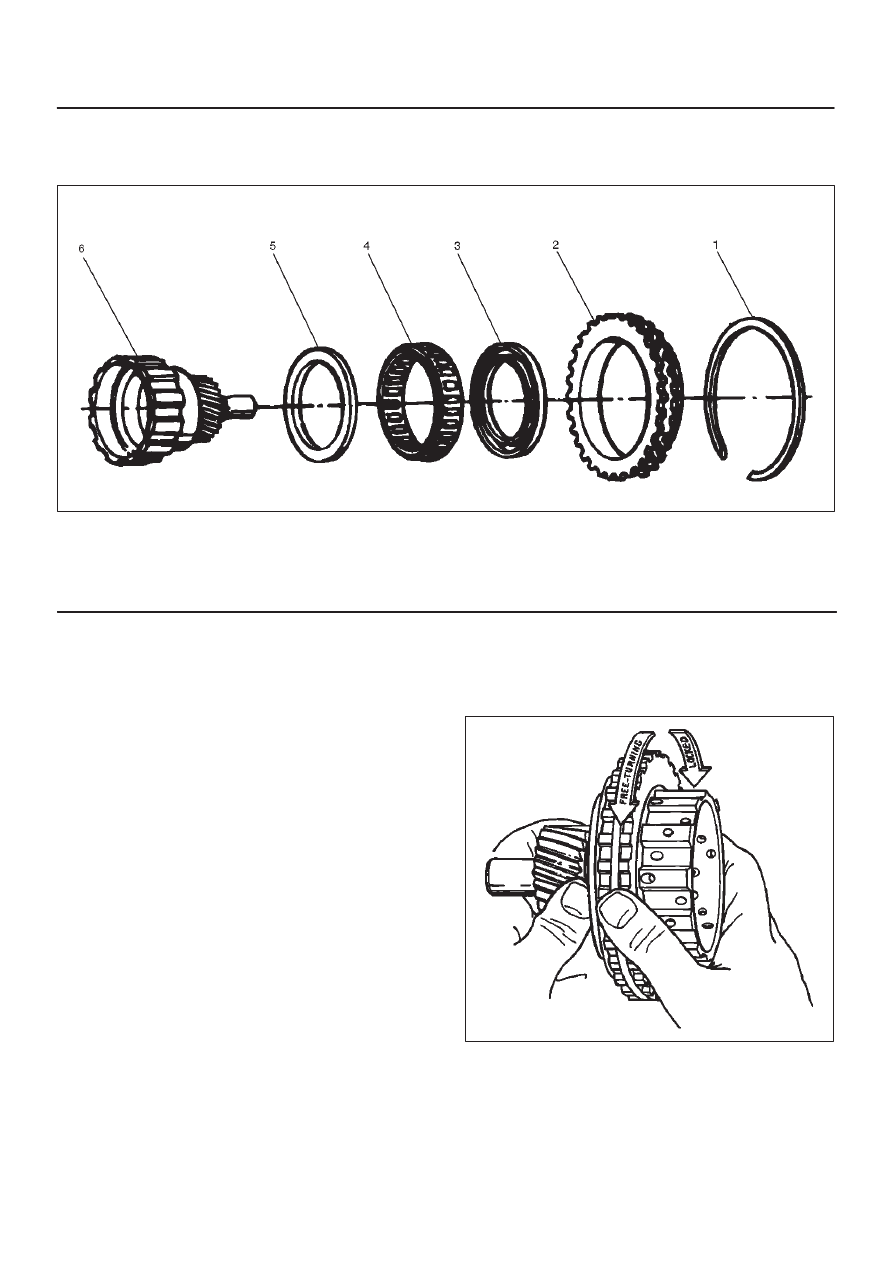

Sprag Unit

Disassembled View

248RS009

Legend

(1) Retaining Ring
(2) Sprag Outer Race
(3) Ring

(4) Sprag Assembly
(5) Ring
(6) Third Clutch Hub and Sun Gear Assembly

Disassembly

1. Remove the sprag outer race, retaining ring, and

sprag assembly from the third clutch hub and sun
gear assembly.

2. Remove the rings and sprag assembly from the sprag

outer race.

Inspection And Repair

Visual Check:

If any damage, deformation or wear is found, replace the
damaged part.

Reassembly

NOTE: Flared shoulder of the sprag cage faces the sun
gear. This procedure must be followed exactly to be sure
that the sprag assembly is installed properly.

1. Install rings and sprag assembly onto the third clutch

hub and sun gear.

2. Install sprag outer race and retaining ring assembly

over the sprag cage assembly.

D

Place third clutch hub and sun gear assembly on a
flat surface, sun gear facing up.  Place sprag outer
race and sprag assembly over the sun gear
assembly, push down and turn the input sun
counterclockwise at the same time.

NOTE: Check correct rotation by holding the sun gear in
your left hand and turning the outer race.  The outer sprag
race should turn freely towards you and should lock
turning away from you.

248RS010
