6E–110

4JX1–TC ENGINE DRIVEABILITY AND EMISSIONS

DTC P1217 – High Oil Temp Warning



Step

Action

Value(s)

Yes

No

1

Was the “On-Board Diagnostic (OBD) System Check”
performed?

—

Go to

Step 2

Go to

OBD

System

Check

2

1. Ignition “ON,” engine “OFF.”
2. Observe the “Eng Cool Temp” display on the Tech 2.

Is the “Eng Cool Temp” below the specified value?

139

°

C

(282

°

F)

Go to

Step 4

Go to

Step 3

3

1. Ignition “ON,” engine “OFF.”
2. Review and record Tech 2 Failure Records data.
3. Using a Tech 2, monitor “ DTC” info for DTC P0217.

Does the Tech 2 indicate DTC P0217 failed this
ignition?

—

Go to

Step 4

Refer to

Diagnostic

Aids

4

1. Ignition “ON,” engine “OFF.”
2. Review and record Tech 2 Failure Records data.
3. Operate the vehicle within Failure Records

conditions as noted.

4. Using a Tech 2, monitor “ DTC” info for DTC P1217.

Does the Tech 2 indicate DTC P1217 failed this
ignition?

—

Go to

Step 5

Refer to

Diagnostic

Aids

5

1. Measure the engine oil quantity by oil level gage.
2. If the engine oil is shortage, fill up it as necessary.

Was the engine oil is shortaged?

—

Verify repair

Go to

Step 6

6

Replace the oil temp sensor.

Is the action complete?

—

Verify repair

Go to

Step 7

7

Replace the oil cooler.

Is the action complete?

—

Verify repair

—

6E–111

4JX1–TC ENGINE DRIVEABILITY AND EMISSIONS

Diagnostic Trouble Code (DTC) P0219 (Flash DTC 11)

Engine Over Speed Warning

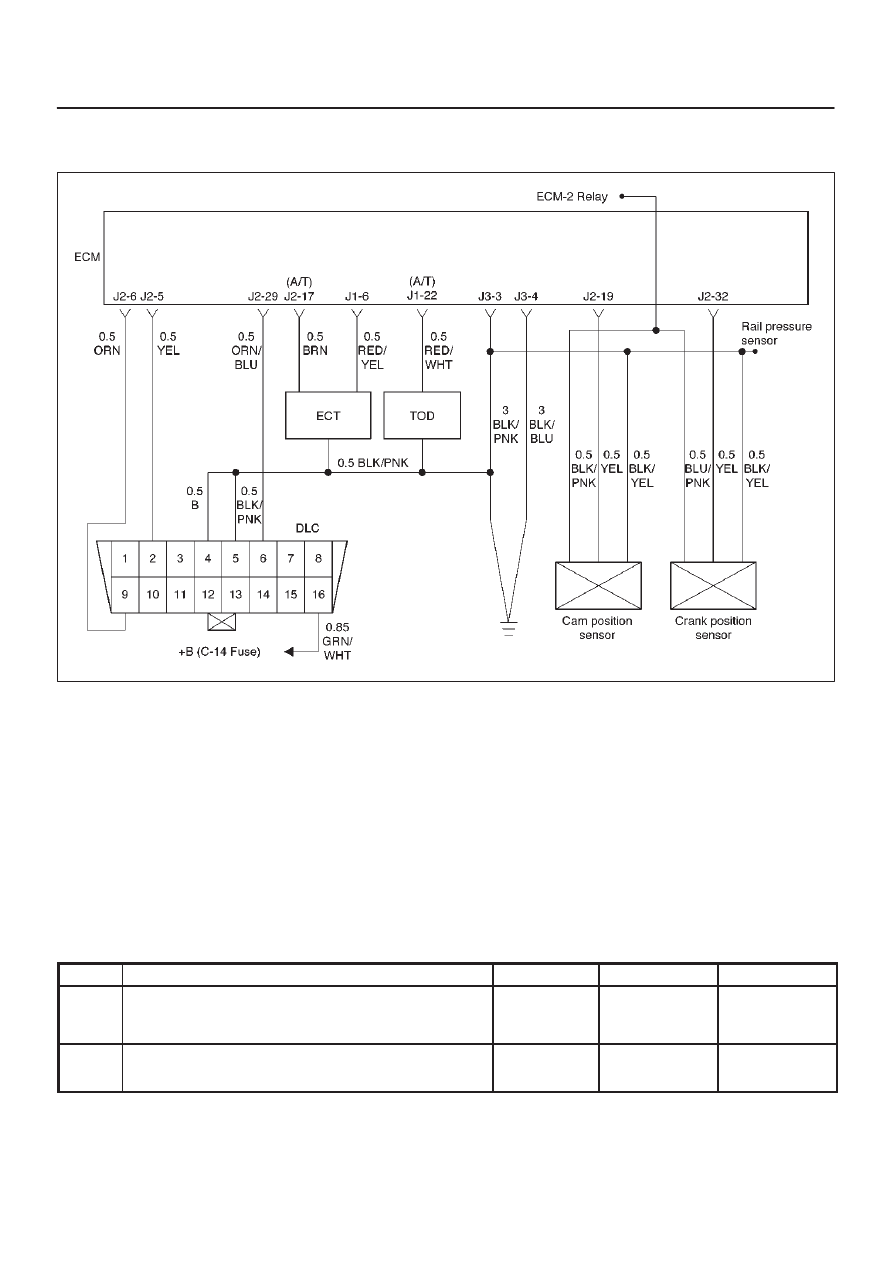

060RW133

Circuit Description

The CKP reference signal is produced by the crankshaft
position (CKP) sensor.  During one crankshaft revolution,
CKP  crankshaft reference pulses will be produced.  The
Engine Control Module ECM uses the CKP reference
signal to calculate engine RPM and crankshaft position.

Action Taken When the DTC Sets

D

The ECM will store conditions which were present
when the DTC was set as Freeze Frame and in the
Failure Records data.

Conditions for Clearing the MIL/DTC

D

DTC P0219 can be cleared by using the Tech 2 “Clear
Info” function or by disconnecting the ECM battery
feed.

Diagnostic Aids

Check for:

D

Poor connection – Inspect the CKP harness and
connectors for improper mating, broken locks,
improperly formed or damaged terminals, and poor
terminal-to-wire connection.

D

Damaged X57 – Inspect the X57 for damage.

DTC P0219 – Engine Over Speed Warning



Step

Action

Value(s)

Yes

No

1

Was the “On-Board Diagnostic (OBD) System Check”
performed?

—

Go to

Step 2

Go to

OBD

System

Check

2

Check the responsibility.

Was the driver responsibility?

—

Go to

Step 3

Go to

Chart 4

6E–112

4JX1–TC ENGINE DRIVEABILITY AND EMISSIONS

DTC P0219 – Engine Over Speed Warning

  (Cont'd)

Step

No

Yes

Value(s)

Action

3

1. Review and record Failure Records information.
2. Clear DTC P0219.
3. Start the engine and idle for 1 minute.
4. Observe DTCs.

Is DTC P0219 set?

—

Go to

Step 4

—

4

Observe the AP value displayed on the Tech 2.

Is the AP value near the specified value?

(Idling 720 r.p

.m) 0 %

Go to

Step 3

Go to

Step 5

5

Observe the Engine speed displayed on the Tech 2.

Is the Engine speed near the specified value?

(Idling) 720 r.

p.m

Go to

Step 7

Go to

Step 6

6

1. Check the CKP sensor.
2. Ignition “ON.”
3. Using a DVM, verify that 5 V reference and ground

are being supplied at the sensor connector (ECM
side).

Are 4-6 volts and ground available at the sensor?

—

Go to

Step 9

Go to

Step 7

7

1. Ignition “ON.”
2. With a DVM, backprobe the ECM connector 5 V

reference and ground connections.

Are 5 V reference and ground available at the ECM?

—

Go to

Step 8

Go to

Step 13

8

Check 5 V reference or ground between the CKP
sensor and ECM and repair the open circuit, short to
ground or short to voltage.

Is the action complete?

—

Verify repair

—

9

1. Ignition “OFF.”
2. Disconnect the ECM and CKP sensor.
3. Check for an open or a short to ground in the CKP

reference circuit between the CKP sensor
connector and the ECM harness connector.

4. If a problem is found, repair as necessary.

Was a problem found?

—

Verify repair

Go to

Step 10

10

1. Reconnect the ECM and CKP sensor.
2. Connect a DVM to measure voltage on the CKP

reference circuit at the ECM connector.

3. Observe the voltage while cranking the engine.

Is the voltage near the specified value?

2.5 V

Go to

Step 13

Go to

Step 11

11

Check the connections at the CKP sensor and replace
the terminals if necessary.

Did any terminals require replacement?

—

Verify repair

Go to

Step 12

12

Replace the CKP sensor.

Is the action complete?

—

Verify repair

—

13

Check the connections at the ECM and replace the
terminals if necessary.

Did any terminals require replacement?

—

Verify repair

Go to

Step 14

6E–113

4JX1–TC ENGINE DRIVEABILITY AND EMISSIONS

DTC P0219 – Engine Over Speed Warning

  (Cont'd)

Step

No

Yes

Value(s)

Action

14

Check the X57 signal plate.

Is the X57 signal plate damage?

—

Go to

Step 15

Go to

Step 3

15

Replace the X57 signal plate.

Is the action complete?

—

Verify repair

Go to

Step 2
