STARTING SYSTEM 6D2 – 9

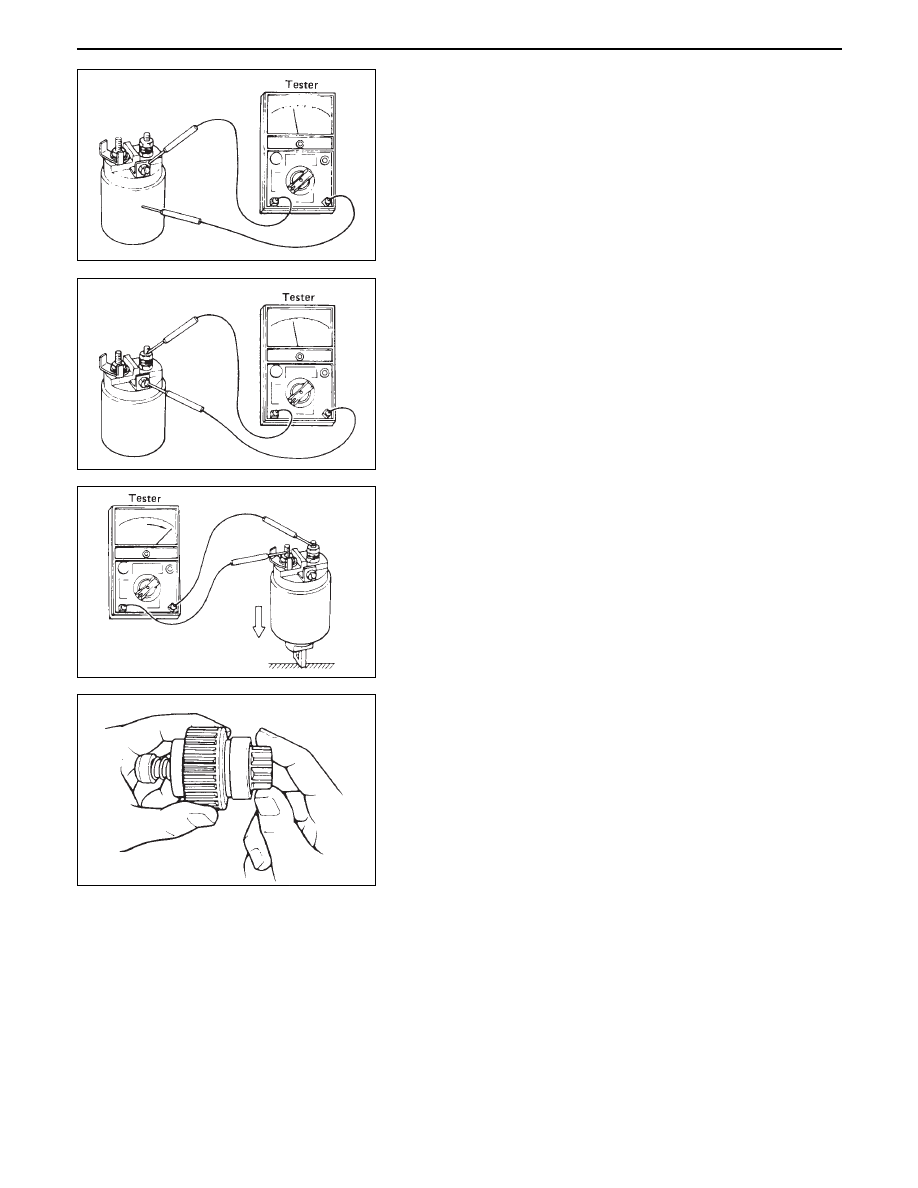

Magnetic switch

Continuity of shunt coil
Check for continuity between terminals S and coil
case.
Replace, if there is no continuity (i.e., coil is
disconnected).

Continuity of series coil
Check for continuity between terminals S and M.
Replace, if there is no continuity (i.e., coil is
disconnected).

Pinion

Check if the pinion rotates smoothly in drive direction
by hand, or if it is locked when it is rotated reversely.
If not, replace the pinion.

Yoke assembly

Check a magnet inside the yoke.
Replace the yoke assembly if it is broken.

Continuity of contacts
With the plunger faced downward, push down the
magnetic switch. In this state, check for continuity
between terminals B and M. Replace, if there is no
continuity (i.e., contacts are faulty).

6D2 – 10 STARTING SYSTEM

REASSEMBLY

To install, follow the removal steps in the reverse order,
noting the following points:

Grease application places

Gears in reduction gear

Shift lever operating portion

Sliding portion of pinion

Plunger sliding portion of magnetic switch

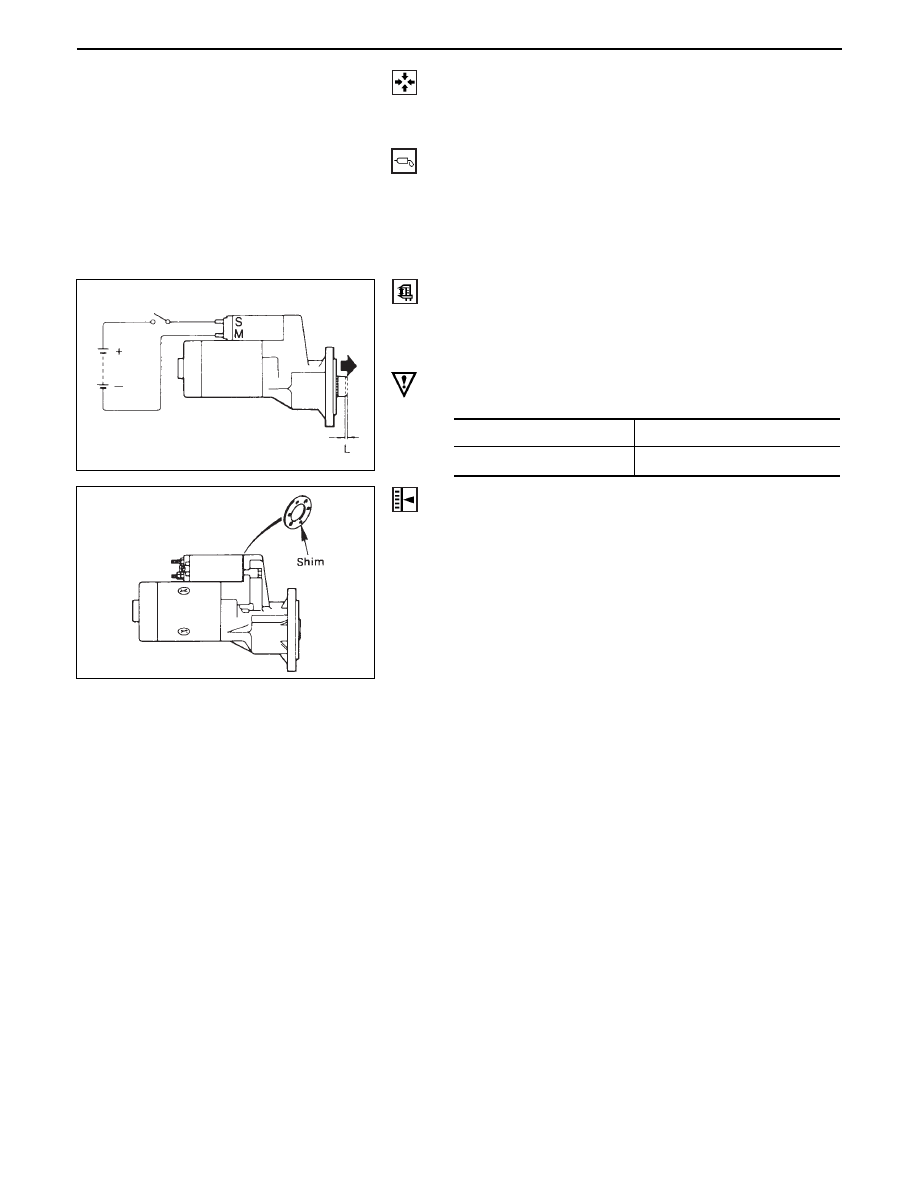

Pinion jump-out dimension

Connect the (+) cable of battery to terminal S and the
(–) cable to terminal M. Turn the switch on, and
measure pinion travel dimension “L” in thrust
direction from the jump-out   position.

In measuring the dimension, pull the pinion out a little in
the arrow direction.

If the measured value is out of standard, adjust the of
shims.

Dimension

L

0.3 - 1.5 (0.01 - 0.06)

Standard

mm (in)

STARTING SYSTEM 6D2 – 11

MAGNETIC SWITCH

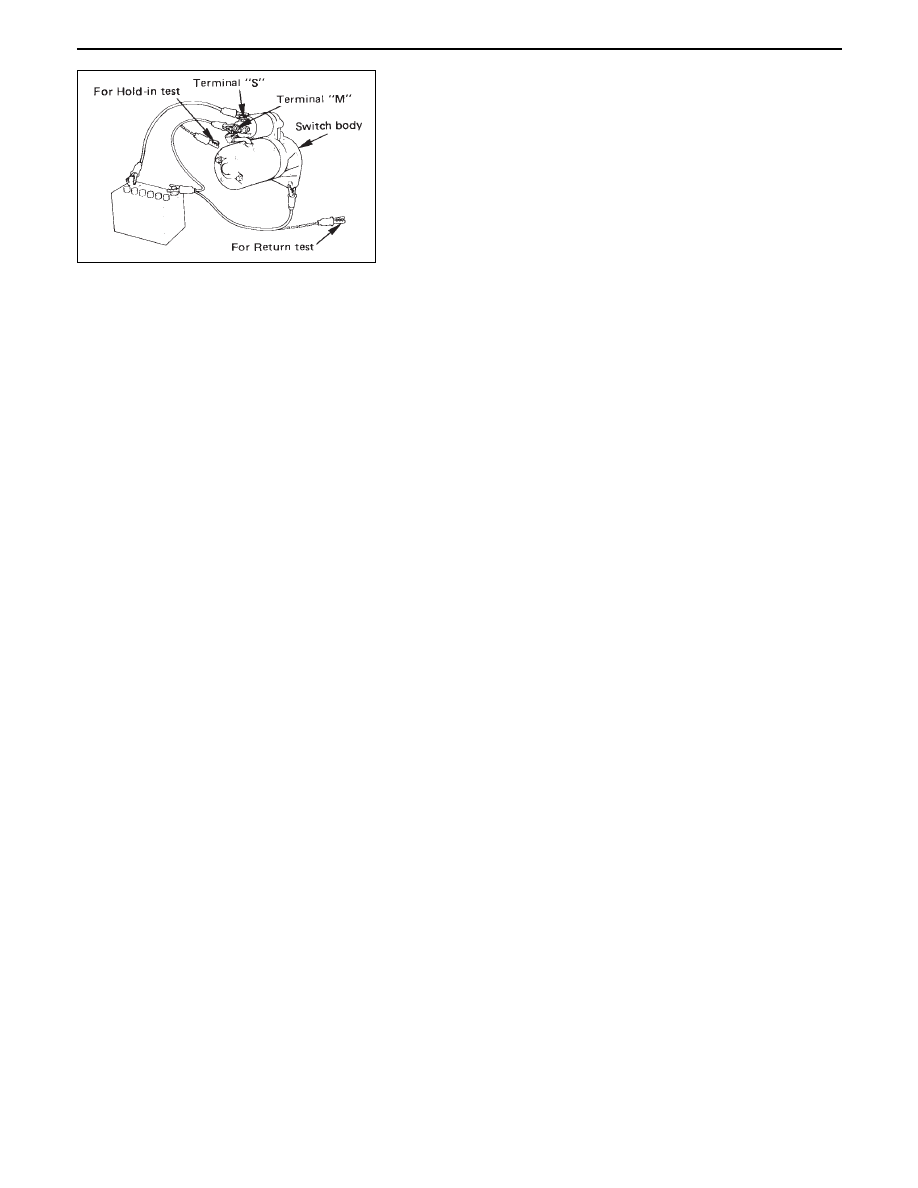

Pull-out test

Connect the magnetic switch to the battery as shown.
The negative side to the “M” terminal and the magnetic
switch  body (housing); the positive side to the “S”
terminal.  If the pinion  has been ejected, the pull-in coil is
satisfactory

Hold-in test

1.

Next disconnect the “M” terminal.

2.

The pinion should remain the ejected position

Return test

When the switch body is disconnected, the pinion should
return quickly

6D2 – 12 STARTING SYSTEM

MEMO
