GENERAL DESCRIPTION

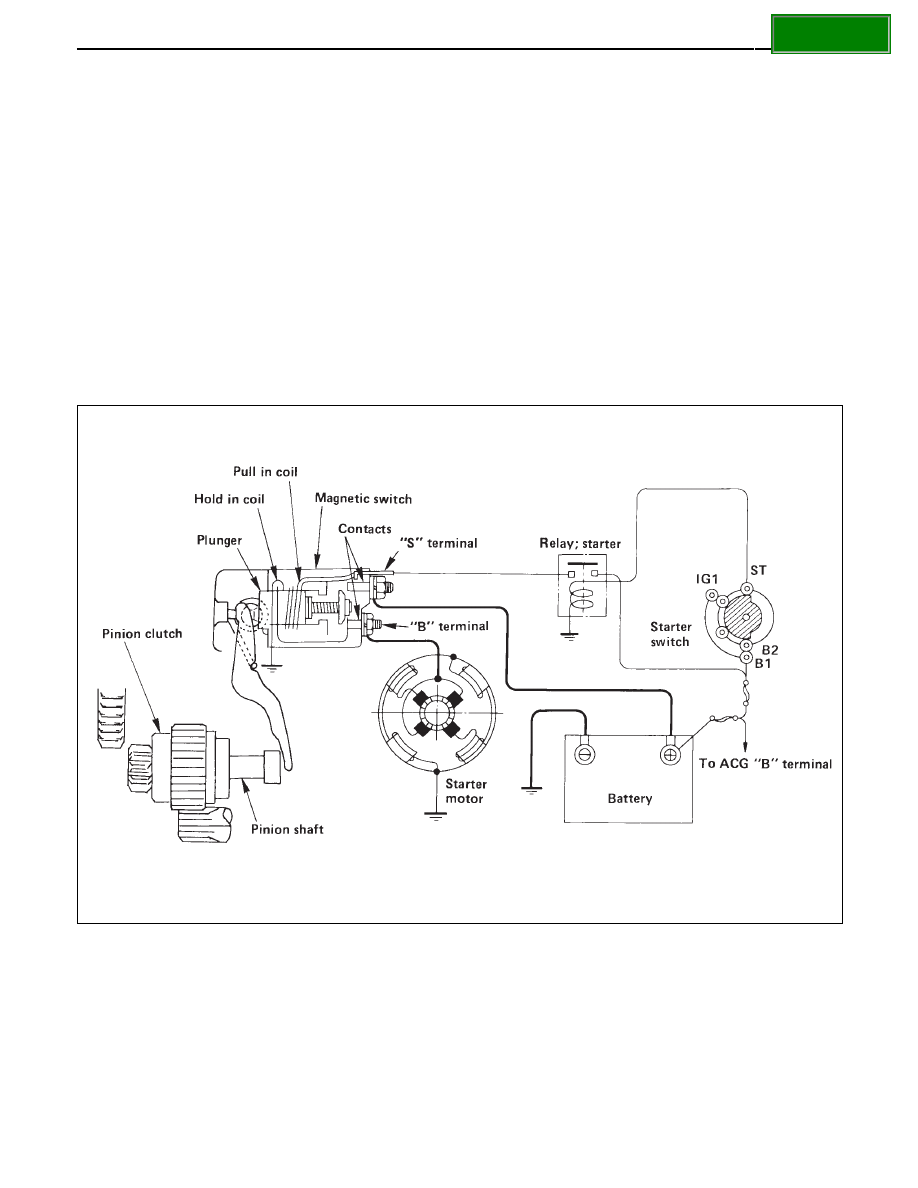

STARTING CIRCUIT

The cranking system consists of a battery, starter, starter switch, starter relay, etc. and these main compo-
nents are connected as shown in Figure. For details of the starting circuit.

STARTER

The starting system employs a magnetic type
reduction starter in which the motor shaft is also
used as a pinion shaft.  When the starter switch is
turned on, the contacts of magnetic switch are
closed, and the armature rotates. At the same time,
the plunger is attracted, and the pinion is pushed
forward by the shift lever to mesh with ring gear.
Then, the ring gear runs to start the engine.  When
the engine starts and the starter switch is turned off,

SECTION

6D2 – 2 STARTING SYSTEM

the plunger returns, the pinion is disengaged from ring
gear, and the armature stops rotation.  When the engine
speed is higher than the pinion, the pinion idles, so that
the armature is not driven.

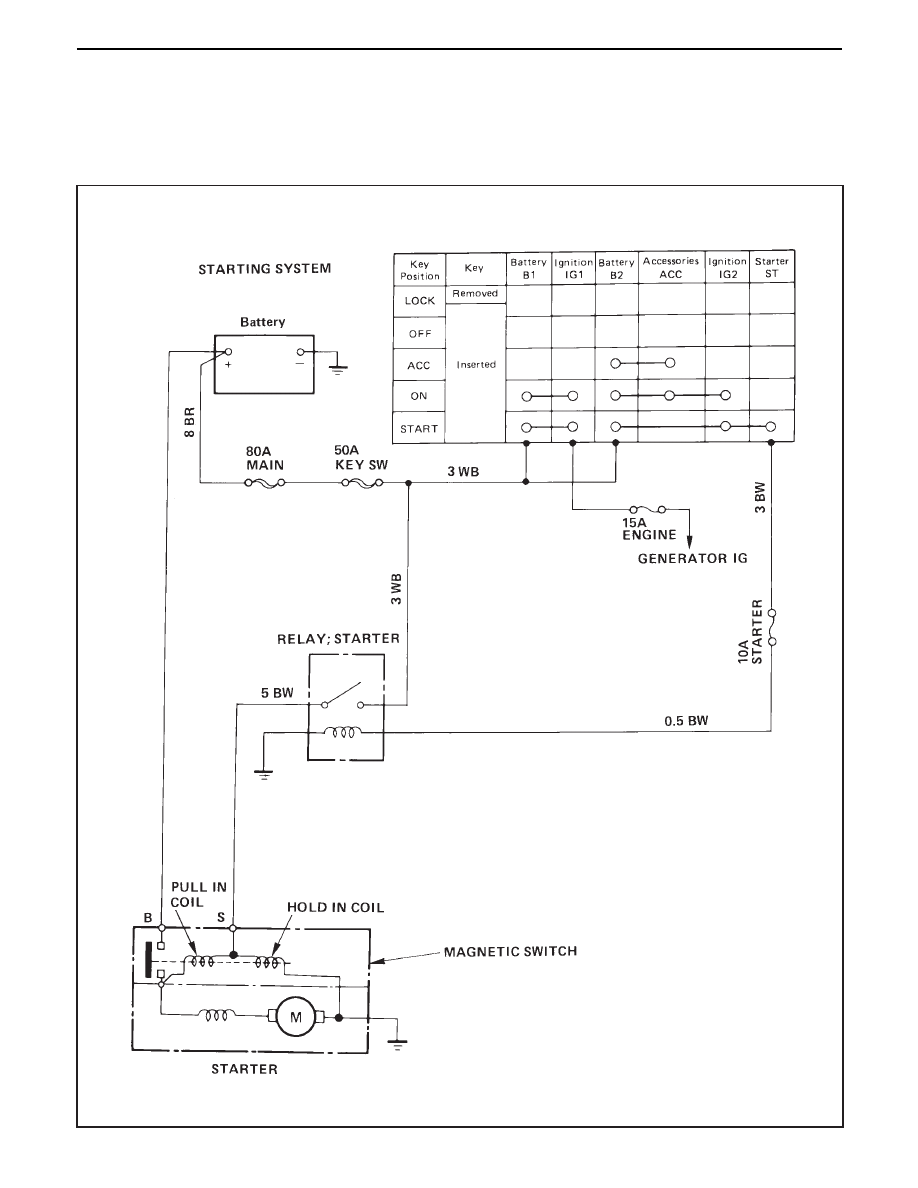

STARTING CIRCUIT

STARTING SYSTEM 6D2 – 3

ON-VEHICLE SERVICE

STARTER

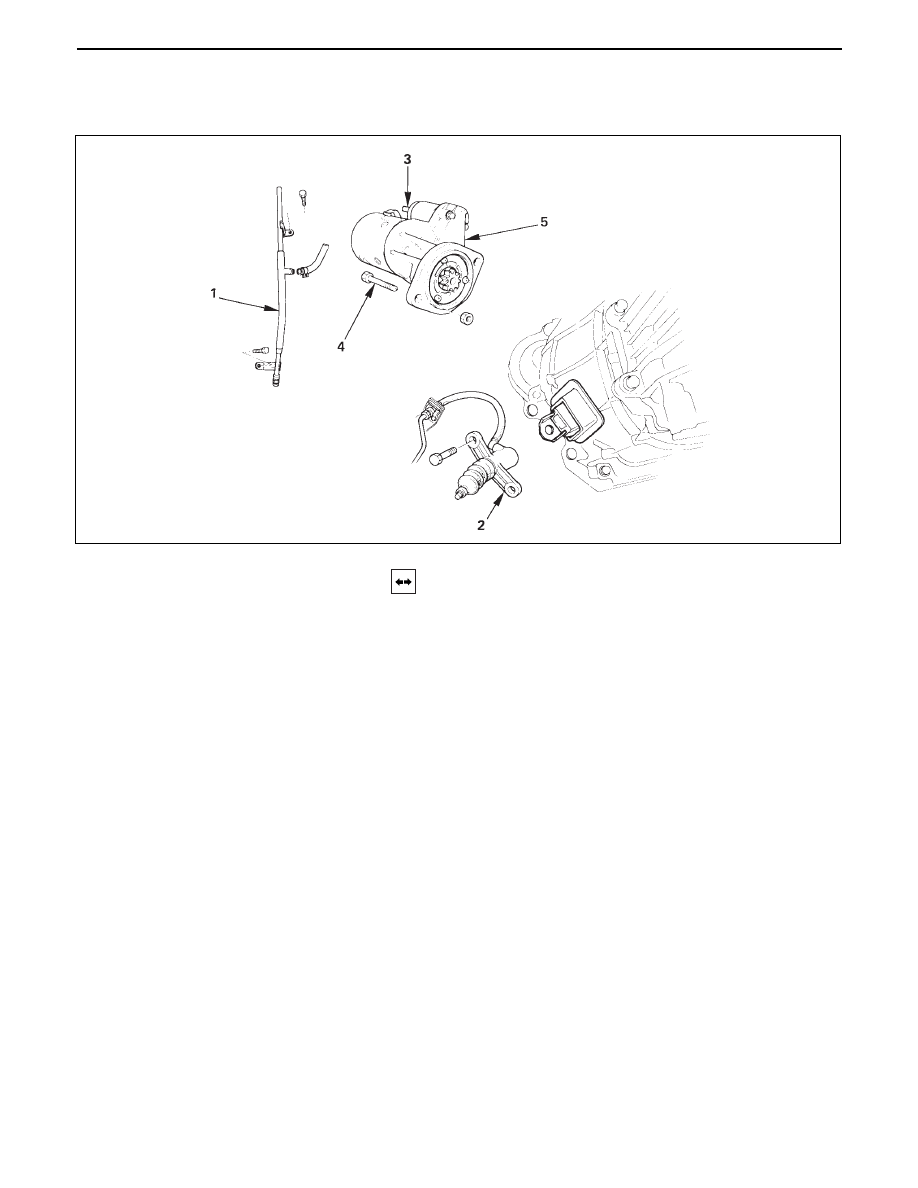

REMOVAL

Preparation

•

Battery ground cable (both batteries)

1. Oil Level Gauge and Guide

•

Remove the guide and plug the hole on the oil pan.

2. Clutch Slave Cylinder

•

Remove the slave cylinder and wire it to the frame.

3. Starter Wiring Connector

•

Disconnect the connector from terminals “B” and
“S”.

4. Mounting

5. Starter Assembly

6D2 – 4 STARTING SYSTEM

INSTALLATION

To install, follow the removal steps in the reverse order.

5. Starter Assembly

•

Tighten the fixing bolt and nut to the
specified torque

4. Mounting

3. Starter Wiring Connector

•

Reconnect the connectors to terminals “B” and
“S”.

2. Clutch Slave Cylinder

•

Tighten the fixing bolt and nut to the
specified torque

78 (8.0/58)

N·m (Kg·m/lb·ft)

1. Oil Level Gauge and Guide

•

Connect the battery ground cable.

94 (9.6/69)

N·m (Kg·m/lb·ft)
