FUEL SYSTEM 6C – 21

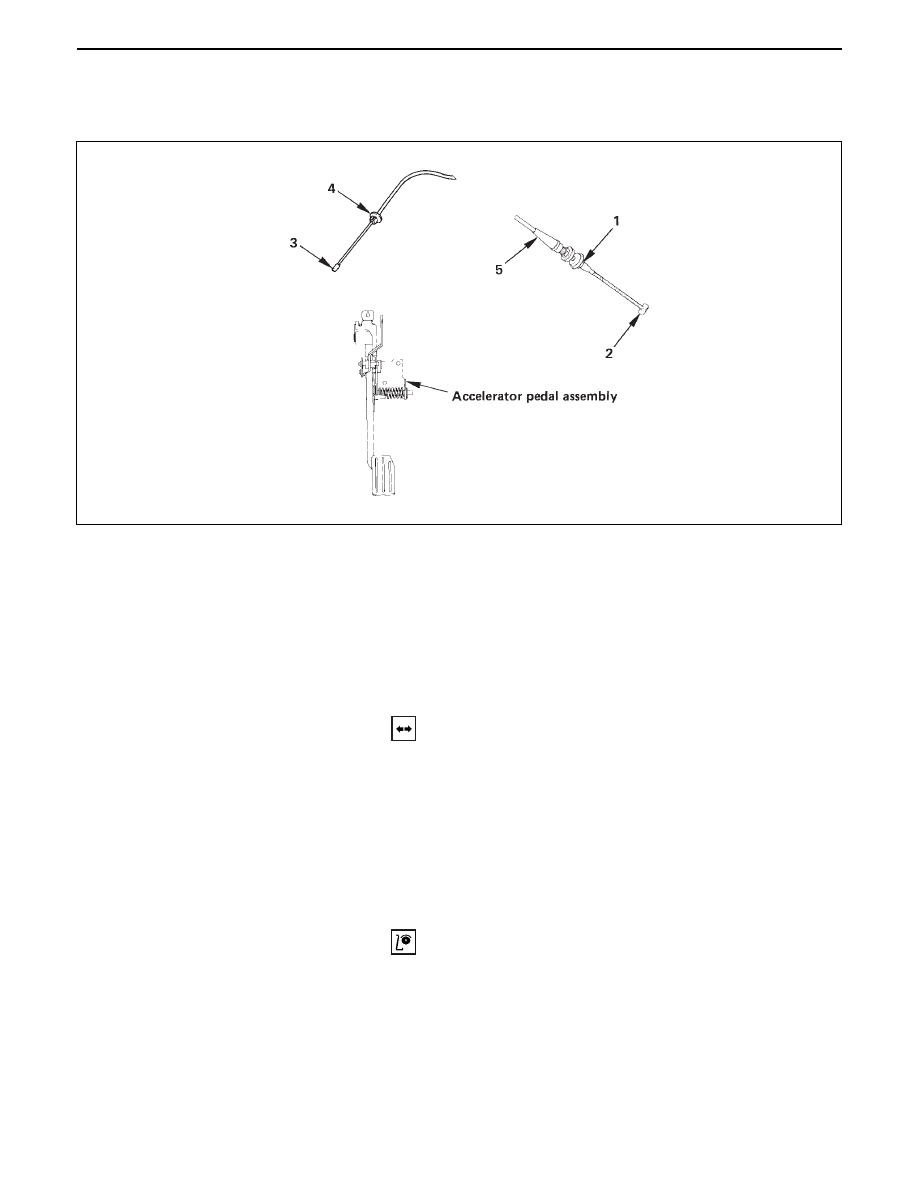

ACCELERATOR CONTROL

ACCELERATOR CONTROL CABLE

REMOVAL

1.

Adjusting Nut

•

Loosen the adjust nut on the cable bracket
mounted on the injection pump.

2.

Accelerator Control Cable (on

injection pump

side)

3.

Accelerator Control Cable (on accelerator pedal
side)

4.

Grommet

5.

Accelerator Control Cable

INSPECTION

Check the following items, and replace the control cable
if any abnormality is found.

•

The control cable should move smoothly.

•

The control cable should not be bent or kinked.

•

The control cable should be free of damage and
corrosion.

Removal Steps

1. Adjusting nut
2. Accelerator control cable

(Injection pump side)

3. Accelerator control cable

(Accelerator pedal side)

4. Grommet
5. Accelerator control cable

Installation Steps

To install, follow the removal steps in the
reverse order.

6C – 22 FUEL SYSTEM

INSTALLATION

5.

Adjusting Nut

4.

Accelerator Control Cable (on injection pump
side)

3.

Accelerator Control Cable (on accelerator pedal
side)

2.

Grommet

1.

Accelerator Control Cable

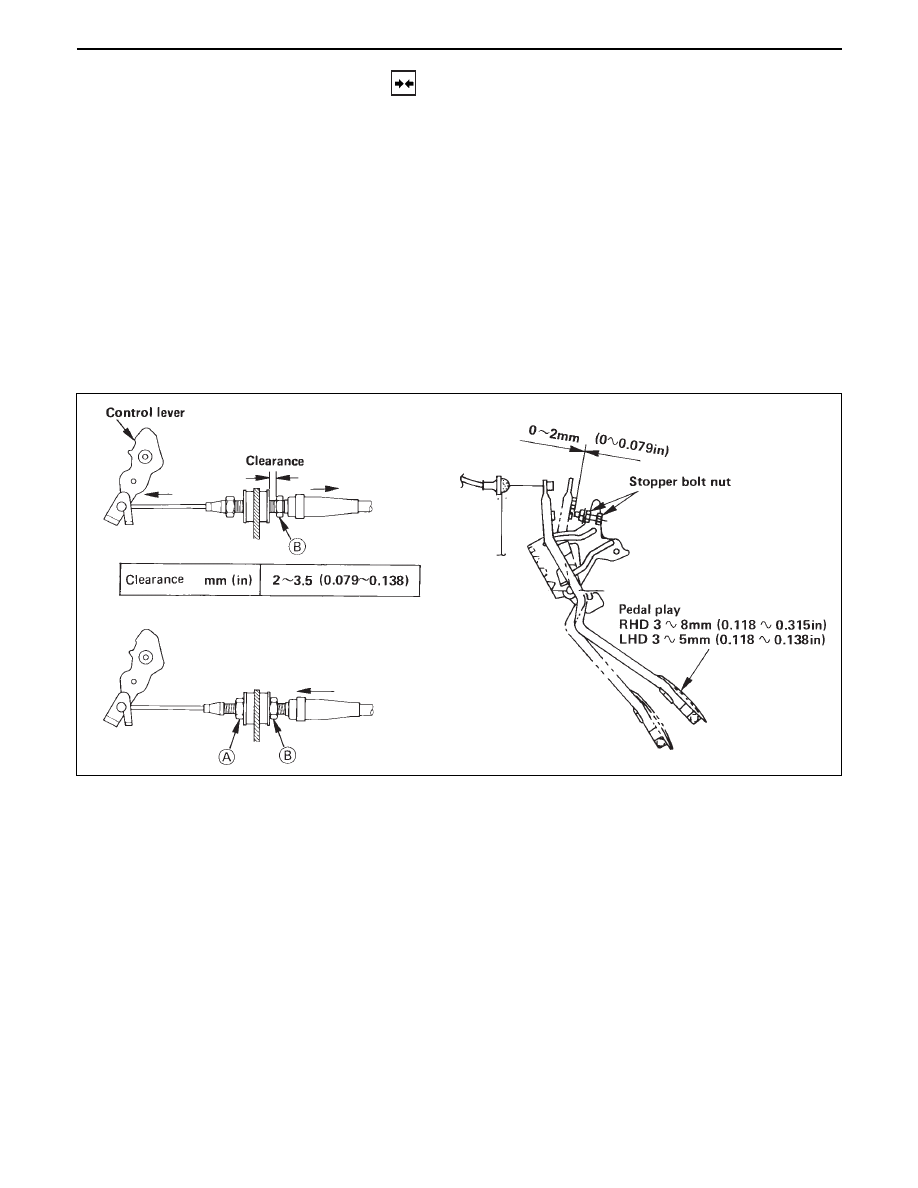

Adjustment of Accelerator Control Cable

1.

Loosen the lock nut.

2.

Lock the throttle valve fully closed, and pull the outer
cable. Then, adjust the nut B so that the clearance
between nut B and bracket is as shown in figure.

3.

Push the nut B against the bracket and tighten nut A to
lock the cable.

FUEL SYSTEM 6C – 23

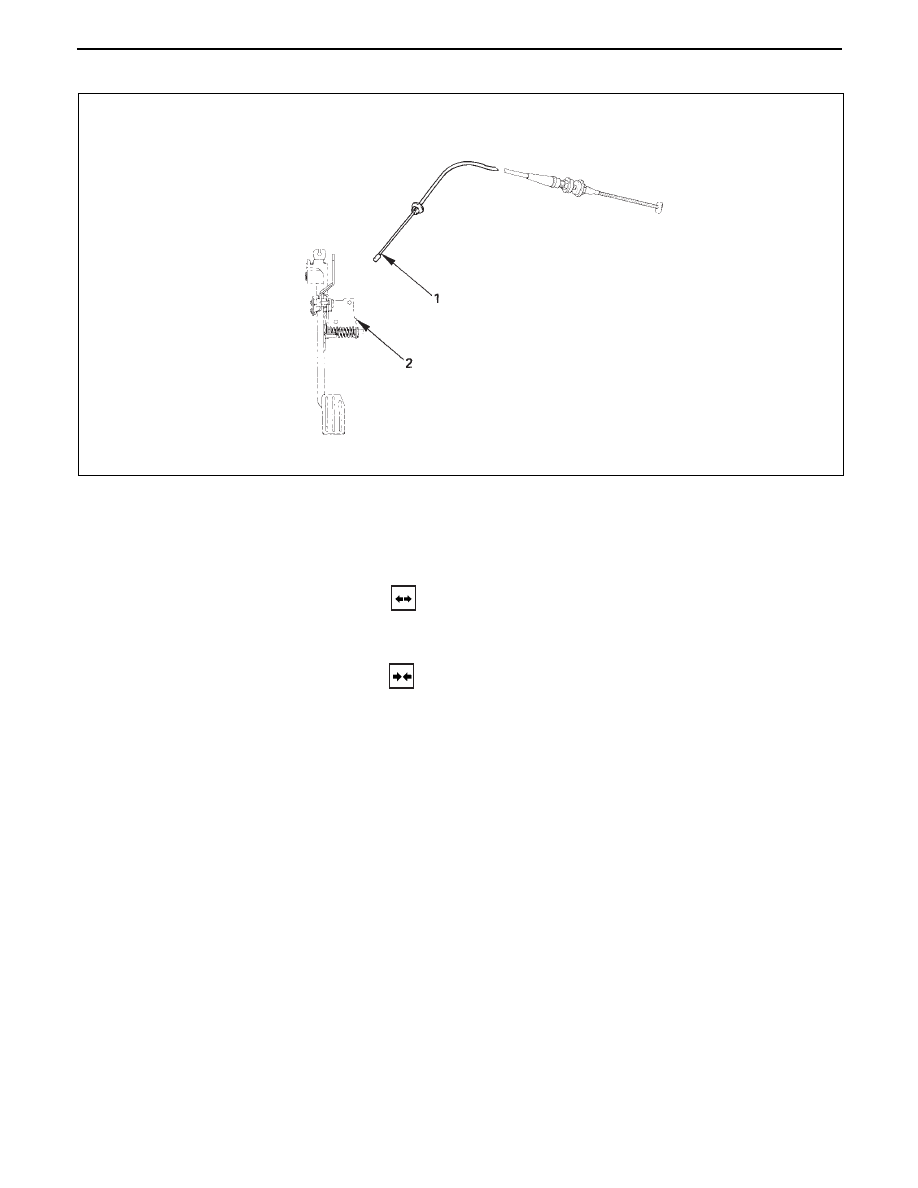

ACCELERATOR PEDAL

Installation Steps

To install, follow the removal steps in the
reverse order.

Removal Steps

1.

Accelerator control cable

2.

Accelerator pedal assembly

REMOVAL

1.

Accelerator Control Cable

2.

Accelerator Pedal Assembly

INSTALLATION

2.

Accelerator Pedal Assembly

1.

Accelerator Control Cable

Adjustment of Pedal Stroke
Manual Transmission

•

Turn counterclockwise and loosen the stopper bolts
sufficiently.

•

Step on the pedal fully and hold it with your hand.
Next turn the stopper bolt until it comes into contact
with the stopper of pedal bracket.  Then, lock the
stopper bolt in that position.

6C – 24 FUEL SYSTEM

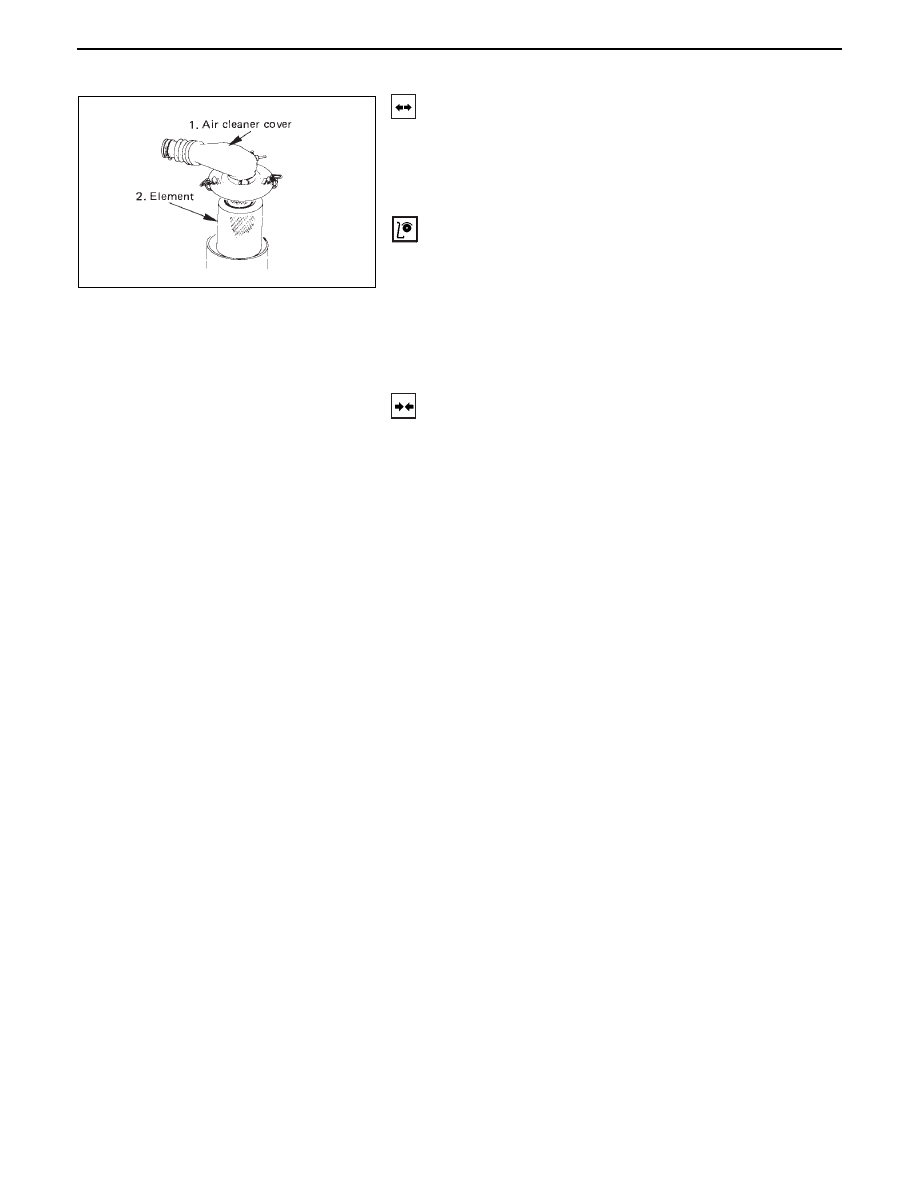

AIR CLEANER

REMOVAL

•

Disconnect the hose coming.

1.

Air Cleaner Cover

•

Disconnect air hose.

2.

Element

INSPECTION

Check the element for damage or clogging by dust.
Replace if it is damaged, or clean if it is clogged.

Cleaning Method

Top the element carefully not to damage the paper filter,
or clean the element by blowing with compressed air of
about 49kPa (0.5 kg/cm

2

/71 psi) from the clean side if it is

extremely dirty.

INSTALLATION

2.

Element

1.

Air Cleaner Cover

•

Set the cover to the body completely, then clamp it
with the clip.
