4A2A–12 DIFFERENTIAL (REAR 220mm)

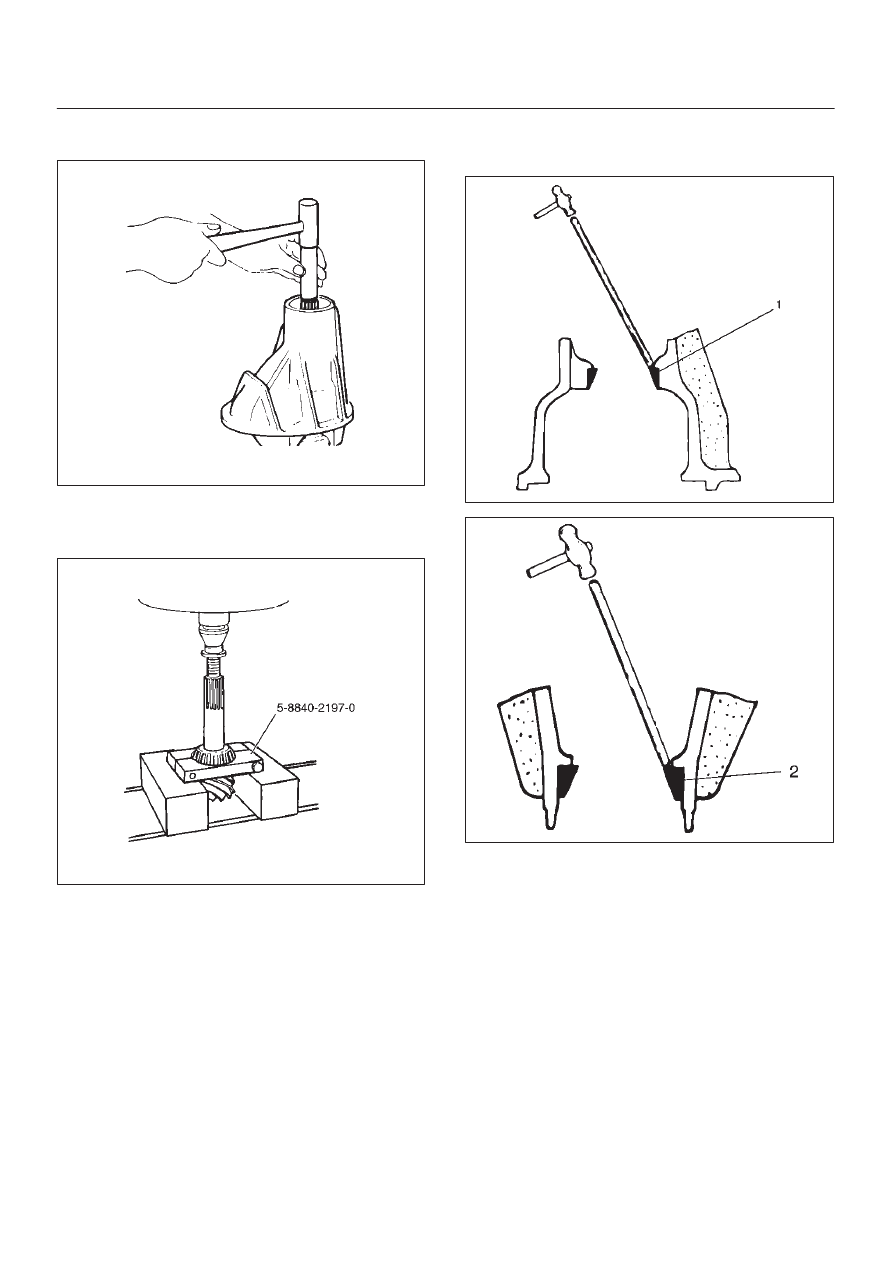

11. Remove the drive pinion assembly using a soft metal

rod and a hammer.

425RW056

12. Remove collapsible spacer.
13. Remove the inner bearing using a separator

5–8840–2197–0 and a press.

415RW039

14. Remove adjust shim.
15. Remove inner bearing outer race.
16. Remove oil seal.
17. Remove outer bearing.

18. Remove the inner bearing outer race (1) and the outer

bearing outer race (2) by using a brass bar and a
hammer.

425RS014

425RS015

DIFFERENTIAL (REAR 220mm) 4A2A–13

Reassembly

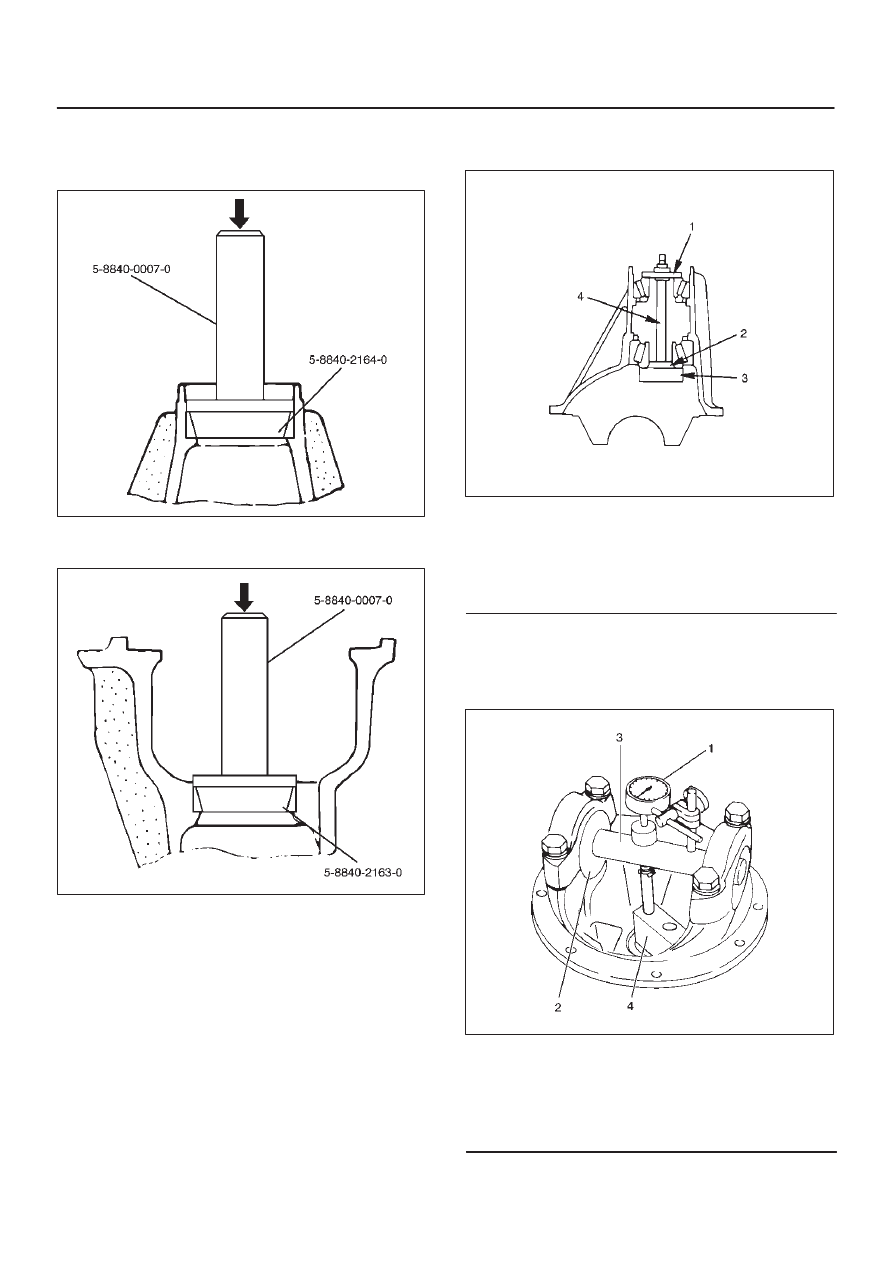

1. Using installer 5–8840–2164–0 and grip

5–8840–0007–0, install outer bearing outer race.

415RW025

2. Using installer 5–8840–2163–0 and grip

5–8840–0007–0, install Inner bearing outer race.

415RW026

3. Install adjust shim and adjust drive pinion mounting

distance
1. Apply gear oil to the inner and outer drive pinion

bearing.
Clean the pinion setting gauge set.
Then install the gauge set together with the inner
and outer bearings.

2. Tighten the nut to the specified torque.

Torque: 2.3 N·m (0.23kg·m/20 lb in)

415RW037

Legend

(1) Front Pilot: 5–8840–2085–0
(2) Rear Pilot: 5–8840–0129–0
(3) Gauge Plate: 5–8840–2166–0
(4) Bolt and Nut: 5–8840–0127–0

3. Clean the side bearing bores. Install the dial

indicator with the discs and arbor. Install and
tighten the bearing caps to the specified torque.

Torque: 108 N·m (11.0kg·m/80 lb ft)

415RW038

Legend

(1) Dial Indicator: 5–8840–0126–0
(2) Disc (2 pcs.): 5–8840–2167–0
(3) Arbor: 5–8840–0128–0
(4) Gauge Plate: 5–8840–2166–0

4A2A–14 DIFFERENTIAL (REAR 220mm)

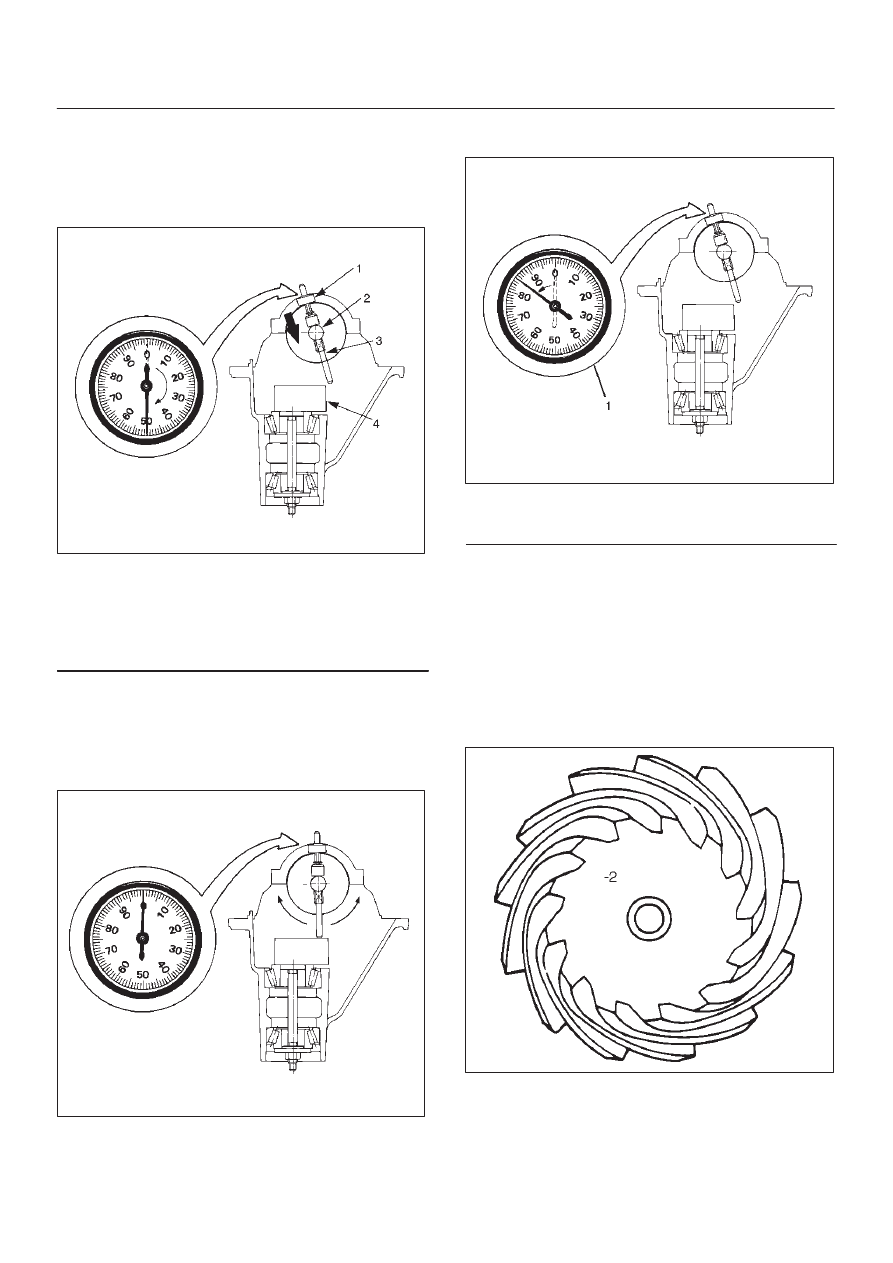

4. Set the dial indicator to “0”. Place it on the

mounting post of the gauging arbor with the
contact button touching the indicator pad. Force
the dial indicator downward until the needle has
made a half turn clockwise. Tighten down the dial
indicator in this position.

425RS020

Legend

(1) Dial Indicator
(2) Ganging Arbor
(3) Plunger
(4) Gauge Plate

5. Position the plunger on the gauge plate. Move the

gauging arbor slowly back and forth and locate
the position at which the dial indicator shows the
greatest defection. At this point, once again set
the dial indicator to “0”.
Repeat the procedure to verify the “0” setting.

425RS021

6. After the ZERO setting is obtained, rotate the

gauging arbor until the dial indicator rod does not
touch the gauging plate.

Record the number the dial indicator needle
points to.

425RS022

Legend

(1) Example=Dial indicator reading of 0.085

7. Record the pinion depth code on the head of the

drive pinion.
The number indicates a necessary change in the
pinion mounting distance. A plus number indi-
cates the need for a greater mounting distance
(which can be achieved by decreasing the shim
thickness). A minus number indicates the need
for a smaller mounting distance (which can be
achieved by increasing the shim thickness). If ex-
amination reveals pinion depth code “0”, the pin-
ion is “nominal”.

425RS023

8. Select the shim using the chart;

DIFFERENTIAL (REAR 220mm) 4A2A–15

Pinion

marking

Dial

indicator

reading

(Inches)

+10

+8

+6

+4

+2

0

–2

–4

–6

–8

–10

0.073

1.94

(0.0764)

1.96

(0.0772)

0.074

1.94

(0.0764)

1.96

(0.0772)

1.98

(0.0779)

0.075

1.94

(0.0764)

1.96

(0.0772)

1.98

(0.0779)

2.00

(0.0787)

0.076

1.94

(0.0764)

1.96

(0.0772)

1.98

(0.0779)

2.00

(0.0787)

2.02

(0.0795)

2.04

(0.0803)

0.077

1.96

(0.0772)

1.98

(0.0779)

2.00

(0.0787)

2.02

(0.0795)

2.04

(0.0803)

2.06

(0.0811)

0.078

1.94

(0.0764)

1.96

(0.0772)

1.98

(0.0779)

2.00

(0.0787)

2.02

(0.0795)

2.04

(0.0803)

2.06

(0.0811)

2.08

(0.0819)

0.079

1.94

(0.0764)

1.96

(0.0772)

1.98

(0.0779)

2.00

(0.0787)

2.02

(0.0795)

2.04

(0.0803)

2.06

(0.0811)

2.08

(0.0819)

2.10

(0.0827)

0.080

1.94

(0.0764)

1.96

(0.0772)

1.98

(0.0779)

2.00

(0.0787)

2.02

(0.0795)

2.04

(0.0803)

2.06

(0.0811)

2.08

(0.0819)

2.10

(0.0827)

2.12

(0.0835)

2.14

(0.0842)

0.081

1.96

(0.0772)

1.98

(0.0779)

2.00

(0.0787)

2.02

(0.0795)

2.04

(0.0803)

2.06

(0.0811)

2.08

(0.0819)

2.10

(0.0827)

2.12

(0.0835)

2.14

(0.0842)

2.16

(0.0850)

0.082

1.98

(0.0779)

2.00

(0.0787)

2.02

(0.0795)

2.04

(0.0803)

2.06

(0.0811)

2.08

(0.0819)

2.10

(0.0827)

2.12

(0.0835)

2.14

(0.0842)

2.16

(0.0850)

2.18

(0.0858)

0.083

2.00

(0.0787)

2.02

(0.0795)

2.04

(0.0803)

2.06

(0.0811)

2.08

(0.0819)

2.10

(0.0827)

2.12

(0.0835)

2.14

(0.0842)

2.16

(0.0850)

2.18

(0.0858)

2.20

(0.0866)

0.084

2.04

(0.0803)

2.06

(0.0811)

2.08

(0.0819)

2.10

(0.0827)

2.12

(0.0835)

2.14

(0.0842)

2.16

(0.0850)

2.18

(0.0858)

2.20

(0.0866)

2.22

(0.0874)

2.24

(0.0882)

0.085

2.06

(0.0811)

2.08

(0.0819)

2.10

(0.0827)

2.12

(0.0835)

2.14

(0.0842)

2.16

(0.0850)

2.18

(0.0858)

2.20

(0.0866)

2.22

(0.0874)

2.24

(0.0882)

2.26

(0.0890)

0.086

2.08

(0.0819)

2.10

(0.0827)

2.12

(0.0835)

2.14

(0.0842)

2.16

(0.0850)

2.18

(0.0858)

2.20

(0.0866)

2.22

(0.0874)

2.24

(0.0882)

2.26

(0.0890)

2.28

(0.0898)

0.087

2.12

(0.0835)

2.14

(0.0842)

2.16

(0.0850)

2.18

(0.0858)

2.20

(0.0866)

2.22

(0.0874)

2.24

(0.0882)

2.26

(0.0890)

2.28

(0.0898)

2.30

(0.0906)

2.32

(0.0913)

0.088

2.14

(0.0842)

2.16

(0.0850)

2.18

(0.0858)

2.20

(0.0866)

2.22

(0.0874)

2.24

(0.0882)

2.26

(0.0890)

2.28

(0.0898)

2.30

(0.0906)

2.32

(0.0913)

2.34

(0.0921)

0.089

2.16

(0.0850)

2.18

(0.0858)

2.20

(0.0866)

2.22

(0.0874)

2.24

(0.0882)

2.26

(0.0890)

2.28

(0.0898)

2.30

(0.0906)

2.32

(0.0913)

2.34

(0.0921)

2.36

(0.0929)

0.090

2.18

(0.0858)

2.20

(0.0866)

2.22

(0.0874)

2.24

(0.0882)

2.26

(0.0890)

2.28

(0.0898)

2.30

(0.0906)

2.32

(0.0913)

2.34

(0.0921)

2.36

(0.0929)

0.091

2.22

(0.0874)

2.24

(0.0882)

2.26

(0.0890)

2.28

(0.0898)

2.30

(0.0906)

2.32

(0.0913)

2.34

(0.0921)

2.36

(0.0929)

0.092

2.24

(0.0882)

2.26

(0.0890)

2.28

(0.0898)

2.30

(0.0906)

2.32

(0.0913)

2.34

(0.0921)

2.36

(0.0929)

0.093

2.26

(0.0890)

2.28

(0.0898)

2.30

(0.0906)

2.32

(0.0913)

2.34

(0.0921)

2.36

(0.0929)

0.094

2.28

(0.0898)

2.30

(0.0906)

2.32

(0.0913)

2.34

(0.0921)

2.36

(0.0929)

0.095

2.32

(0.0913)

2.34

(0.0921)

2.36

(0.0929)

0.096

2.34

(0.0921)

2.36

(0.0929)

0.097

2.36

(0.0929)

NOTE: When ordering shims, find the part number in the
parts catalog by using the thickness of shims listed in the
above table.
