4A2A–8 DIFFERENTIAL (REAR 220mm)

Differential Assembly

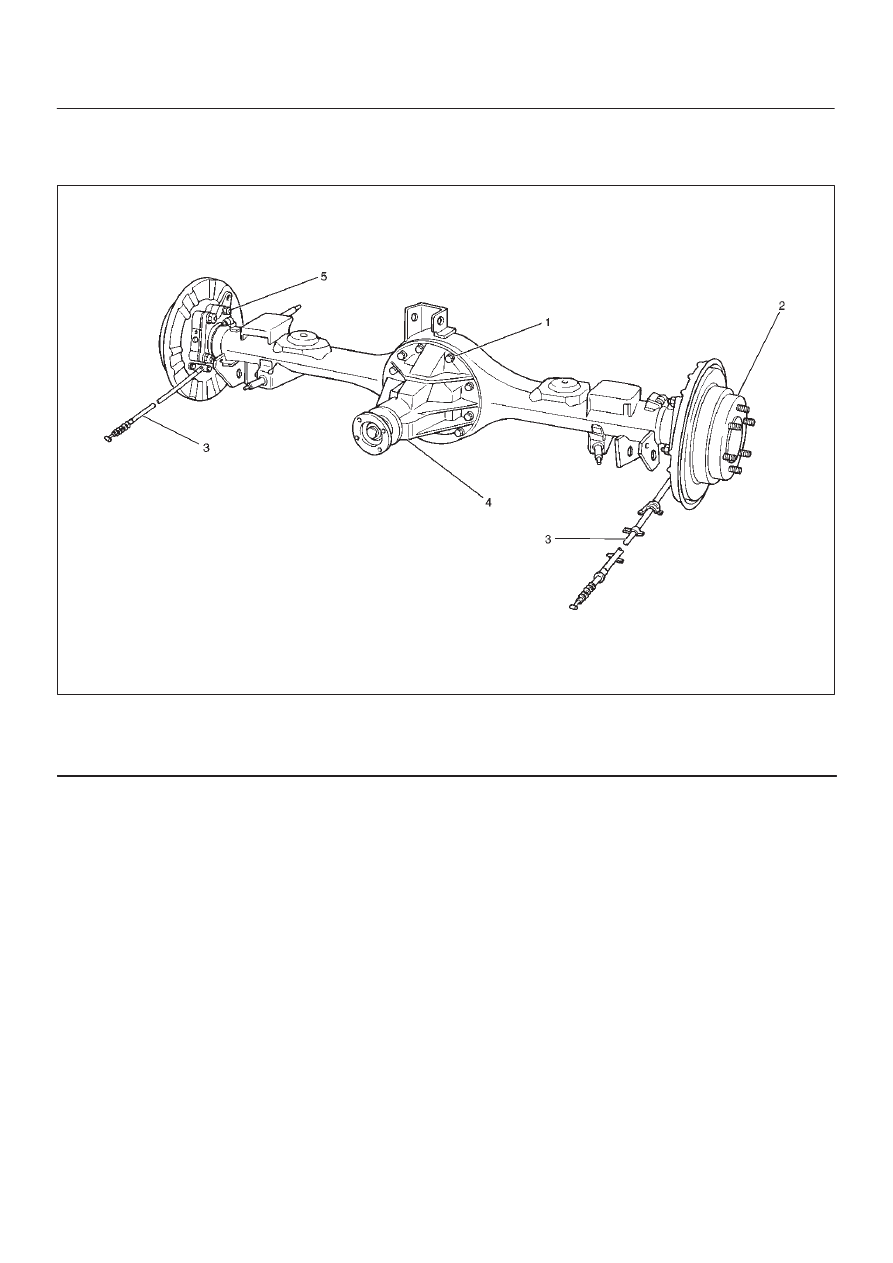

Differential Assembly and Associated Parts

425RW055

Legend

(1) Bolt and Nut
(2) Axle Shaft Assembly

(3) Parking Brake Cable
(4) Differential Assembly
(5) Nut

Removal

1. Jack up and support the frame with stands.
2. Remove the wheel and tire.  Refer to Wheel in

Steering section.

3. Drain the differential oil.
4. Remove the propeller shaft.  Refer to Rear Propeller

Shaft in this section.

5. Remove the ABS speed sensor(ABS model only).

Refer to 4–Wheel  Anti–lock  Brake System (ABS) in
Brake section.

6. Remove the parking brake cable fastening clip and

disconnect the equalizer section.  Refer to Parking
Brakes in Brake section.

7. Remove the bearing holder fixing nuts.
8. Remove axle shaft assembly, be sure not to damage

the oil seal by axle shaft.

9. Remove differential carrier mounting bolts and nuts.

10. Remove differential assembly.

DIFFERENTIAL (REAR 220mm)

4A2A–9

Installation

1. Clean the contact surfaces of the axle and differential

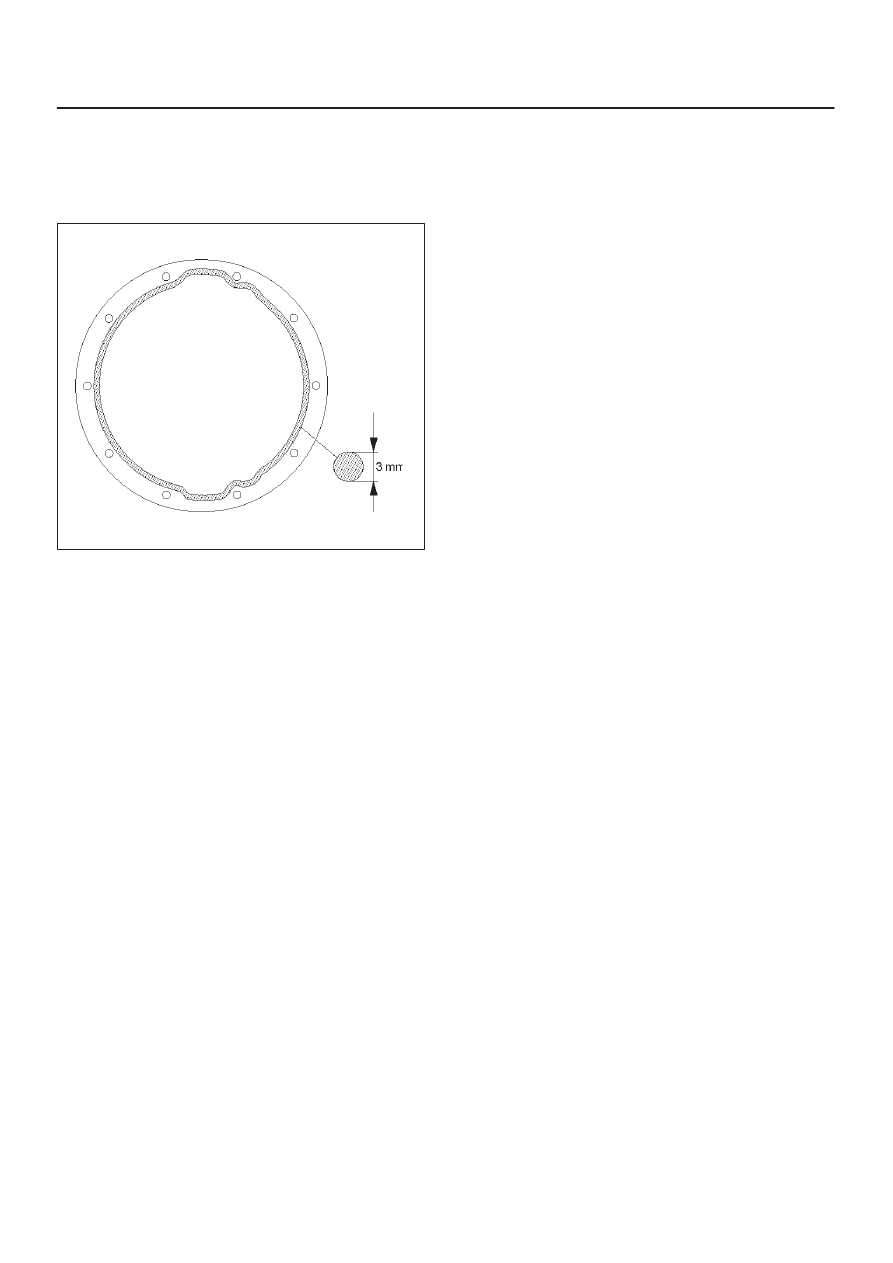

carrier.  As shown in the drawing, apply Three Bond
TB1215 or equivalent then install differential
assembly.

425RS006

2. Install bolt and nut. Tighten the differential carrier

mounting bolts and nuts to the specified torque.

Torque:Nuts 44N·m (4.5kg·m/33lb ft)

Bolts 66N·m (6.7kg·m/48lb ft)

3. Install axle shaft assembly.  Be sure not to damage

the oil seal by axle shaft.

4. Install nut, refer to Axle Shaft in this section.
5. Install parking brake cable, refer to Parking Brakes in

Brake section.

NOTE: After completing the assembling work, fill the
prescribed gear oil to the filler hole.

Lubricant capacity: 1.8 liter (1.6 Imp qt/1.9US
qt)

6. Tighten the oil filler plug to the specified torque.

Torque: 78N·m (8.0kg·m/58lb ft)

4A2A–10 DIFFERENTIAL (REAR 220mm)

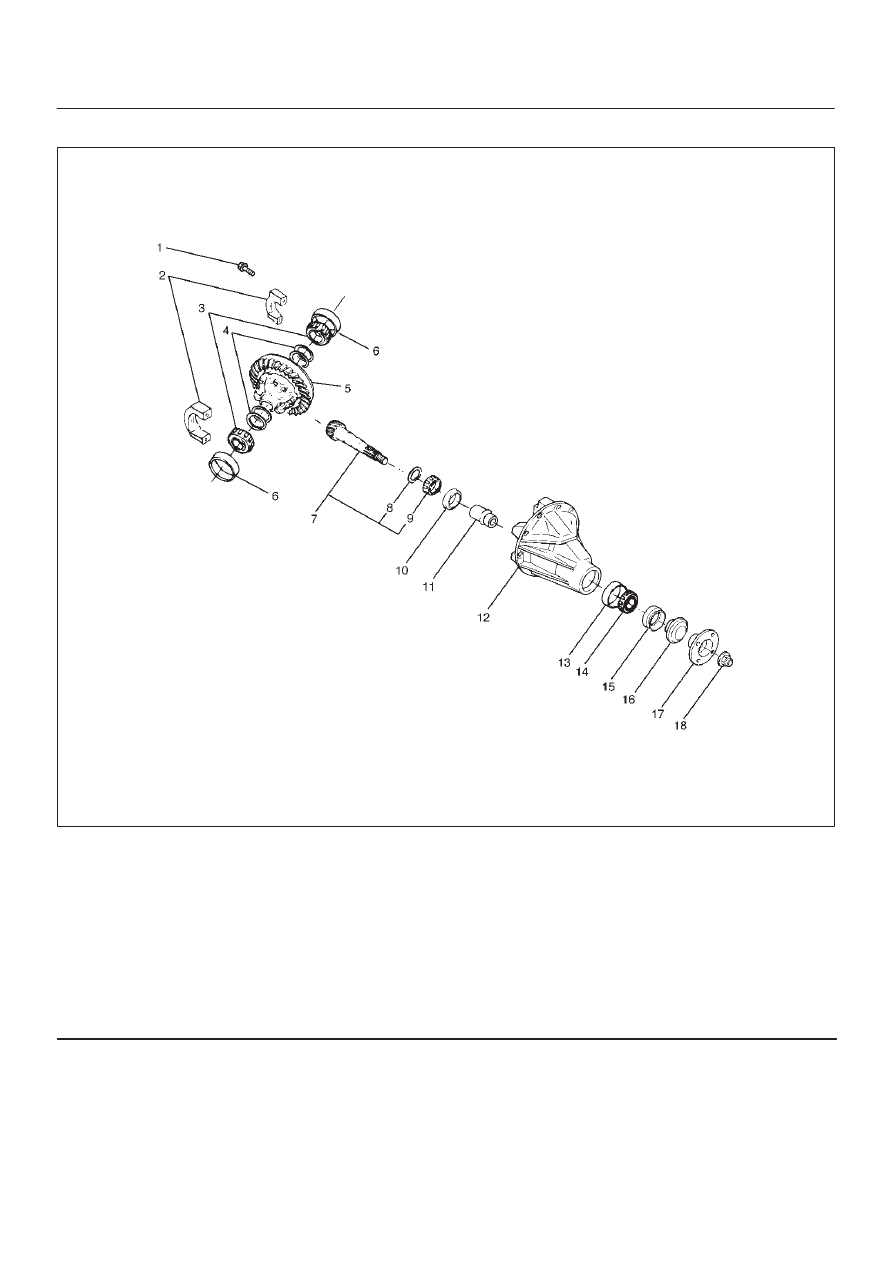

Disassembled View

415RW035

Legend

(1) Bolt
(2) Bearing Cap
(3) Side Bearing
(4) Adjust Shim
(5) Diff Cage Assembly
(6) Side Bearing Outer Race
(7) Pinion Gear
(8) Adjust Shim
(9) Inner Bearing

(10) Inner Bearing Outer Race

(11) Collapsible Spacer

(12) Differential Carrier
(13) Outer Bearing  Outer Race
(14) Outer Bearing
(15) Oil Seal
(16) Dust Cover
(17) Flange
(18) Flange Nut

DIFFERENTIAL (REAR 220mm) 4A2A–11

Disassembly

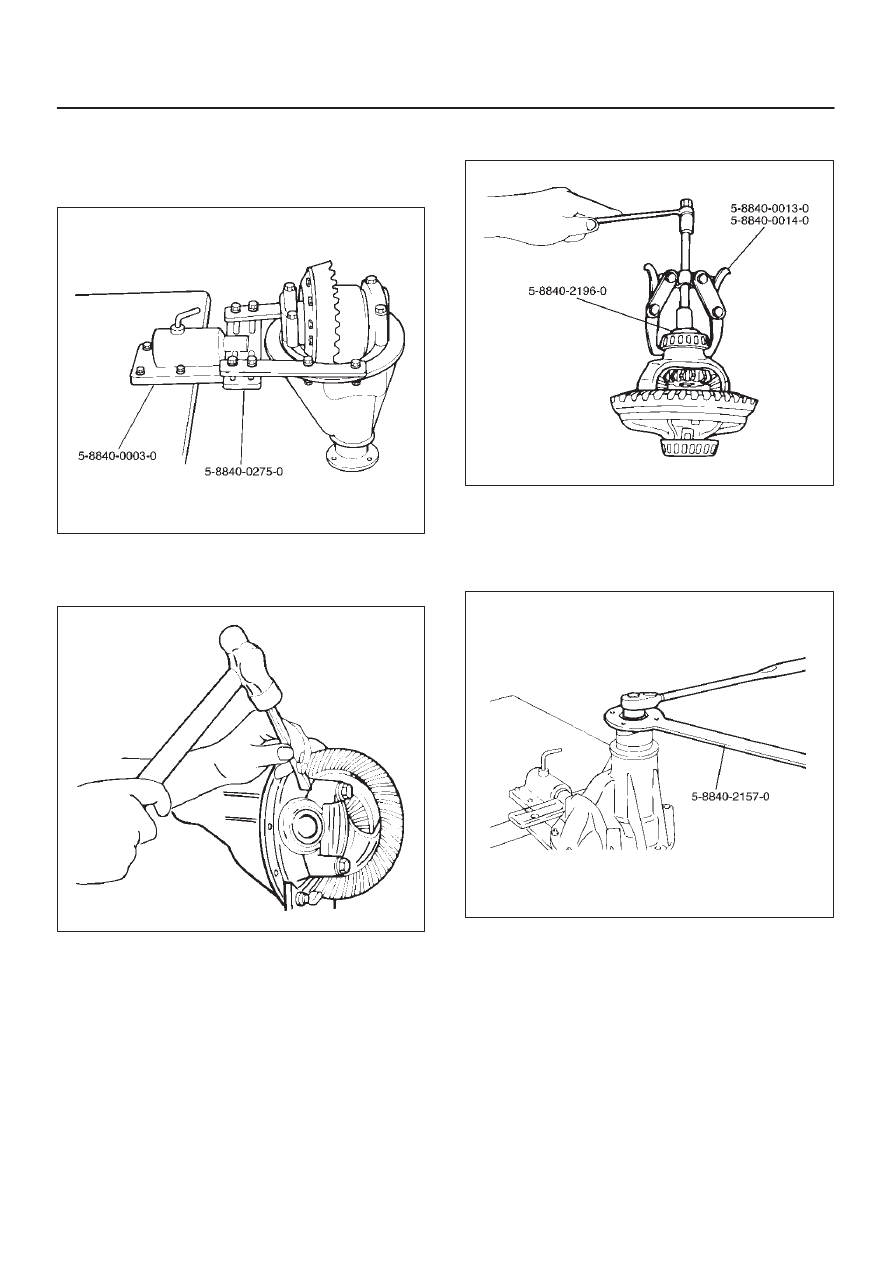

1. Using holding fixture 5–8840–0275–0 and holding

fixture base 5–8840–0003–0, fix the differential
assembly to the bench.

425RW046

2. Remove bearing cap bolt.
3. Apply a setting mark to the side bearing cap and the

differential carrier then remove bearing cap.

425RS009

4. Remove differential cage assembly.
5. Remove side bearing outer race, after removal, keep

the right and left hand side bearing assemblies
separate to maintain inner and outer race
combinations.

6. Remove side bearing, using remover

5–8840–0013/0014–0 and adapter 5–8840–2196–0.

415RW031

7. Remove adjust shim, note the thickness and position

of the shims removed.

8. Remove the flange nut using holding wrench

5–8840–2157–0 after raising up its staked parts
completely.

425RW057

9. Remove flange.

10. Remove dust cover.
