4C–41

DRIVE SHAFT SYSTEM

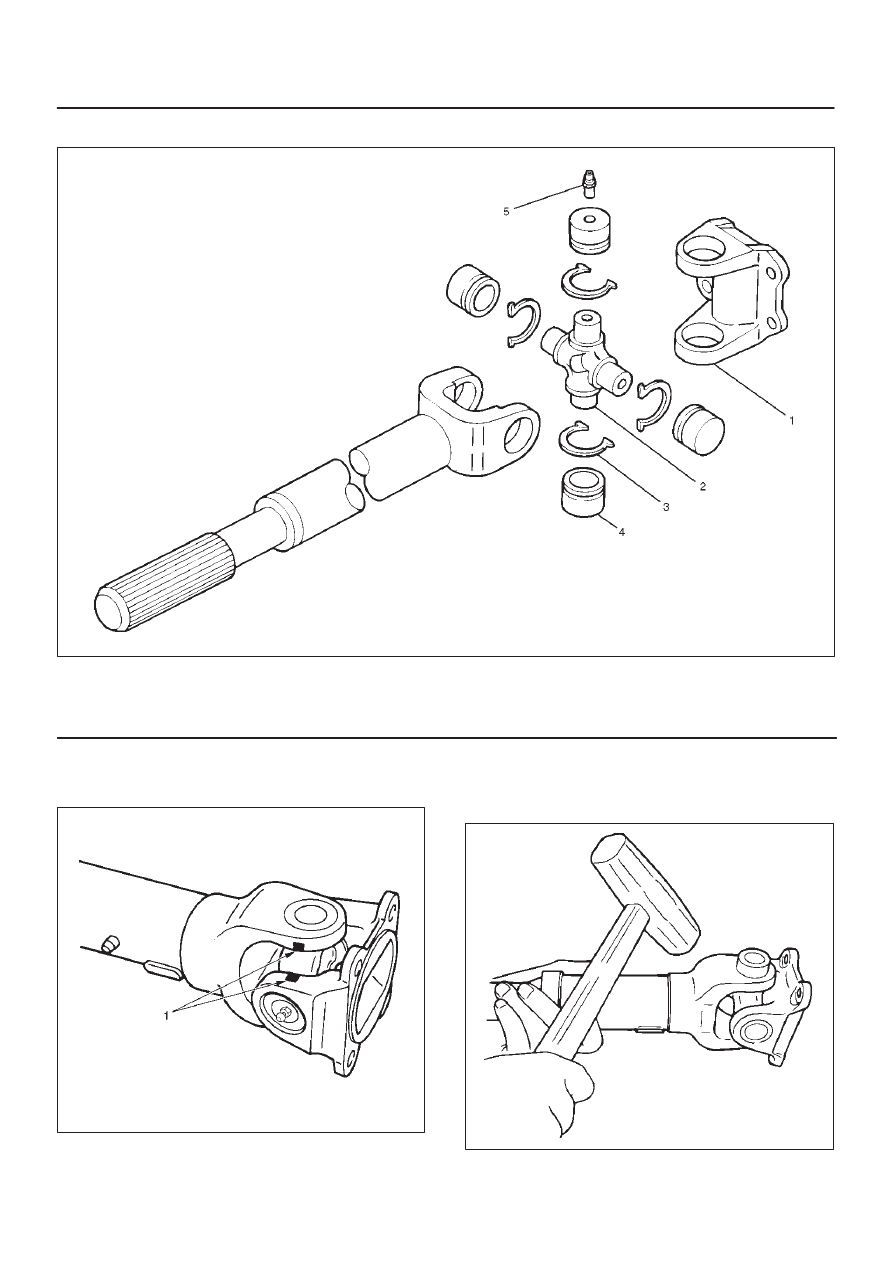

Universal Joint Disassembly

401RW055

Legend

(1) Flange Yoke
(2) Spider

(3) Snap Ring
(4) Needle Roller Bearing
(5) Grease Fitting

1. Apply alignment marks (1) on the yokes of the

universal joint,  then remove snap ring.

401RS028

2. Tap out the needle roller bearing by gently striking the

shoulder of the yoke, using a mallet or a copper
hammer.

401RS006

4C–42

DRIVE SHAFT SYSTEM

3. Make sure of proper position for reinstallation by

applying setting marks, then remove spider .

Inspection and Repair

Make necessary correction or parts replacement if wear,
damage, corrosion or any other abnormal condition is
found through inspection.

NOTE: When any part of the journal assembly (spider,
needle roller bearing) requires replacement, be sure to
replace the entire assembly.
Check the following parts for wear, damage, noise or any
other abnormal conditions:

1. Spider
2. Needle roller bearing
3. Yoke
4. Flange
5. Constant velocity joint

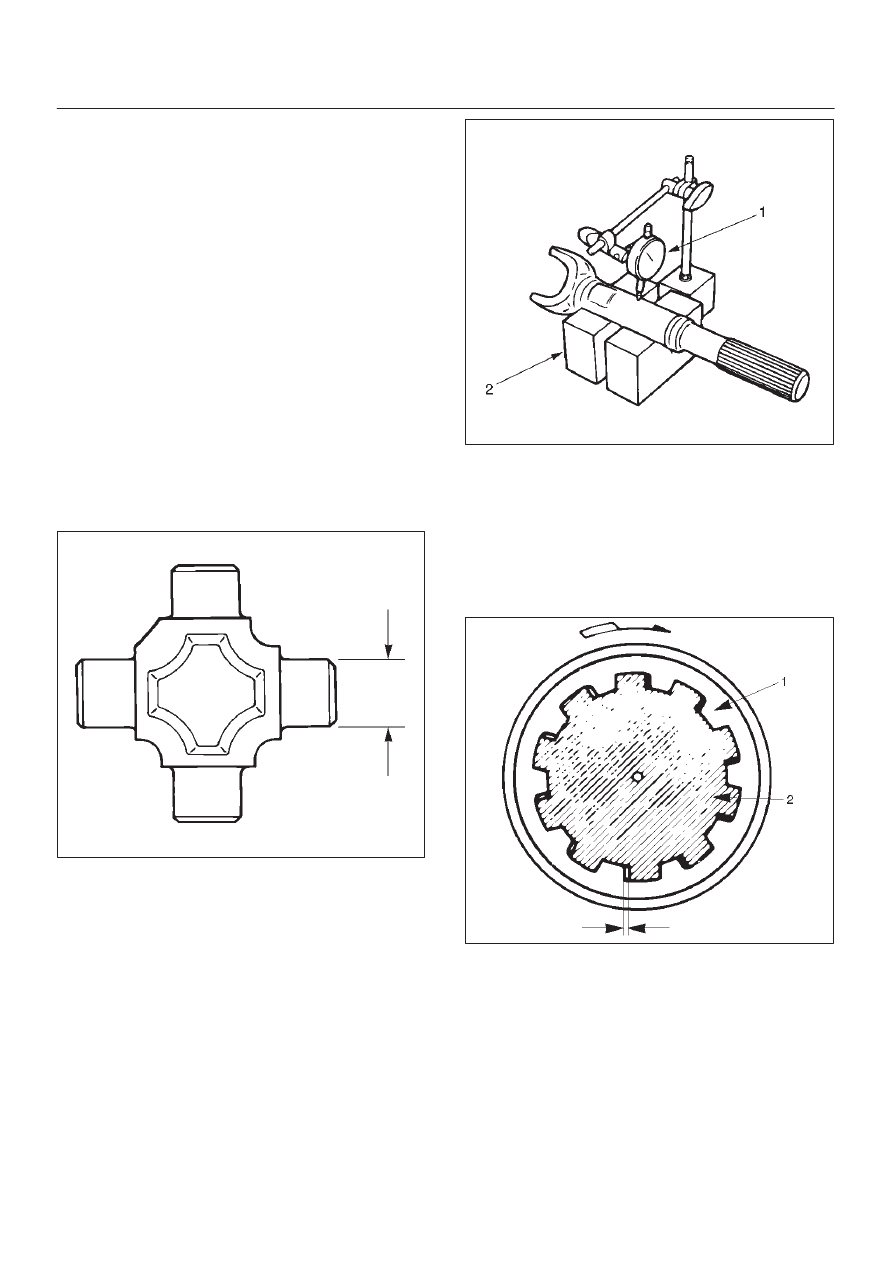

Outside Diameter of Spider Pin

Standard: 17.00 mm  (0.669 in)

Limit: 16.90 mm (0.665 in)

401RS007

Propeller Shaft Run–out

Support the ends of the propeller shaft on V-blocks (2)
and check for run–out by holding the probe of a dial
indicator (1) in contact with the center part of the shaft. If
the amount of run–out is beyond the standard value for
assembly, correct with a bench press or replace the shaft
with a new propeller shaft assembly.

Standard: 0.3 mm  (0.012 in)

Limit: 0.5 mm (0.02 in)

401RS027

Play in Splines in Normal Direction of
Rotation

Check the amount of play between the sleeve yoke (1)
and the propeller shaft spline (2) in the direction of
rotation, using a pointed feeler gauge.

Standard: 0.073 – 0.156 mm (0.003 – 0.006 in)

Limit: 0.3 mm (0.012 in)

401RS009

4C–43

DRIVE SHAFT SYSTEM

Play in Universal Joint

Limit: Less  than 0.1 mm (0.004 in)

401RS010

Constant Velocity Joint

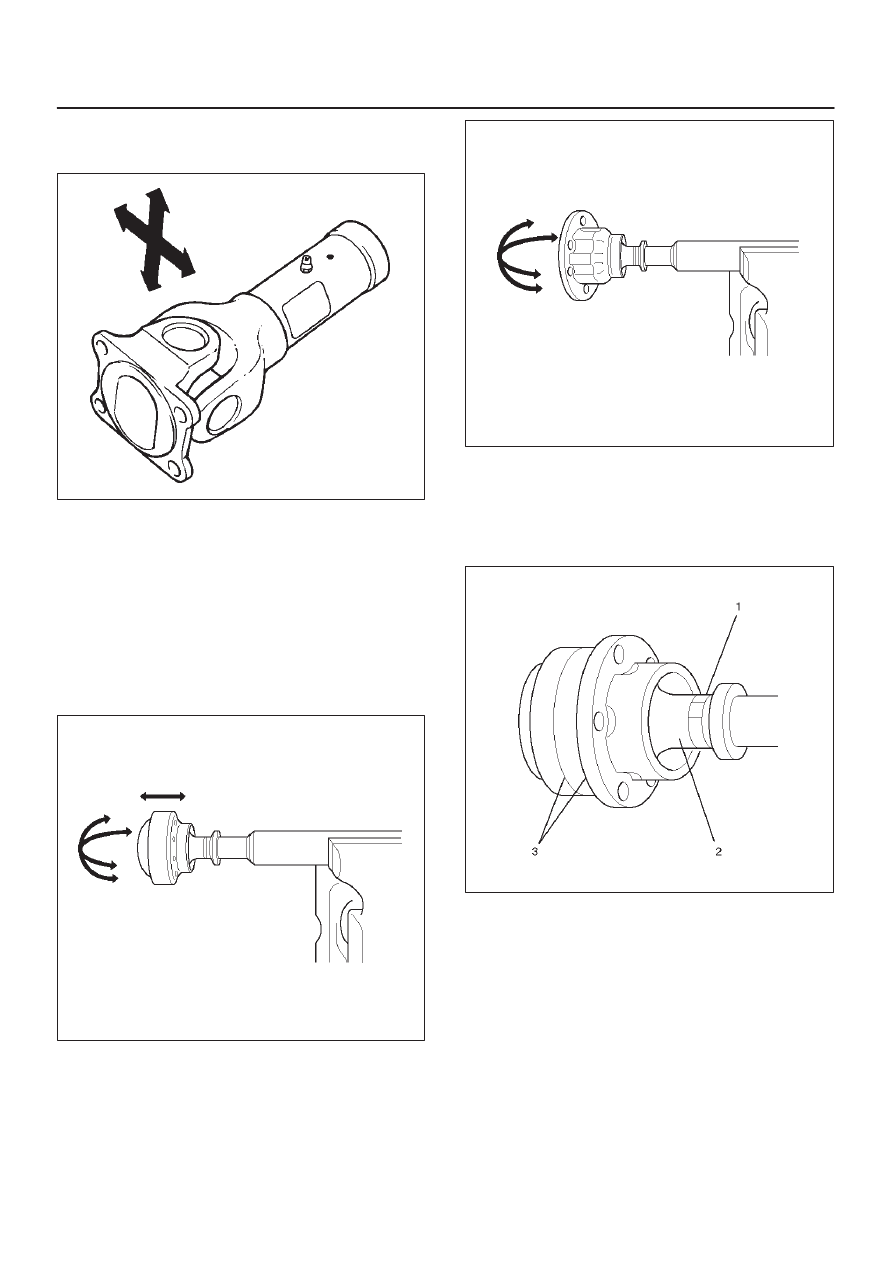

NOTE: LJ and BJ constant velocity joints are
unremovable types. Check the joint for play and the boot
for damage, wear, and leak of grease. If abnormality is
found, replace propeller shaft as an assembly.

Play in Constant Velocity Joint

Fix the shaft in a vise throrgh pieces of wood, and try to
move the joint vertically, right and left, and back and forth
to make sure of smooth motions and no remarkable play.

401RW050

401RW049

Boot of Constant Velocity Joint

Check the boot (2) for crack, damage and grease leak,
and the boot band (1) for loosening and damage. Check
the both sides of the joint and make sure that there is no
leak of grease from the cover press-in parts(3).

401RW048

4C–44

DRIVE SHAFT SYSTEM

401RW047

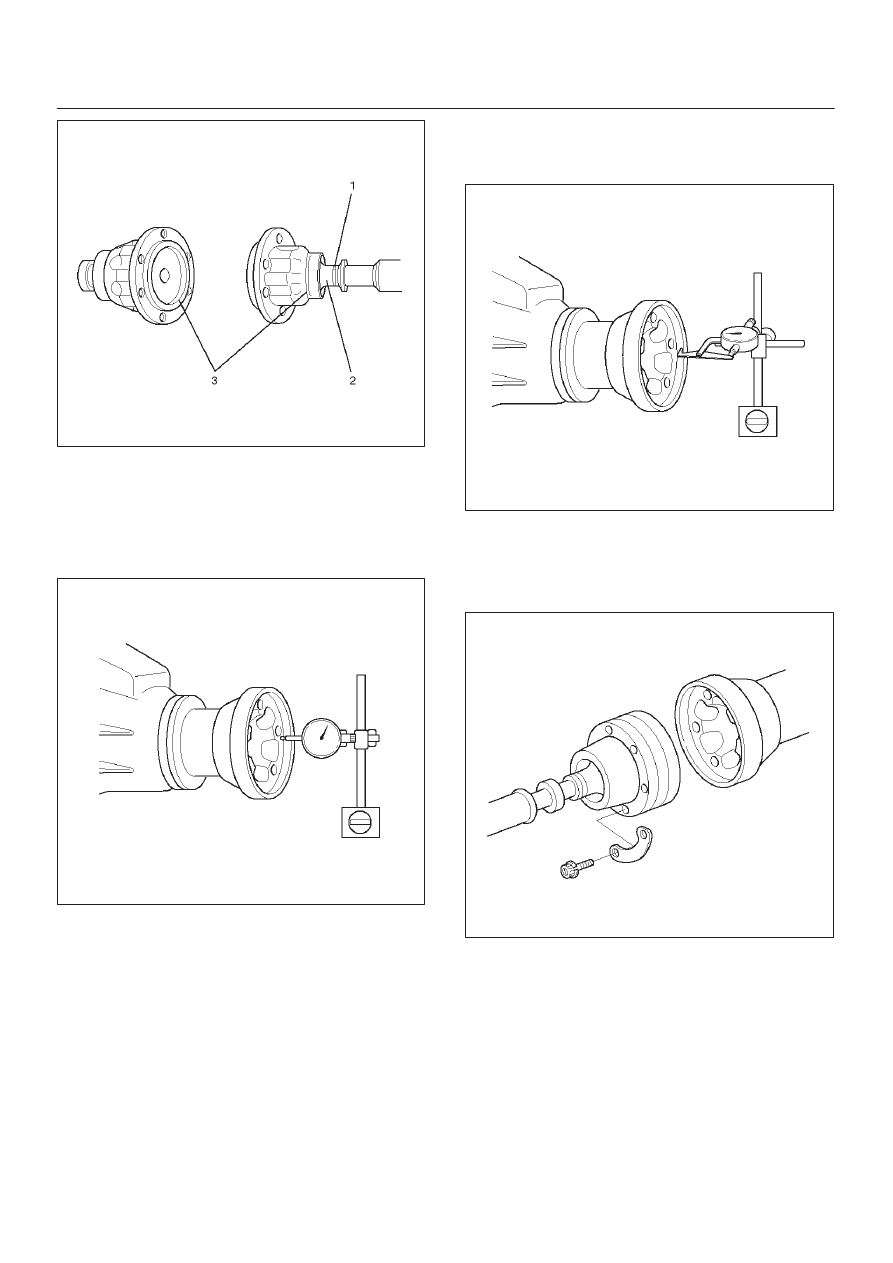

Front Axle Flange Run-out

1. Set a dial gage at right angle near the outer

circumference of the flange face and check the
run-out of the flange face.

Limit: 0.15 mm (0.006 in)

401RW046

2. Set a dial gage at right angle near the inner

circumference and check the run-out of the flange.

Limit: 0.15 mm (0.006 in)

401RW045

3. If vibration is felt during the 4H AUTO drive, disconnct

the propeller shaft at the front axle. Reinstall the
propeller shaft at 60

°

, 120

°

, 180

°

, 240

°

, and  300

°

and conduct test drive in each position and check if
there is vibration.

401RW044
