Opel Frontera UBS. Manual - part 1041
DRIVE LINE CONTROL SYSTEM (TOD)
4B2–104

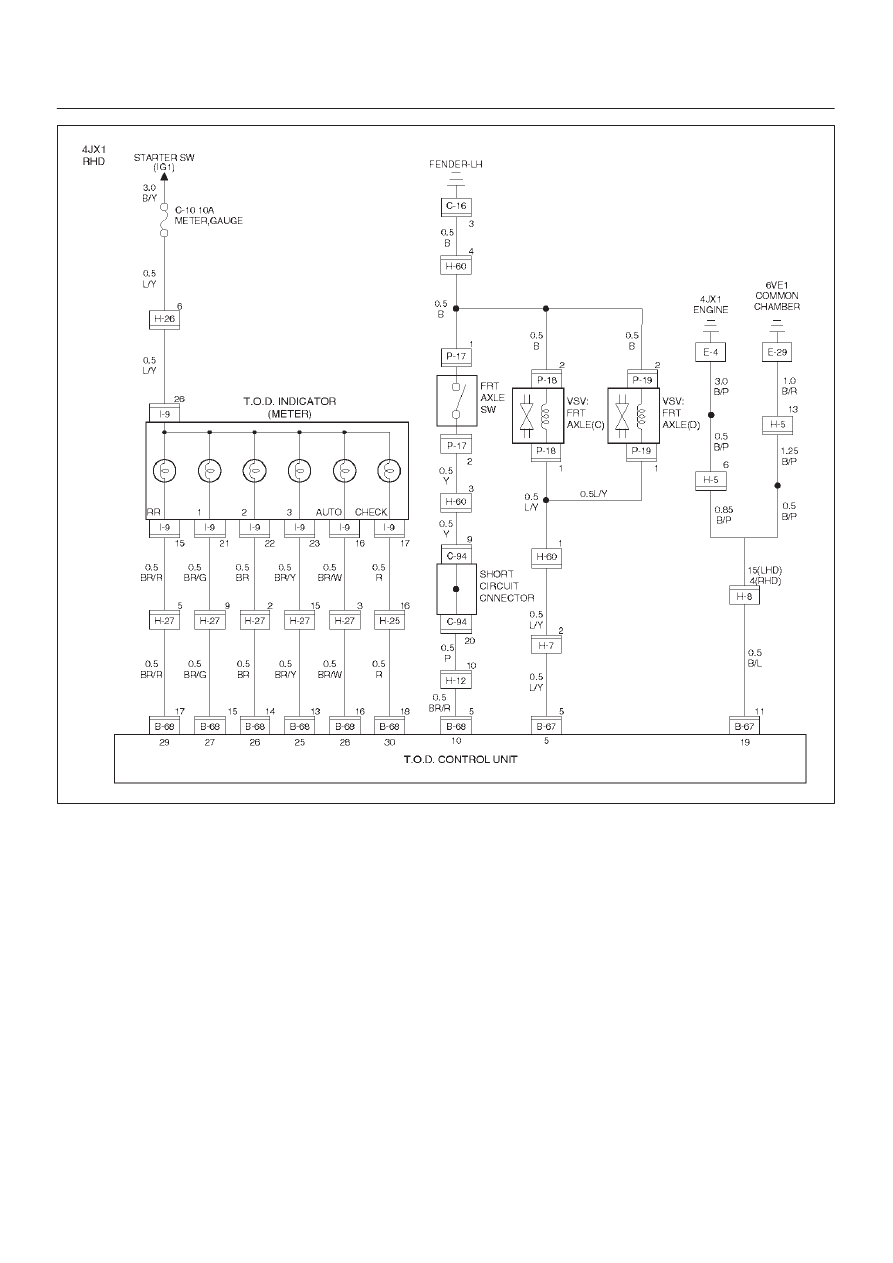

Chart E–2
The AXLE switch circuit is short-circuited to GND.
Function of circuit
—
Fail condition
Even after the 4WD AUTO SW is select to the 2WD position, the 2WD mode is not
enabled. (The transition status is not removed.)
Indicator lamp status
Transfer position
2H
D04RY00068
