DRIVE LINE CONTROL SYSTEM (TOD)

4B2–20

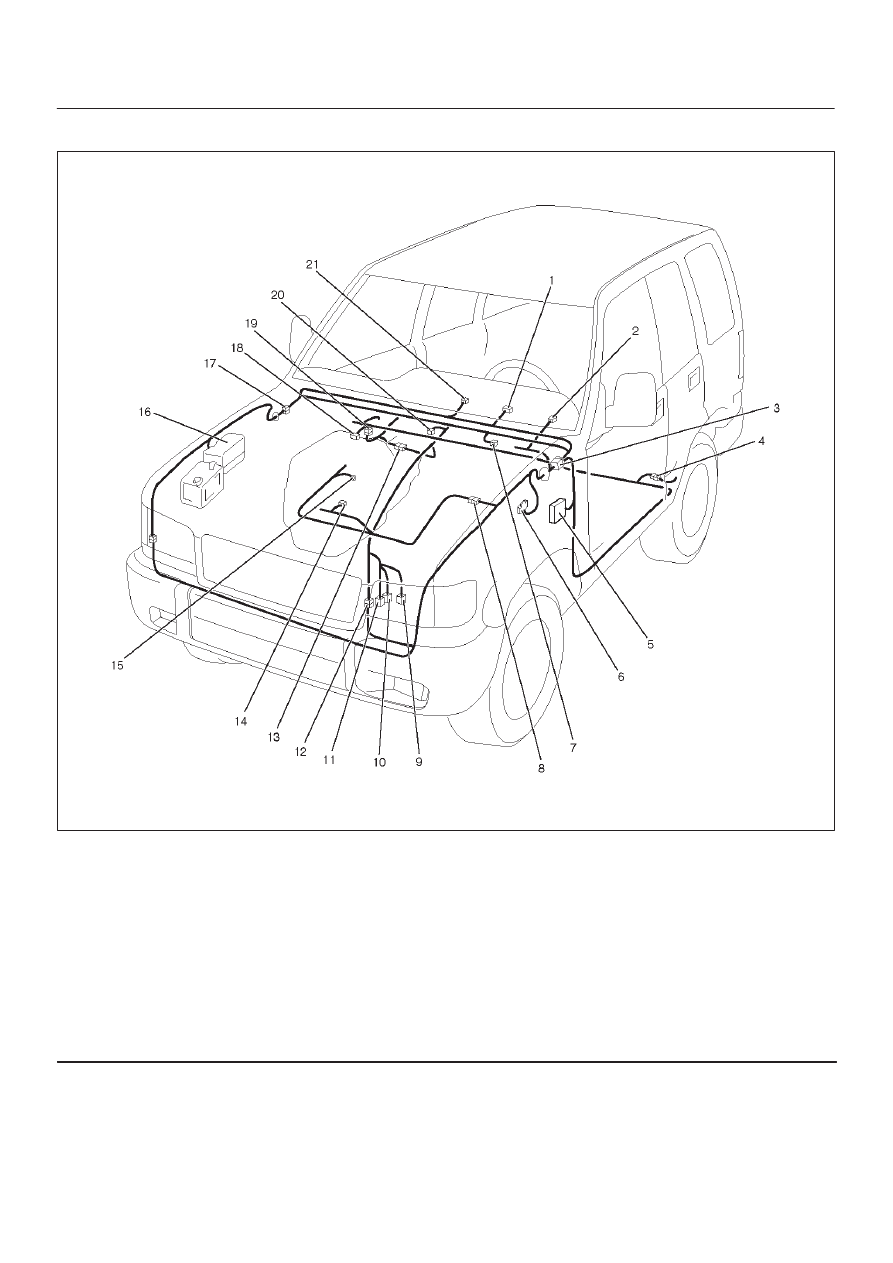

Parts Location (LHD 6VE1)

D08RW367

Legend

(1) I–9
(2) C–63
(3) H–7, H–8, H–25, H–26
(4) H–32
(5) Fuse Box
(6) C–6
(7) B–13 or B–14
(8) H–5, H–6
(9) M–22

(10) M–23

(11) M–24

(12) H–10
(13) H–49
(14) E–5
(15) E–30
(16) Relay and Fuse Box
(17) H–12, H–15
(18) B–67, B–68
(19) Not Used
(20) A–3
(21) I–12

4B2–21

DRIVE LINE CONTROL SYSTEM (TOD)

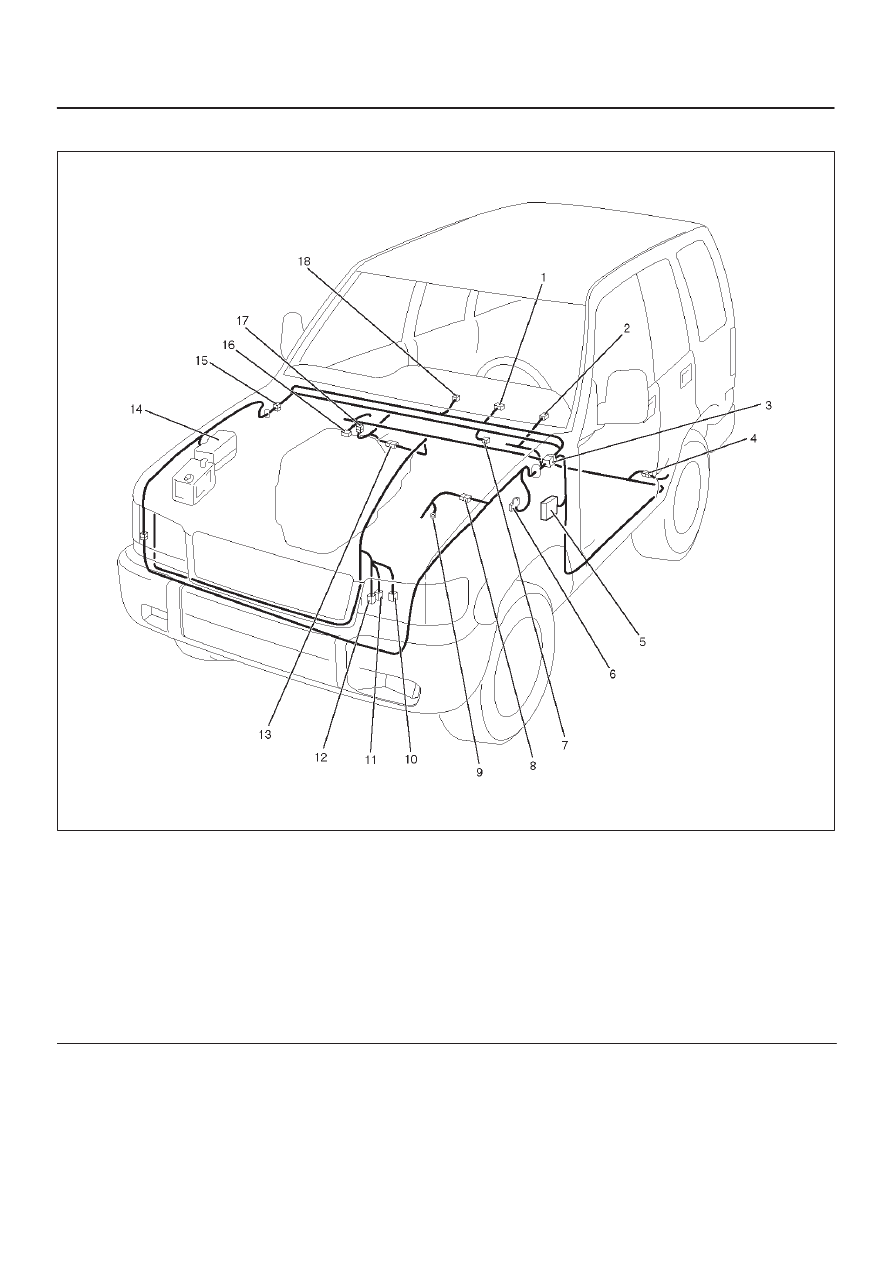

Parts Location (LHD 4JX1)

D08RY00610

Legend

(1) I–9
(2) C–63
(3) H–15, H–25, H–26
(4) H–32
(5) Fuse Box
(6) C–16
(7) B–14
(8) H–5, H–6
(9) E–4

(10) P–17

(11) P–18

(12) P–19
(13) A–3
(14) Relay and Fuse Box
(15) H–7, H–8
(16) B–67, B–68
(17) H–49
(18) I–12

DRIVE LINE CONTROL SYSTEM (TOD)

4B2–22

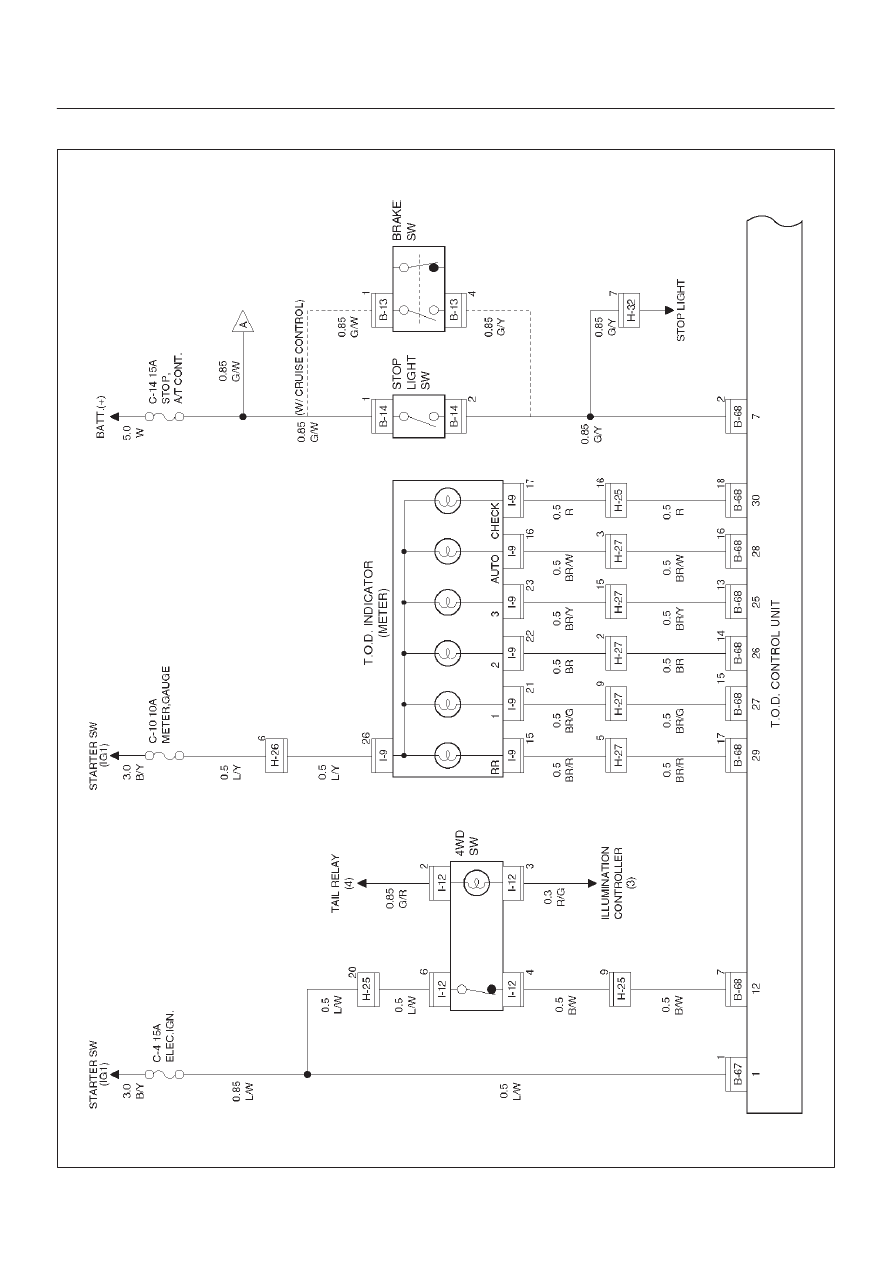

Circuit Diagram–1 (RHD 6VE1)

D04RY00041

4B2–23

DRIVE LINE CONTROL SYSTEM (TOD)

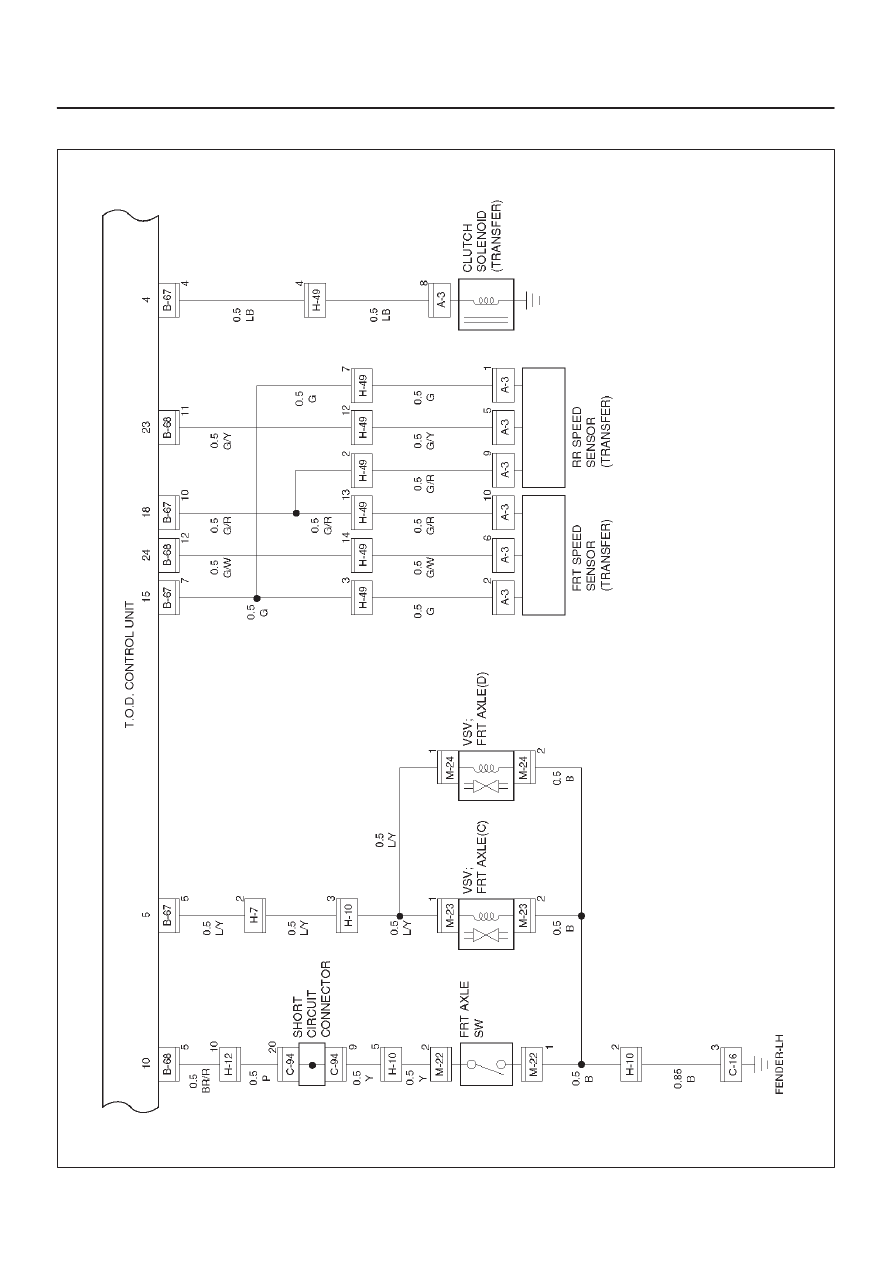

Circuit Diagram–2 (RHD 6VE1)

D04RY00042
