DRIVE LINE CONTROL SYSTEM (TOD)

4B2–16

7. Slowly start the vehicle in the 4L mode, and

accelerate to at least 20 km/h.  Apply the brake to
completely stop the vehicle.

If the CHECK lamp starts blinking during the test run, read
the trouble codes and give appropriate maintenance
according to the  diagnostic procedure.  If the TOD
indicator lamps are lit abnormally during the run, check
the lighting condition and give appropriate maintenance
according to the diagnostic procedure.  Even if the
phenomena are not observed, try to reproduce the
abnormal state reported by the customer to the possible
extent.

Post-Repair Check
As long as the starter is not turned off, the TOD indicator
lamps continue blinking even after the failed portion
repaired.  Therefore, upon completion of repair, be sure to
turn off the starter switch once and then turn on it to
conduct the test run sequence specified in steps 1
through 7 above and check that the TOD indicator lamps
no longer show any faulty status.

4B2–17

DRIVE LINE CONTROL SYSTEM (TOD)

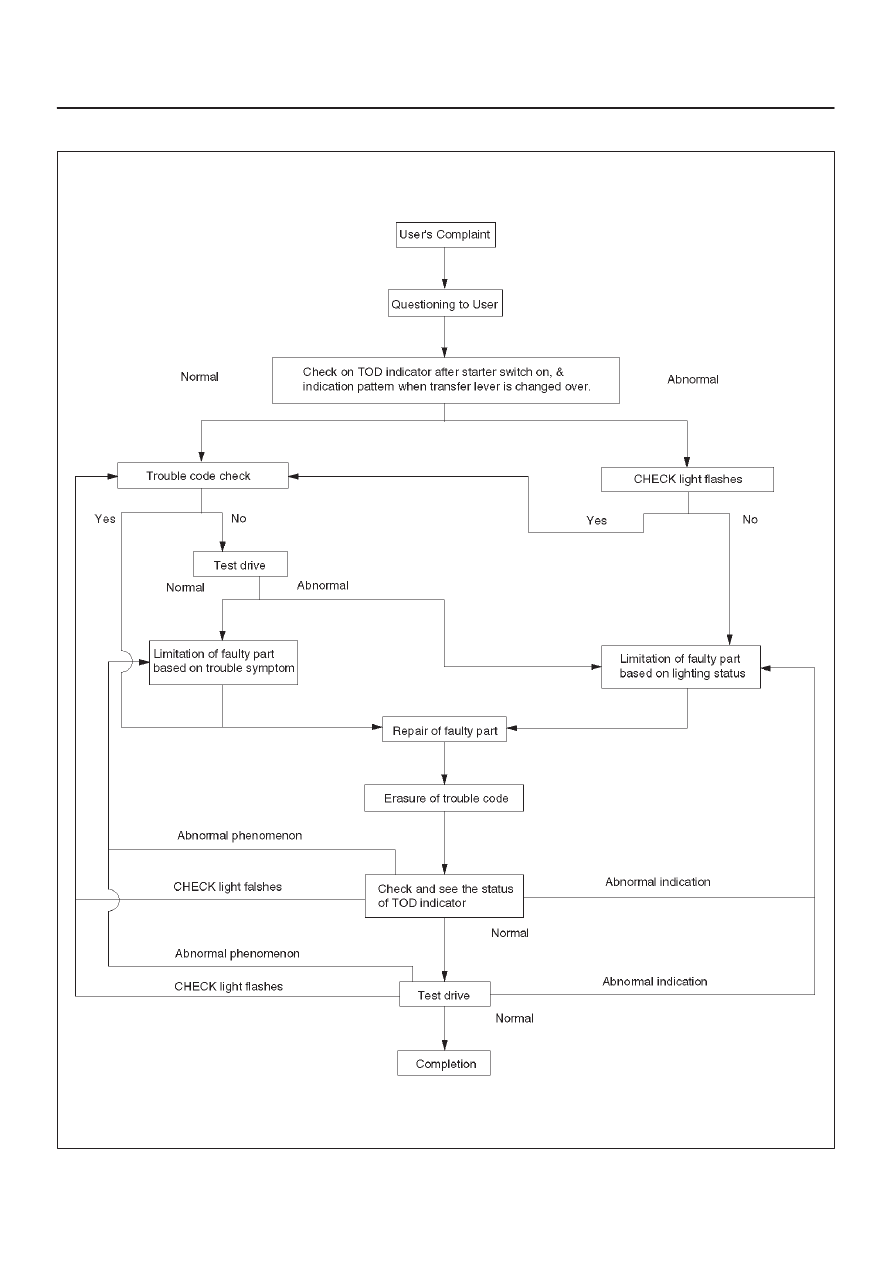

Basic Diagnostic Flow Chart

C04RY00015

DRIVE LINE CONTROL SYSTEM (TOD)

4B2–18

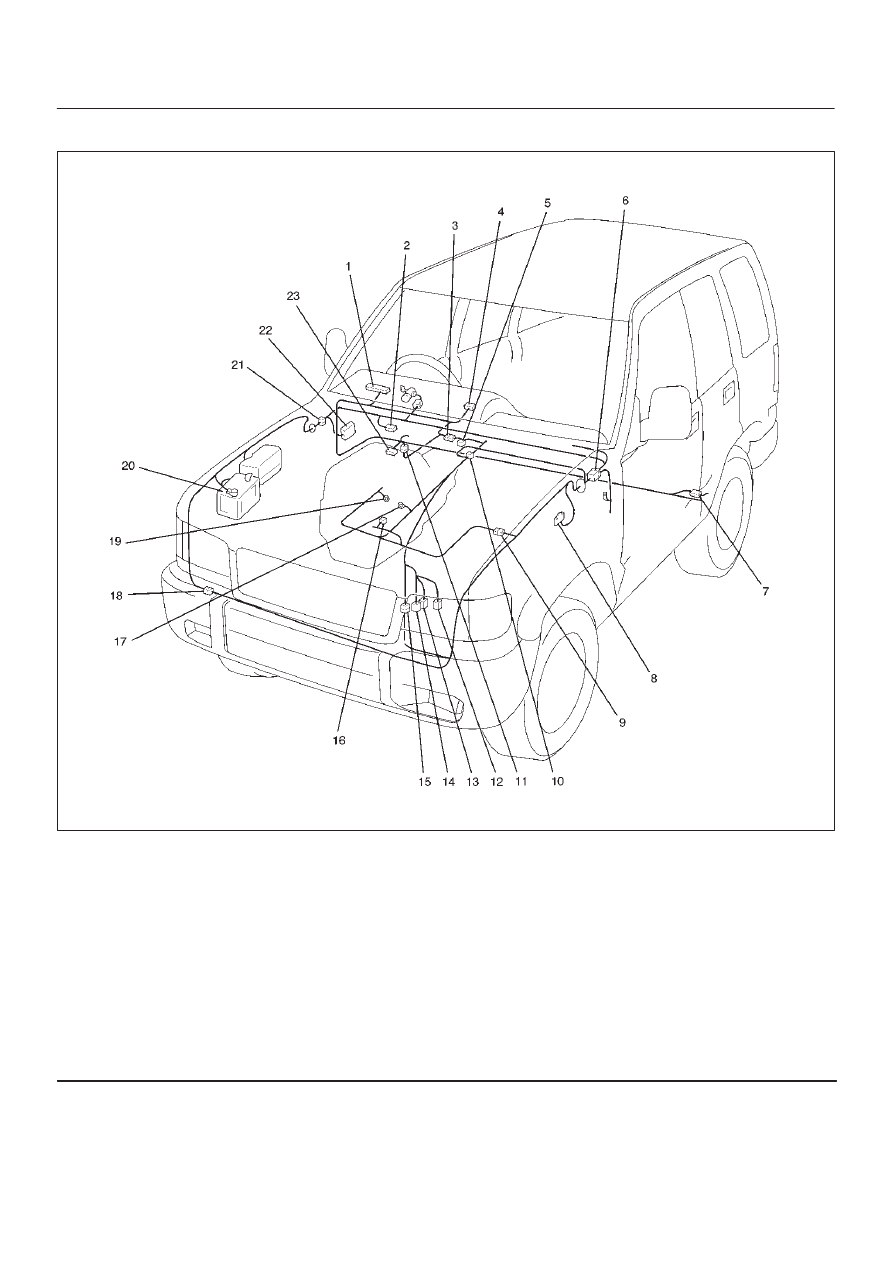

Parts Location (RHD 6VE1)

D08RW621

Legend

(1) I–9
(2) B–13 or B–14
(3) H–12
(4) I–12
(5) A–3
(6) H–7, H–8
(7) H–32
(8) C–16
(9) H–5, H–6

(10) C–63

(11) H–49

(12) M–22
(13) M–23
(14) M–24
(15) H–10
(16) E–5
(17) E–29
(18) H–42
(19) E–30
(20) Battery
(21) H–13, H–15, H–25, H–26, H–27
(22) Fuse Box
(23) B–67, B–68

4B2–19

DRIVE LINE CONTROL SYSTEM (TOD)

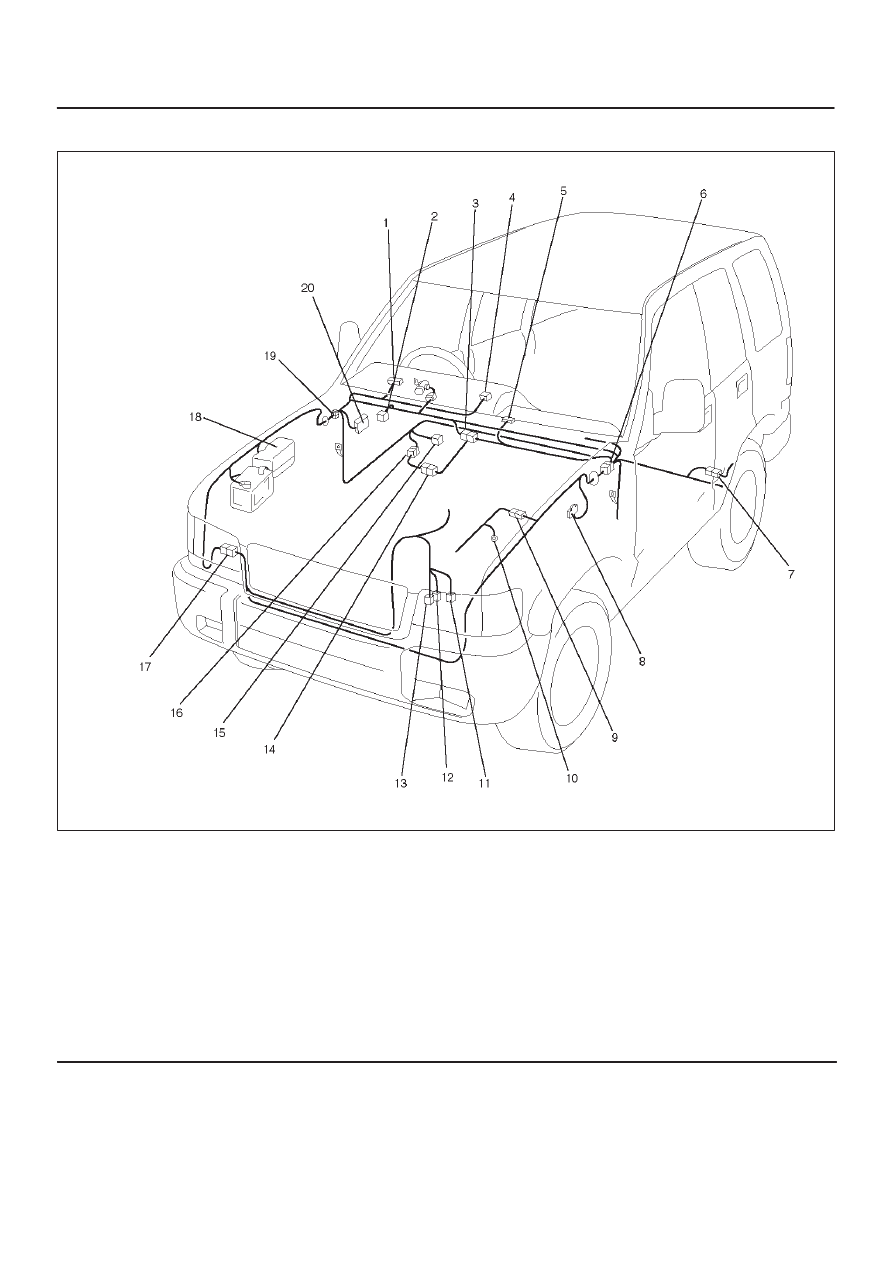

Parts Location (RHD 4JX1)

D08RW753

Legend

(1) I–9
(2) B–13 or B–14
(3) H–12
(4) I–12
(5) C–63
(6) H–7, H–8
(7) H–32
(8) C–16
(9) H–5, H–6

(10) E–4

(11) P–17

(12) P–18
(13) P–19
(14) A–3
(15) B–67, B–68
(16) H–49
(17) H–60
(18) Relay and Fuse Box
(19) H–15, H–25, H–26, H–27
(20) Fuse Box
