SUPPLEMENTAL RESTRAINT SYSTEM STEERING WHEEL & COLUMN  2A – 81

These steps are based on the LHD model.

REMOVAL

1. Front console assembly

1) Remove the transmission (for M/T) and transfer

control lever knob.

2) Disconnect the wiring harness connectors.

2. Lower cluster assembly

3. Steering lower cover

Remove the engine hood opening lever.

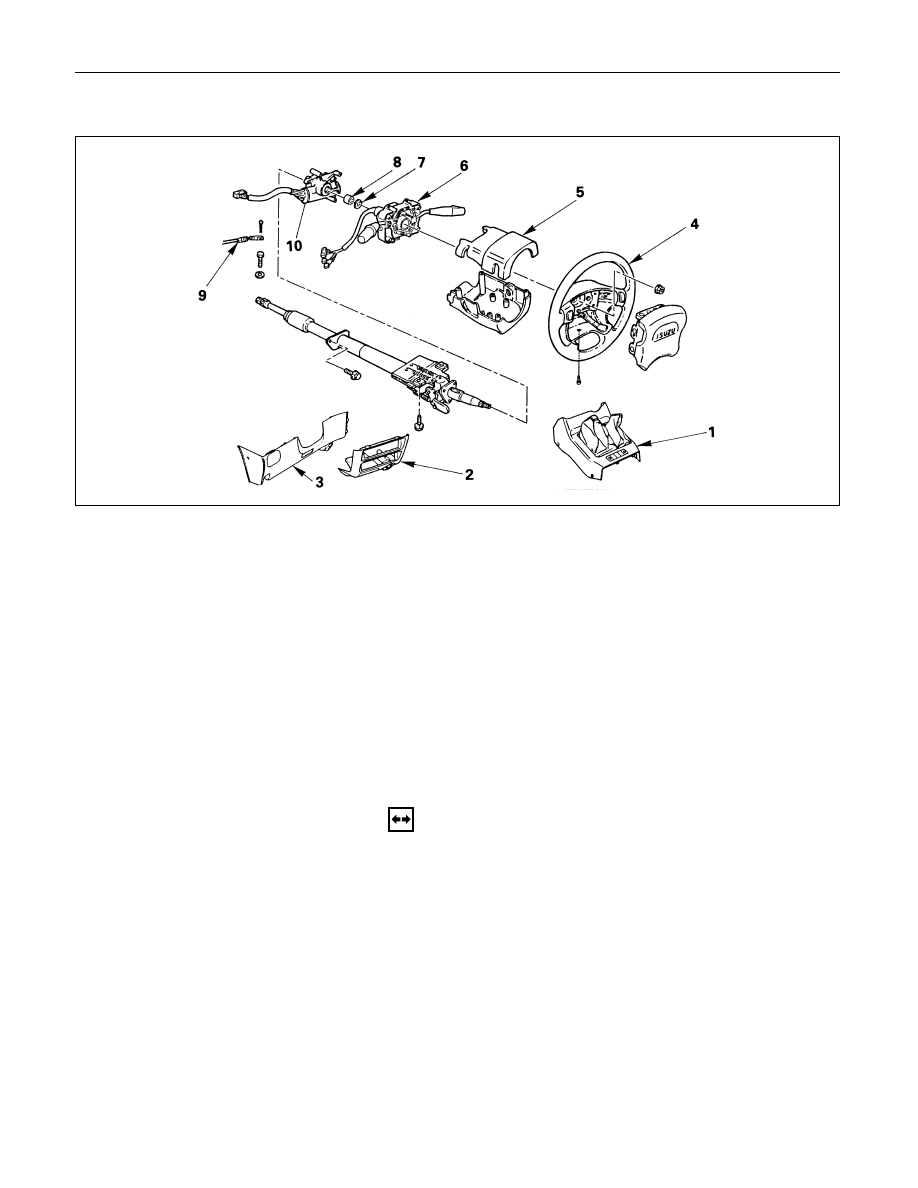

LOCK CYLINDER REPLACEMENT

Removal Steps

1. Front console assembly
2. Lower cluster assembly
3. Steering lower cover
4. Steering wheel
5. Steering column cover
6. Combination switch
7. Snap ring
8. Cushion rubber
9. Shift lock cable (for A/T)

10. Lock cylinder assembly

Installation Steps

10. Lock cylinder assembly

9. Shift lock cable (for A/T)
8. Cushion rubber
7. Snap ring
6. Combination switch
5. Steering column cover
4. Steering wheel
3. Steering lower cover
2. Lower cluster assembly
1. Front console assembly

2A – 82 SUPPLEMENTAL RESTRAINT SYSTEM STEERING WHEEL & COLUMN

5. Steering column cover

6. Combination switch

Disconnect the wiring harness connectors.

7. Snap ring

8. Cushion rubber

9. Shift lock cable (for A/T)

10. Lock cylinder assembly

Disconnect the starter switch harness connector
located under the steering column.

INSTALLATION

10. Lock cylinder assembly

9. Shift lock cable (for A/T)

8. Cushion rubber

7. Snap ring

6. Combination switch

After installations of combinations switch assembly,
connect the combination switch wiring harness
connector.

5. Steering column cover

4. Steering wheel

Align the setting marks made when removing.

CAUTION:
Never apply force to the steering wheel in direction of the
shaft by using a hammer or other impact tools in an
attempt to remove the steering wheel. The steering shaft
is designed as an energy absorbing unit.

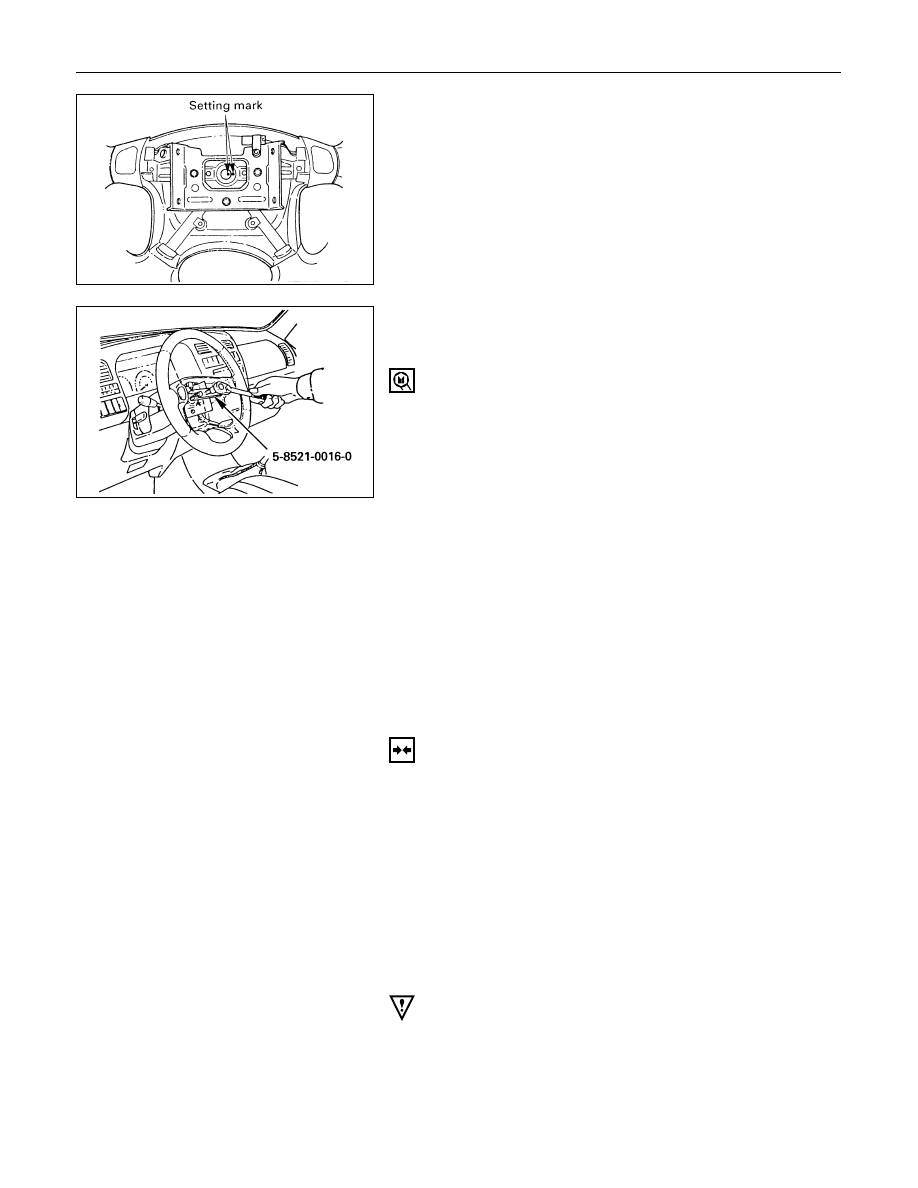

4. Steering wheel

Apply a setting mark across the steering wheel and
shaft so parts can be reassembled in their original
position.

Use special tool. Remove the steering wheel.
Move the tires to the straight ahead positions before
removing the steering wheel.

Steering wheel remover:5-8840-0016-0(J-29752)

SUPPLEMENTAL RESTRAINT SYSTEM STEERING WHEEL & COLUMN  2A – 83

Tighten the steering wheel fixing nut to the specified
torque.

Steering wheel Nut Torque

N·m (kg·m/lb·ft)

34 (3.5 / 25)

3. Steering lower cover

Install the engine hood opening lever.

2. Lower cluster assembly

1. Front console assembly

Connect the wiring harness connectors.

Install the transmission (for M/T) and transfer control
lever knob.

2A – 84 SUPPLEMENTAL RESTRAINT SYSTEM STEERING WHEEL & COLUMN

These steps are based on the LHD model.

REMOVAL

1. Front console assembly

Disconnect the transmission (for M/T) and transfer
control lever knob.

Disconnect the wiring harness connectors.

2. Lower cluster assembly

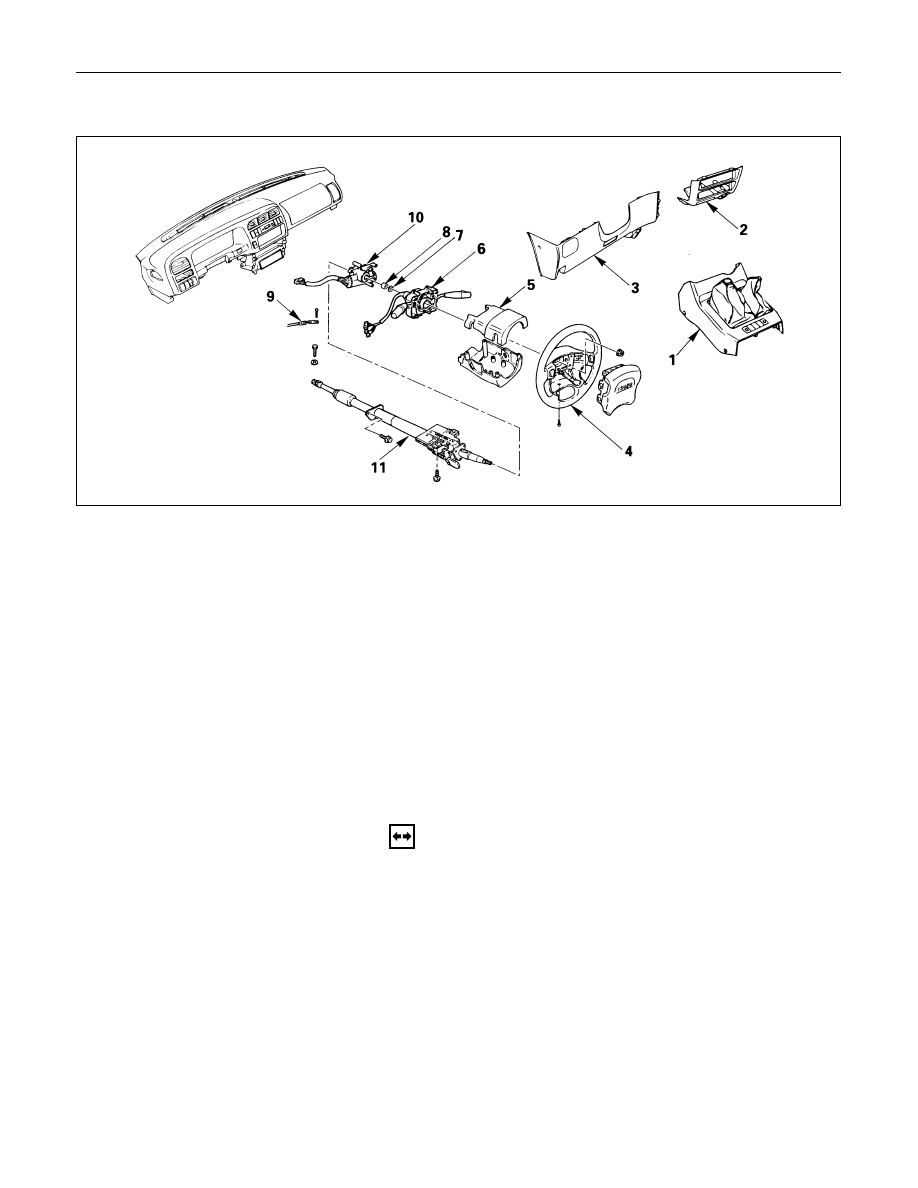

STEERING COLUMN REPLACEMENT

Removal Steps

1. Front console assembly
2. Lower cluster assembly
3. Steering lower cover
4. Steering wheel
5. Steering column cover
6. Combination switch
7. Snap ring
8. Cushion rubber
9. Shift lock cable (for A/T)

10. Lock cylinder assembly
11. Steering column assembly

Installation Steps

11. Steering column assembly
10. Lock cylinder assembly

9. Shift lock cable (for A/T)
8. Cushion rubber
7. Snap ring
6. Combination switch
5. Steering column cover
4. Steering wheel
3. Steering lower cover
2. Lower cluster assembly
1. Front console assembly
