AIR CONDITIONING  1B–81

C01RY00001

2

1

12

3

4

10

9

6

5

8

7

11

13

B

B

A

C

B

C

A

A

B

B

A

A

B

A

A

B

B

A

C

A

A

C

C

C

B

A

B

A

A

B

B

Vent Door

Mode Position

Display of Intake Status

Set Temperature

ON

FULL

COLD

FULL

HOT

20~30

B

B

A

A

Blue

VENT

BI-LEVEL

FOOT

DEF

Red

OFF

Foot Door

DEF Door

Intake Door

Air Mix Door

Sub Air Mix Door

White

C

C

B

DEF/FOOT

C

A

Legend

(1)

Interior Air Intake

(2)

Fresh Air Intake

(3)

Pollen Filter

(4)

Evaporator Core

(5)

Air Mix Door

(6)

DEF Door

(7)

Vent Door

(8)

Foot Door

(9)

Sub Air Mix Door

(10)

Heater Unit

(11)

Heater Core

(12)

Evaporator Unit

(13)

Blower Unit

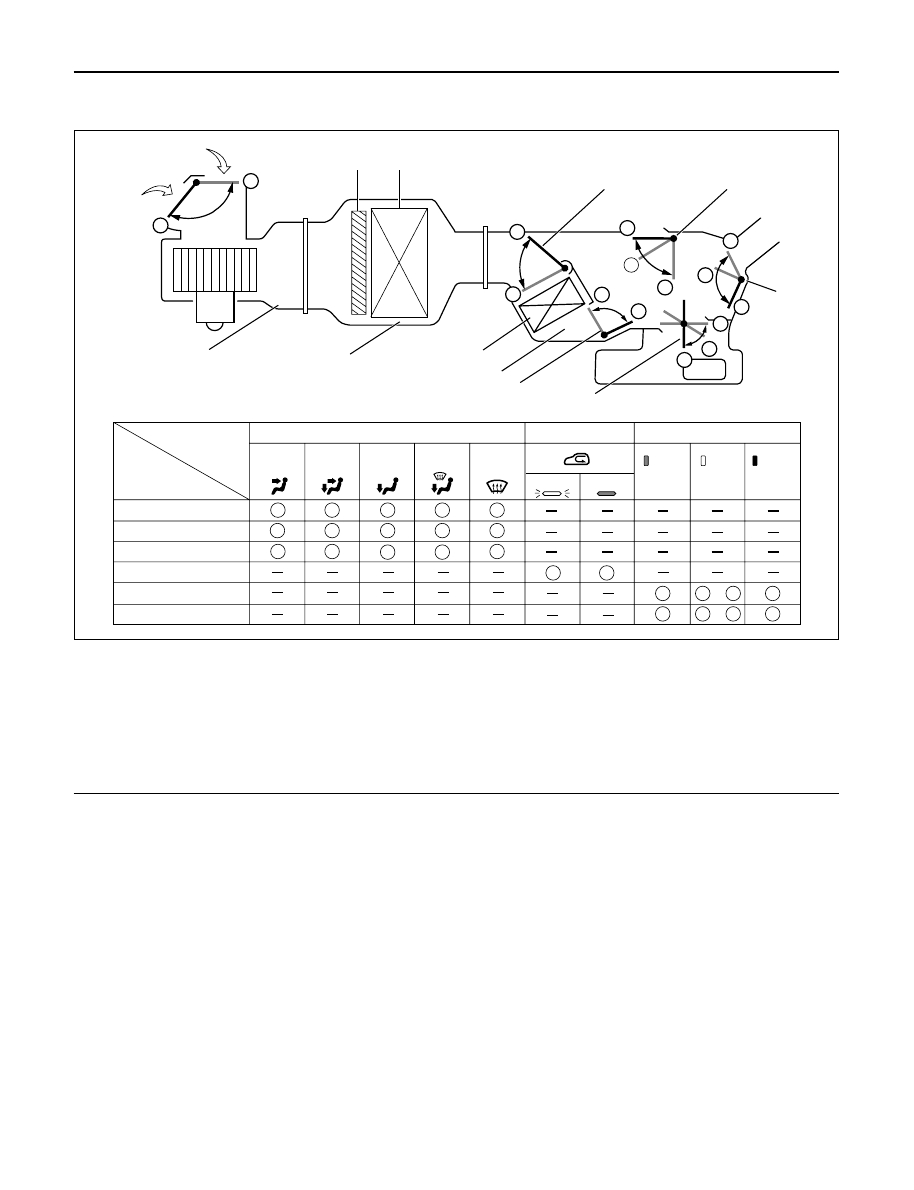

Air Control Functions

1B–82 AIR CONDITIONING

OPERATION AND FUNCTIONS OF CONTROL PANEL SWITCHES

1. Auto Switch

(1) Pressing this switch turns on the automatic control mode. It resets all manual switches except that

for the fan control. However, when the Manual REC is selected for the intake or the Manual Open is
selected for the C/V, these modes are maintained.

(2) It causes the A/C (air conditioner) to the ON mode (this function, however, available only when the

fan is turned on and also the compressor is turned on because of the given outside air temperature
level).

<Indication>

• The AUTO LED comes on.

• Currently selected mode for the Mode and Intake are respectively indicated.

2. Mode Switch

<Indication>

(1) Pressing the VENT, B/L or FOOT switch selects the corresponding mode.

(2) When the Auto is selected for the Mode and Intake, pressing the mode switch fixes the Intake to the

immediately preceding status.

<Indication>

• Turns off the Auto LED.

• Currently selected blow port is indicated.

3. DEF Switch

Press this switch to select the DEF mode.

<Indication>

*1: When the manual REC is selected for the Intake, the manual REC is maintained.

*2: The ON mode is enabled only when the fun is turned on, and also the compressor is turned on

because of the given outside air temperature level.

<Indication>

• The Auto LED is turned off.

• DEF is indicated for the blow port, A/C LED comes on (only when the fan is turned on), and status

display is provided for the Intake.

Example 1:

4. Intake Switch

Pressing this switch sequentially selects a different intake port in the following order.

Example 1:

Example 2:

PUSH

Auto REC

FRESH

REC

PUSH

PUSH

PUSH

PUSH

PUSH

Auto REC

MIX

REC

FRESH

DEF SW:ON

(Selects the DEF

mode)

A/C OFF

mode

A/C ON

mode

A/C ON mode is

maintained.

Mode switches for other than

the DEF mode: ON

(Resets the DEF mode)

Blow port

Intake port

A/C

MIX

DEF

Auto FRESH *1

ON mode *2

Auto

AIR CONDITIONING  1B–83

<Indication>

• The Auto LED maintains unaffected.

• Currently selected intake port is

indicated.

5. Fan Switch

(1) Sets the fan to the specified mode.
(2) Even when the fan switch is turned off, status display for the Model and Intake is maintained.

6. Temperature Control Knob

(1) This knob is operable only when the fan is turned on. It may be used for the MAX control of each

block except the fan.

(2) When the manual mode is selected for the fan control, this manual mode is maintained.

<MAX Control>

*1: In the A/C: OFF mode, FRESH shall be selected.
*2: The ON mode is available only when ON is selected for the fan as well as for the cold outside air

ON/OFF selection.

*3: When the MAX control is selected from the DEF mode, this DEF mode shall be maintained.

Example 1:

Example 2:

<Indication>

• As long as the MAX control is selected, the immediately preceding indication shall be maintained for

the AUTO.

• Status display is provided for others.

7. Air Conditioning Switch

Pressing this switch turns on or off the A/C (air conditioning) control. (The compressor remains turned
off if the fan is turned off and also the compressor has been turned off because of the given outside air
temperature level.)

<Indication>

(1) The A/C LED remains turned on even if the compressor has been turned off because of the given

outside air temperature level. In this case, however, the AUTO or DEF switch must be turned on and
the A/C ON mode must also be turned on (by the MAX/C mode).

(2) Pressing the A/C switch from the above state (1) turns off the A/C LED.

<Intake port>

REC
MIX

FRE

<Display>

On
Off

Selects MAX/COOL

(1): Mode

Manual B/L

VENT

Resets MAX/COOL

Returns to (1) status.

Mode: Manual B/L

Selects MAX/COOL

(1): Mode

Manual B/L

VENT

Resets MAX/COOL

Returns to (1) status.

Mode: Manual B/L

Mix

Fan

Mode

Intake

A/C

MAX/COOL

Full cool

MAX/HI

VENT

REC*1

ON mode*2

MAX/HEAT

Full hot

AUTO/HI

FOOT*3

FRESH

Current status

is maintained

1B–84 AIR CONDITIONING

OVERVIEW OF CONSTRUCTION,
MOVEMENT AND CONTROL OF MAJOR
PARTS OF FULL AUTOMATIC AIR
CONDITIONER SYSTEM

Automatic Heater/Air Conditioner Control Unit

Equipped with the built-in micro-computer, this
control unit operates on signals from sensors and
input signals from switches to offer total control of
the blower fan, and actuators used for the mode
door, intake door and air mix door.
Its self-diagnosis function enables quicker access to
a failed part and its more accurate troubleshooting.

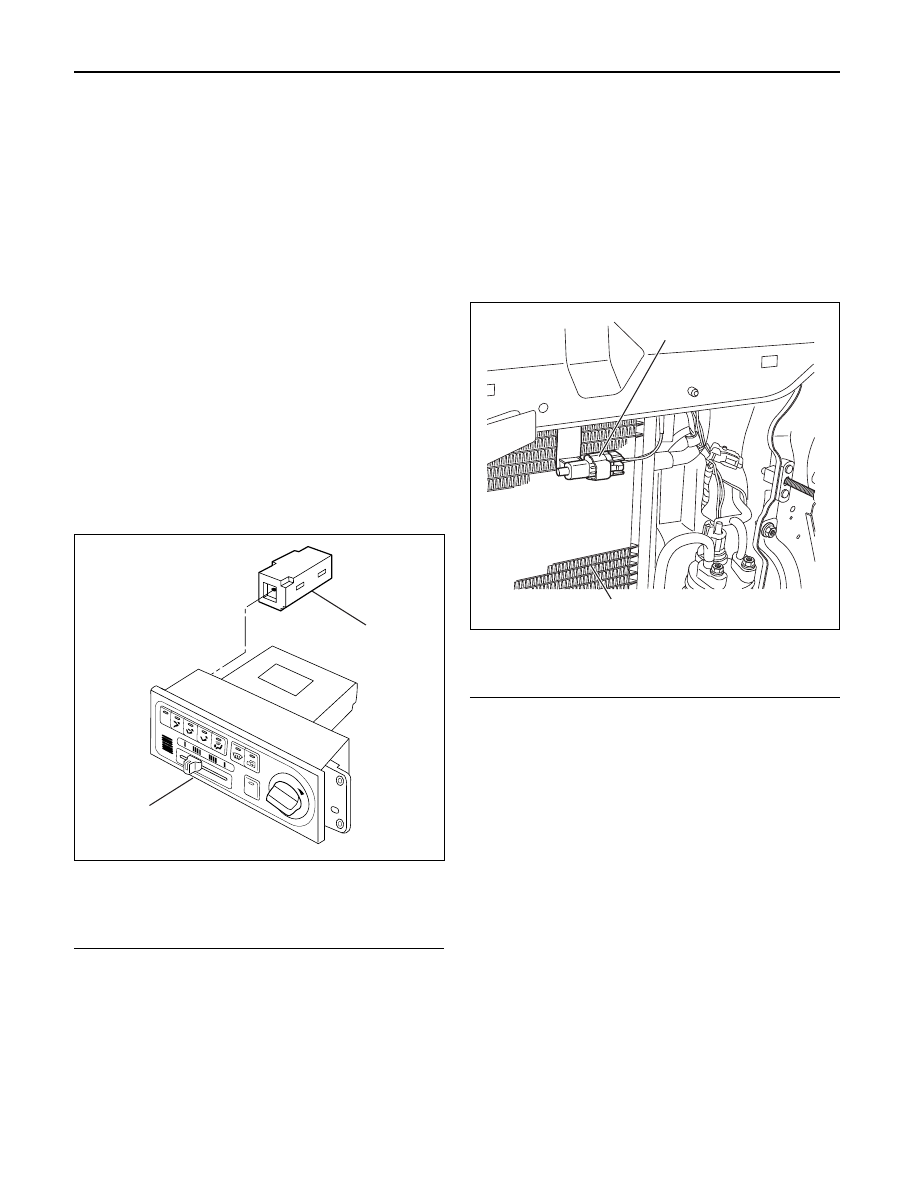

In Car Sensor

It is a sensor used for detecting room temperature
of a vehicle. This sensor converts a given room
temperature into a resistance value before entering
the data to the automatic heater/air conditioner
control unit.
This in car sensor unites the power driven aspirator
and the motor fan so that a small amount of room
air may be constantly fed to the sensor.
This sensor is provided on the control panel.

Legend

(1)

In Car Sensor

(2)

Full Automatic Air Conditioner Control Unit

Ambient Sensor

This sensor is used for detecting temperature
outside the vehicle. It converts a given outside air
temperature into a resistance value before entering
the data to the automatic heater/air conditioner
control unit.
Thermal effects from the condenser and radiator
during idling after a run can be measured and offset
the automatic amplifier.
This sensor is provided on the side plate situated at
upper right side of the condenser.

Legend

(1)

Ambient Sensor

(2)

Condenser Assembly

• Duct Sensor

The sensor is the sensor to detect temperature
change of the side of evaporator blower coming
by fresh recirculation of intake door or "on" "off"
of compressor.
The temperature is converted to resistant rate.
And it works as thermostat to control to prevent
freezing of evaporator.
This sensor is installed in the upper case of
evaporator.

20

25

30

ZEX

EL

AUTO

A/C

OFF

AUTO

LO

HI

2

1

865RY00006

2

1

845RY00001
