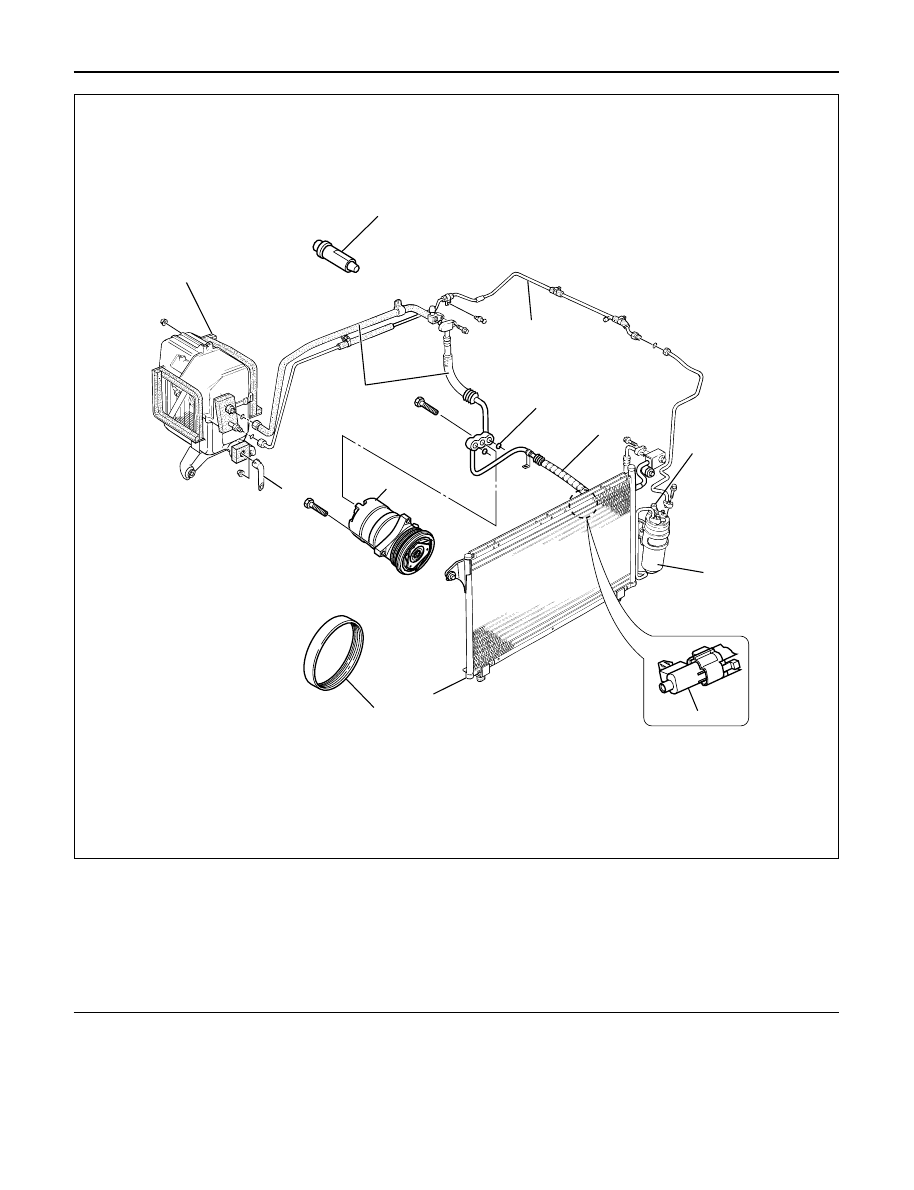

AIR CONDITIONING  1B–77

9

10

6

12

13

3

2

4

5

7

8

11

1

852RY00002

Legend

(1)

Liquid Line (High-Pressure Pipe)

(2)

O-ring

(3)

Discharge Line (High-Pressure Hose)

(4)

Pressure Switch

(5)

Receiver Drier

(6)

Ambient Sensor

(7)

Condenser Assembly

(8)

Drive Belt

(9)

Compressor

(10)

Drain Hose

(11)

Suction Line (Low-Pressure Hose)

(12)

Evaporator Assembly

(13)

A/C Switch

6VE1 (LHD)

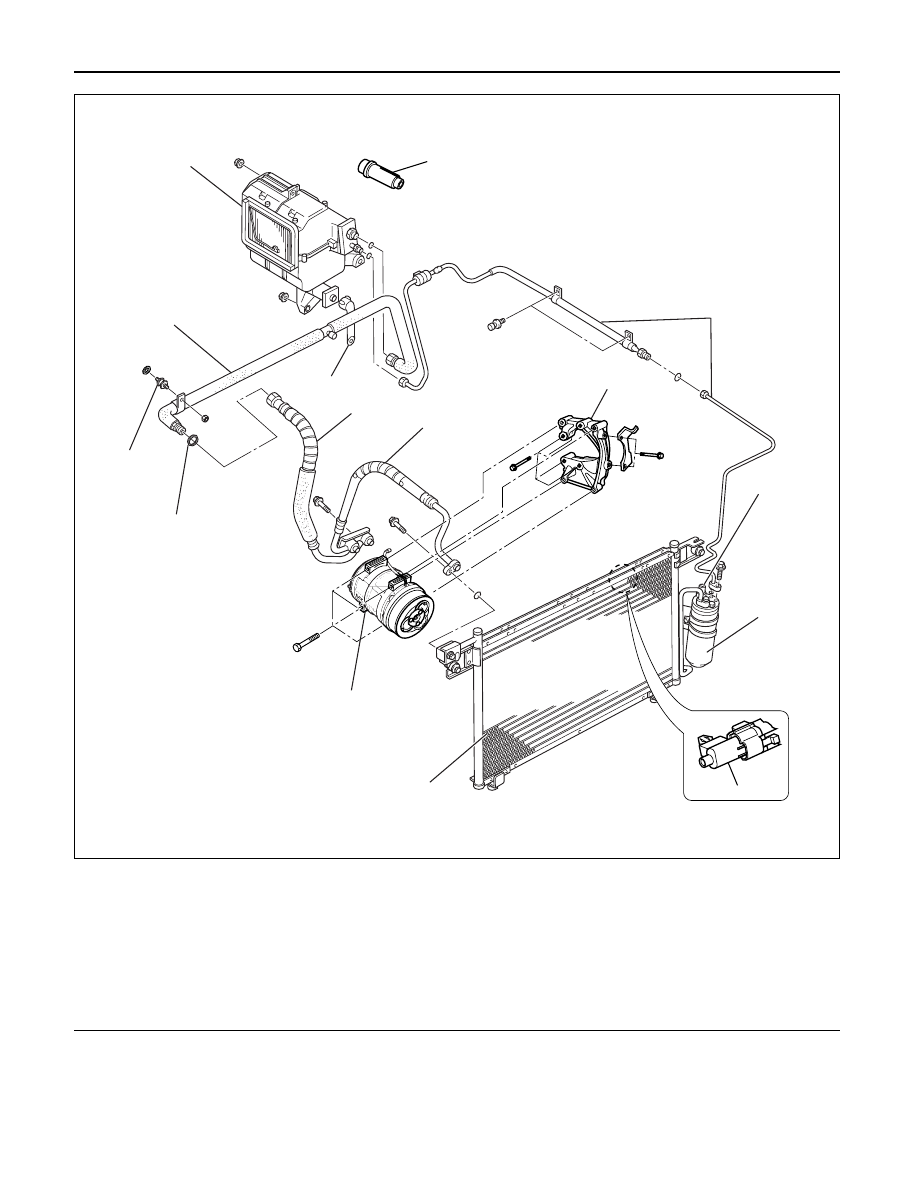

1B–78 AIR CONDITIONING

10

7

13

6

5

12

14

11

15

2

1

3

9

8

4

852RY00003

Legend

(1)

Liquid Line (High-Pressure Pipe)

(2)

Pressure Switch

(3)

Receiver Drier

(4)

Ambient Sensor

(5)

Compressor Bracket

(6)

Discharge Line (High-Pressure Hose)

(7)

Suction Line (Low-Pressure Hose)

(8)

Compressor

(9)

Condenser Assembly

(10)

O-ring

(11)

Insulator Pipe

(12)

Suction Line (Low-Pressure Pipe)

(13)

Drain Hose

(14)

Evaporator Assembly

(15)

A/C Switch

4JX1 (RHD)

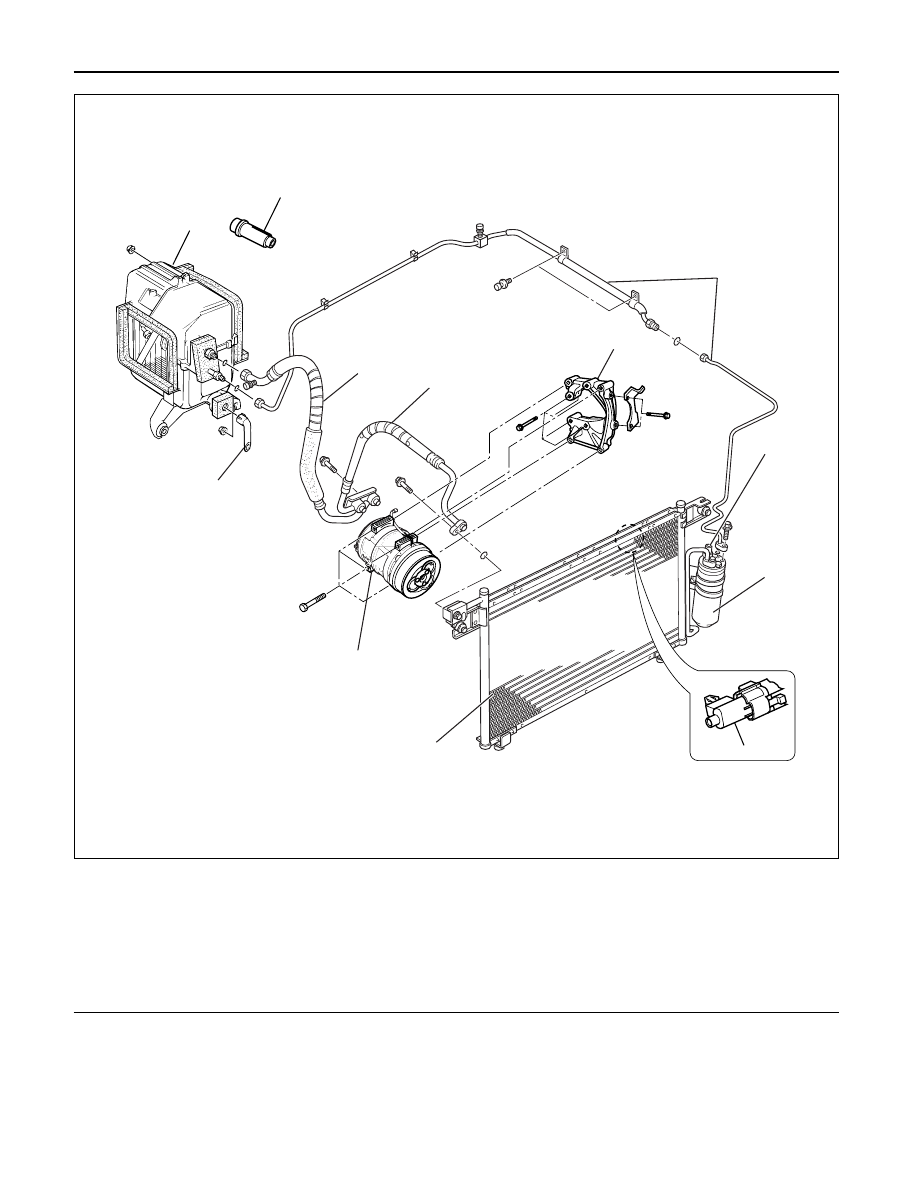

AIR CONDITIONING  1B–79

852RY00004

10

7

6

5

12

2

1

3

9

8

11

4

Legend

(1)

Liquid Line (High-Pressure Pipe)

(2)

Pressure Switch

(3)

Receiver Drier

(4)

Ambient Sensor

(5)

Compressor Bracket

(6)

Discharge Line (High-Pressure Hose)

(7)

Suction Line (Low-Pressure Hose)

(8)

Compressor

(9)

Condenser Assembly

(10)

Drain Hose

(11)

Evaporator Assembly

(12)

A/C Switch

4JX1 (LHD)

1B–80 AIR CONDITIONING

865RY00005

1

2

6

7

8

3

4

5

Legend

(1)

Auto Switch

(2)

Mode Switch

(3)

DEF/FOOT Switch

(4)

DEF Switch

(5)

Intake Switch

(6)

Fan Switch

(7)

Air Conditioning Switch

(8)

Temperature Control Knob

Control Panel Layout
