6E2–38

6VD1 3.2L ENGINE DRIVEABILITY AND EMISSIONS

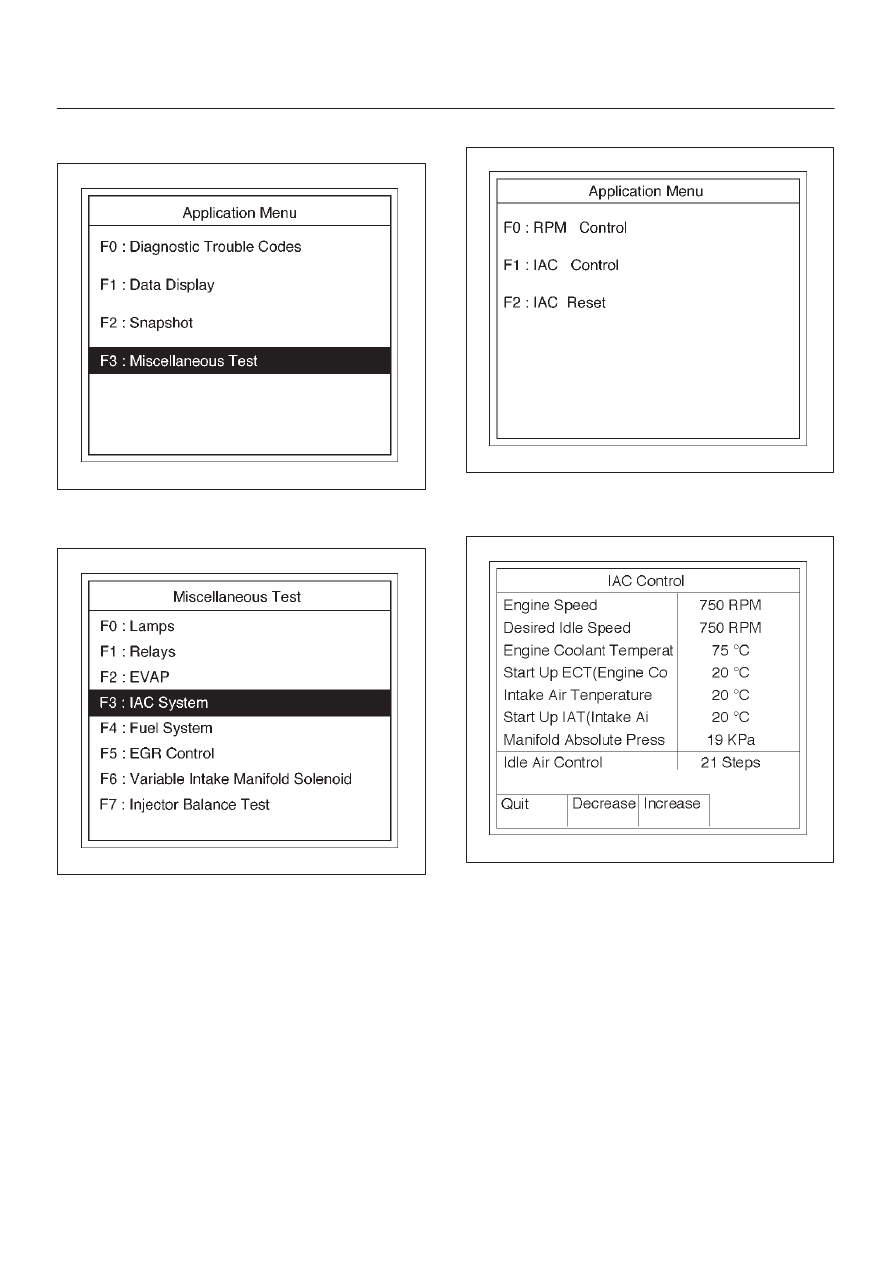

3. Select F3: Miscellaneous Test in the Application

Menu.

060RW228

4. Select F3: IAC System Test in the Miscellaneous

Test.

060RX007

5. Select F1: IAC Control Test.

060RW235

6. Push “Increase” or “Decrease” soft key.
7. Instruct IAC system and check data list.

060RX015

8. If the data list changes, the IAC control is normal.

6E2–39

6VD1 3.2L ENGINE DRIVEABILITY AND EMISSIONS

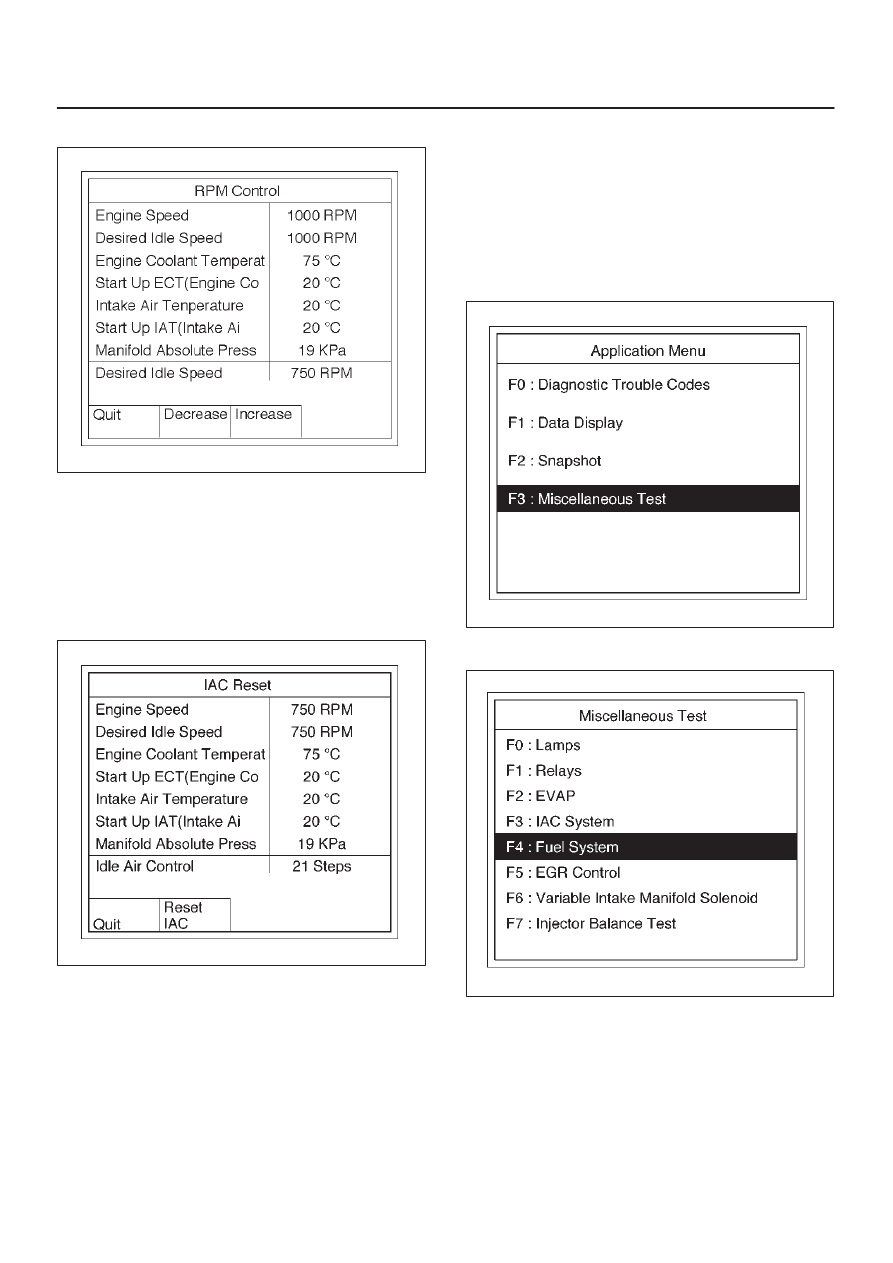

9. Select F0: RPM Control Test

060RX016

10. Push “Increase” or “Decrease” soft key.

11. Control RPM and check data list.

12. If the data list changes, the RPM control is normal.
13. Select F2: IAC Reset.
14. Push “Reset IAC” soft key.
15. Control IAC Reset and check data list.
16. If data list changes, the IAC has been Reset.

060RW231–1

Fuel System Test

This test is conducted check Fuel Level Gauge for proper
operation.
Tech 2 must be used for this test.
Test Procedure:

1. Connect Tech 2 to the vehicle DLC.
2. Ignition SW is “On”.
3. Select F3: Miscellaneous Test in the Application

Menu.

060RW228

4. Select F4: Fuel System in the Miscellaneous Menu.

060RX032

6E2–40

6VD1 3.2L ENGINE DRIVEABILITY AND EMISSIONS

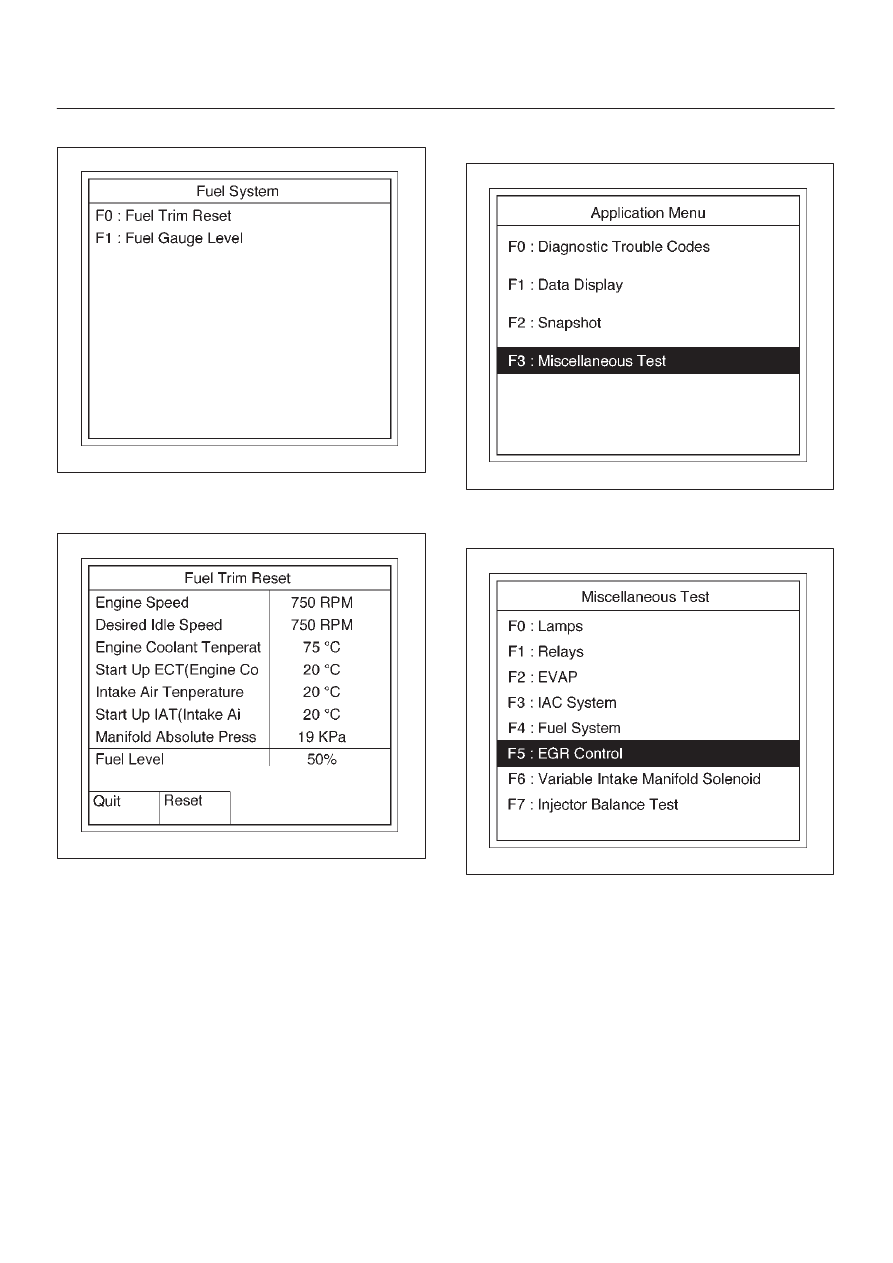

5. Select F0: Fuel Trim Reset.

060RX028

F1: Fuel Gauge Level is not used.

6. Push “Reset” soft key.

060RX029

EGR Control Test

This test is conducted check EGR valve for proper
operation.
Tech 2 must be used for this test.
Test Procedure:

1. Connect Tech 2 to the vehicle DLC.
2. Run the Engine at idle.

3. Select F3: Miscellaneous Test in the Application

Menu.

060RW228

4. Select F5: EGR Control Test in the Miscellaneous

Test.

060RX008

6E2–41

6VD1 3.2L ENGINE DRIVEABILITY AND EMISSIONS

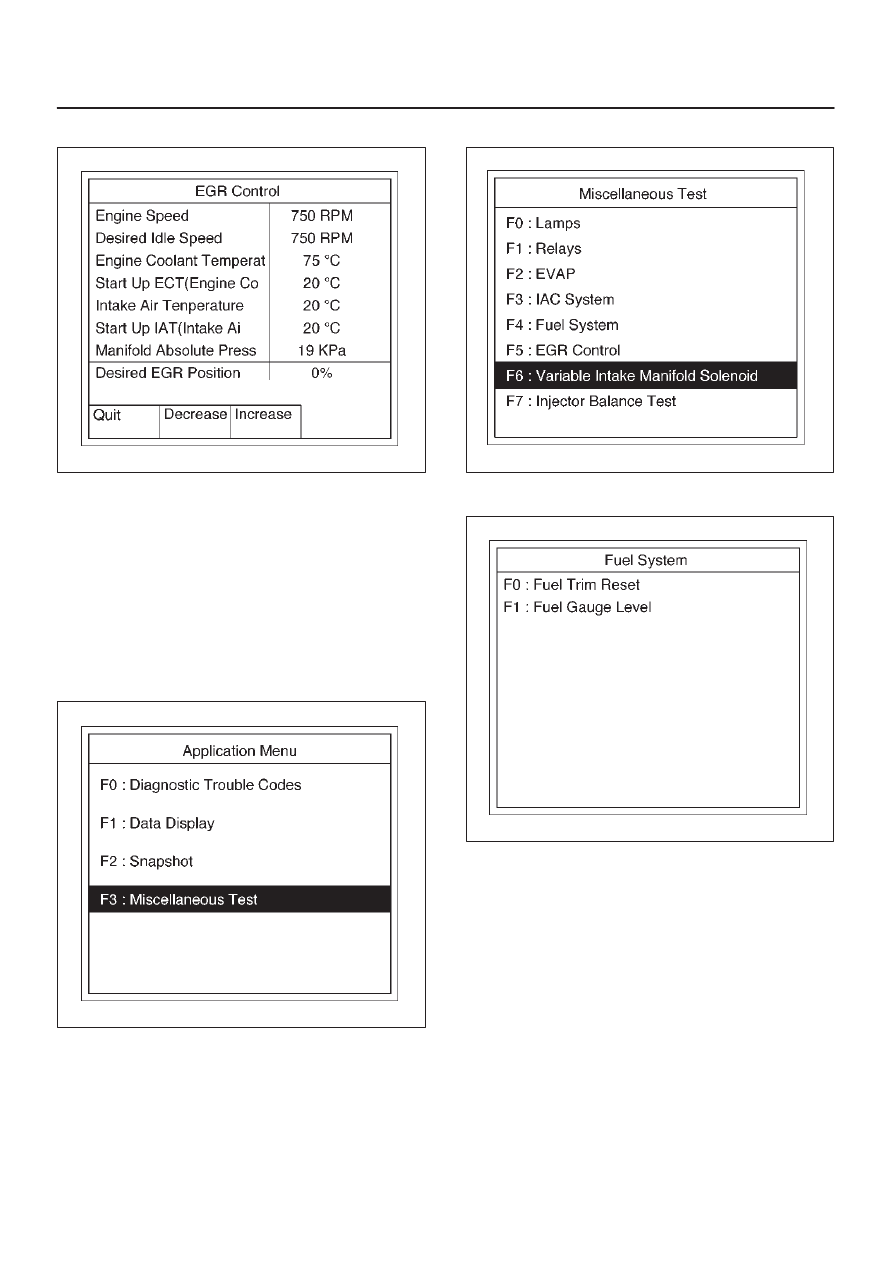

5. Control EGR Valve and check data list.

060RX017

6. If data list chouges, the EGR Control is normal.

Variable Intake Manifold Solenoid Test

This test is conducted check VIM Solenoid for proper
operation.
Tech 2 must be used for this test.
Test Procedure:

1. Connect Tech 2 to the vehicle DLC.
2. Ignition SW is “On”.
3. Select F3: Miscellaneous Test in the Application

Menu.

060RW228

4. Select F6: Variable Intake Manifold Solenoid Test.

060RX033

5. Push “On” or “Off” soft key.

060RX028

6. Control VIM Solenoid and check data list.
7. If data list changes, the VIM Solenoid is normal.

Injector Balance Test

This test is conducted to make sure the appropriate
electric signals are being sent to injectors Nos. 1–6.
Tech 2 must be used for this test.
Test Procedure:

1. Connect Tech 2 to the vehicle DLC.
2. Run the Engine at idle.
