Opel Frontera UE. Manual - part 911





6E2–30

6VD1 3.2L ENGINE DRIVEABILITY AND EMISSIONS

D

Reading serial data.

TS24064

Verifying Vehicle Repair

Verification of vehicle repair will be more comprehensive
for vehicles with OBD II system diagnostic.  Following a
repair, the technician should perform the following steps:

1. Review and record the Fail Records and/or Freeze

Frame data for the DTC which has been diagnosed
(Freeze Frame data will only be stored for an A or B
type diagnostic and only if the MIL has been
requested).

2. Clear DTC(s).
3. Operate the vehicle within conditions noted in the Fail

Records and/or Freeze Frame data.

4. Monitor the DTC status information for the DTC which

has been diagnosed until the diagnostic test
associated with that DTC runs.

Following these steps are very important in verifying
repairs on OBD systems.  Failure to follow these steps
could result in unnecessary repairs.

Reading Diagnostic Trouble Codes Using
the TECH 2 Scan Tool

The procedure for reading diagnostic trouble code(s) is to
use a diagnostic Scan Tool.  When reading DTC(s),  follow
instructions supplied by tool manufacturer.
For the 1998 model year, Isuzu dealer service
departments will continue to use Tech 2.

Clearing Diagnostic Trouble Codes

IMPORTANT:

Do not clear DTCs unless directed to do

so by the service information provided for each diagnostic
procedure.  When DTCs are cleared, the Freeze Frame
and Failure Record data which may help diagnose an
intermittent fault will also be erased from memory.
If the fault that caused the DTC to be stored into memory
has been corrected, the Diagnostic Executive will begin to
count the “warm-up” cycles with no further faults
detected, the DTC will automatically be cleared from the
PCM memory.

To clear Diagnostic Trouble Codes (DTCs), use the
diagnostic Scan Tool “clear DTCs” or “clear information”
function.  When clearing DTCs follow instructions
supplied by the tool manufacturer.
When a Tech 2 is not available, DTCs can also be cleared
by disconnecting

one of the following sources for at least

thirty (30) seconds.

NOTE: To prevent system damage, the ignition key must
be “OFF” when disconnecting or reconnecting battery
power.

D

The power source to the control module.  Examples:
fuse, pigtail at battery PCM connectors etc.

D

The negative battery cable.  (Disconnecting the
negative battery cable will result in the loss of other
on-board memory data, such as preset radio tuning).

6E2–31

6VD1 3.2L ENGINE DRIVEABILITY AND EMISSIONS

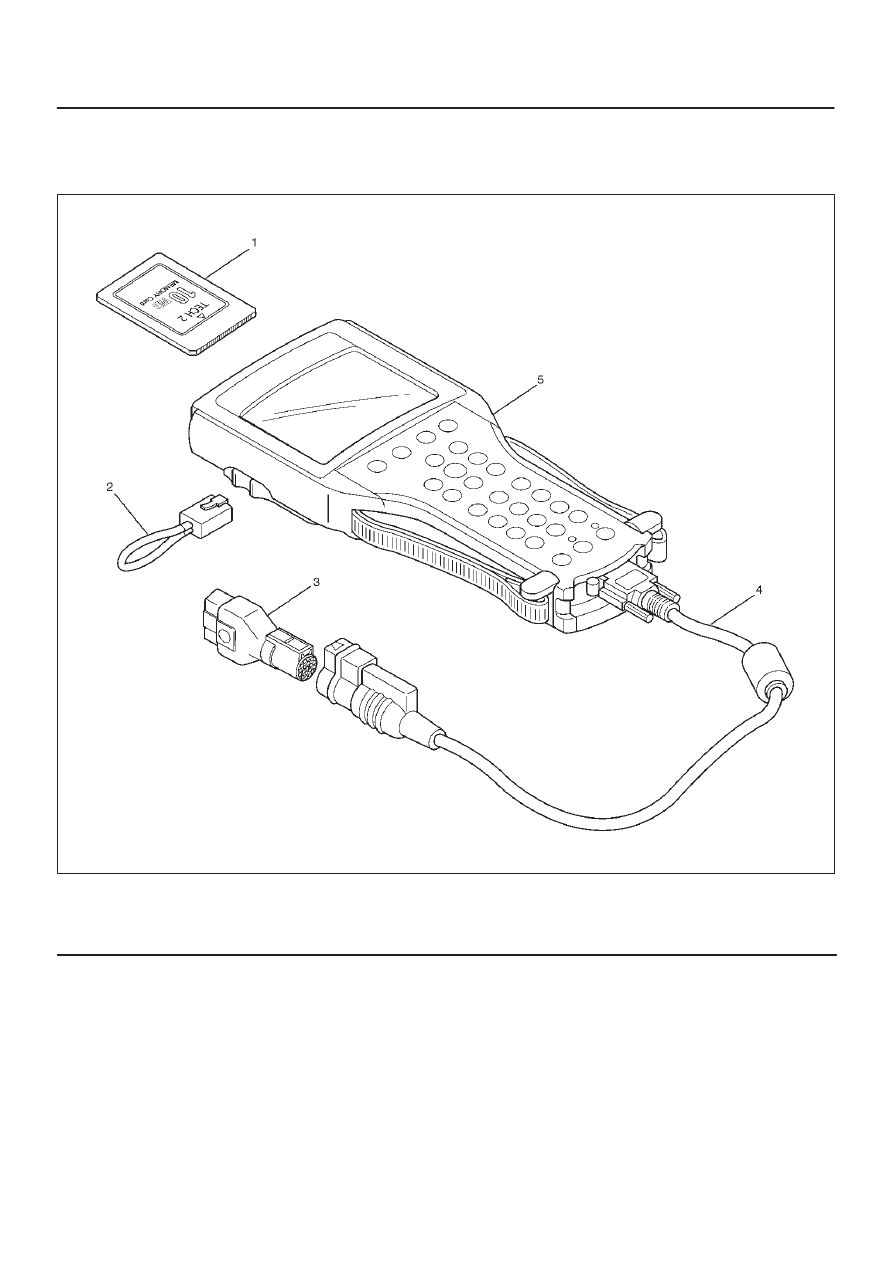

Tech 2

From 98 MY, Isuzu dealer service departments are
recommended to use the Tech 2 Scan Tool. Please refer
to the Tech 2 user guide.

901RW180

Legend

(1) PCMCIA Card
(2) RS 232 Loop Back Connector

(3) SAE 16/19 Adaptor
(4) DLC Cable
(5) Tech–2

Tech 2 Features

1. Tech 2 is a 12 volt system. Do not apply 24 volt.
2. After connecting and/or installing, the Vehicle

Communications Interface (VCI) module, PCMCIA
card and DLC connector to the Tech 2, connect the
tool to the vehicle DLC.

3. Make sure the Tech 2 is powered OFF when

removing or installing the PCMCIA card.

4. The PCMCIA card has a capacity of 10 Megabytes

which is 10 times greater than the memory of the Tech
1 Mass Storage Cartridge.

5. The Tech 2 has the capability of two snapshots.
6. The PCMCIA card is sensitive to magnetism and

static electricity, so care should be taken in the
handling of the card.

7. The Tech 2 can plot a graph when replaying a

snapshot.

8. Always return to the Main Menu by pressing the EXIT

key several times before shutting down.

6E2–32

6VD1 3.2L ENGINE DRIVEABILITY AND EMISSIONS

9. To clear Diagnostic Trouble Codes (DTCs), open

Application Menu and press “F1: Clear DTC Info”.

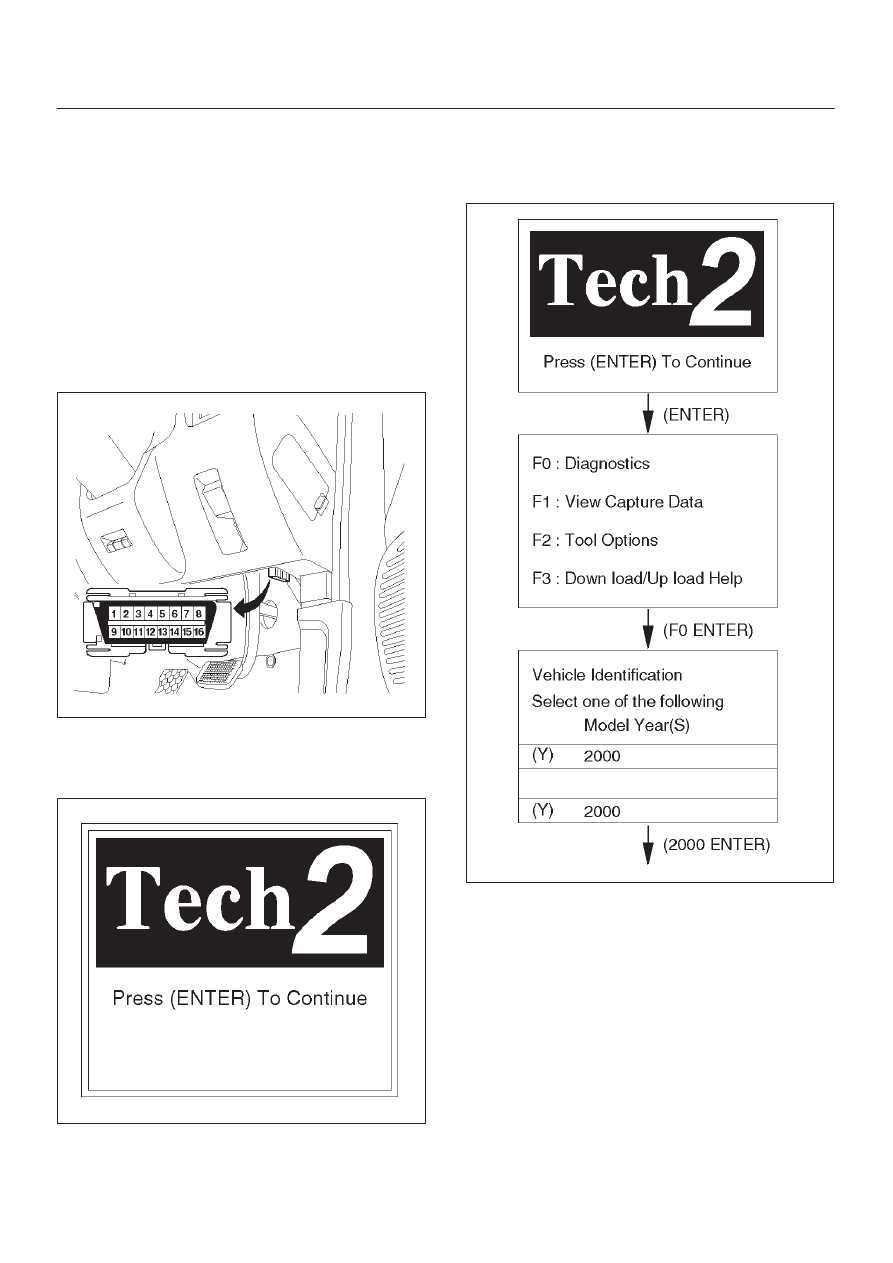

Getting Started

D

Before operating the Isuzu PCMCIA card with the
Tech 2, the following steps must be performed:

1. The Isuzu 99 System PCMCIA card (1) inserts into

the Tech 2 (5).

2. Connect the SAE 16/19 adapter (3) to the DLC cable

(4).

3. Connect the DLC cable to the Tech 2 (5)
4. Make sure the vehicle ignition is off.
5. Connect the Tech 2 SAE 16/19 adapter to the vehicle

DLC.

810RW317

6. Turn on the vehicle ignition.
7. Power the Tech 2 ON and Verify the Tech 2 power up

display.

060RW009

NOTE: The RS232 Loop back connector is only to use for
diagnosis of Tech 2. Refer to user guide of the Tech 2.

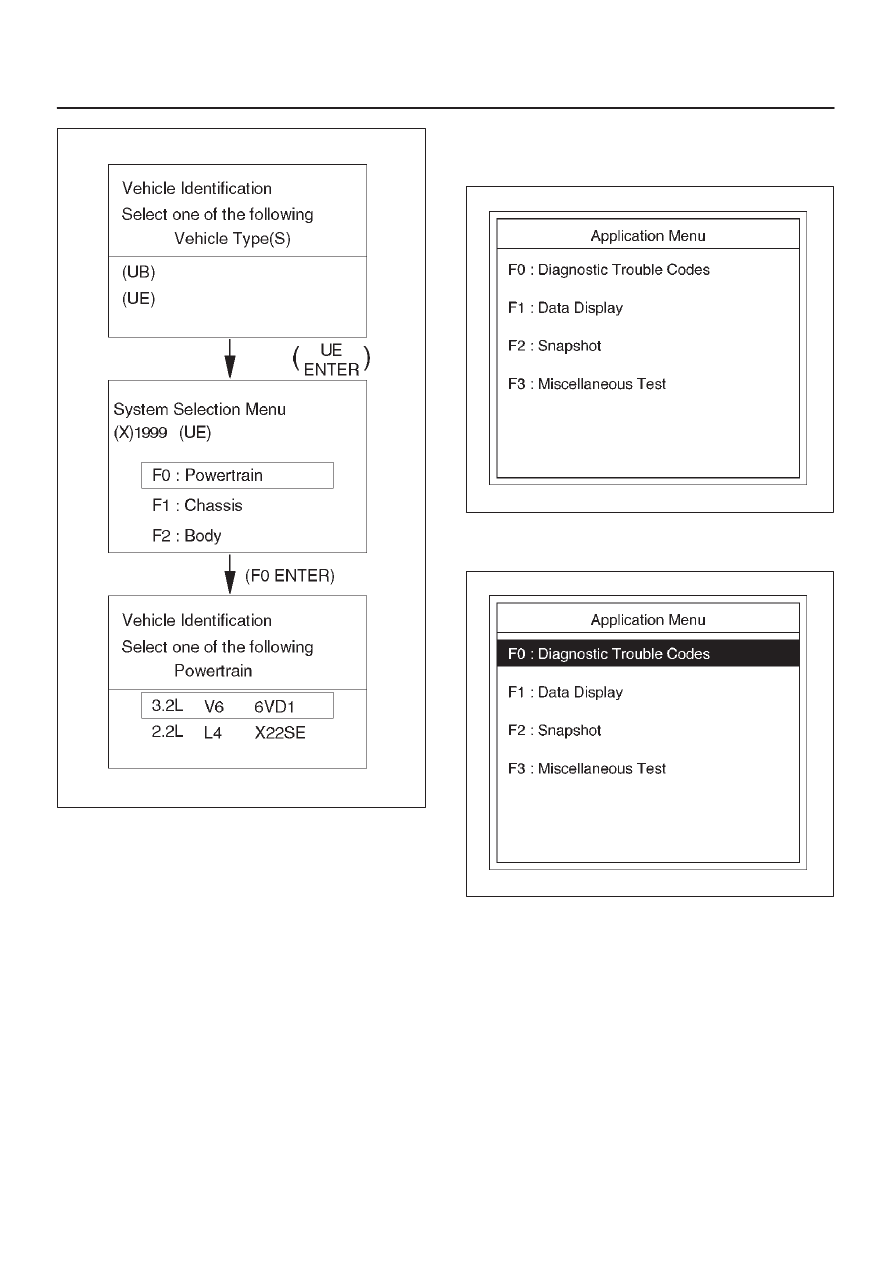

Operating Procedure (For Example)

The power up screen is displayed when you power up the
tester with the Isuzu systems PCMCIA card. Follow the
operating procedure below.

060RY027

6E2–33

6VD1 3.2L ENGINE DRIVEABILITY AND EMISSIONS

060RX086

Menu

D

The following table shows which functions are used
for the available equipment versions.

060RW224

DTC Modes

060RW229
