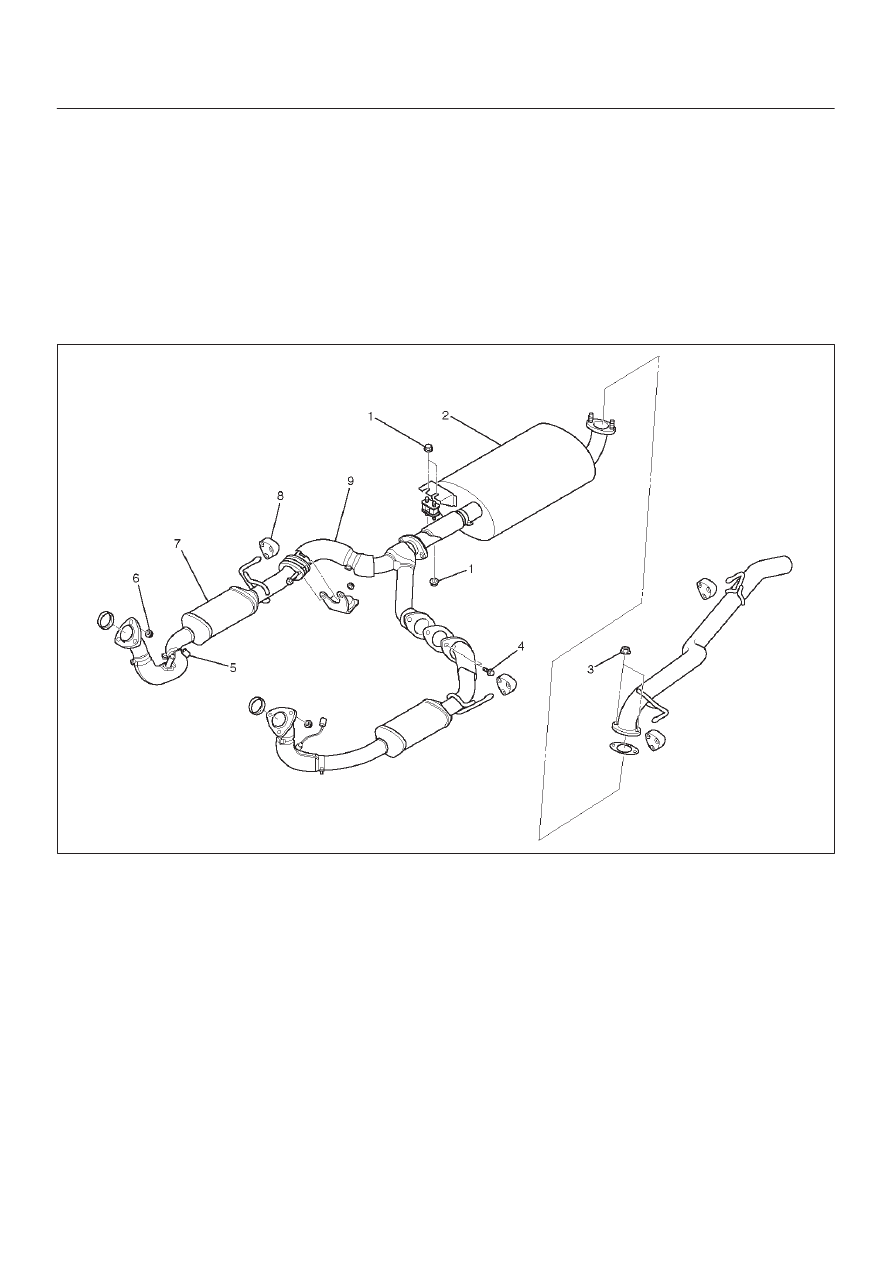

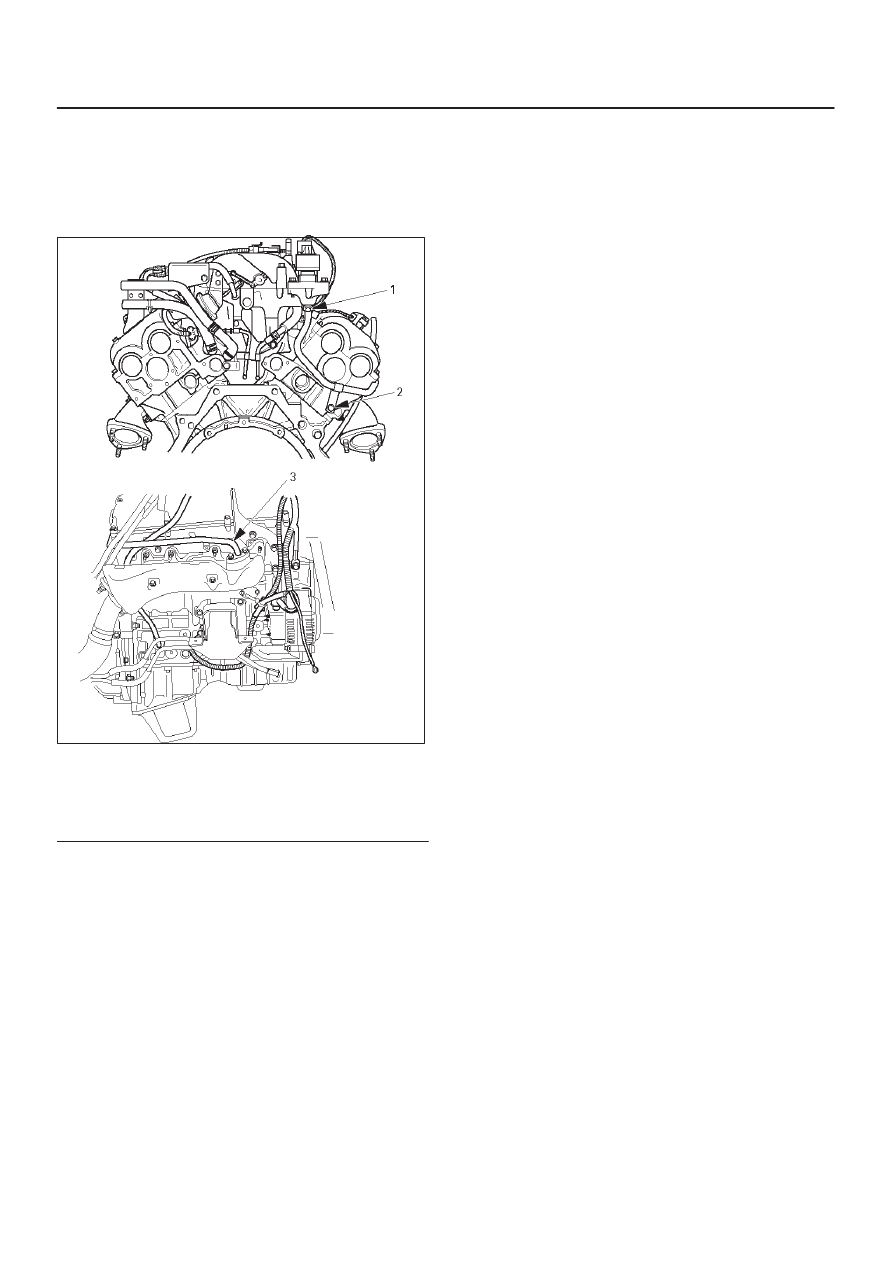

6A–29 ENGINE MECHANICAL (6VD1 3.2L) Exhaust Manifold LH Removal 1. Disconnect the battery ground cable. 2 sensor connector. 6. Remove the 3 stud nuts from the exhaust pipe flange. exhaust pipe with catalytic converter. 8. Remove the front exhaust pipe with catalytic converter rubber support. 9. Move the front exhaust pipe with catalytic converter to the rear. 150RY00039 Legend (1) Exhaust Front Pipe LH 2 Sensor 10. Remove the exhaust manifold heat protector. 11. Remove the 8 exhaust manifold fixing nuts and the exhaust manifold from the engine. 027RY00006 Legend (1) Exhaust Manifold Heat Protector Installation 1. Install the exhaust manifold and exhaust manifold gasket. D Do not reuse the old exhaust manifold nuts. Use new nuts and tighten to the specified torque. Torque: 57 N·m (5.8 kg·m/42 lb ft) 2. Install the exhaust manifold heat protector. the exhaust manifold flange stud bolts and 4. Hang the front exhaust pipe with catalytic converter on the chassis (pipe to rubber support/rubber support 5. Hand-tighten the 2 bolts at the rear end of the front exhaust pipe. 6. Tighten the exhaust pipe flange stud nuts. Torque : 67 N·m (6.8 kg·m/49 lb ft) 7. Tighten the 2 bolts at the rear end of the front exhaust pipe. Torque : 43 N·m (4.4 kg·m/32 lb ft) 8. Connect the O 2 sensor connector. 9. Install the mud fender skirt. 10. Install the left side wheel and tire assembly. |
