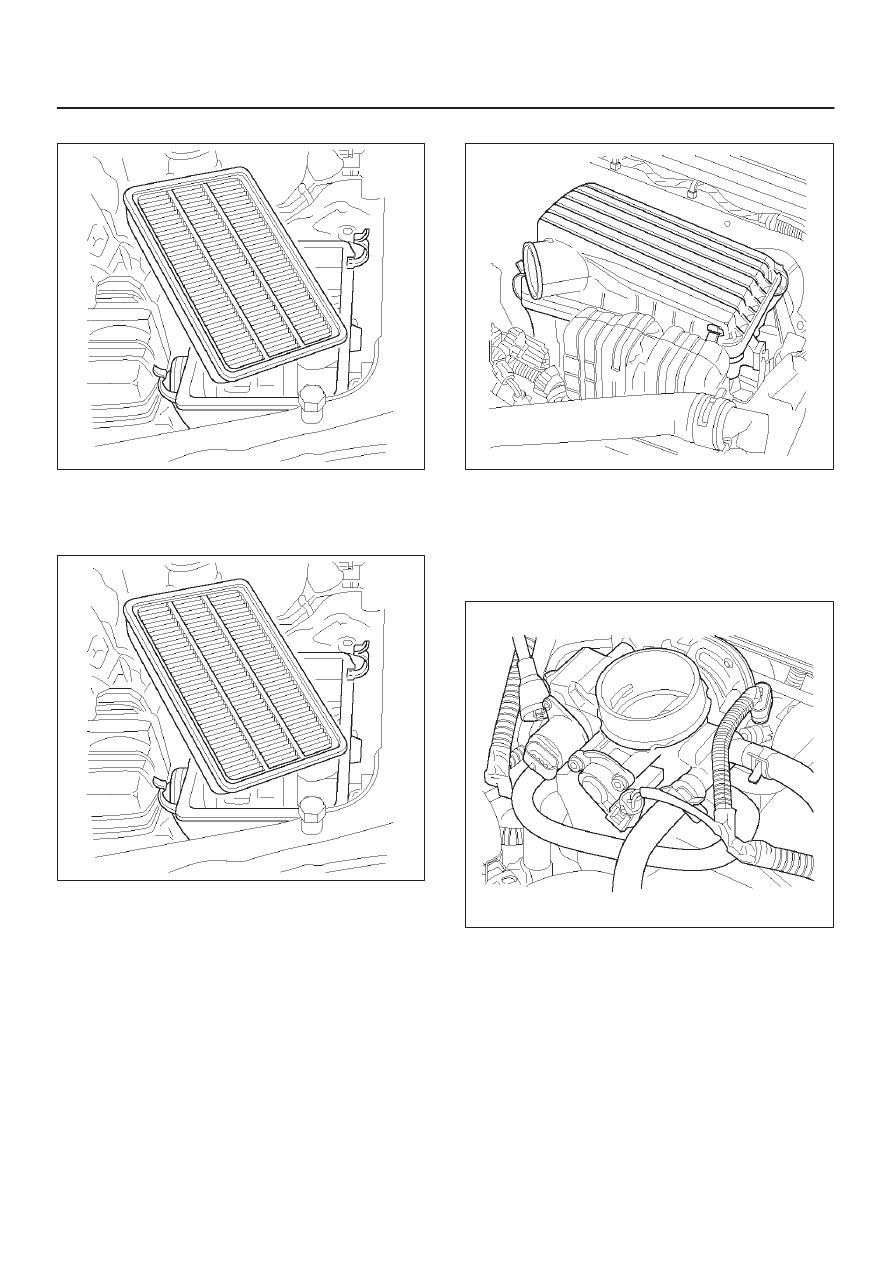

4. Remove the air filter element.

014RX023

Installation Procedure

1. Install the air filter element in the air cleaner housing.

014RX023

2. Install the air cleaner lids.
3. Secure the three latches, holding the lid on the air

cleaner housing.

4. Connect the electrical connector to the IAT sensor.

014RX019

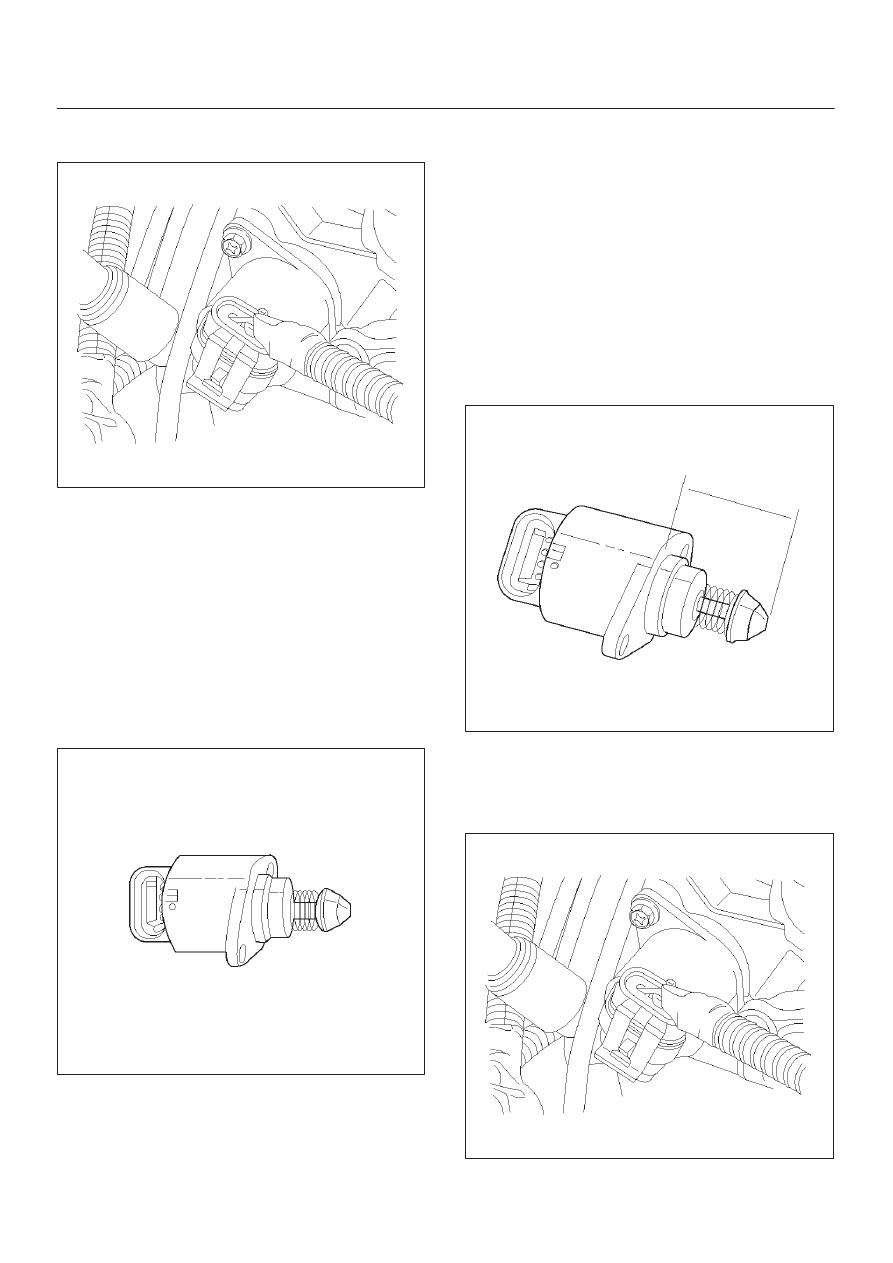

Idle Air Control (IAC) Valve

Removal Procedure

1. Disconnect the negative battery cable.

101RX002

2. Disconnect the IAC electrical connector.
3. Remove the two screws and IAC valve from the

throttle body.

6E1–276

X22SE 2.2L ENGINE DRIVEABILITY AND EMISSION

NOTE: Do not clean the IAC valve by soaking it in
solvent. The valve will be damaged as a result.

014RX022

Cleaning and Inspection Procedure

D

Clean the IAC valve O–ring sealing surface, pintle
valve seat and air passage.

D

Use carburetor cleaner and a parts cleaning brush to
remove carbon deposit. Do not use a cleaner that
contain methyl ethyl ketone. This is an extremely
strong solvent and not necessary for this type of
deposit.

D

Shiny spots on the pintle are normal and do not
indicate misalignment or a bent pintle shaft.

D

Inspect the IAC valve O–ring for cuts, cracks or
distortion. Replace the O–ring if damaged.

0006

Measurement Procedure

D

In order to install a new IAC valve, measure the
distance between the tip of the pintle and the
mounting flange. If that measurement is 28 mm or
less, the valve need no adjustment. If the
measurement is greater than 28 mm, apply finger
pressure and retract the valve. The force required to
retract the pintle on a new valve will not damage the
valve, shaft or pintle.

NOTE: Do not push or pull on the IAC valve pintle on IAC
valve that have been in service. The force required to
move the pintle may damage it.

IMPORTANT:

Use an identical replacement part in

order to replace a valve. IAC valve pintle shape and
diameter are designed for the specific application.

TS23746

Installation Procedure

1. Install IAC valve on the throttle valve body with the

two screws. Tighten the screw to 1 Nm ( 9 lb in).

014RX022

6E1–277

X22SE 2.2L ENGINE DRIVEABILITY AND EMISSION

2. Connect electrical connector to IAC valve.
3. Connect the negative battery cable.

101RX002

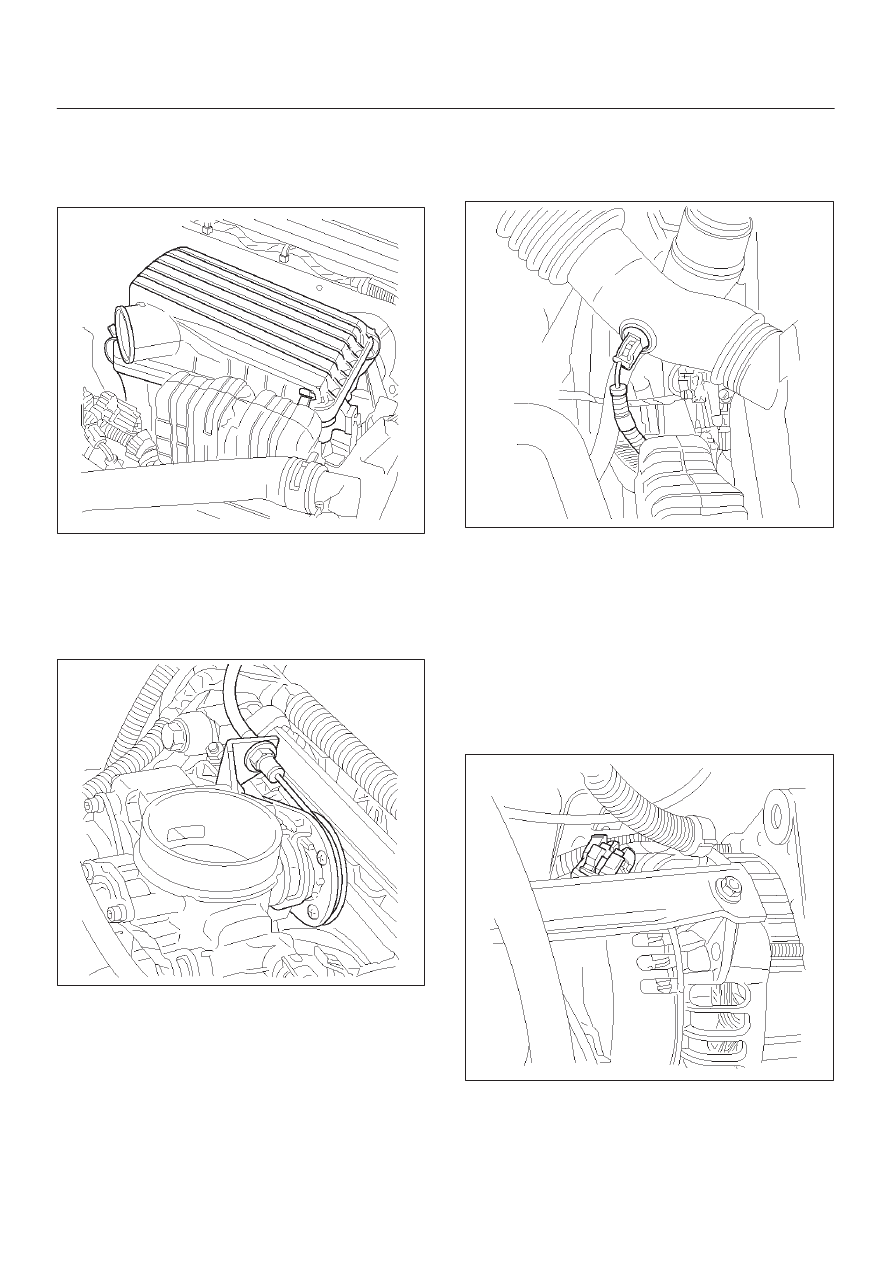

Intake Air Duct

Removal Procedure

1. Disconnect the negative battery cable.
2. Disconnect electrical connector at IAT sensor.
3. Remove the IAT sensor if necessary. Refer to Intake

Air Temperature Sensor Removal.

014RX011

4. Loosen retaining clamps at the throttle body and at

the air filter box.

5. Disconnect brake booster vacuum hose at intake

manifold and at brake booster.

014RX025

6. Remove retaining nut at the intake air duct bracket at

top of valve cover.

7. Disconnect the intake air duct from the throttle body

and at the air filter box.

014RX019

6E1–278

X22SE 2.2L ENGINE DRIVEABILITY AND EMISSION

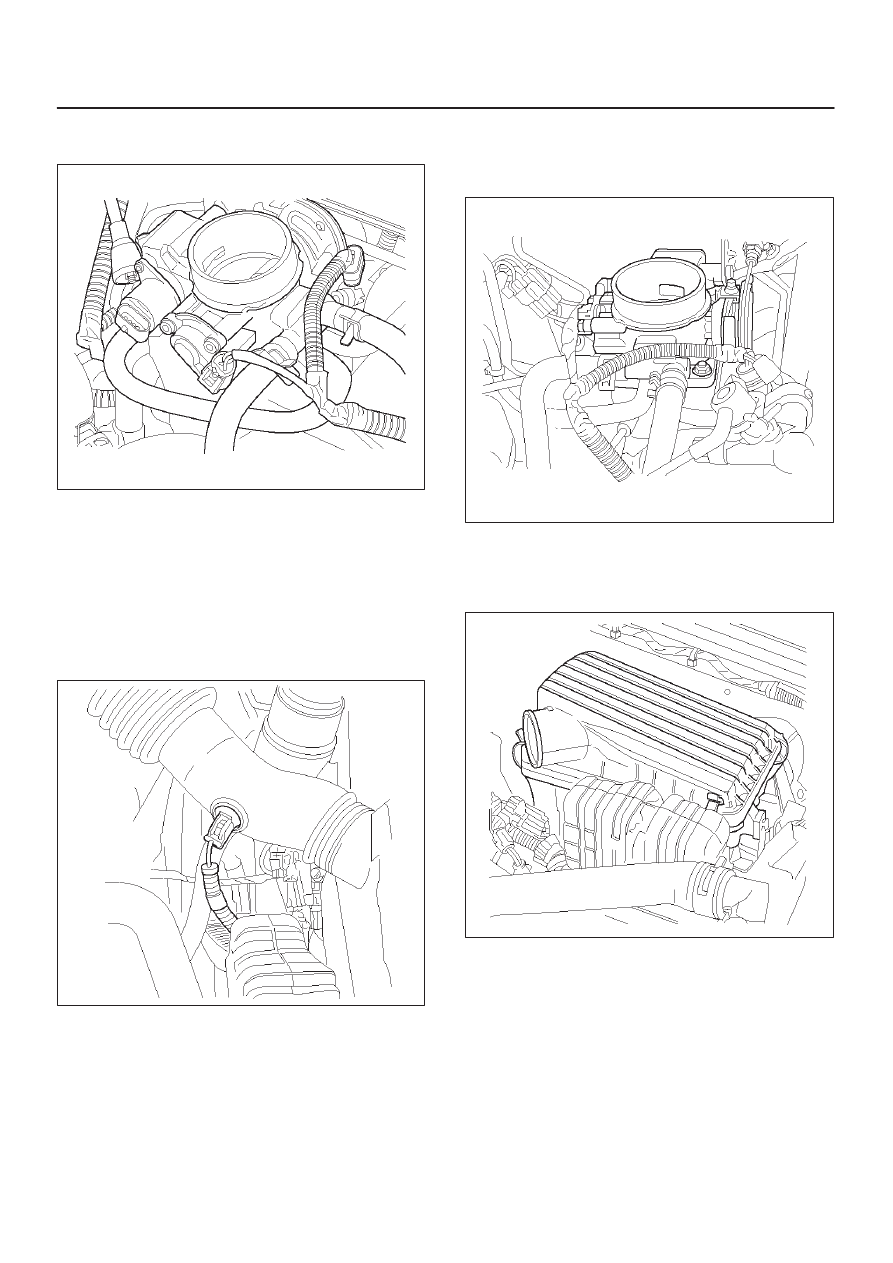

Installation Procedure

1. Connect the intake air duct at the throttle body and at

the air filter box. Make sure retaining hole is inserted
to the intake air duct bracket.

014RX019

2. Tighten retaining clamp at the throttle body and at the

air filter box.

3. Install a nut to the intake air duct bracket and tighten.
4. Connect brake booster vacuum hose to intake

manifold and to brake booster and secure them with
clamps.

014RX026

5. Install IAT sensor if necessary. Refer to Intake Air

Temperature Sensor Installation.

6. Connect electrical connector at IAT sensor.
7. Connect the negative battery cable.

014RX011

IMPORTANT:

Use an identical replacement part in

order to replace a valve. IAC valve pintle shape and
diameter are designed for the specific application.

Knock Sensor

Removal Procedure

1. Disconnect negative battery cable.
2. Disconnect pig tail electrical connector at near the top

of generator.

014RX027
