6E1–23

X22SE 2.2L ENGINE DRIVEABILITY AND EMISSION

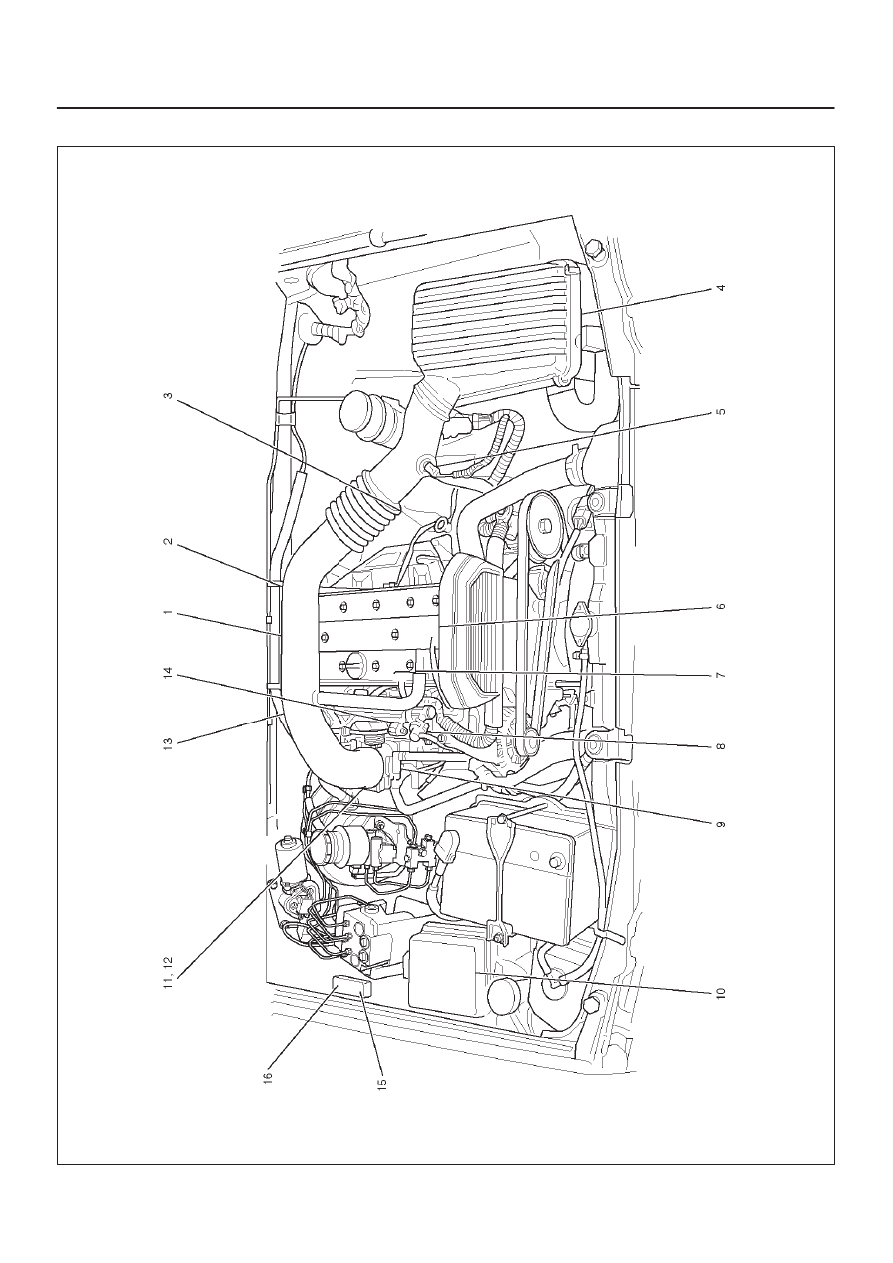

COMPONENT LOCATOR

755RX030

6E1–24

X22SE 2.2L ENGINE DRIVEABILITY AND EMISSION

Engine Component Locator Table

Number

Name

Location

1

Engine Coolant Temperature (ECT) Sensor

Rear of engine, near ignition coils

2

Linear Exhaust Gas Recirculation (EGR) Valve

On the left rear of the engine at the bulkhead

3

Heated Oxygen Sensor (HO2S), Bank 1,
Sensor 1

On the exhaust pipe, left side of engine,
immediately behind the exhaust manifold

4

Air Cleaner

Left front of the engine bay

5

Intake Air Temperature (IAT) Sensor

On the intake air duct near the air cleaner

6

Camshaft Position (CMP) Sensor

Inside the front cover assembly

7

Positive Crankcase Ventilation (PCV) Port

On the right front corner of the valve cover

8

Fuel Pressure Regulator

On the forward end of the fuel rail, to the right of
the PVC port

9

Throttle Body

Between the intake air duct and the intake
manifold

10

Fuse/Relay Box

Along the inside of the right fender

11

Throttle Position (TP) Sensor

On the front of the throttle body

12

Idle Air Control (IAC) Valve

On the rear of the throttle body

13

Ignition Control Module (ICM)

Mounted on a heat sink on the lower right side of
the engine block, above the starter motor

14

Manifold Absolute Pressure (MAP) Sensor

Bolted to the front edge of the intake manifold,
under the fuel rail

15

High Fan Relay

In the relay box

16

Low Fan Relay

In the relay box

6E1–25

X22SE 2.2L ENGINE DRIVEABILITY AND EMISSION

010RX001

028RX001

6E1–26

X22SE 2.2L ENGINE DRIVEABILITY AND EMISSION

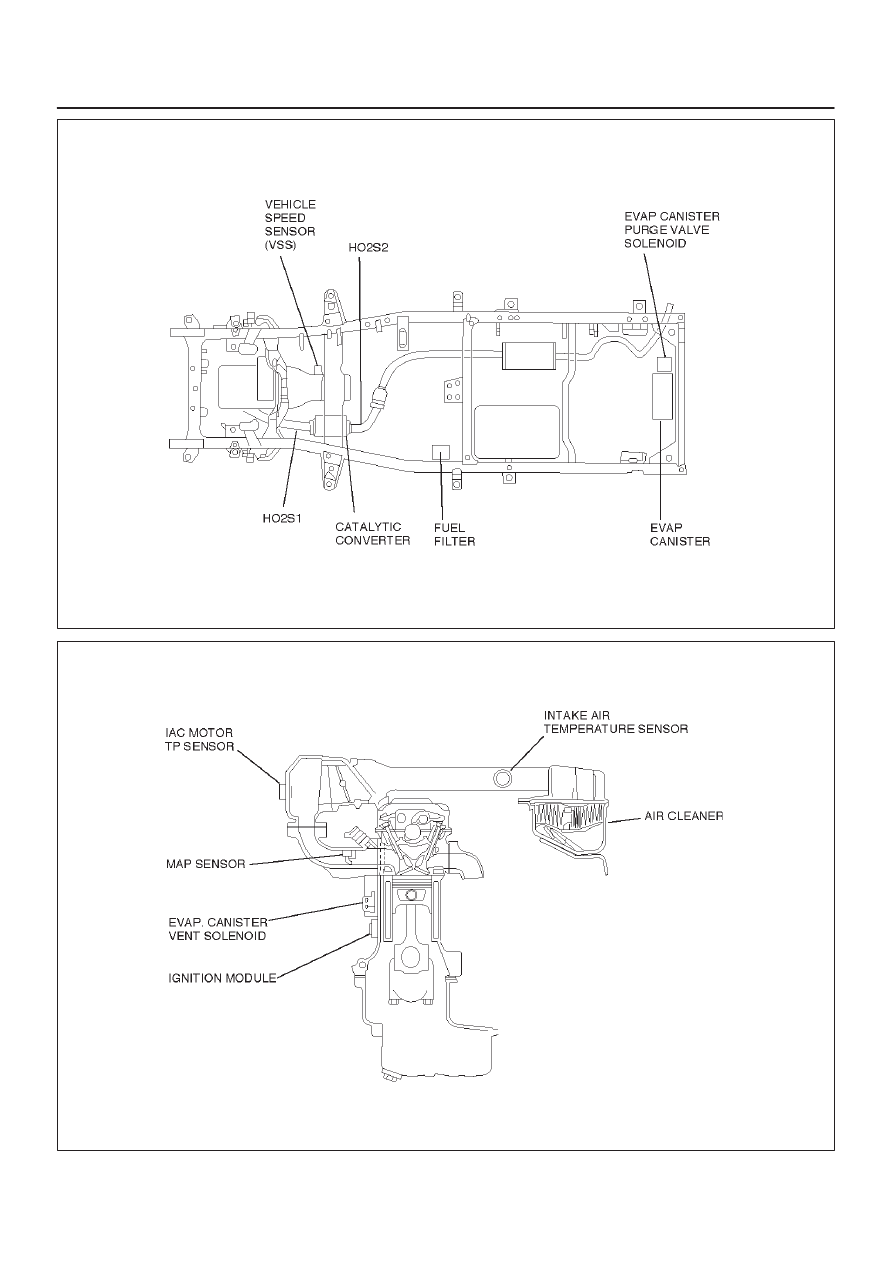

Undercarriage Component Locator Table

Name

Location

Fuel Pump Assembly

Installed in the top of the fuel tank

EVAP Canister

Behind rear axle, near fuel tank filler nozzle

EVAP Canister Purge Valve Solenoid

Behind rear axle, near fuel tank filler nozzle

Vehicle Speed Sensor (VSS)

Protrudes from the right side of the transmission housing, near the
output shaft

Crankshaft Position (CKP) Sensor

Lower left hand front of engine, behind power steering pump bracket

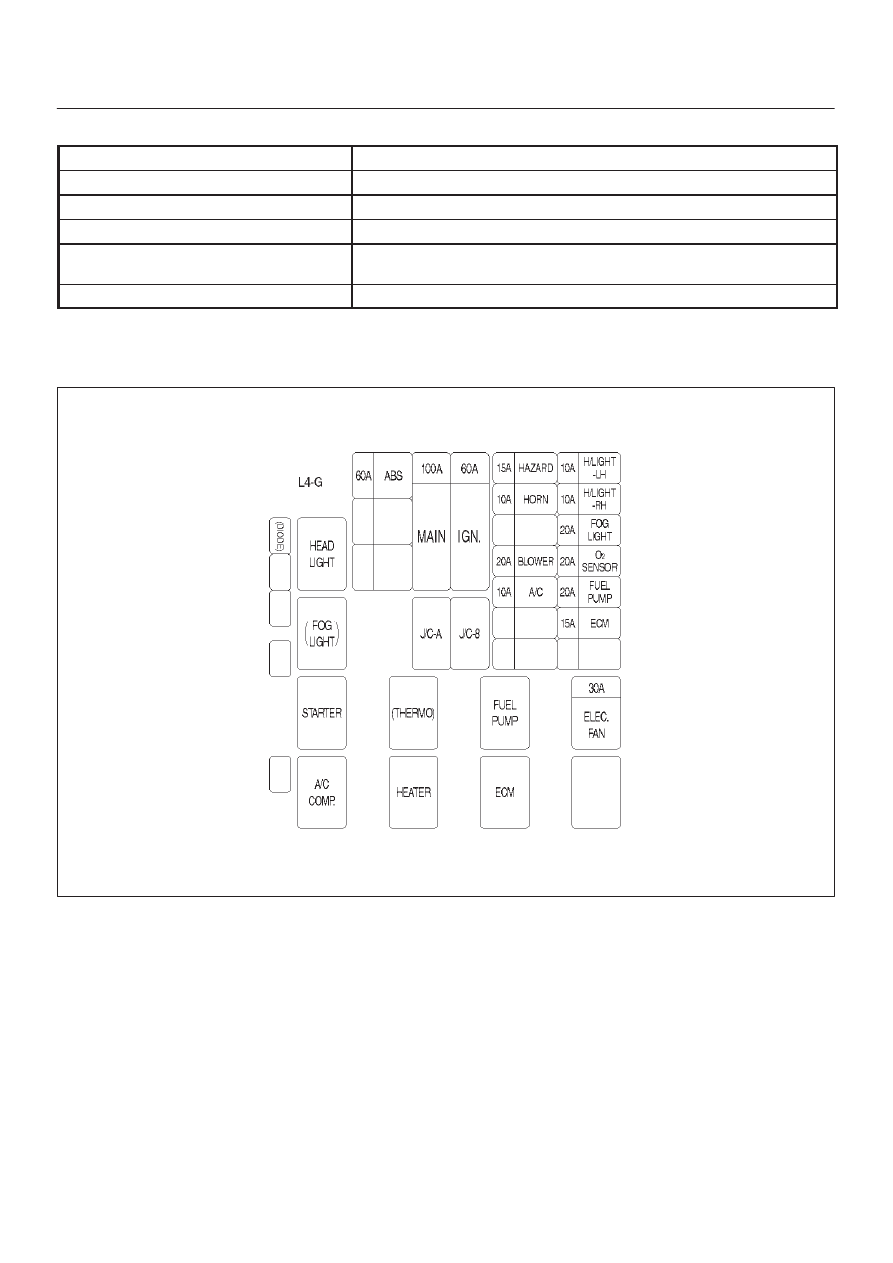

Fuse And Relay Panel (Underhood Electrical Center)

Underhood (U/H) Fuse and Relay Panel

060RX096
