Opel Frontera UE. Manual - part 772





ENGINE FUEL (X22SE 2.2L)

6C–9

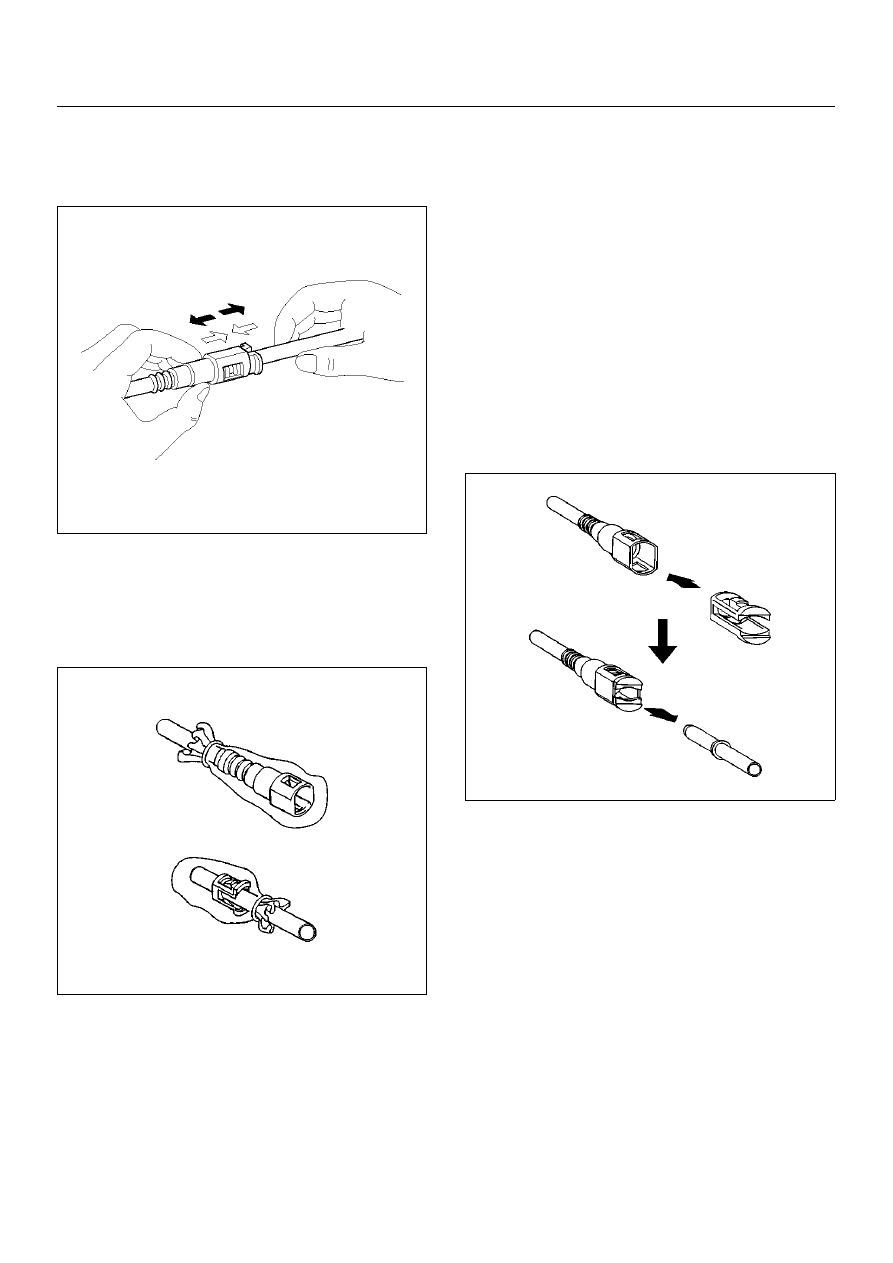

This work should be done by hands. Do not use any
tools. Should the pipe can hardly be removed from the
connector, use a lubricant (light oil) and/or push and pull
the connector longitudinally until the pipe is removed.

141RW021

When reusing the delivery pipe retainer, reuse
without removing the retainer from the pipe. If the
retainer is damaged or deformed, however, replace
with a new retainer.
Cover the connectors removed with a plastic bag,
etc. to prevent the entry of dust or rain water.

141RX005

Reuse of Quick–Connector

• Replace the pipe and connector if scratch, dent or

crack is found.

• Remove mud and dust from the pipe and make sure

that the end including spool is free of defects, such as
scratch, rust, and dent, which may cause poor
sealability. If defective, replace with a new pipe.

• If the retainer removed according to the removal step

above is attached to the pipe, clean and insert it
straight into the quick-connector till it clicks. After it
clicks, try pulling it out to make sure that it is not
drawn and is securely locked.

The retainer, once removed from the pipe, cannot be
reused. Just replace with a new retainer. Insert the new
retainer into the connector side until it clicks, and
connect the pipe as inserting it into the retainer until it
clicks.

141RW018

Assembling Advice

Application of engine oil or light oil to the pipe facilitates
connecting work. The work should be started
immediately after lubrication, since dust may stick to the
pipe surface to cause poor sealability if a long time
passes after lubrication.

Test/Inspection After Assembling

1. Reconnect the battery negative cable.

2. Turn the ignition key to the “ON" position and check

pump startup sound. As the pump is actuated to
raise fuel pressure, check and see fuel leak from the
piping system.

3. Make sure of no fuel leakage by conducting the

above fuel leak check a few times.

4. Start the engine and make sure of stable idling

speed and normal vehicle run.The entry of dust
during the work may sometimes affect the fuel
injection system.

6C–10

ENGINE FUEL (X22SE 2.2L)

Fuel Pump Relay

General Description

In order to control the FPAS operation, the FPAS relay is
provided. When the starter switch is turned to “ON"
position, the FPAS relay operates the FPAS for 2

seconds.
When it is turned to “START" position, the Engine
Control Module receives the reference pulse from the
Ignition Control Module and it operates the relay, again
causing the FPAS to feed fuel.

Fuel Tank

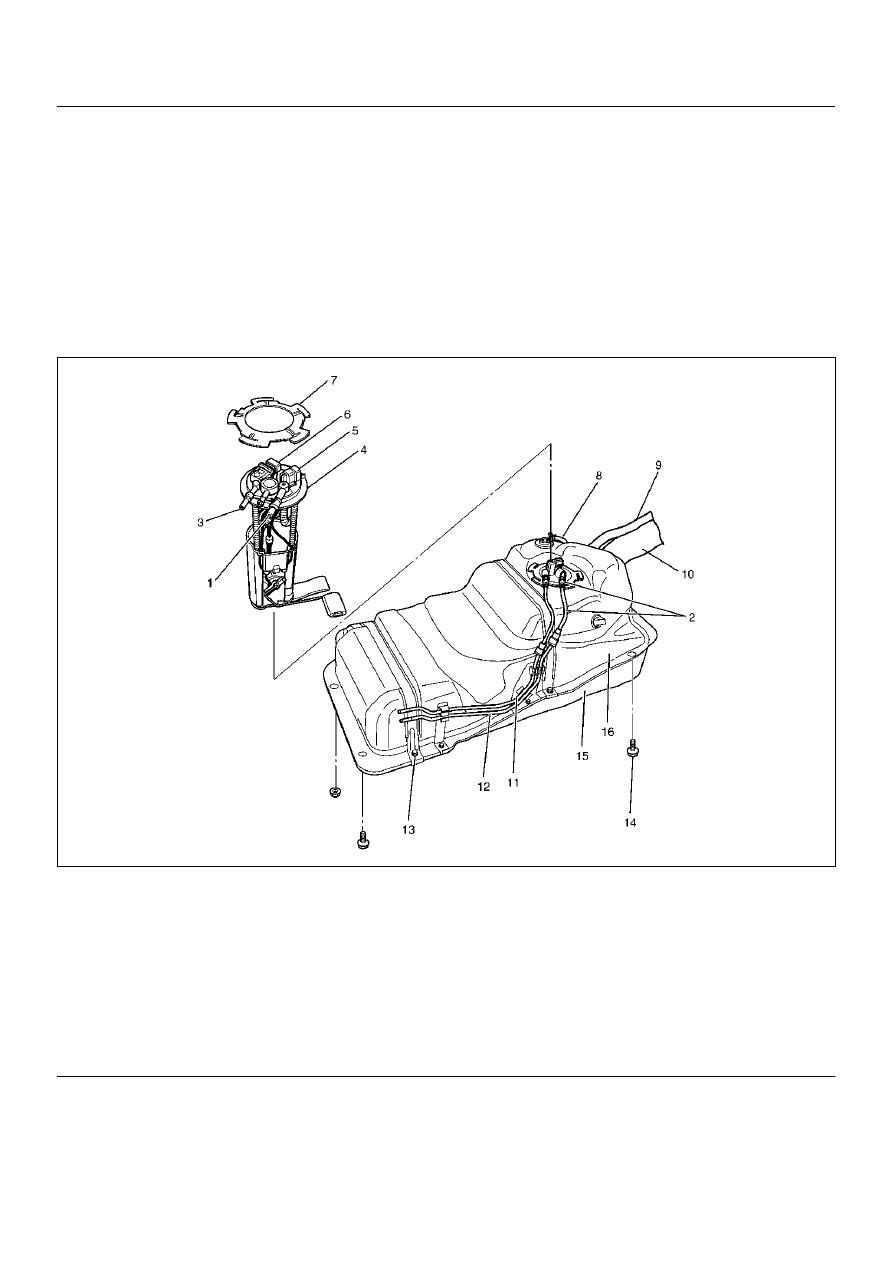

Fuel Tank and Associated Parts

140RX017

Legend

EndOFCallout

(1) Fuel Feed Port
(2) Fuel Tube/Quick Connector
(3) Fuel Return Port
(4) Fuel Pump and Sender Assembly
(5) Connector; Fuel Feed Pump
(6) Connector; Fuel Level Sender
(7) Fuel Pump Lock
(8) Hose; Evaporative Fuel

(9) Hose; Air Breather

(10) Hose; Fuel Filler
(11) Fuel Return Hose
(12) Fuel Feed Hose
(13) Band; Fuel Tank Asm Fixing
(14) Bolt; Fuel Tank Asm. Fixing
(15) Protector; Fuel Tank
(16) Fuel Tank Assembly

ENGINE FUEL (X22SE 2.2L)

6C–11

Removal

CAUTION:  When repair to the fuel system has been
completed, start engine  and check the fuel system
for loose connection or leakage. For the fuel system
diagnosis, see  Section “Driveability and Emission".

1. Disconnect battery ground cable.

2. Loosen fuel filler cap.

3. Support underneath of the fuel tank protector (15)

with a lifter.

4. Disconnect evaporative fuel hose (8) at the canister.

5. Disconnect fuel feed hose (12) and fuel return hose

(11) near the fuel filter.

NOTE:  Plug both ends of the fuel hoses to prevent fuel
leakage.

6. Disconnect air breather hose (9) and fuel filler hose

(10) at the fuel filler neck.

NOTE:  Cover fuel hose to prevent any dust entering.

7. Remove the four fuel tank assembly fixing bolts (14)

at four corners of the tank.

8. Let down the tank (16) and disconnect the wiring

connectors (5,6) and the emission hose at the
emission port on the fuel pump and sending
assembly (4).

9. Remove fuel tank assembly along with protectors

(15) .

10. Remove Fuel Tube/Quick Connector (2).

NOTE:  Handling of fuel tube sure to refer “Fuel  Tube/
Quick Connector Fittings" in this section.

11. Remove fuel pump and sender assembly (4) using

5–8840–2602–0.

12. Remove protectors (15) by removing the band fixing

bolts (13).

Installation

1. Install protectors (15) and tighten the band fixing

bolts to the specified torque.

Torque: 68 N·m (6.9 kg·m/50 lb ft)

2. Install fuel pump and sender (4) using 5–8840–

2602–0.

3. Install Fuel Tube/Quick Connector (2).

NOTE:  Handling of fuel tube sure to refer “Fuel  Tube/
Quick Connector Fittings" in this section.

4. Lift up fuel tank assembly (16) and connect the

emission hose to the emission port and the wiring
connectors (5,6) on the fuel pump and sending
assembly (4).

5. Install fuel tank assembly along with protectors and

tighten the four fixing bolts (14) to the specified
torque.

Torque: 68 N·m (6.9 kg·m/50 lb ft)

6. Connect fuel filler hose (10) and air breather hose

(9), and clip them firmly.

7. Connect fuel feed hose (12) and fuel return hose

(11), and clip them firmly.

8. Connect evaporative fuel hose (8).

9. Tighten fuel filler cap.

10. Connect battery ground cable.

Fuel Gage Unit

Removal and Installation

As for removal and installation of the Fuel Gauge Unit,
refer to  “Fuel Tank" of this section 6C as the fuel gauge
unit is combined  with the fuel pump and sender
assembly.

6C–12

ENGINE FUEL (X22SE 2.2L)

Fuel Filler Cap

General Description

Fuel filler cap includes vacuum valve.
In case any high vacuum happen in tank, the valve
works to adjust  the pressure to prevent the tank from
being damaged.

060RW098

Legend

EndOFCallout

Inspection

Check the seal ring in the filler cap for presence of any
abnormality and for seal condition.
Replace the filler cap, if abnormal.

CAUTION:
The fuel filler cap valve has characteristics.
A defective valve, no valve at all or a valve with the
wrong characteristics will do a lot of harm to engine
operating characteristics;  be sure to use the same
fuel filler cap as installed in this vehicle.

(1) Vacuum Valve
(2) Fuel Filler Cap
