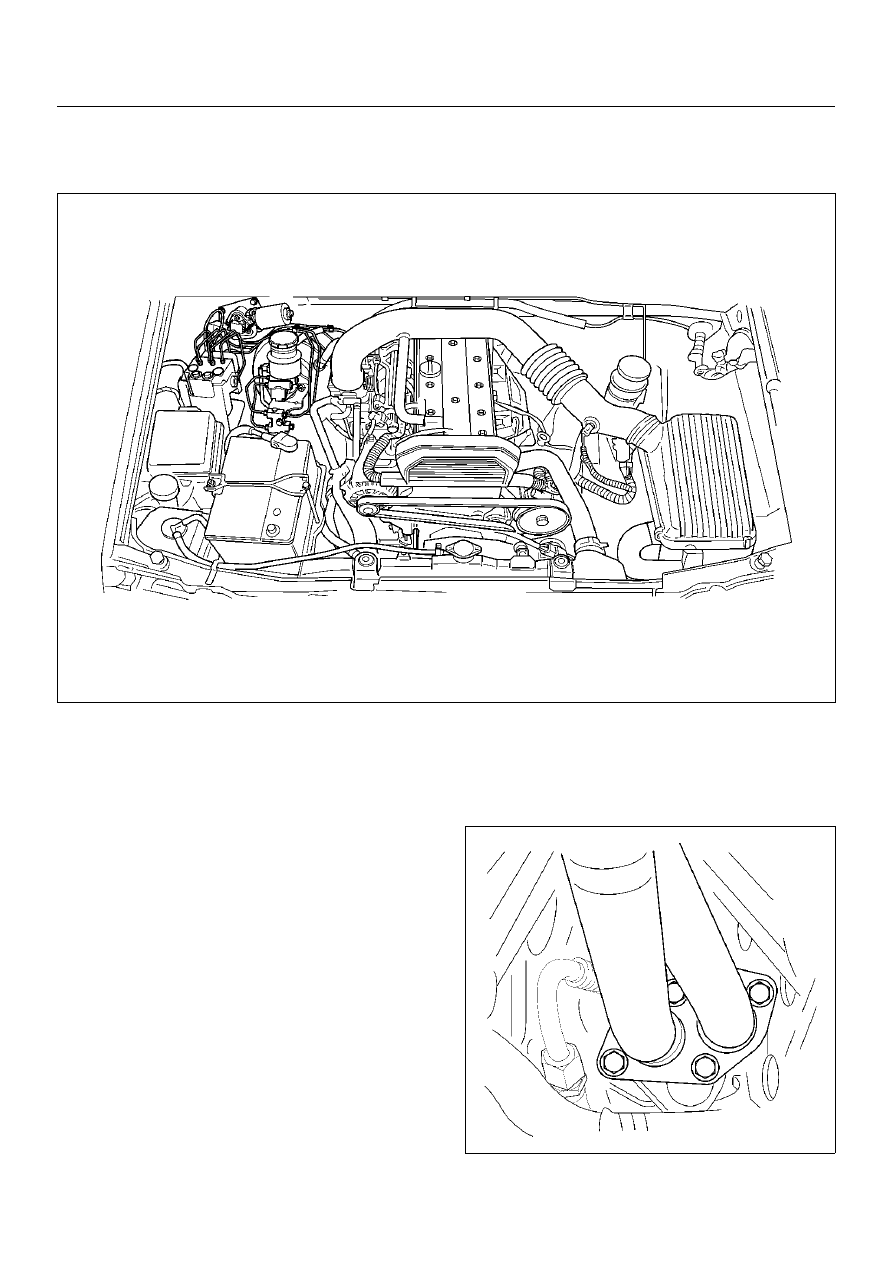

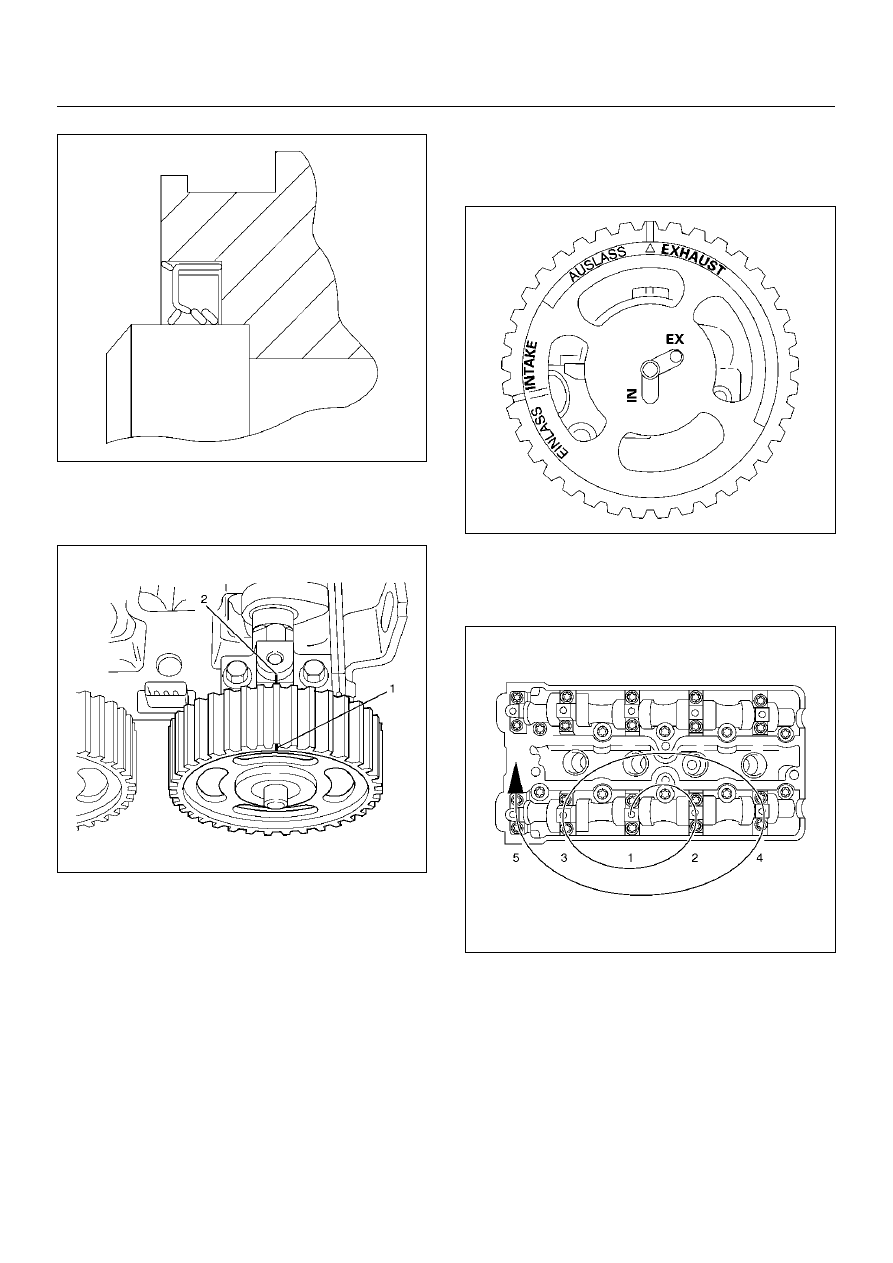

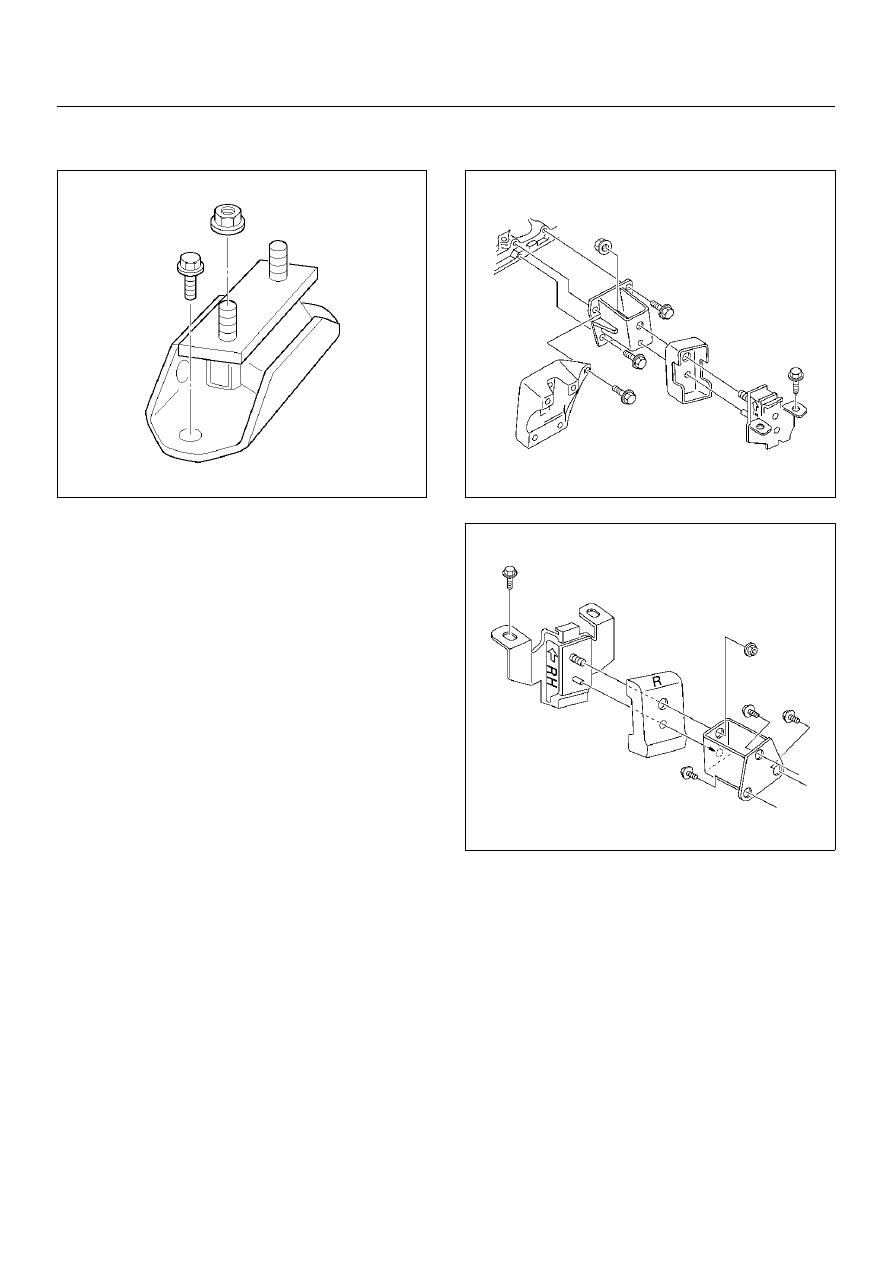

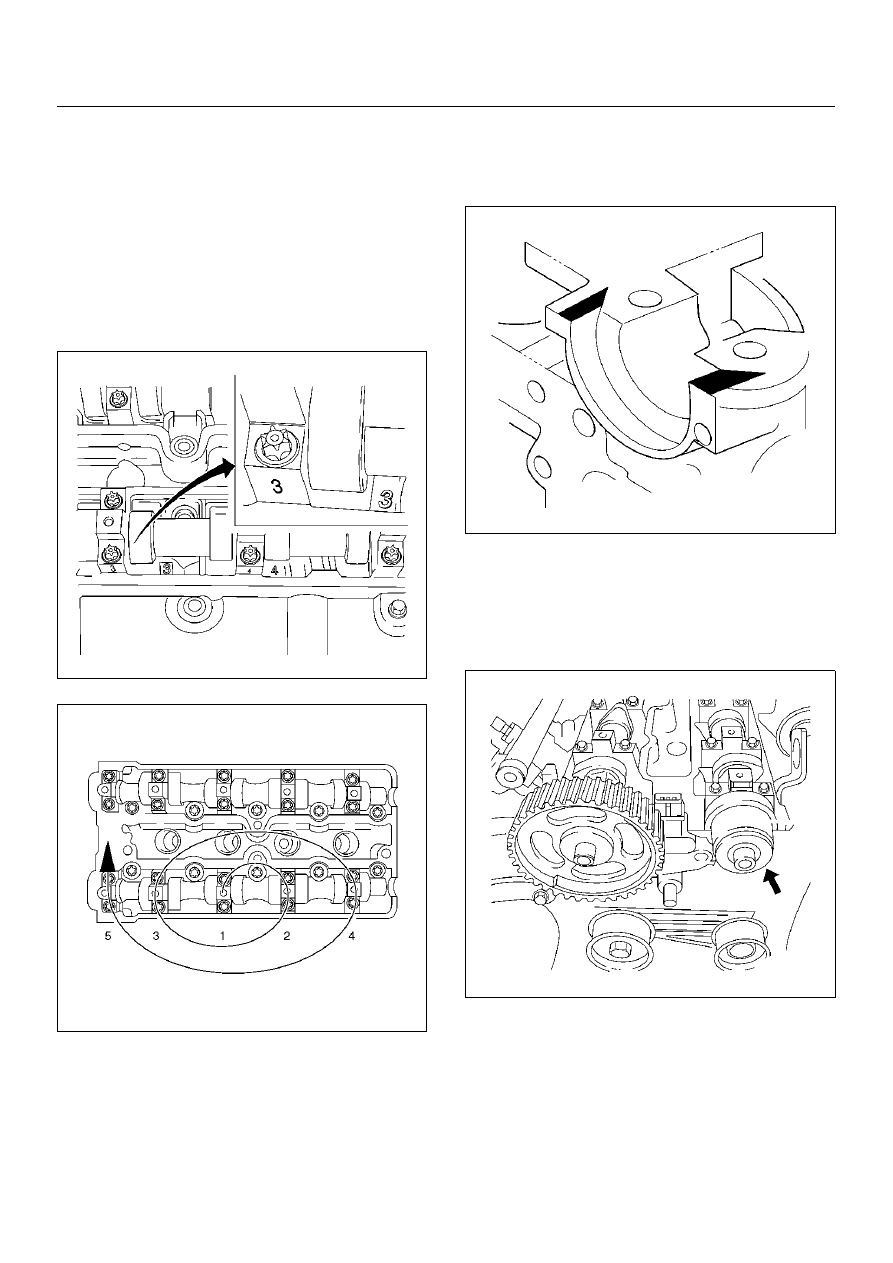

ENGINE MECHANICAL (X22SE 2.2L) 6A–37 Installation 1. Clean surface of camshaft bracket and HLA. 2. Apply engine oil to journal surface of camshaft bracket and HLA. 3. Install camshaft to cylinder head. 4. Install camshaft bracket according to numerical as shown in the illustration. • Exhaust: 1 to 5 from front • Intake: 6 to 10 from front. 014RW052 015RW014 Camshaft oil seal installation area on the cylinder 014RW073 5. Tighten camshaft bracket bolts to the specified torque by sequence in the illustration. Torque: 8 N·m (0.8Kg·m/5.9lbft) 6. Use 5–8840–2658–0 for installation camshaft oil seal. 014RW075 |
