BRAKE CONTROL SYSTEM

5A–27

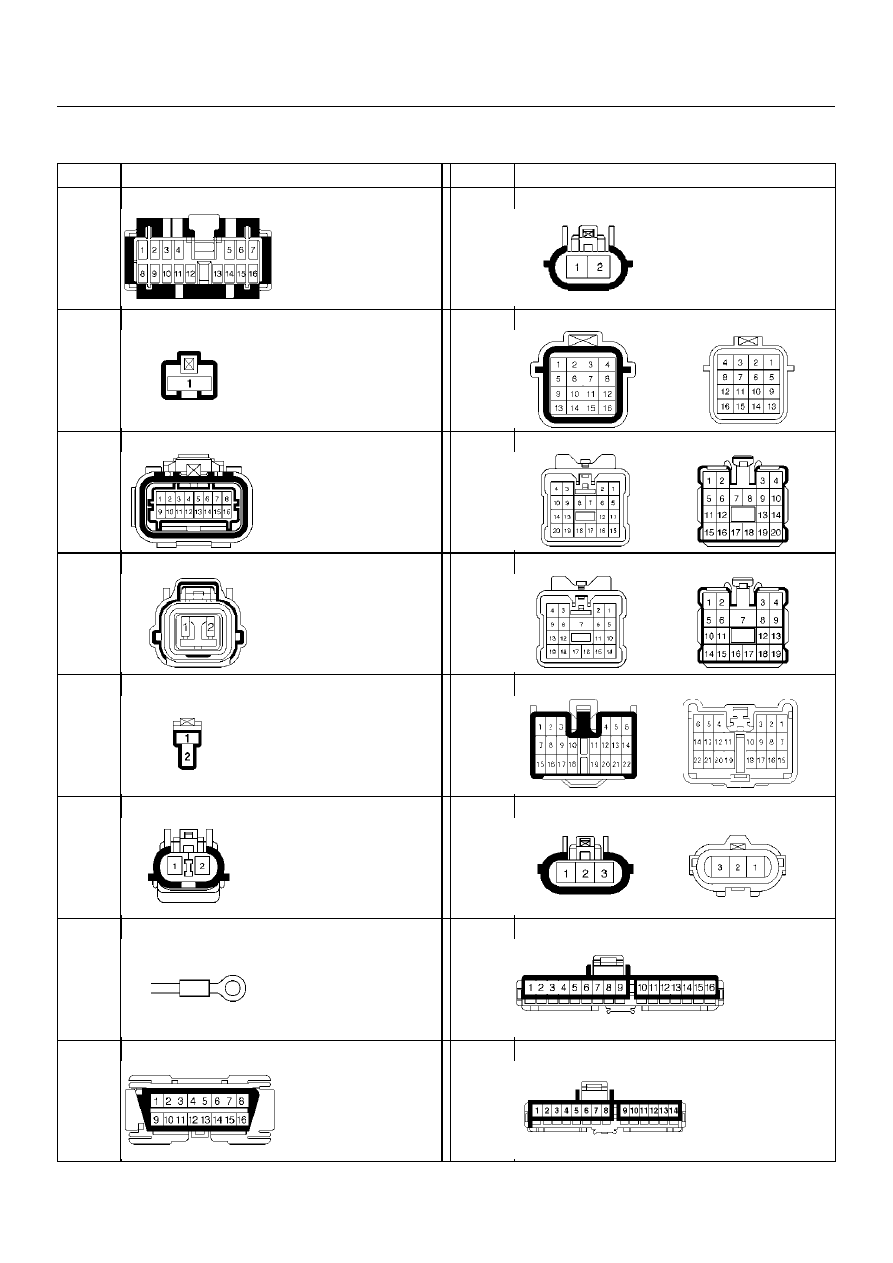

Connector List

No.

Connector face

No.

Connector face

B-19

F-4

B-23

H-5

C-4

H-15
H-25

C-5

H-14

C-6

H-19

C-13
C-33

H-26

C-16
C-36

E-28
E-30

I-1

C-34

I-2

5A–28

BRAKE CONTROL SYSTEM

I-18

No.

Connector face

No.

Connector face

BRAKE CONTROL SYSTEM

5A–29

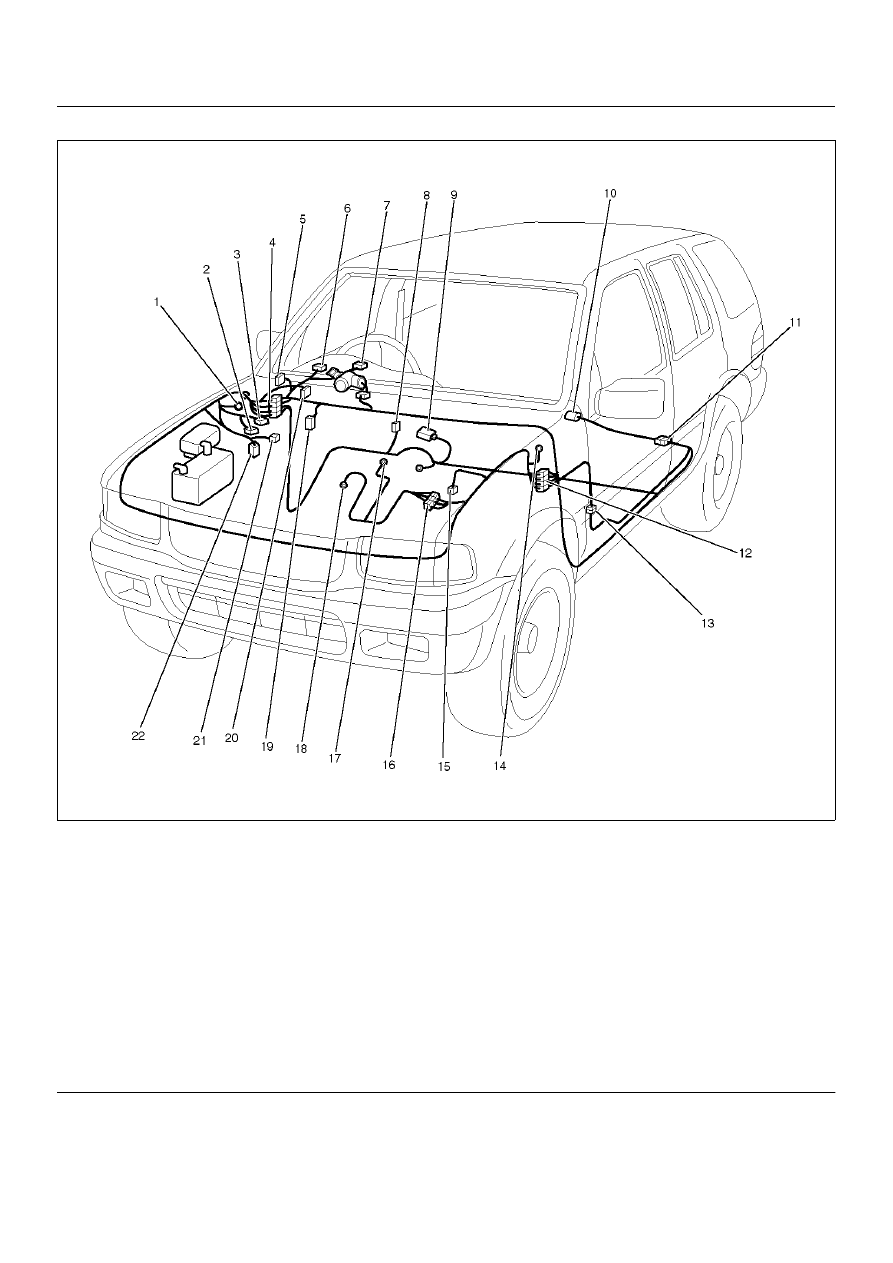

Part Location

D08RX217

Legend

EndOFCallout

(1) C–36
(2) C–5
(3) C–4
(4) H–14, H–19
(5) Relay & Fuse Box
(6) I–1
(7) I–2
(8) B–23
(9) B–19

(10) F–4
(11) H–26
(12) H–15

(13) H–25
(14) C–16
(15) C–13
(16) H–5
(17) E–30 (6VD1)
(18) E–28 (X22SE)
(19) I–18
(20) C–34
(21) C–6
(22) C–33

5A–30

BRAKE CONTROL SYSTEM

Symptom Diagnosis

The symptoms that cannot be indicated by warning light
can be divided in the following five categories:

1. ABS works frequently but vehicle does not

decelerate.

2. Uneven braking occurs while ABS works.

3. The wheels lock during braking.

4. Brake pedal feel is abnormal.

5. Braking sound (from EHCU) is heard while not

braking.

These are all attributable to problems which cannot be
detected by EHCU self-diagnosis.   Use the customer
complaint and a test to determine which symptom is
present.   Then follow the appropriate flow chart listed
below.

Chart A-1 ABS Works Frequently But Vehicle Does Not Decelerate

No.

Symptom

Diagnostic Flow Charts

Without TECH 2

With TECH 2

1

ABS works frequently but vehicle does not decelerate.

Chart A-1

Chart TA-1

2

Uneven braking occurs while ABS works.

Chart A-2

Chart TA-2

3

The wheels are locked.

Chart A-3

Chart TA-3

4

Brake pedal feel is abnormal.

Chart A-4

5

Braking sound (from EHCU) is heard while not braking.

Chart A-5

Chart TA-5

Step

Action

Yes

No

Is braking force distribution normal between front and rear of
vehicle?

Go to Step 2

Repair brake

parts.

Go to Step 8

Are axle parts installed normally?

Go to Step 3

Repair axle

parts.

Go to Step 8

Is there play in each or any wheel speed sensor?

Repair wheel

speed sensor.

Go to Step 8

Go to Step 4

Is there damage, or powered iron sticking to each or any wheel
speed sensor/sensor ring?

Replace sensor

or sensor ring.

Go to Step 8

Go to Step 5

Is the output of each wheel speed sensor normal? (Refer to chart
C-1 or TC-1)

Go to Step 6

Replace wheel

speed sensor or

repair harness.

Go to Step 7

Is the input of 4WD controller normal?

Go to Step 7

Replace

controller or

repair harness.

Go to Step 7

Reconnect all components, ensure all components are properly
mounted.
Was this step finished?

Repeat the “Basic

diagnostic flow

chart"

Go to Step 7
