BRAKE CONTROL SYSTEM

5A–23

Basic Diagnostic Flow Chart

Basic Inspection Procedure

1. Basic Inspection of Service Brake

2. Ground Inspection

Step

Action

Yes

No

1

1. Customer complaint.

2. Questioning to customer.

3. Basic inspection (Refer to “Basic inspection procedure")

Using TECH 2?

Go to Step 2

Go to Step 4

2

Make sure of DTC by mode “F0: Diagnostic Trouble Codes".
Is EHCU including DTC?

Clear code and

check for

repeatability.

Go to Step 3

Go to Step 5

3

1. Repair of faulty part.

2. Elimination of DTC.

3. Inspection of “ABS" W/L Illumination pattern with ignition SW

“ON".

4. Test drive.

Does trouble repeat?

Repeat the

diagnosis it the

symptom or

DTC appears

again

Go to Step 1

Go to Step 5

4

Check if the DTC is stored or not.
Is EHCU including DTC?

Clear code and

check for

repeatability

Go to Step 3

Trouble

diagnosis

based on

symptom (Refer

to “SYMPTOM

DIAGNOSIS")

Go to Step 3

5

1. Reconnect all components. Ensure all component are

properly mounted.

2. Clear diagnostic trouble code.

Was this step finished?

Finished

Go to Step 5

Step

Action

Yes

No

1

Is the fluid level normal?

Go to Step 2

Replenish with

fluid

Go to Step 2

2

Does fluid leak?

Repair

Go to Step 3

Go to Step 3

3

Is the booster function normal?

Go to Step 4

Repair

Go to Step 4

4

Is the pad and rotor normal?

Go to Step 5

Repair

Go to Step 5

5

Reconnect all components. Ensure all component are properly
mounted.
Was this step finished?

Finished

Go to Step 5

Step

Action

Yes

No

1

Does ABS—related ground points normally?

Go to Step 2

Repair

Go to Step 2

2

Reconnect all components. Ensure all component are properly
mounted.
Was this step finished?

Finished

Go to Step 2

5A–24

BRAKE CONTROL SYSTEM

EHCU Connector Pin-out Checks

• Disconnect Electronic Hydraulic Control Module.

• Perform checks with high impedance digital

multimeter 5-8840-0366-0 or equivalent.

No.

Circuit to be Tested

Ignition

Switch

Position

Multimeter

Scale/Range

Measure

between Pin

Number

Nominal Value

Note

1

Power supply

OFF

20DCV

1 (C–5)
2 (C–5)

11.5V to 14.5V

2

Ignition enable

OFF

20DCV

1 (C–4)
7 (C–4)

0V to 0.1V

ON

20DCV

1 (C–4)
7 (C–4)

11.5V to 14.5V

3

Stoplight switch

OFF

20DCV

13 (C–4)

 7 (C–4)

10.5V to 14.5V

Press brake pedal

4

Ground connection

OFF

200

Ω

7 (C–4)
Ground

Less than 2

Ω

OFF

1

Ω

2 (C–5)
Ground

Less than 0.2

Ω

5

FL speed sensor

OFF

2k

Ω

 2 (C–4)

10 (C–4)

2.0k

Ω

 to 2.8k

Ω

Internal Resistance

OFF

200k

Ω

2 (C–4)
7 (C–4)

more than

100k

Ω

Insulation Resistance

OFF

200mACV

 2 (C–4)

10 (C–4)

more than

200mV

Turn wheel at 1RPS

6

FR speed sensor

OFF

2k

Ω

 3 (C–4)

11 (C–4)

2.0k

Ω

 to 2.8k

Ω

Internal Resistance

OFF

200k

Ω

3 (C–4)
7 (C–4)

more than

100k

Ω

Insulation Resistance

OFF

200mACV

 3 (C–4)

11 (C–4)

more than

200mV

Turn wheel at 1RPS

7

RR speed sensor

OFF

2k

Ω

 4 (C–4)

12 (C–4)

1.2k

Ω

 to 2.0k

Ω

Internal Resistance

OFF

200k

Ω

4 (C–4)
7 (C–4)

more than

100k

Ω

Insulation Resistance

OFF

200mACV

 4 (C–4)

12 (C–4)

more than

200mV

Turn wheel at 1RPS

BRAKE CONTROL SYSTEM

5A–25

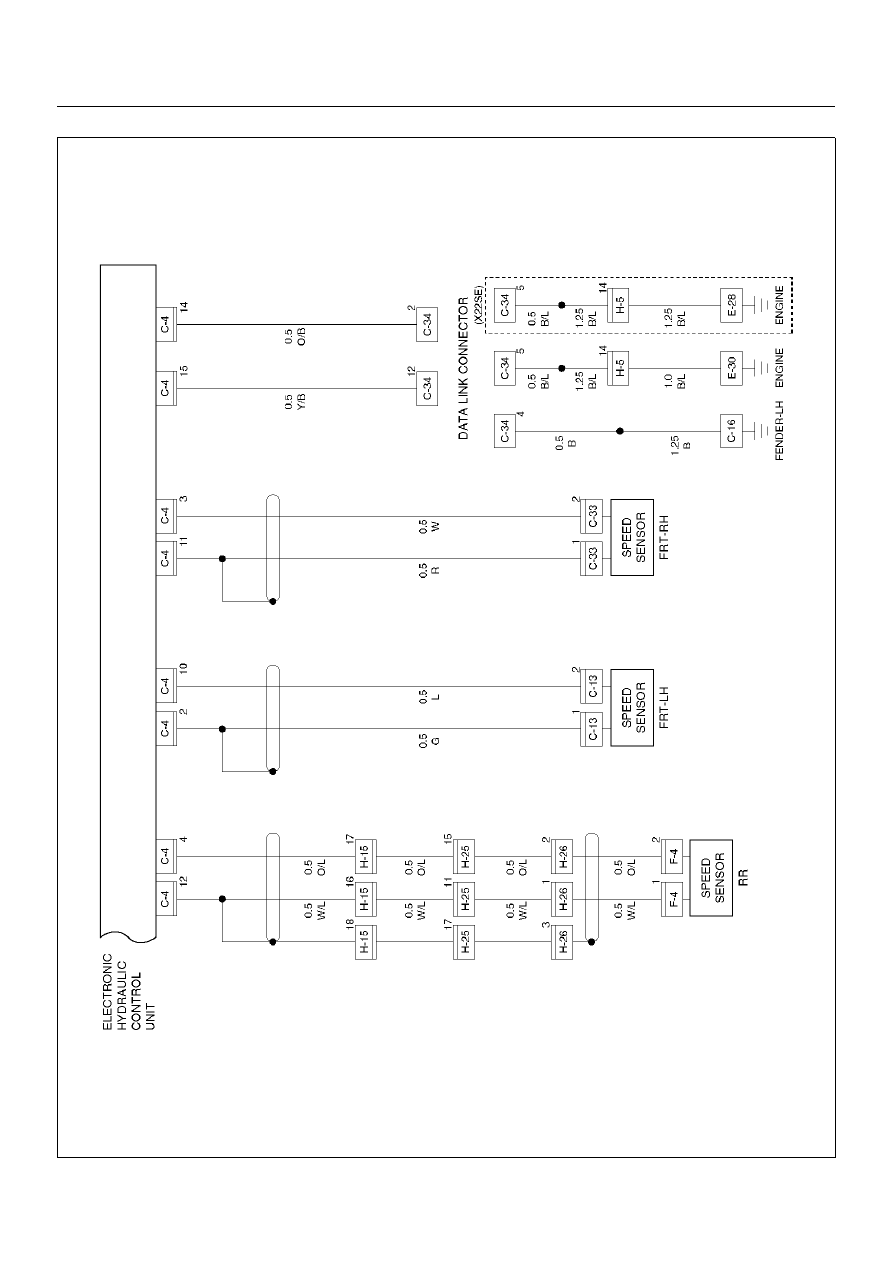

Circuit Diagram

D08RX216

5A–26

BRAKE CONTROL SYSTEM

D08RX215
